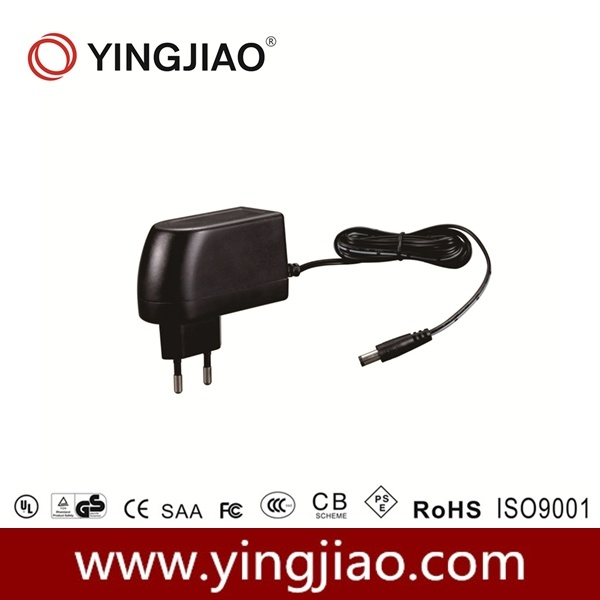

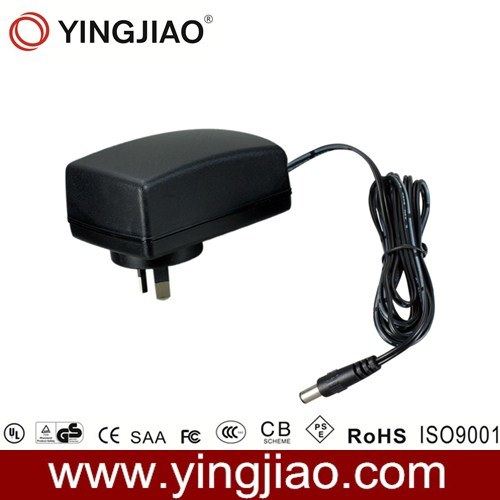

Yingjiao High Quality 25-35W Switch Mode Power Adapter
Yingjiao High Quality 25-35W Switch Mode Power Adapter
Yingjiao High Quality 25-35W Switch Mode Power Adapter
Yingjiao High Quality 25-35W Switch Mode Power Adapter
Yingjiao High Quality 25-35W Switch Mode Power Adapter
1 / 5
Yingjiao High Quality 25-35W Switch Mode Power Adapter
Yingjiao High Quality 25-35W Switch Mode Power Adapter
Yingjiao High Quality 25-35W Switch Mode Power Adapter
Yingjiao High Quality 25-35W Switch Mode Power Adapter
Yingjiao High Quality 25-35W Switch Mode Power Adapter

Yingjiao High Quality 25-35W Switch Mode Power Adapter

Customization: Available
Usage: Laptop, Switching, Mobile Phone, Game Player, Digital Camera, Phone, Display
Output Type: AC or DC
Send Inquiry

Product Description

Basic Specifications
Model NO.
YS30
Certification
TUV, RoHS, ISO9001, CCC
Color
Black
Type
OEM/ODM
Internal Structure
On-Off Type
Power Source
Half-Bridge Type
Connection
Plug In
Warranty
3 Years
Protection
Hipot, Short Circuit, Overvoltage, Overload
Efficiency
High Efficiency & Low Consumption
Production
1000 PCS Per Day
Lead Time
15-25 Days
Core Features & Functions
  • Universal Input: 100-240V AC 50/60Hz
  • Safety Compliance: UL/CUL/TUV/GS/CE/CCC
  • RoHS Compliance
  • Short Circuit & Over Current Protection
  • Over Voltage Protection
  • Light Weight & Compact Design
Technical Parameters
Environmental Conditions:
  • Operating Temp: 0 ~ +40°C
  • Storage Temp: -40 ~+70°C
  • Operating Humidity: 10% ~ 90% RH (Non-condensing)
Mechanical Info:
  • Dimensions: 79mm(L)*52mm(W)*37mm(H)
  • Net Weight: 145g
  • Plug Types: EU 2-pin, US 2-pin, UK 3-pin optional
Output Specifications Table
Model Output Voltage (V) Max. Load Current (A)
YS30-XX36036V0.80A
YS30-XX24024V1.20A
YS30-XX19019V1.50A
YS30-XX15015V2.00A
YS30-XX12012V2.50A
YS30-XX0909V3.00A
YS30-XX0757.5V3.00A
Product Presentation
Switch Mode Power Adapter View 1 Switch Mode Power Adapter View 2 Switch Mode Power Adapter View 3
Frequently Asked Questions
What is the input voltage range for the YS30 adapter?
The YS30 series supports universal AC input from 100V to 240V, 50/60Hz, making it suitable for global use.
What safety certifications does this power adapter carry?
This model is fully compliant with UL, CUL, TUV, GS, CE, and CCC safety standards.
Is there any protection against electrical faults?
Yes, it features multiple protection protocols including short circuit, over-current, over-voltage, and over-load protection.
Can I customize the output plug and AC input plug?
Yes, AC input options include European 2-pin, US 2-flat pin, or UK 3-pin. Output plugs are also optional based on requirements.
What is the warranty period for this product?
The YS30 power adapter comes with a 3-year warranty and is designed for a long service lifetime.
What is the typical delivery time for orders?
The typical delivery time ranges from 15 to 25 days depending on the order volume and customization requirements.
