Universal 12V Power Supply Adapter Switch Mode CCTV Camera Power Adapter 5V 6V 7.5V 9V 15V 24V

1 / 5

Universal 12V Power Supply Adapter Switch Mode CCTV Camera Power Adapter 5V 6V 7.5V 9V 15V 24V

Customization:	Available
Output Type:	DC
Output Power:	12W

Send Inquiry

Product Description

Basic Specifications

Model NO.

YS12V-U

Product Name

Universal 12watt 12V 1A Power Adapter

Input Voltage

100-240VAC 50/60Hz

Output Voltage

5-36V DC

Certification

CE, RoHS, CCC, CB, FCC, PSE

Dimension

64*28*56mm

Service

OEM/ODM

Energy Level

Efficiency Level VI

Product Features

Universal Input: Full range 100-240VAC support for global use.
High Efficiency: Meets Energy Efficiency Level VI standards.
Safety Protections: Built-in Over load, Over voltage, and Short circuit protection.
Low Leakage: Extremely low leakage current <0.25mA.
Industrial Quality: Withstand voltage up to 3KV and 3-year life warranty.

Technical Parameters

Model	YS120502000	YS12-0602000	YS12-0751500	YS12-0901300	YS12-1201000	YS12-1500800	YS12-2400500
Output Voltage	5V DC	6V DC	7.5V DC	9V DC	12V DC	15V DC	24V DC
Output Current	2.4A	2A	1.5A	1.3A	1A	0.8A	0.5A
Power	12W Max
EMC Standards	EN55011, EN55014, EN55022, FCC PART15, EN6100-3-2

Common Applications

🚀 Consumer Electronics: Robot sweepers, smart home devices.

🚀 Medical Devices: Blood glucose meters and portable health monitors.

🚀 Security: CCTV cameras and surveillance power supply.

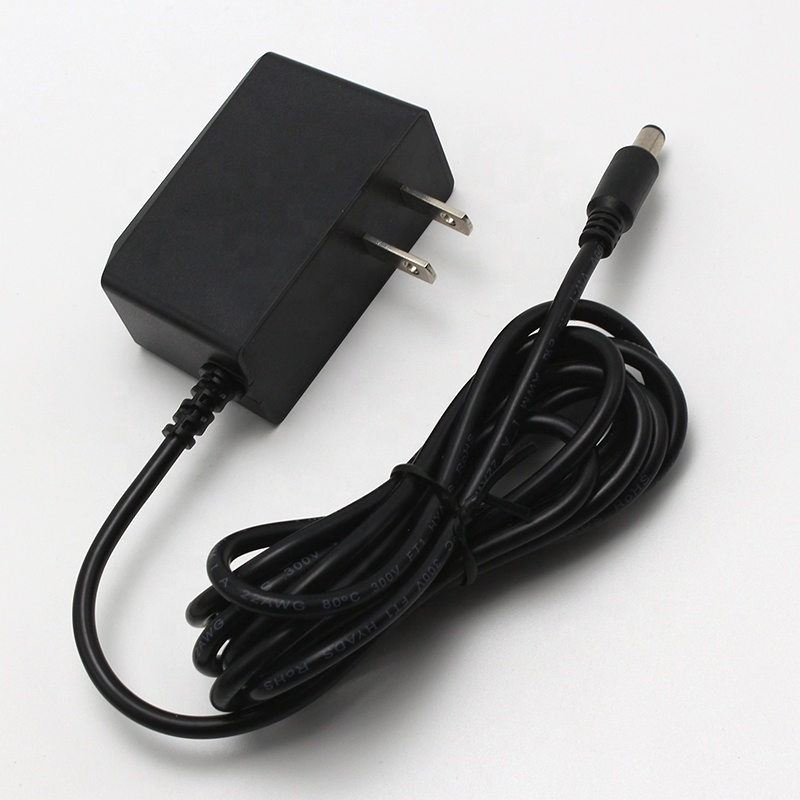

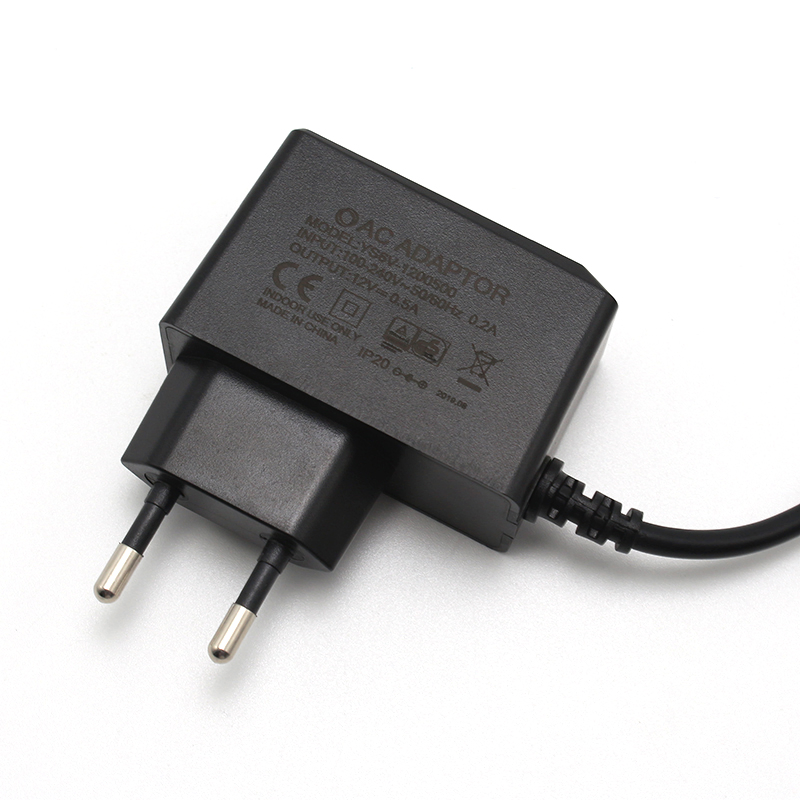

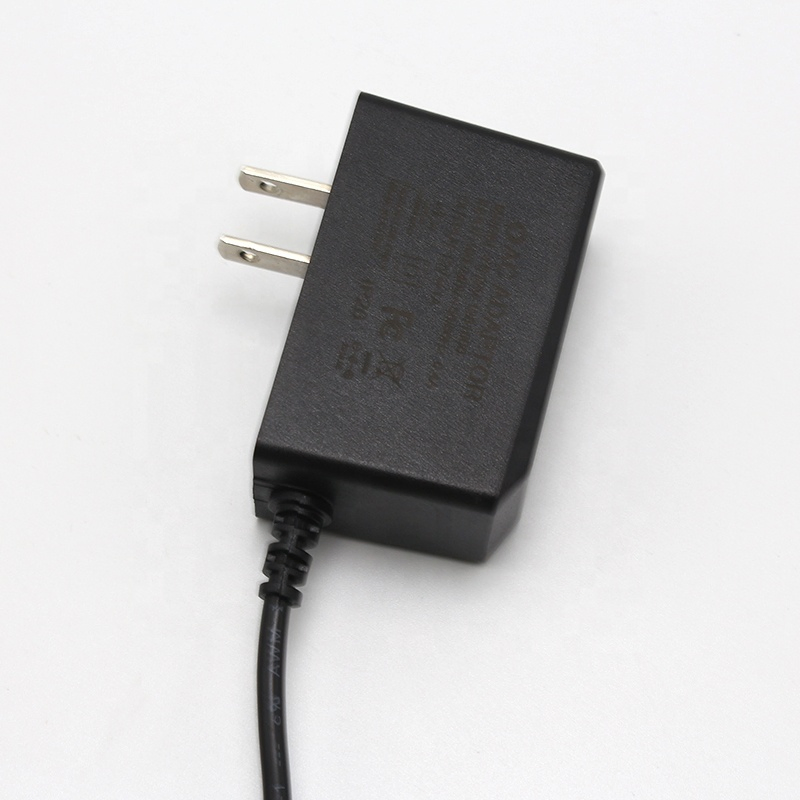

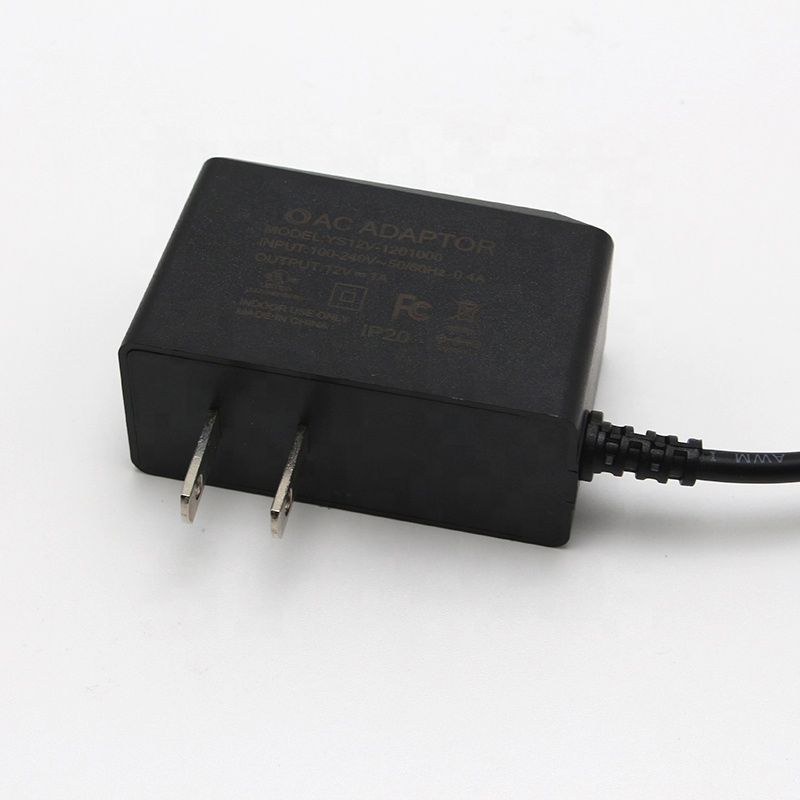

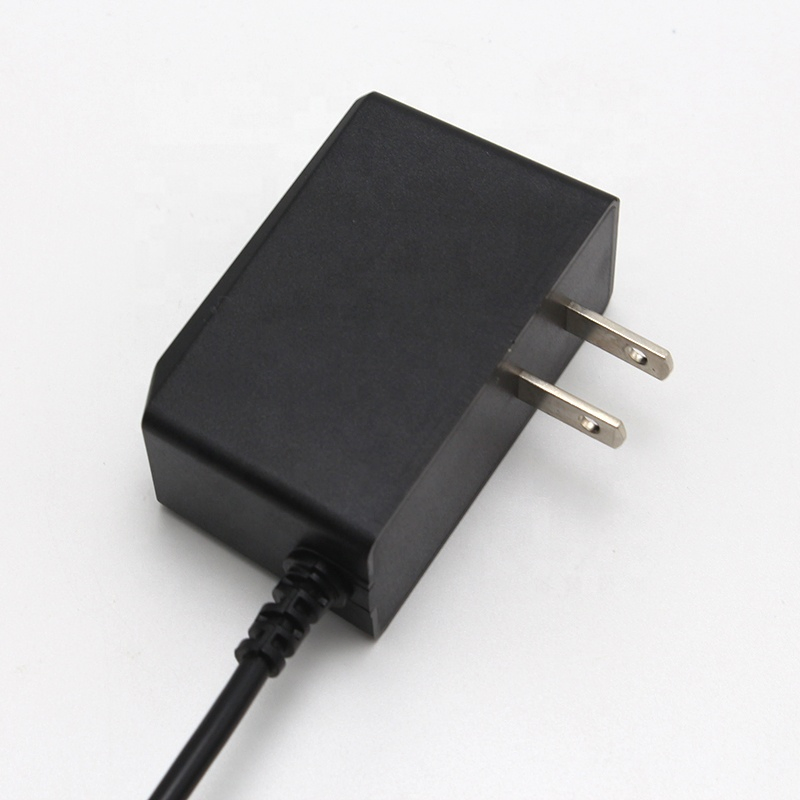

Product Showcase

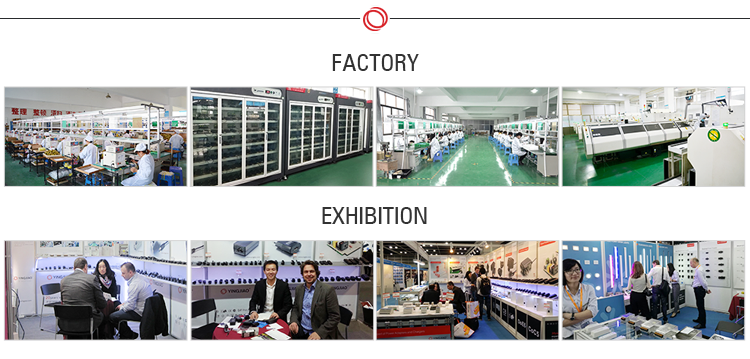

Manufacturing & Quality

Certifications & Transport

Frequently Asked Questions

Q: What is the input voltage range for this adapter? A: It supports a universal AC input range of 100-240V, making it suitable for global use.

Q: Does this power supply have safety certifications? A: Yes, it is fully certified with CE, RoHS, CCC, CB, FCC, and PSE standards.

Q: What kind of protections are built into the device? A: It includes short circuit, over current, over voltage, and over temperature protection.

Q: What is the warranty period for this product? A: We provide a 3-year life warranty for our 12W series power adapters.

Q: Can I use this for medical equipment? A: Yes, it is suitable for medical devices like blood glucose meters due to its extremely low leakage current (<0.25mA).

Q: Is OEM customization available? A: Yes, we offer OEM/ODM services including custom output voltages, cable lengths, and packaging.
