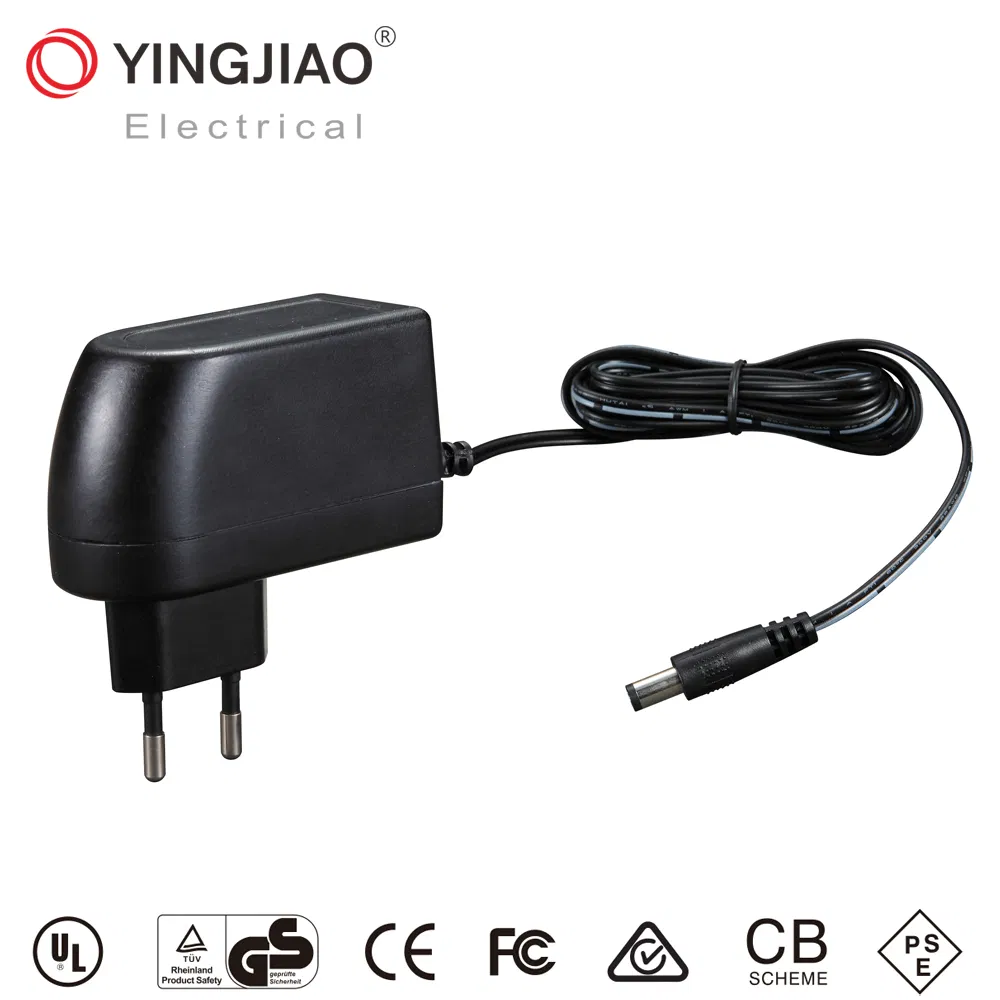

📊 Basic Information
Model NO.YS30 series
CertificationTUV, RoHS, ISO9001, CCC
TypeOEM/ODM
Power SourceHalf-Bridge Type
ProtectionHipot, Short Circuit, Overvoltage, Overload, Overheat
AdvantageLong Lifetime, Surge Protecting
Warranty3 Years' Warranty
HS Code9405409000
Production1000 PCS Per Day
⚙️ Product Description
💡 Key Features
- Universal Input: 100-240V AC 50/60Hz
- Compliance: UL/CUL/TUV/GS/CE/CCC/RoHS
- High efficiency & low power consumption
- Short Circuit / Over Current / Over Voltage Protection
- Light Weight & Compact Design
🌱 Environmental Specifications
- Operating Temp: 0 ~ +40°C
- Storage Temp: -40 ~ +70°C
- Operating Humidity: 10% ~ 90% RH
- Storage Humidity: 5% ~ 95% RH
📋 Technical Data (YS30E)
| Power | 30W max. |
| Input | 100-240VAC 50/60Hz (0.66A max.) |
| Output Voltage | 5-36V |
| Output Current | 0.1-3.5A |
| Efficiency Level | Energy Efficiency Level VI (CoC 5 / DoE 6) |
| No Load Power | <0.075W |
| MTBF | 100,000 hours minimum at 25ºC |
| Dimensions | 76*34.5*43.5mm |
| Weight | 122g |
🔍 Model Selection Details
| Model | DC Voltage | Rated Current | Rated Power | Efficiency |
| YS30-0503500 | 5V | 3.5A | 17.5W | 82.85% |
| YS30-0903300 | 9V | 3.3A | 29.7W | 87.66% |
| YS30-1202500 | 12V | 2.5A | 30W | 87.70% |
| YS30-2401200 | 24V | 1.2A | 28.8W | 87.55% |
| YS30-3600800 | 36V | 0.8A | 28.8W | 88.30% |
🖼️ Product Gallery
❓ Frequently Asked Questions
Q1: What is the warranty period for the YS30 series power adaptor?
A1: We provide a 3-year warranty for this series, ensuring long-term reliability and performance.
Q2: Does this power supply meet international safety standards?
A2: Yes, it is fully compliant with UL, CUL, TUV, GS, CE, and CCC safety certifications.
Q3: What protections are built into the device?
A3: The adaptor includes Short Circuit Protection (SCP), Over Voltage Protection (OVP), and Over Current Protection (OCP).
Q4: Can I get custom AC input plugs?
A4: Yes, we offer optional European 2-round pin, US 2-flat pin, and UK 3-pin AC input plugs.
Q5: What is the energy efficiency rating?
A5: It meets Energy Efficiency Level VI (CoC 5 / DoE 6 / CEC VI) with no-load power consumption of less than 0.075W.
Q6: What is the typical lead time for production?
A6: The standard production delivery time is between 15 to 25 days.
