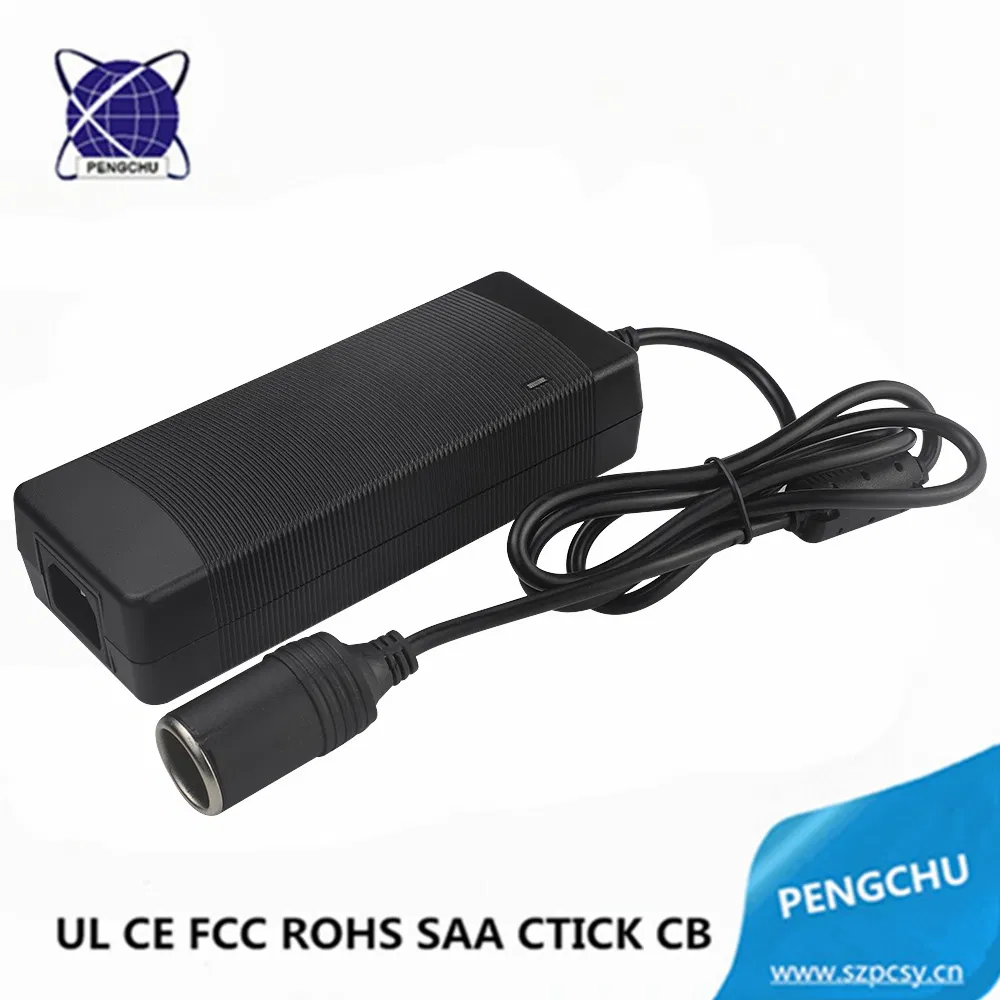

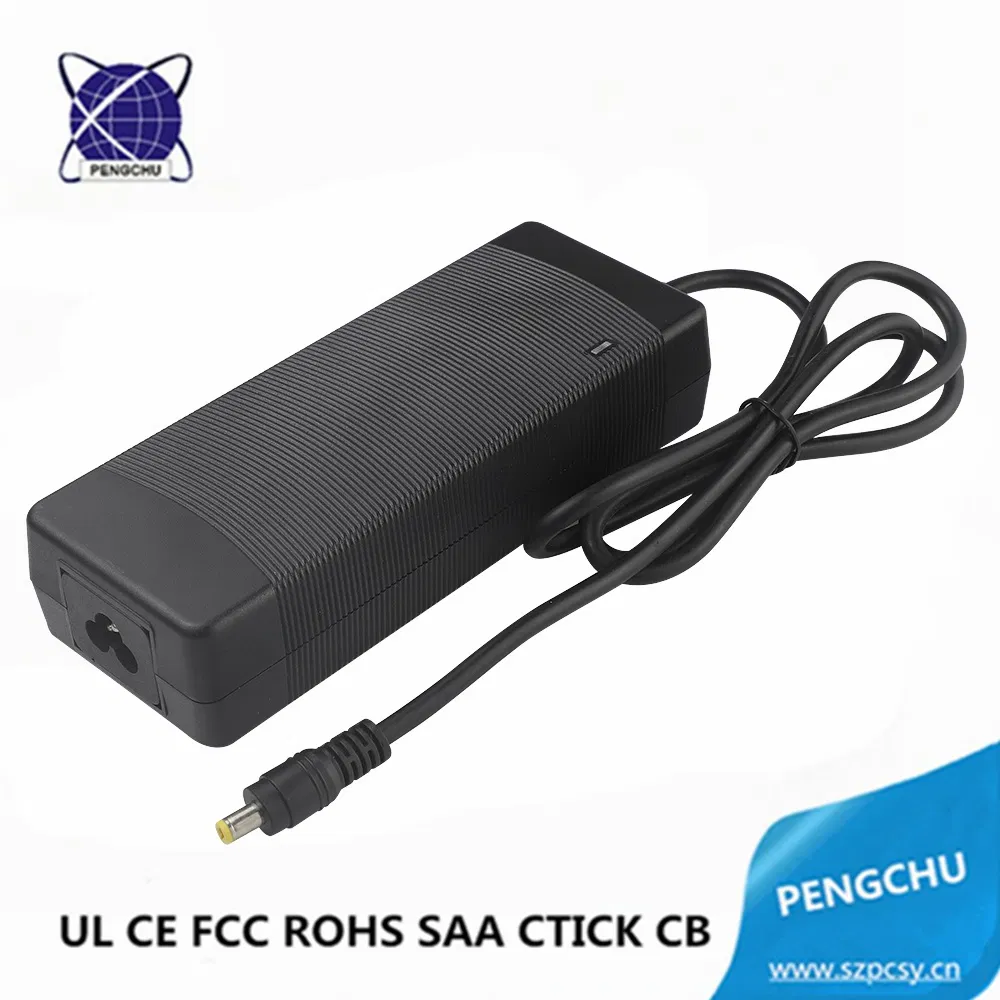

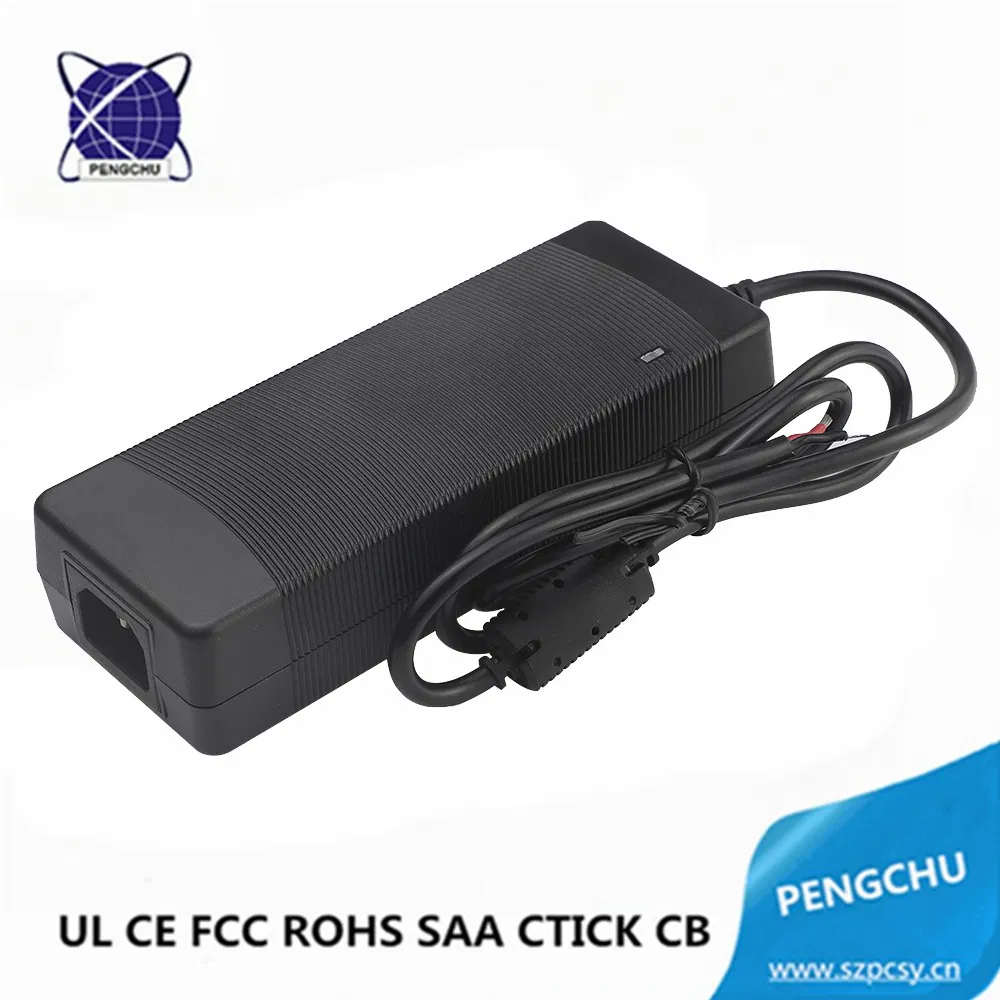

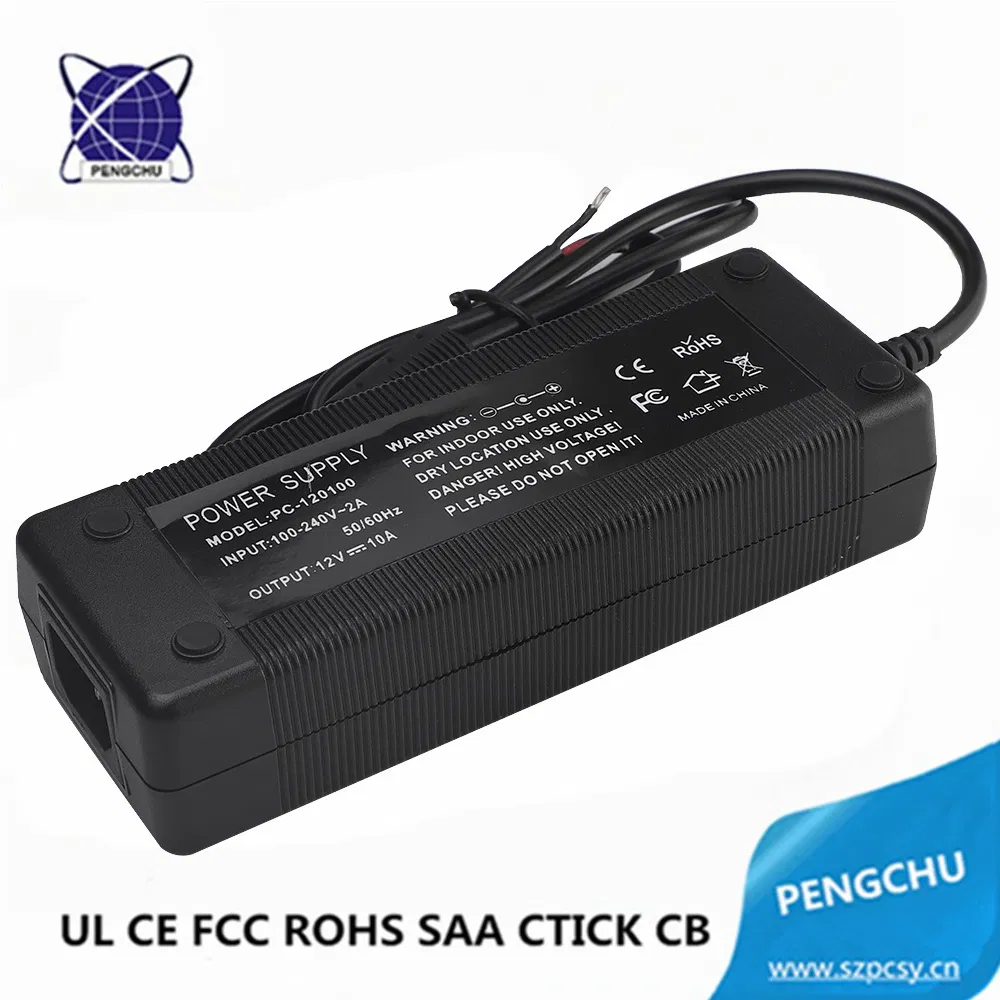

120W 12V 10A AC to DC Switch Mode Power Adapter
120W 12V 10A AC to DC Switch Mode Power Adapter
120W 12V 10A AC to DC Switch Mode Power Adapter
120W 12V 10A AC to DC Switch Mode Power Adapter
1 / 4
120W 12V 10A AC to DC Switch Mode Power Adapter
120W 12V 10A AC to DC Switch Mode Power Adapter
120W 12V 10A AC to DC Switch Mode Power Adapter
120W 12V 10A AC to DC Switch Mode Power Adapter

120W 12V 10A AC to DC Switch Mode Power Adapter

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
PC-120100
Certification
RoHS, CE, FCC
Output Voltage
12V
Output Current
10A
Power
120W
Efficiency
>85%
Connection
Desktop
Material
100% PC
Internal Structure
On-Off Type
DOE Level VI
Yes
120W 12V 10A Power Adapter Features
  • Universal AC input / Full range (up to 264Vac)
  • Protection: Short circuit / Overload / Over temperature
  • High efficiency, long life and high reliability
  • 100% full load burn-in test
  • Two years warranty
  • Class 1 design
Technical Specifications
DC Voltage12V
Rate Current10A
Current Range0~10A
Rate Power120W
Voltage Tolerance±5%
AC Input100~240Vac 50/60Hz (Max: 90~264Vac)
Short Circuit ProtectionAuto-restart after fault condition is removed
Over Current Protection130%-150%
Over Voltage Protection115%-135%
Operating Temp.-10 to 50ºC (±10ºC)
DC Connector5.5*2.5 or 5.5*2.1mm (Customizable)
AC Cable1.2m with USA/UK/EU/AU/India plugs
Product Display

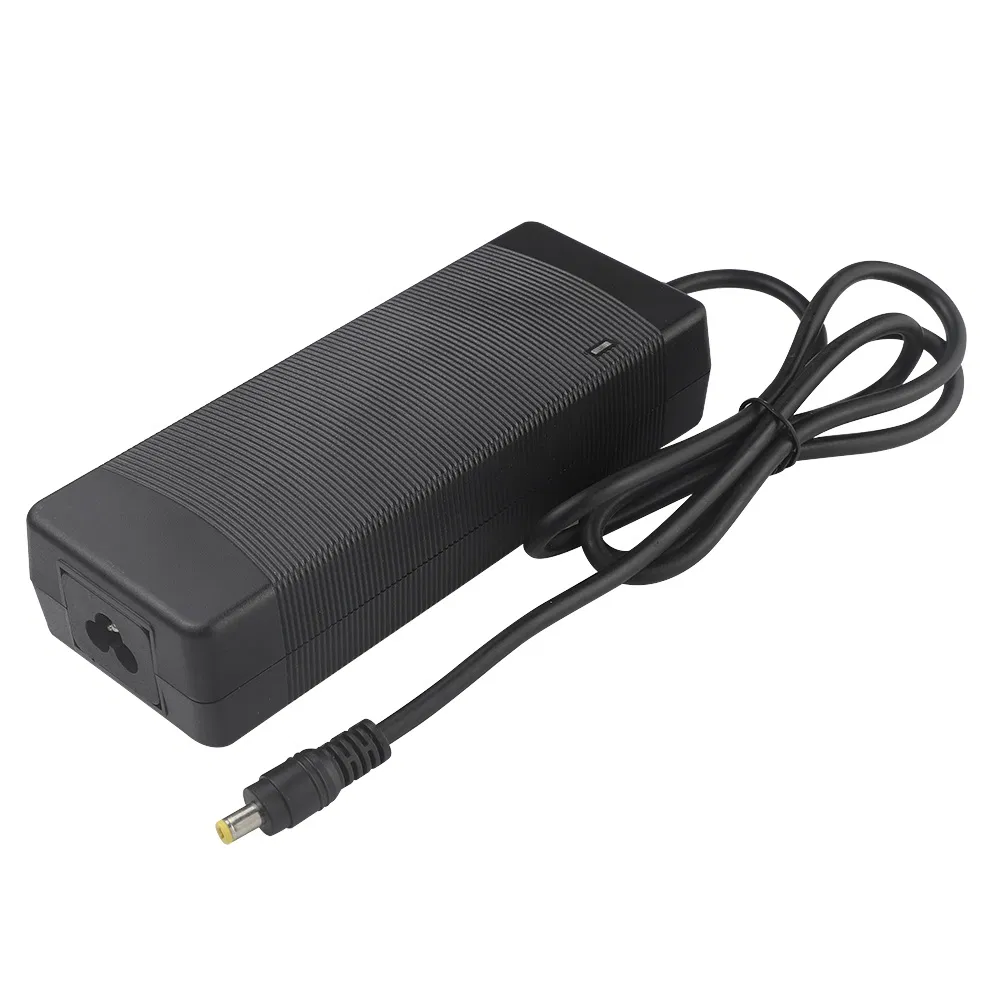

120W 12V 10A AC to DC Power Adapter

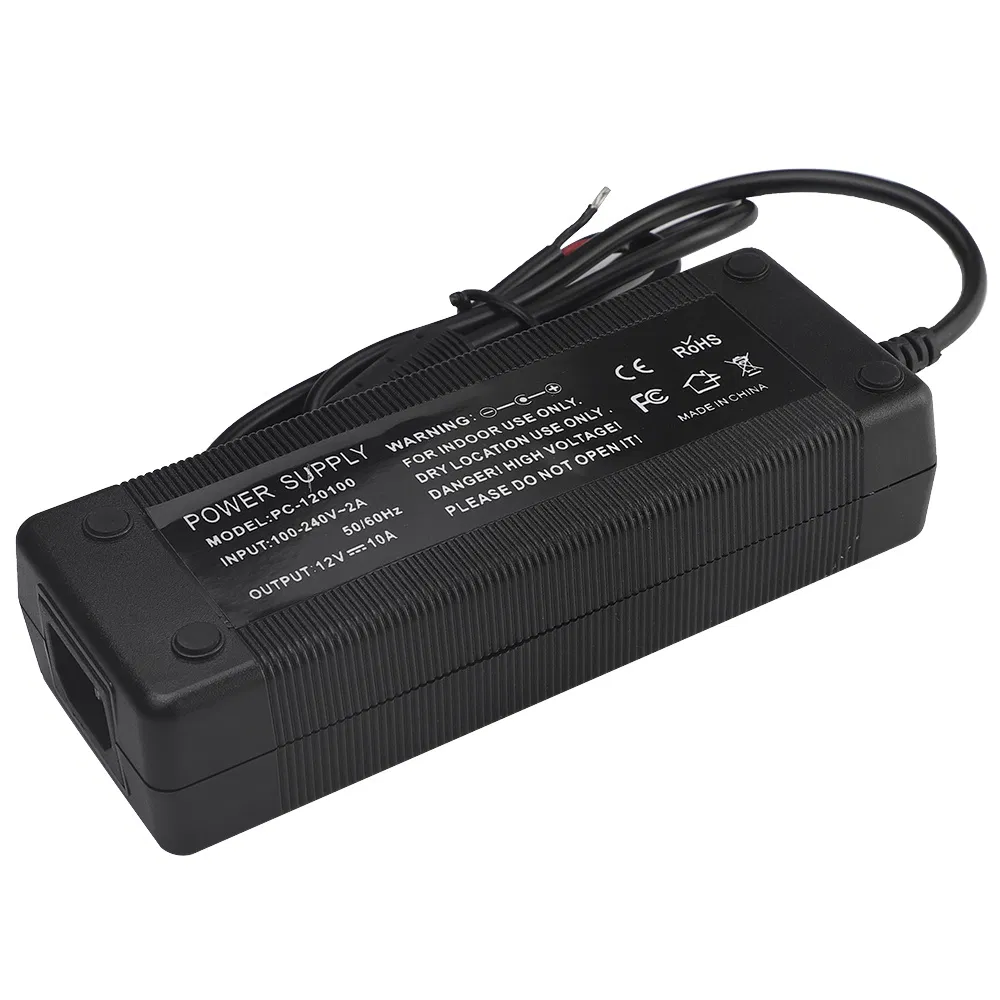

Power Adapter Black View

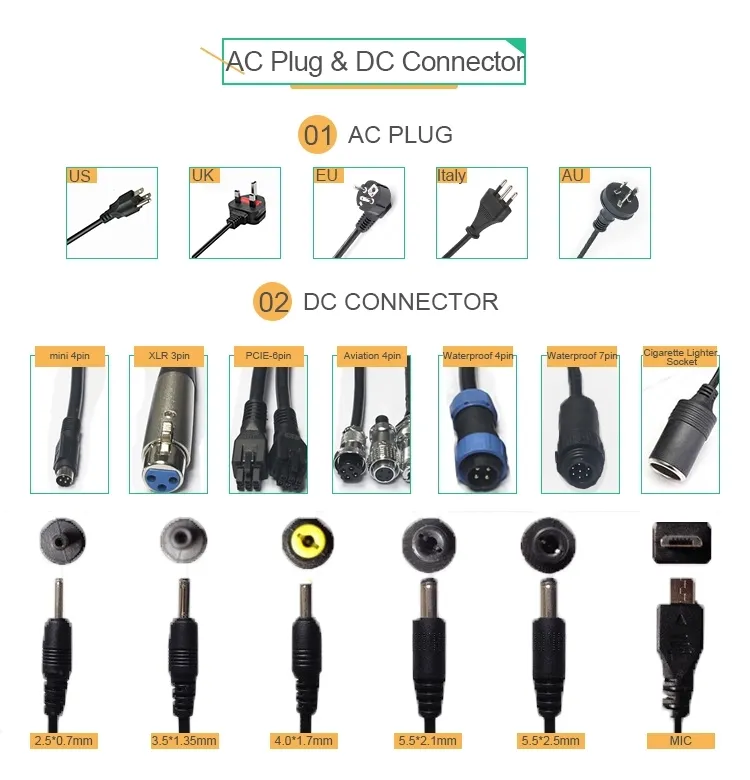

Power Supply Detailed View
Power Adapter Dimensions
Technical Chart
Certification Showcase
Frequently Asked Questions
What is your Minimum Order Quantity (MOQ)?
The MOQ is 100pcs. Small trial orders are also acceptable if we have stock material, and 1000pcs for customized units.
What payment methods do you accept?
We accept various payment methods including PAYPAL, ALIPAY, and Bank transfer (T/T).
How long is the warranty period for this adapter?
We provide a two-year warranty for this 120W power adapter.
What is the lead time for samples and mass production?
Sample time is approximately 3 working days, and goods delivery time is about 12 working days.
Can we print our own logo on the product?
Yes, we can print your logo on both the power adapter and the package.
What are the available shipment methods?
We can ship goods via express, air, or sea (FOB) depending on your request.
