Basic Specifications
Output Power
201 - 300W (288W-290W)
Input Voltage
100-240V 50/60Hz
Certification
CE, RoHS, CCC, CB, FCC, SAA, UL
Key Features & Advantages
- Fanless design, cooling by free air convection
- High Efficiency with PFC Function
- Universal AC input/Full range (up to 264Vac)

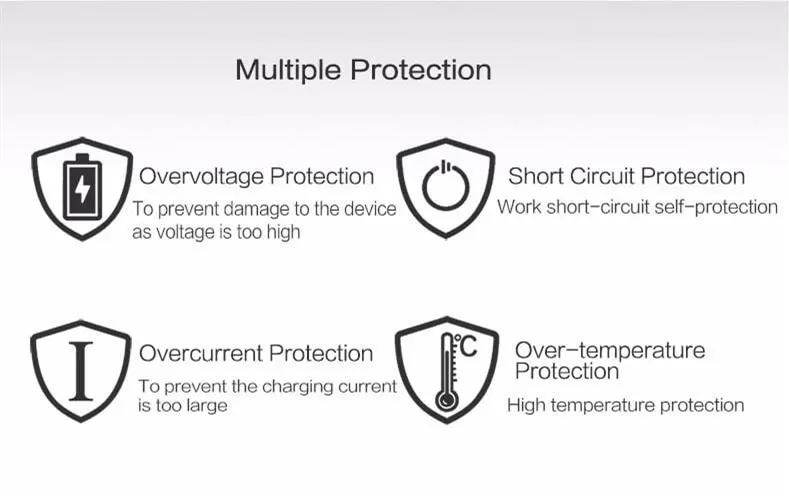

- Protection: Short circuit / Over current / Over temperature / Over voltage
- 100% full load burn-in test
- High reliability and long life span
- Two years warranty
- Professional R&D and sales support
Technical Parameters
| DC Voltage | 36V |
| Output Current | 8A |
| Voltage Tolerance | ±5% |
| Short Circuit Protection | Auto-restart after fault condition is removed |
| Over Current Protection | 130%-150% |
Operating Temperature-10 to 50ºC |
| AC Inlet | C6, C14 Optional |

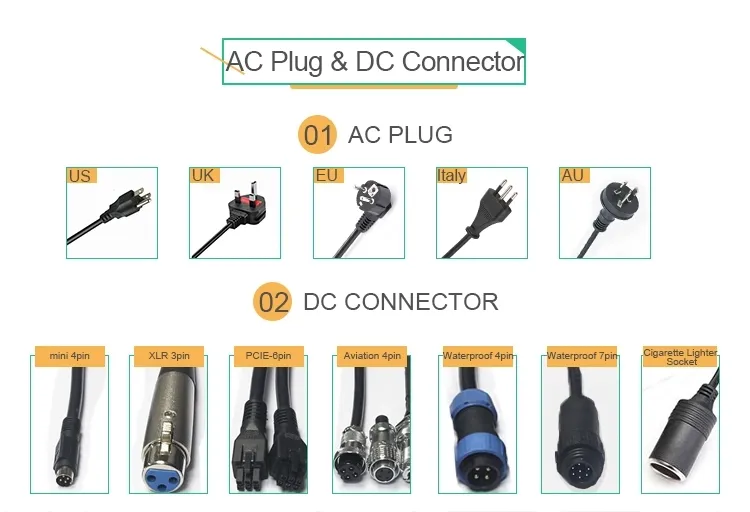

| DC Connector | 5.5*2.5mm / 5.5*2.1mm / 4pin / 6pin Optional |

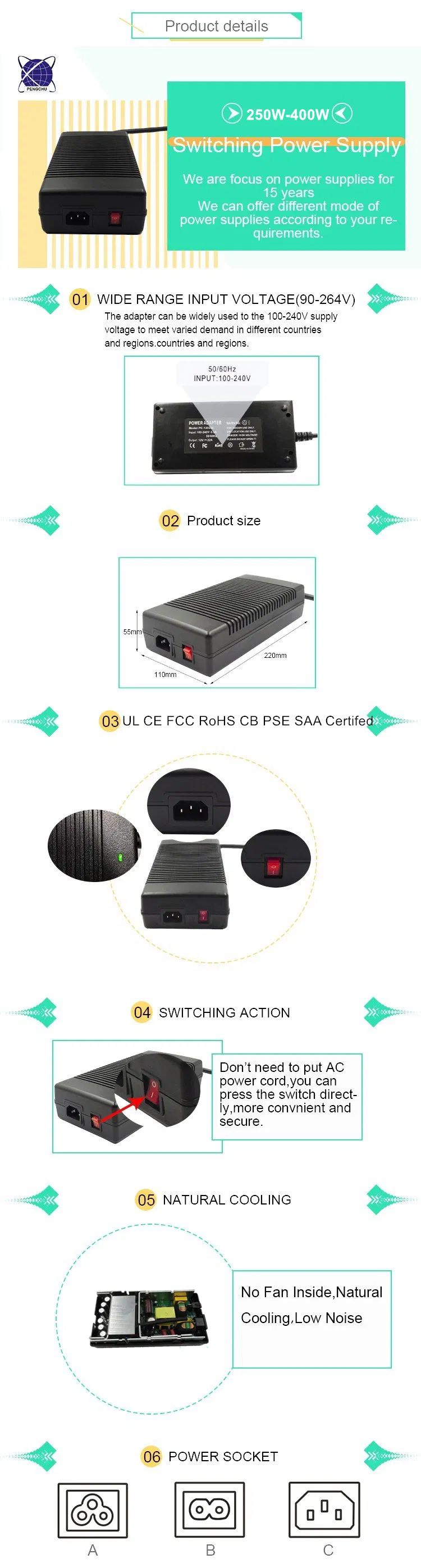

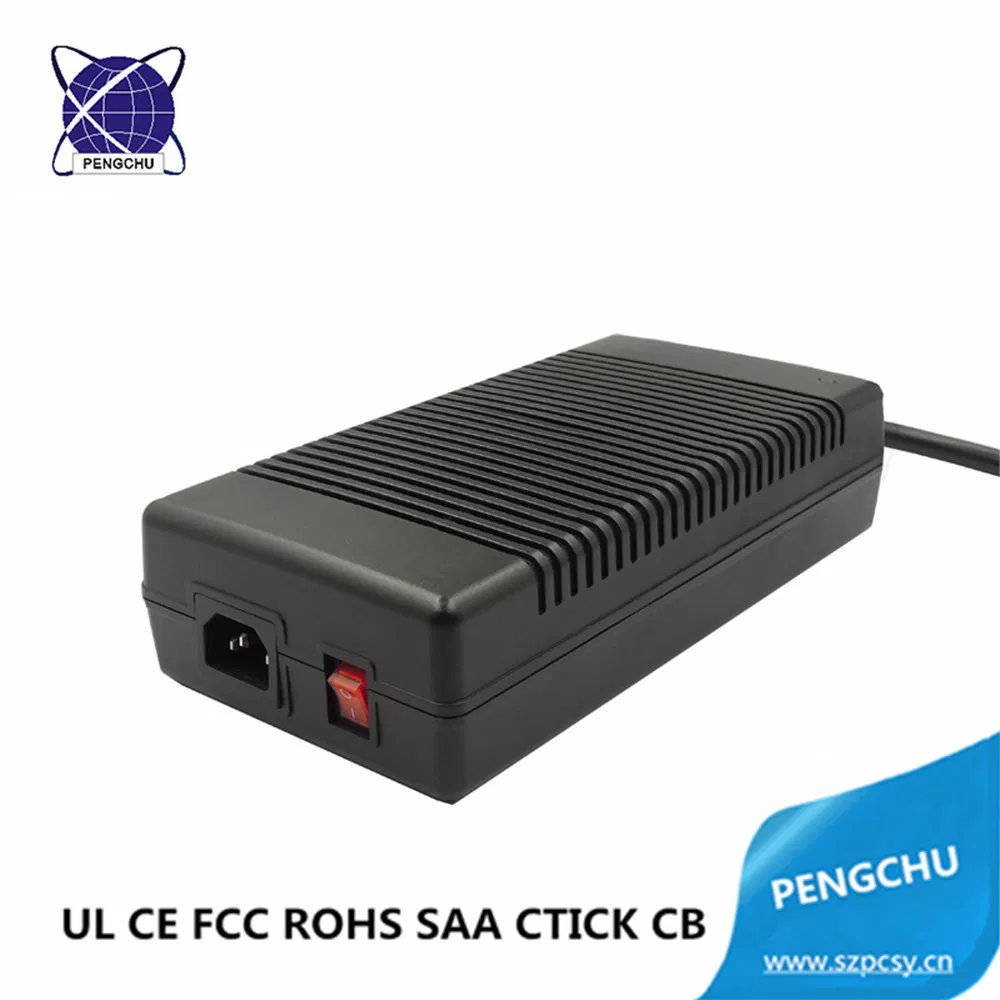

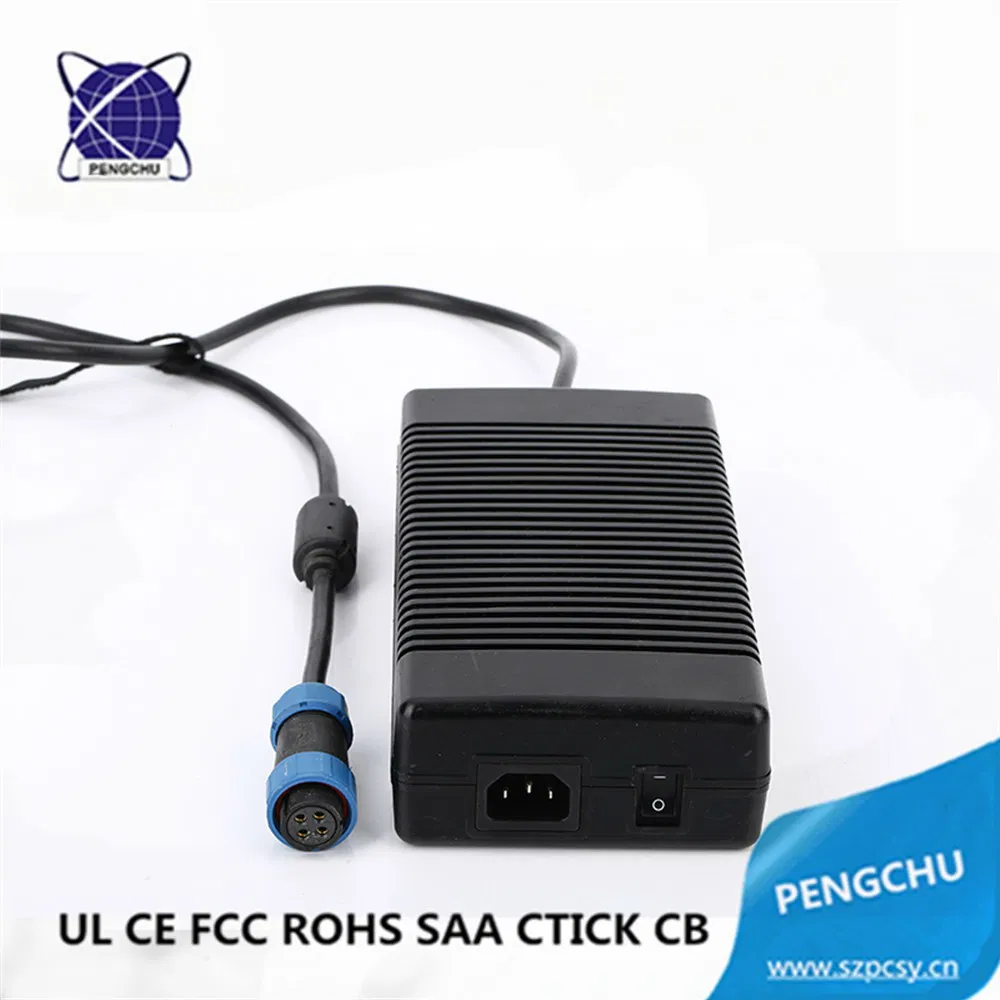

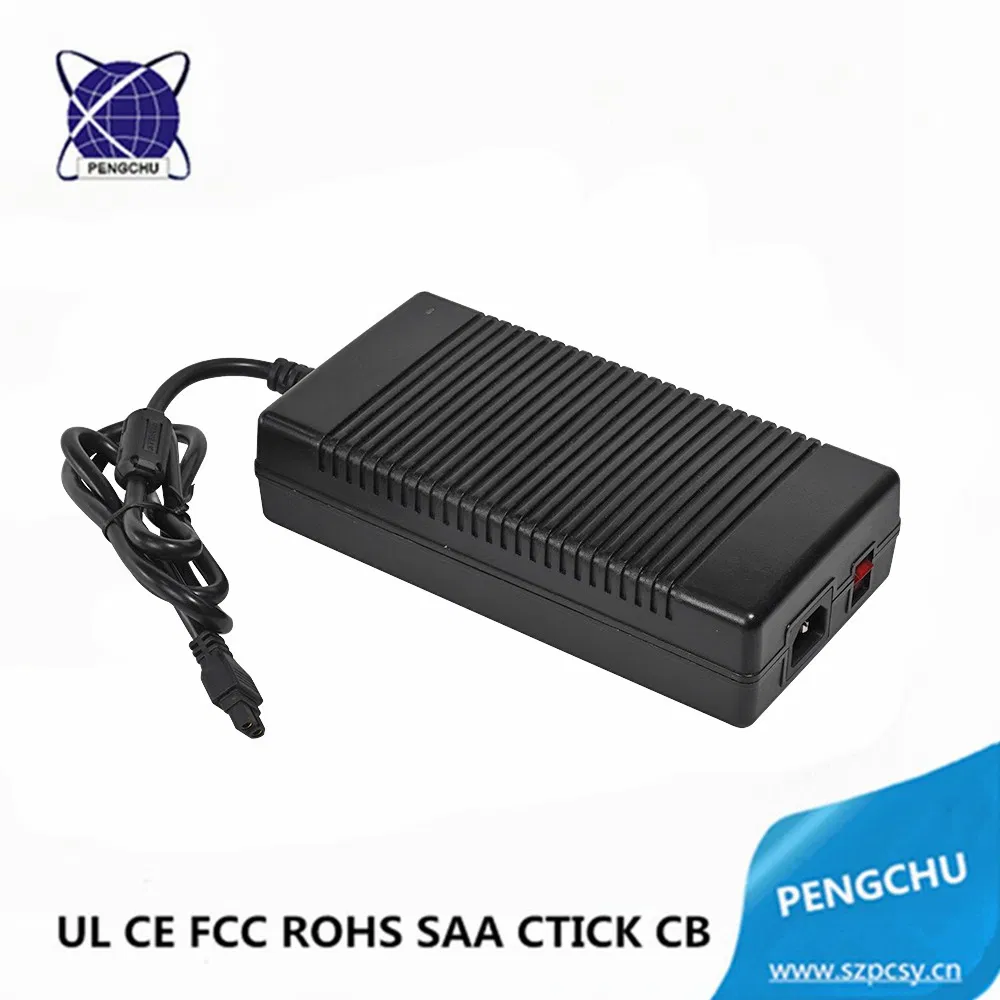

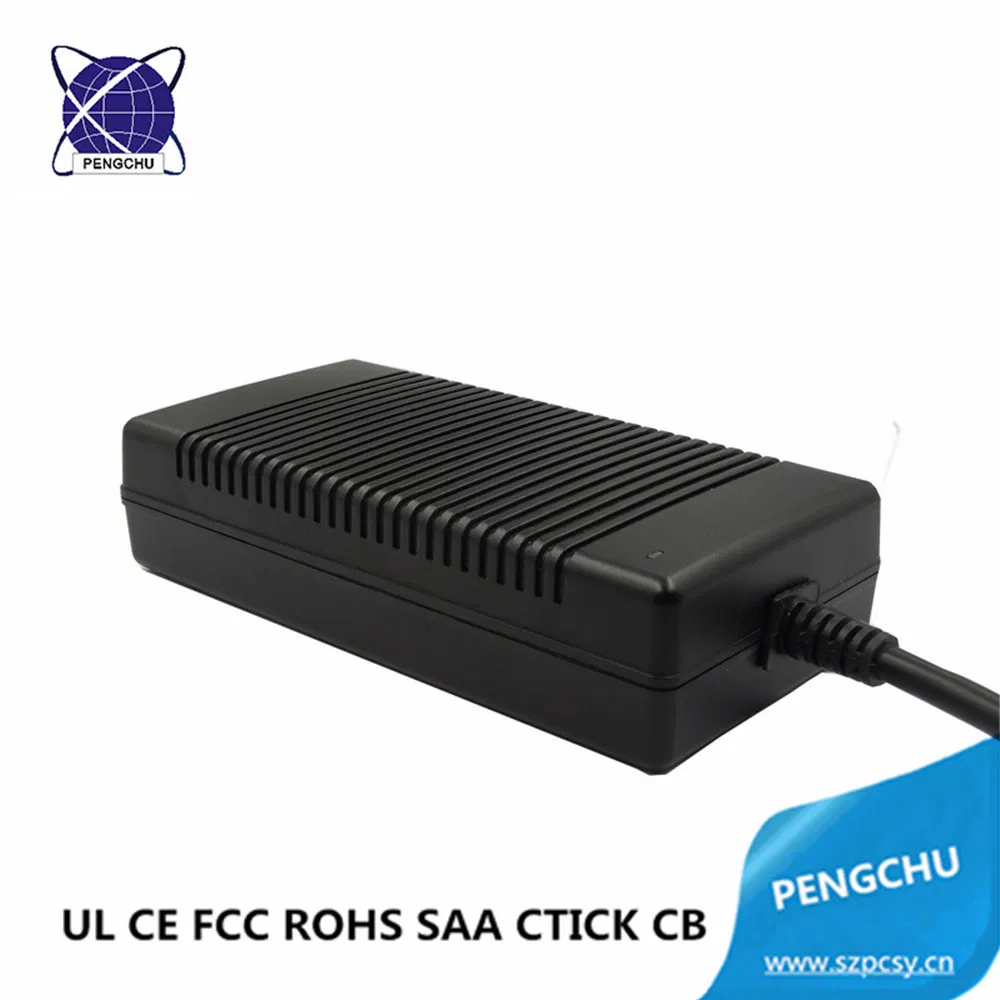

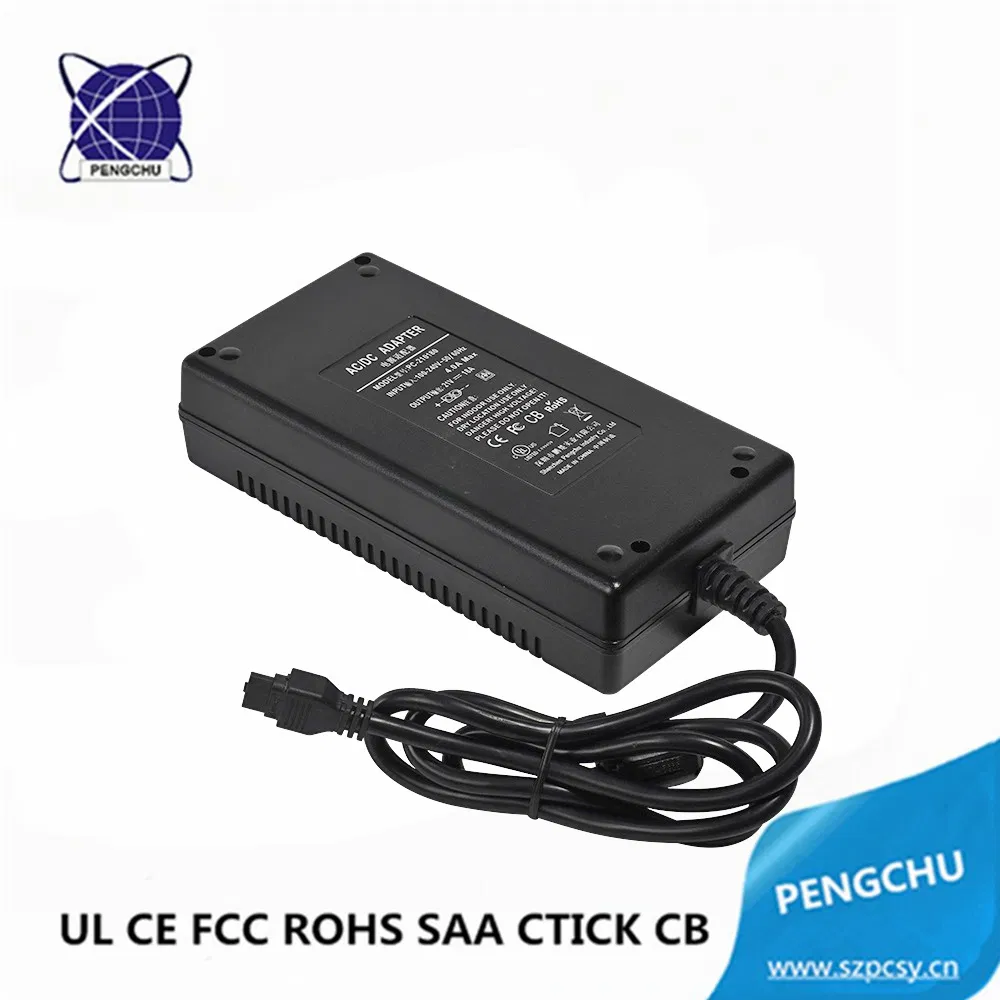

Product Visuals
Safety & Compliance Standards
| UL (USA) | UL 62368 (E499459) |
| CB (International) | IEC 62368-1:2014 / IEC 60950 |
| CE (Europe) | EN 60335 / EN 60950 / EN 62368 |
| SAA (Australia) | AS/NZS 62368 |
| Medical | EN 60601 |
| PSE (Japan) | J60065 / J55013 |
Available Models in This Series
| PC-120300 | 12V | 30A | 360W |
| PC-240150 | 24V | 15A | 360W |
| PC-360080 | 36V | 8A | 290W |
| PC-360100 | 36V | 10A | 360W |
| PC-480083 | 48V | 8.3A | 400W |

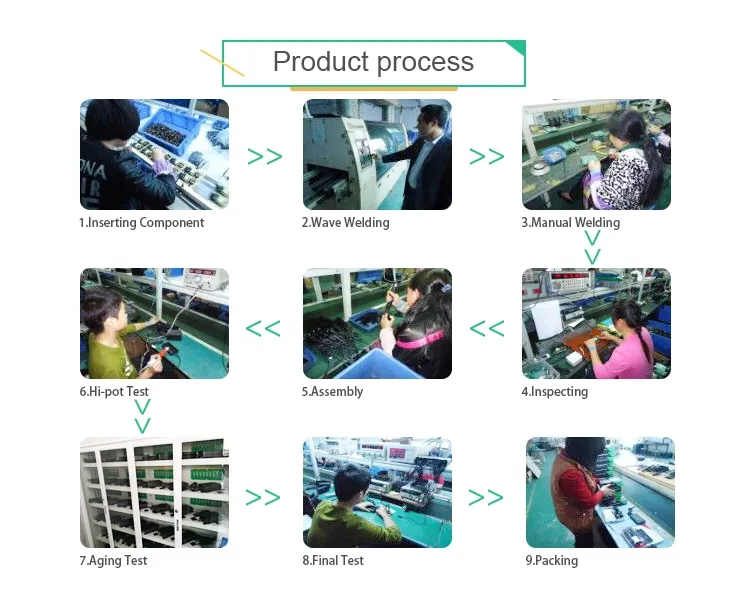

Application & Process
Frequently Asked Questions
What range of voltages can you provide?
We supply a wide range including 5V, 6V, 9V, 10V, 12V, 16V, 24V, 36V, and 48V.
What is the typical lead time for orders?
Samples usually take about 3 working days, while bulk goods delivery takes approximately 12 working days.
Are your power supplies certified for global markets?
Yes, our products carry UL, ETL, FCC, RoHS, CE, SAA, PSE, and DOE Level VI certifications.
Do you offer customized power solutions?
Yes, we provide OEM and ODM services to evaluate, design, and produce customized power products.
Can we customize the DC connectors and cables?
Absolutely. DC connectors (5.5mm, 4pin, etc.) and cable lengths (0.6m to 1.5m) can be customized per your demand.
What protections are built into the power adapter?
Each unit includes protection against short circuits, over current, over temperature, and over voltage.
