Basic Specifications
Model NO.:YS40
Certification:TUV, RoHS, ISO9001, CCC, GS/CE/EMC/RoHS/Reach
Color:Black
Type:OEM/ODM
Internal Structure:On-Off Type
Power Source:Half-Bridge Type
Connection:Desktop
Protection:Hipot, Short Circuit, Overvoltage
Warranty:3 Years' Warranty
Production:1,000 PCS/Day
Product Description

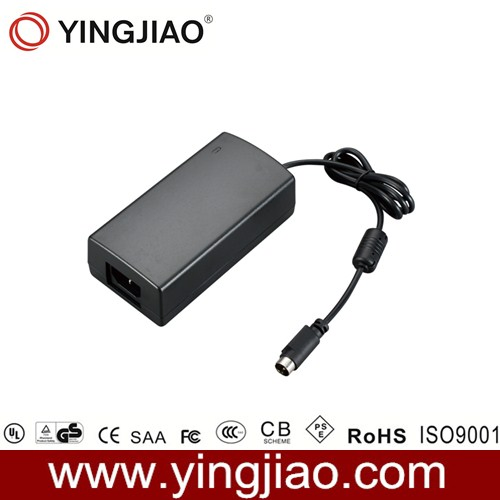

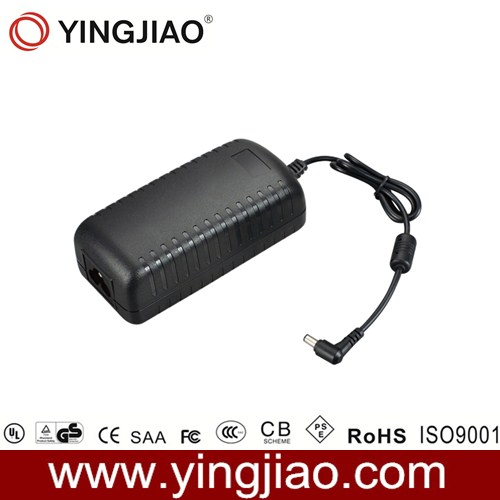

Switching Power Supply YS40-1 Series
Universal Input: 100-240V AC 50/60Hz
Rated Power: 55W max.
Operating Temp: 0 to 40°C
Light Weight & Compact Design
| Model |
Output Load Voltage (V) |
Max. Load Current (A) |
| YS40-XX240 | 24 | 2.20 |
| YS40-XX190 | 19 | 2.50 |
| YS40-XX150 | 15 | 3.50 |
| YS40-XX120 | 12 | 4.00 |
| YS40-XX072 | 7.2 | 4.00 |
Mechanical & Packaging
Dimensions:120mm (L)*60mm (W)*37mm (H)
Net Weight:300g
AC Input:EU, US, UK, AUS, ZA, etc.
Packaging:PE bag, White Box, Carton
Delivery:15-25 days after deposit
Frequently Asked Questions
Q1: What is the maximum power output of the YS40 series?
The YS40 series supports a maximum rated power of up to 55W with various voltage options.
Q2: Which safety certifications does this power supply have?
It complies with UL, CUL, TUV, GS, CE, CCC, and RoHS standards for global market access.
Q3: Is OEM/ODM customization available?
Yes, we provide full OEM and ODM services to design and manufacture power products based on specific client demands.
Q4: What are the built-in protection features?
The unit includes comprehensive protection for Short Circuit, Over Current, and Over Voltage.
Q5: How long is the warranty period for this product?
We offer a 3-year warranty for the YS40 switching power supply series.
Q6: What is the typical lead time for an order?
Standard delivery takes approximately 15 to 25 days after the receipt of the deposit.
