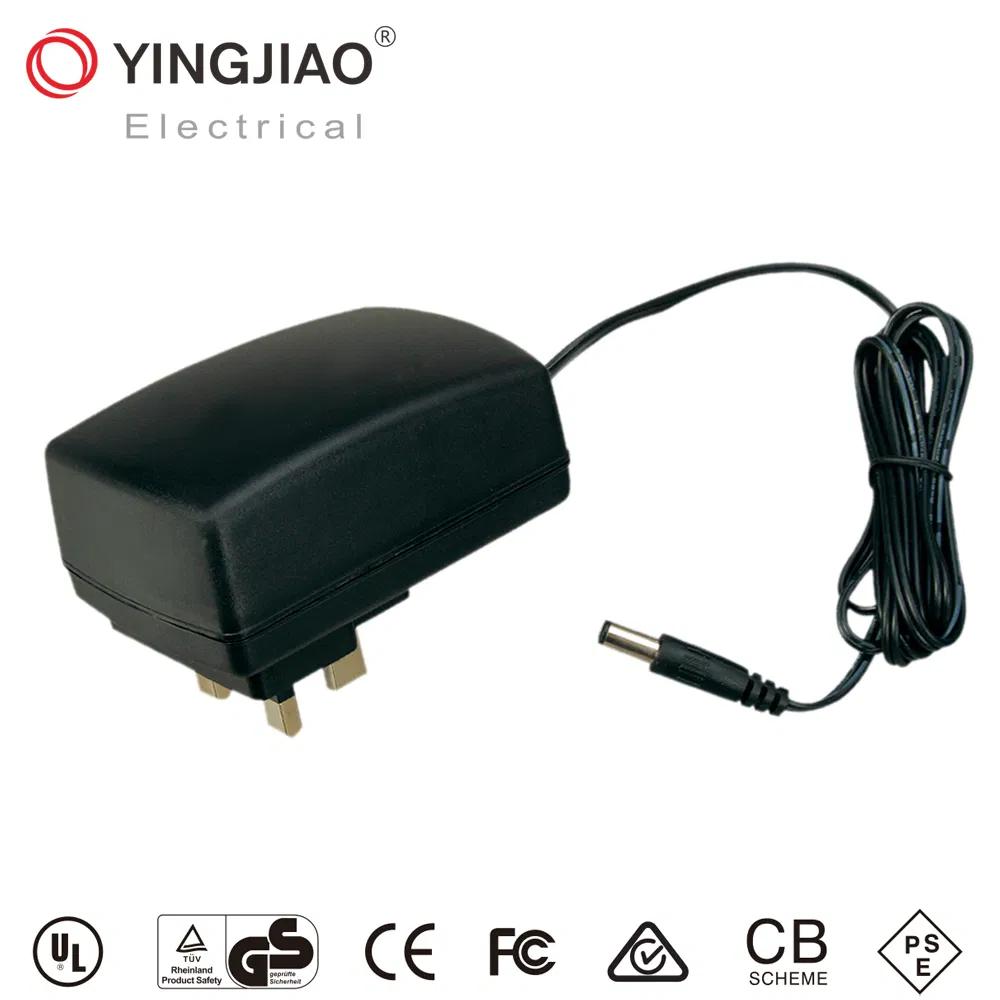

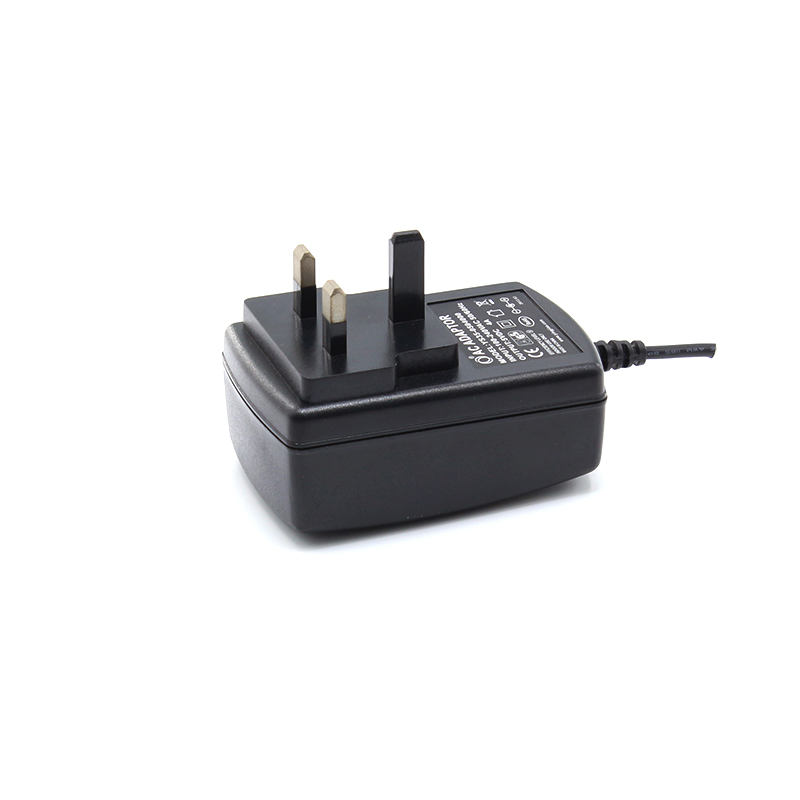

36W AC DC Switch Mode Power Adapter
36W AC DC Switch Mode Power Adapter
36W AC DC Switch Mode Power Adapter
36W AC DC Switch Mode Power Adapter
36W AC DC Switch Mode Power Adapter
1 / 5
36W AC DC Switch Mode Power Adapter
36W AC DC Switch Mode Power Adapter
36W AC DC Switch Mode Power Adapter
36W AC DC Switch Mode Power Adapter
36W AC DC Switch Mode Power Adapter

36W AC DC Switch Mode Power Adapter

Customization: Available
Usage: Laptop, Switching, Mobile Phone, Game Player, Phone
Output Type: AC or DC
Send Inquiry

Product Description

Basic Specifications

Model NO.
YS35B Series
Certification
TUV, RoHS, ISO9001, CCC
Color
Black
Type
OEM/ODM
Connection
Plug In
Warranty
3 Years' Warranty
Capacity
5000PCS/Day
HS Code
8504401400

Product Description

Professional manufacturer of wall-mount AC/DC power adapter, AC adapter, switching power adapter, SMPS, and NI-MH battery chargers.

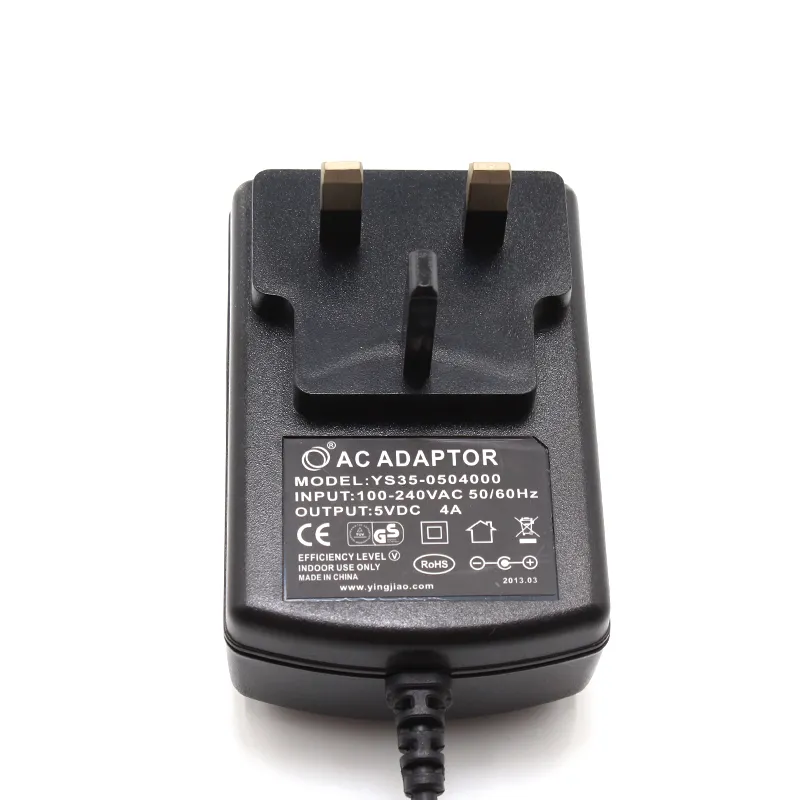

36W AC DC Power Adapter View 1

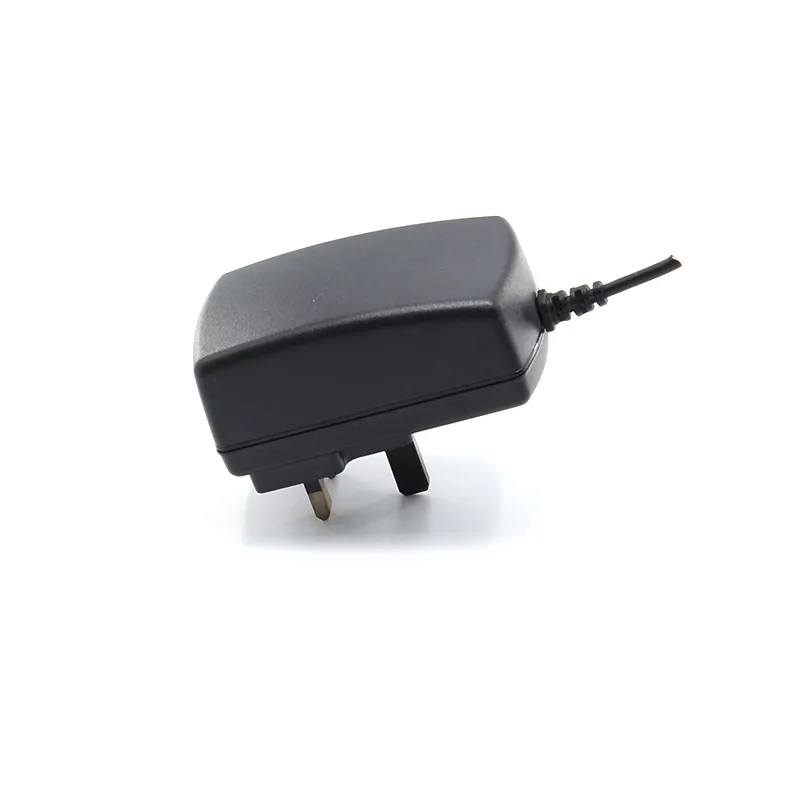

36W AC DC Power Adapter View 2

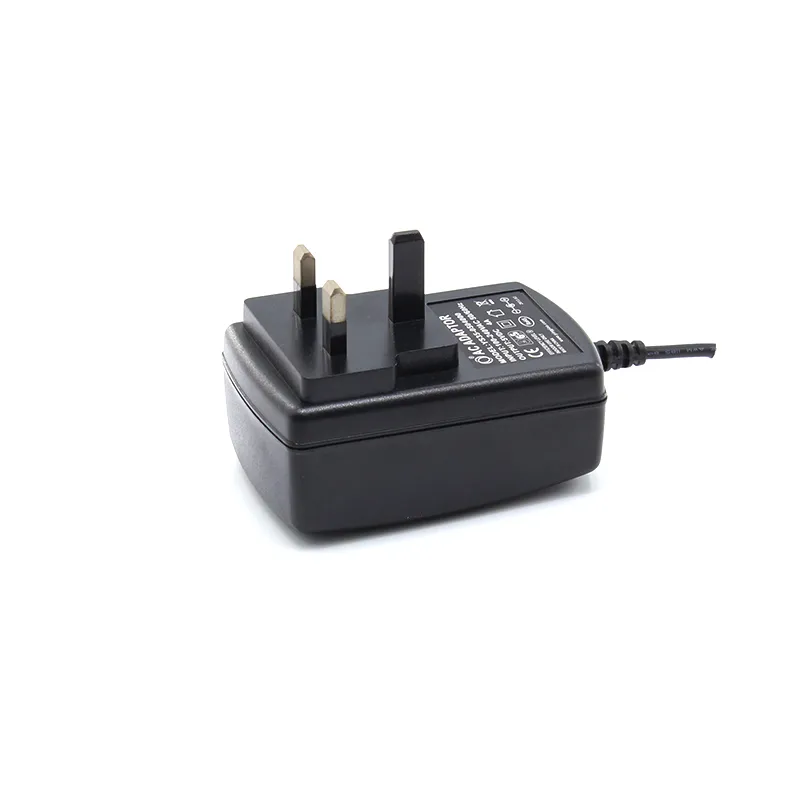

36W AC DC Power Adapter View 3

Key Features

Universal Input: 100-240V AC 50/60Hz
Rated Power: 35W - 36W Max
Short Circuit & Over Voltage Protection
High Efficiency & Low Consumption
RoHS & Safety Compliance (UL/TUV/CE)
Light Weight & Compact Design

Technical Data Sheets

Parameter Specification Details
ModelYS35B
Input Voltage100-240VAC 50/60Hz
Inrush Current65 Amps max. at 230VAC
Leakage Current0.25mA Max. at 264VAC
No Load Consumption<0.3W
Working Temperature-20°C to 50°C
Working Humidity5%-90% RH non-condensing
MTBF100,000 hours minimum
Dimensions87 * 57.5 * 44mm
Output Voltage(DC)5V7V9V12V18V24V36V
Output Current(MAX.)4A3.5A3.5A3A2A1.5A1A

Design & Dimensions

Dimension Chart 1
Dimension Chart 2
Dimension Chart 3
Internal Structure
Efficiency Curve

Frequently Asked Questions

What safety certifications does the YS35B series hold?
The series is compliant with UL, CUL, TUV, GS, CE, CCC, RoHS, and REACH standards, ensuring global safety and environmental compatibility.
What types of AC input plugs are available?
We offer optional EU 2pin, US 2pin, AU 2pin, and UK 3pin wall plug-in configurations to suit different regional requirements.
Does this adapter include protection features?
Yes, it includes comprehensive protection: Short Circuit Protection (SCP) to zero voltage, Over Voltage Protection (OVP ≤ Vout*150%), and Over Current Protection (OCP ≤ Iout*150%).
What is the charging indicator logic for the charger model?
The LED indicator shows Red while charging and turns Green when the device is idle or fully charged. It also supports a 150mA float charging current after a full charge.
What is the typical lead time and warranty period?
Delivery typically takes 15-25 days, and all units come with a 3-year standard warranty for peace of mind.
Can I request a custom output plug?
Yes, while standard options are provided, the output DC plug is optional and can be customized based on your specific device requirements.
