35W AC DC Switch Mode Power Adapter
35W AC DC Switch Mode Power Adapter
35W AC DC Switch Mode Power Adapter
35W AC DC Switch Mode Power Adapter
35W AC DC Switch Mode Power Adapter
1 / 5
35W AC DC Switch Mode Power Adapter
35W AC DC Switch Mode Power Adapter
35W AC DC Switch Mode Power Adapter
35W AC DC Switch Mode Power Adapter
35W AC DC Switch Mode Power Adapter

35W AC DC Switch Mode Power Adapter

Customization: Available
Usage: Laptop, Switching, Mobile Phone, Game Player, Phone
Output Type: AC or DC
Send Inquiry

Product Description

Basic Specifications
Model NO.:YS35B Series
Certification:TUV, RoHS, ISO9001, CCC
Color:Black
Type:OEM/ODM
Internal Structure:On-Off Type
Power Source:Half-Bridge Type
Connection:Plug In
Experience:20 Years' experience
Quick Delivery:15-25 Days
Warranty:3 Years' Warranty
Daily Capacity:5000PCS/Day
HS Code:8504401400
Product Description

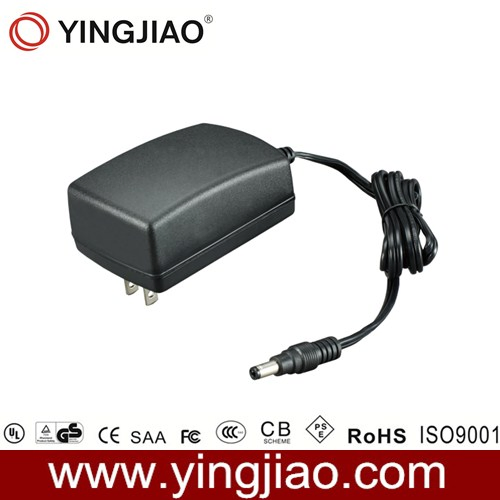

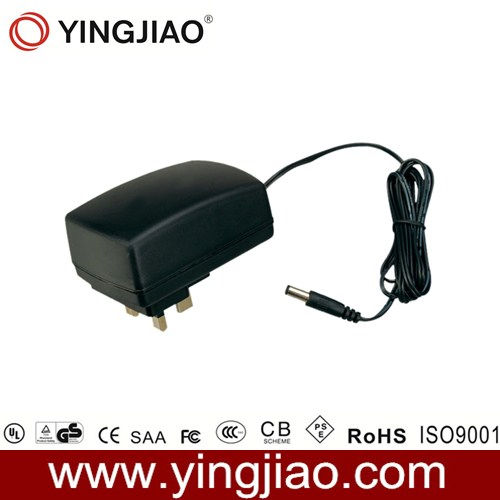

35W AC DC Switch Mode Power Adapter

✔ Range: 25-26W
✔ Rated Power: 35W
✔ Universal Input: 100-240V AC 50/60Hz
✔ Safety: UL/CUL/TUV/GS/CE/CCC compliance
✔ RoHS Compliance
✔ High Efficiency & Low Power Consumption
✔ Short Circuit Protection
✔ Over Voltage/Current Protection

Environmental Parameters:

• Operating Temp: 0 ~ +40°C | Storage Temp: -40 ~ +70°C
• Operating Humidity: 10% ~ 90% RH | Storage Humidity: 5% ~ 95% RH

Mechanical Specifications:

• Dimensions: 85mm (L) * 57.5mm (W) * 44mm (H)
• Net Weight: 152g
• AC Input Plug: US, EU, AU, UK wall plug-in options available.

Output Voltage(DC) 5V 7V 9V 12V 18V 24V 36V
Output Current(MAX.) 4A 3.5A 3.5A 3A 2A 1.5A 1A
35W AC DC Switch Mode Power Adapter 35W AC DC Switch Mode Power Adapter 35W AC DC Switch Mode Power Adapter
Frequently Asked Questions
Q1: What is the warranty period for the YS35B series? A1: We provide a 3-year warranty for this series of power adapters.
Q2: Does this power adapter support international use? A2: Yes, it features a universal input range of 100-240V AC 50/60Hz, suitable for worldwide use.
Q3: What safety certifications does this product have? A3: The adapter is compliant with UL, CUL, TUV, GS, CE, and CCC safety standards.
Q4: Can I customize the output plug and brand? A4: Yes, we offer OEM/ODM services including optional output plugs and custom branding.
Q5: What is the typical lead time for an order? A5: The standard delivery time is between 15 to 25 days depending on the order volume.
Q6: What is the production capacity for this model? A6: Our factory can produce up to 5000 pieces per day for the YS35B series.
