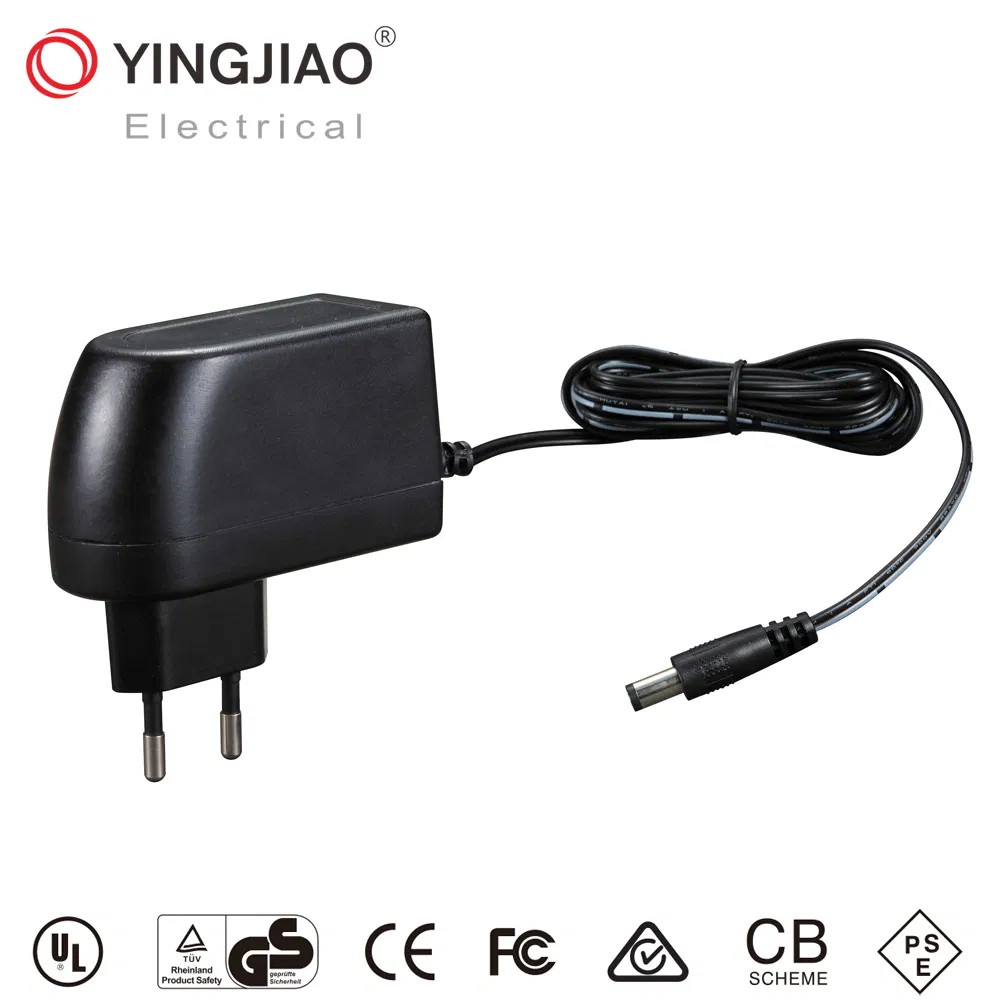

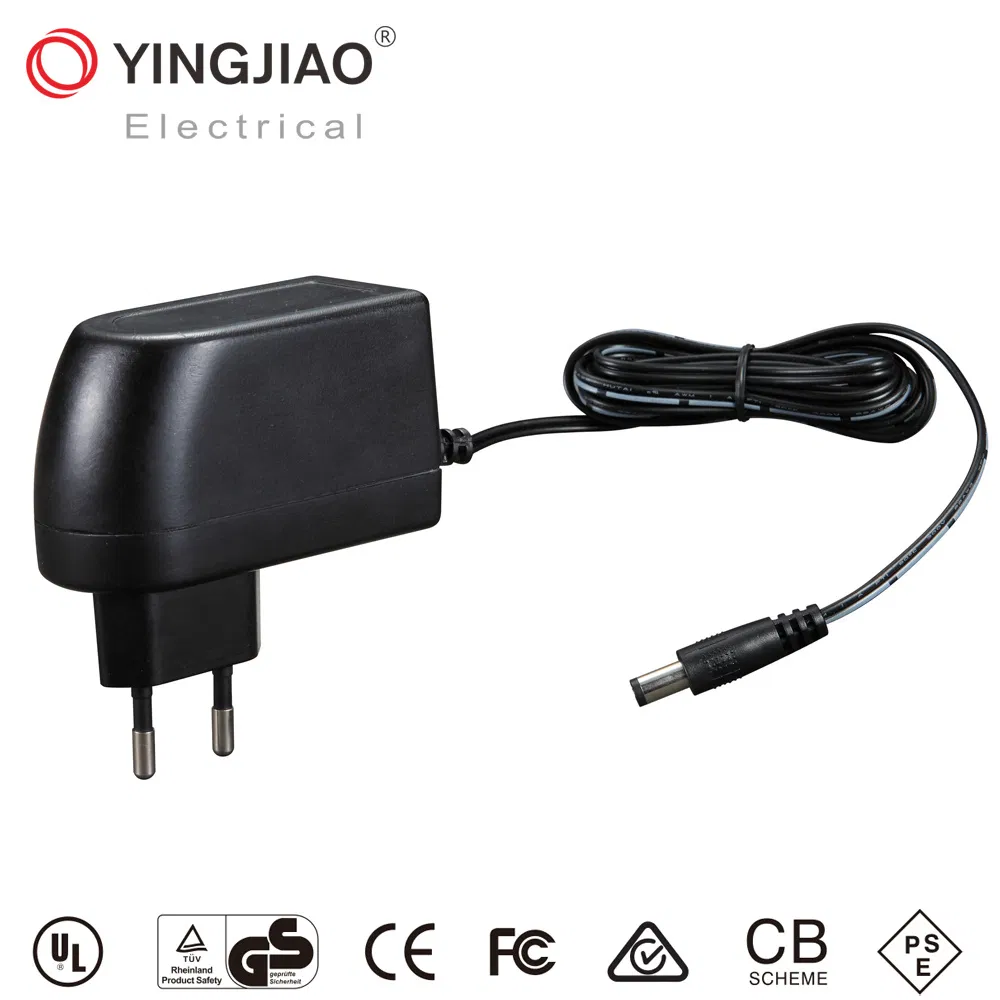

30W AC/DC Switch Mode Power Adapter
1 / 1
30W AC/DC Switch Mode Power Adapter

30W AC/DC Switch Mode Power Adapter

Customization: Available
Usage: Laptop, Switching, Mobile Phone, Game Player, Digital Camera, Phone, Display
Output Type: AC or DC
Send Inquiry

Product Description

Basic Information
Model NO.
YS30 series
Certification
TUV, RoHS, ISO9001, CCC
Color
Black
Type
OEM/ODM
Input Structure
On-Off Type
Connection
Plug In
Protection
Hipot, Short Circuit, Overvoltage, Overload, Overheat
Warranty
3 Years
HS Code
9405409000
Capacity
1000 PCS Per Day
Product Description

A professional manufacturer of wall-mount AC/DC power adapter, AC adapter, switching power adapter, SMPS, etc.

30W AC/DC Switch Mode Power Adapter
Key Features
  • Universal Input: 100-240V AC 50/60Hz
  • Compliance: UL/CUL/TUV/GS/CE/CCC/RoHS
  • High efficiency & low power consumption
  • Full Protection: Short Circuit/Over Current/Over Voltage
  • Light Weight & Compact Design
Technical Specifications
ModelYS30E
Power30W max.
Output Voltage5-36V
Output Current0.1-3.5A
Energy EfficiencyLevel VI (CoC 5 / DoE 6 / CEC VI)
No Load Power<0.075W
MTBF100,000 hours minimum at 25ºC
Dimension76*34.5*43.5mm
Model Variations
DC Voltage5V9V12V18V24V36V
Rated Current3.5A3.3A2.5A1.6A1.2A0.8A
Rated Power17.5W29.7W30W28.8W28.8W28.8W
Efficiency82.85%87.66%87.70%87.55%87.55%88.30%
Product Gallery
Detail 1 Detail 2 Detail 3 Detail 4 Detail 5 Detail 6
Frequently Asked Questions
What is the warranty period for this 30W power adapter?
The product comes with a 3-year warranty and has an expected lifetime of 3-5 years under normal usage.
Does this adapter meet international safety standards?
Yes, it is fully compliant with UL, CUL, TUV, GS, CE, SAA, FCC, and CCC certifications.
What is its energy efficiency rating?
It meets Energy Efficiency Level VI (CoC 5 / DoE 6 / CEC VI) with a no-load power consumption of less than 0.075W.
What protections are built into the device?
The adapter includes Short Circuit Protection (SCP), Over Voltage Protection (OVP), and Over Current Protection (OCP).
Can I get different AC input plugs?
Yes, the AC input plug is optional and available in European 2-pin, US 2-flat pin, or UK 3-pin configurations.
What is the typical lead time for production?
The quick delivery time is approximately 15-25 days, with a production capacity of 1000 PCS per day.
