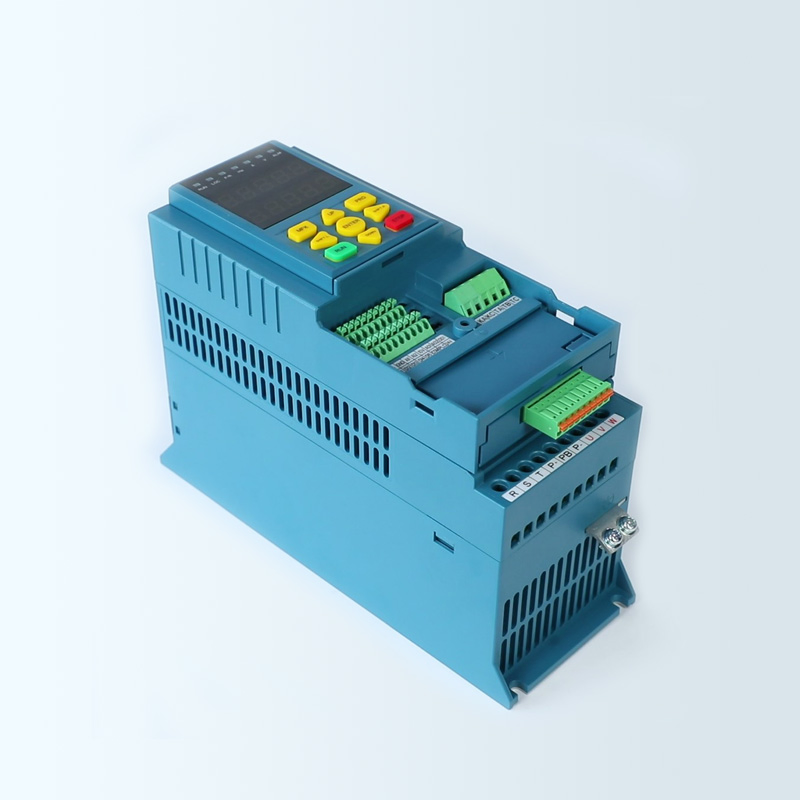

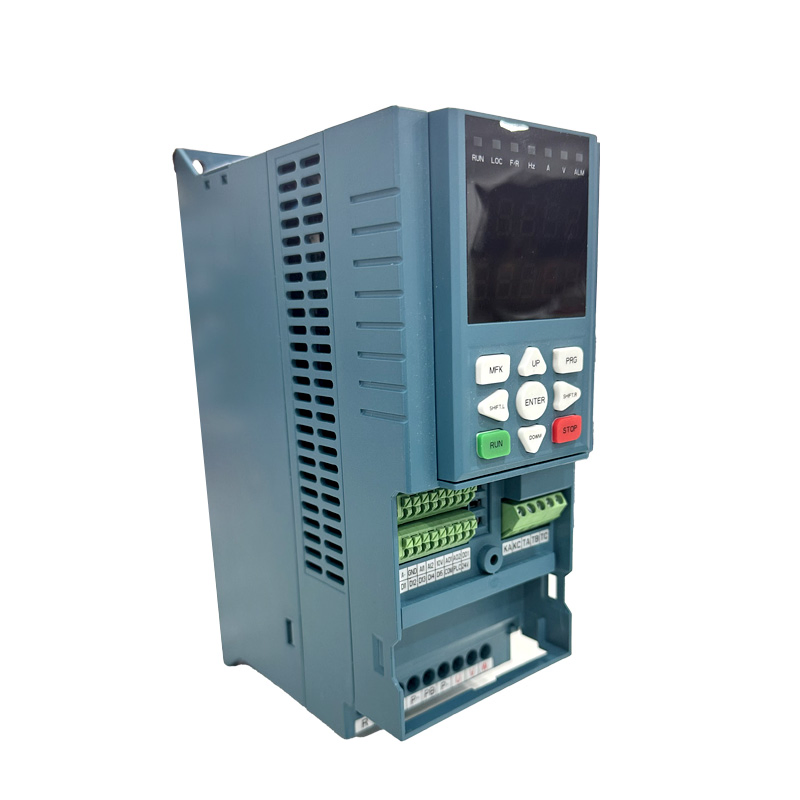

Three Phase 400Hz Frequency Converter AC Power Source Frequency and Voltage Regulation

1 / 5

Three Phase 400Hz Frequency Converter AC Power Source Frequency and Voltage Regulation

Customization:	Available
Application:	High-performance Transducer, Three Phase Transducer, General Transducer, Single-phase Transducer, High Frequency Converter Transducer
Output Type:	Single&Three

Send Inquiry

Product Description

📊 Overview - Basic Information

Principle of Work

V/F Control Transducer

Switch Mode

PWM Control

Main Circuit Type

Voltage

Power Supply Voltage

Low Voltage Variable-Frequency Drive

Nature of DC Power

Voltage Variable-Frequency Drive

Function

Simple Type, Elevator Special, Textile Special, Universal

Carrier Frequency

1.0kHz-16.0kHz

Communication

Modbus Communication

Operating Mode

Speed Control, Torque Control (SLVC, FOCPG)

Production Capacity

50000PCS/ Month

🔍 Product Description

Multiple communication interfaces: CANopen, Modbus-RTU, Profinet, EtherCAT.

Compatible with a wide range of encoders: Incremental HTL/TTL, Rotary Transformer, SinCos, Smart-Abs, SSI/BISS/ENDAT2.2.

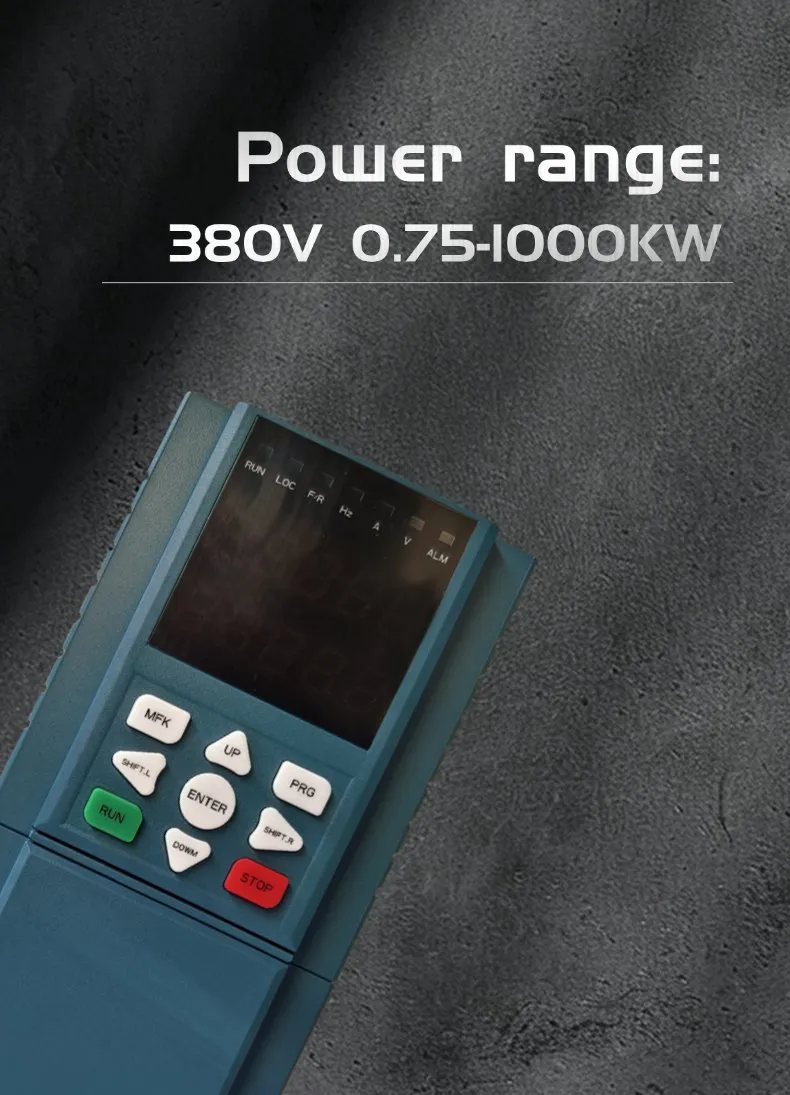

Power range: 380V 0.75-1000KW.

📋 Technical Specification

Category	Item	Technical Standard
Electrical Source	Input supply voltage	Single-phase/three-phase 220V model: 200V-240V; Three-phase 380V model: 380V-440V
	Fluctuation range	-15% to 10%
	Input frequency	50 Hz or 60 Hz (±5% fluctuation)
Output	Maximum Voltage	3-phase: 0 to input voltage
Output	Overload capacity	G-type: 150% for 60s; P-type: 120% for 60s
Control Performance	Control method	VVVF, Sensorless Vector Control (SLVC), Closed-loop flux vector control (FOCPG)
	Speed range	1:100 (VVVF), 1:200 (SLVC), 1:1000 (FOCPG)
	Frequency range	0.00 to 5000.0Hz
	Torque accuracy	SLVC: 5-10%; FOCPG: 3%
	Stopping mode	Deceleration stop (DC braking supported); Free stop

📦 Packing & Delivery

🏢 Enterprise Capability

❓ Frequently Asked Questions

1. What is the power range for this frequency converter?

The converter supports a wide power range from 0.75KW up to 1000KW at 380V.

2. Which control modes are available in this drive?

It features three main control methods: VVVF control, Speed Sensorless Vector Control (SLVC), and Closed-loop flux vector control (FOCPG).

3. What communication protocols are supported?

The device is equipped with multiple interfaces including CANopen, Modbus-RTU, Profinet, and EtherCAT for seamless integration.

4. How does the overload capacity work for different models?

The G-type machine handles 150% of rated output current for 60 seconds, while the P-type model handles 120% for 60 seconds.

5. Is it compatible with different types of encoders?

Yes, it is compatible with Incremental HTL/TTL, Rotary Transformer, SinCos, Smart-Abs, and SSI/BISS/ENDAT2.2 encoders.

6. What are the frequency range limits?

The frequency control range is exceptionally broad, spanning from 0.00Hz up to 5000.0Hz.
