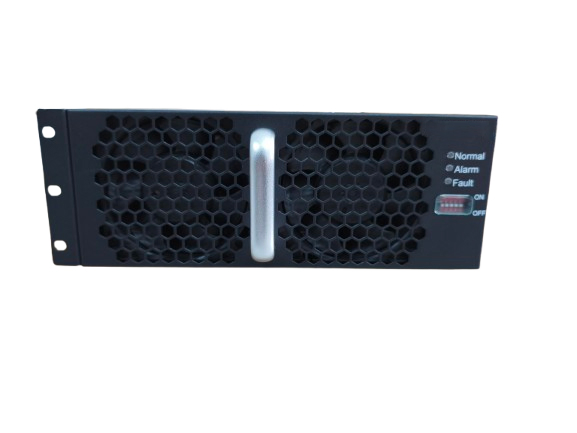

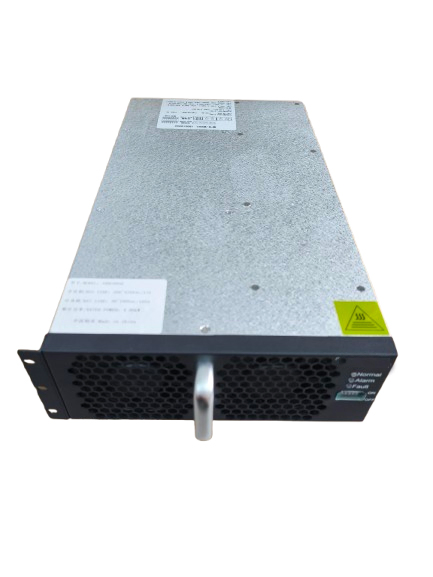

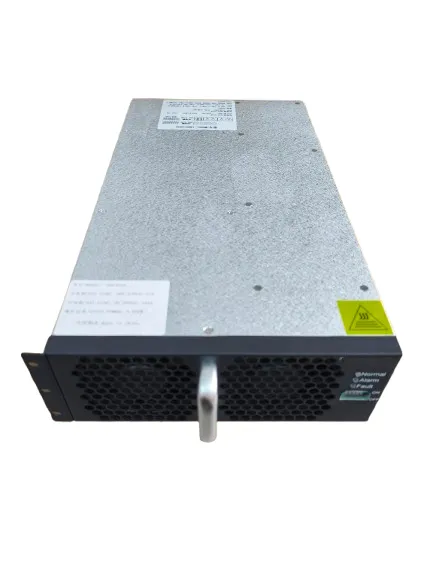

JDI Power Supply
1 / 5
| Model NO. | BADC10050 |
| Main Circuit Type | Voltage |
| Voltage of Power Supply | High Voltage Variable-Frequency Drive |
| Link of Transformation | AC-DC-AC Variable-Frequency Drive |
| Function | Simple Type |
| DC bus Voltage range | 200 ~ 420Vdc |
| DC bus Rated voltage | 370Vdc |
| DC bus Max Current | 17 Amax (at 200~290 Vdc, ≤12 A) |
| Battery-side Voltage range | 30~100Vdc |
| Battery-side Rated voltage | 60Vdc |
| Power rating | 5kW |
| Specification | 22x9x44cm |
| DC Bus Side | |
| Voltage Range | 200 ~ 420Vdc |
| Rated Voltage | 370Vdc |
| Max Current | 17 Amax (at 200~290 Vdc, ≤12 A) |
| Battery Side | |
| Voltage Range | 30~100Vdc |
| Rated Voltage | 60Vdc |
| Max Current | 105Amax |
| Power Rating | 5kW |
| Steady-current Accuracy | ≤±5% |
| Softstart Time | 3s ≤ t ≤ 8s |
