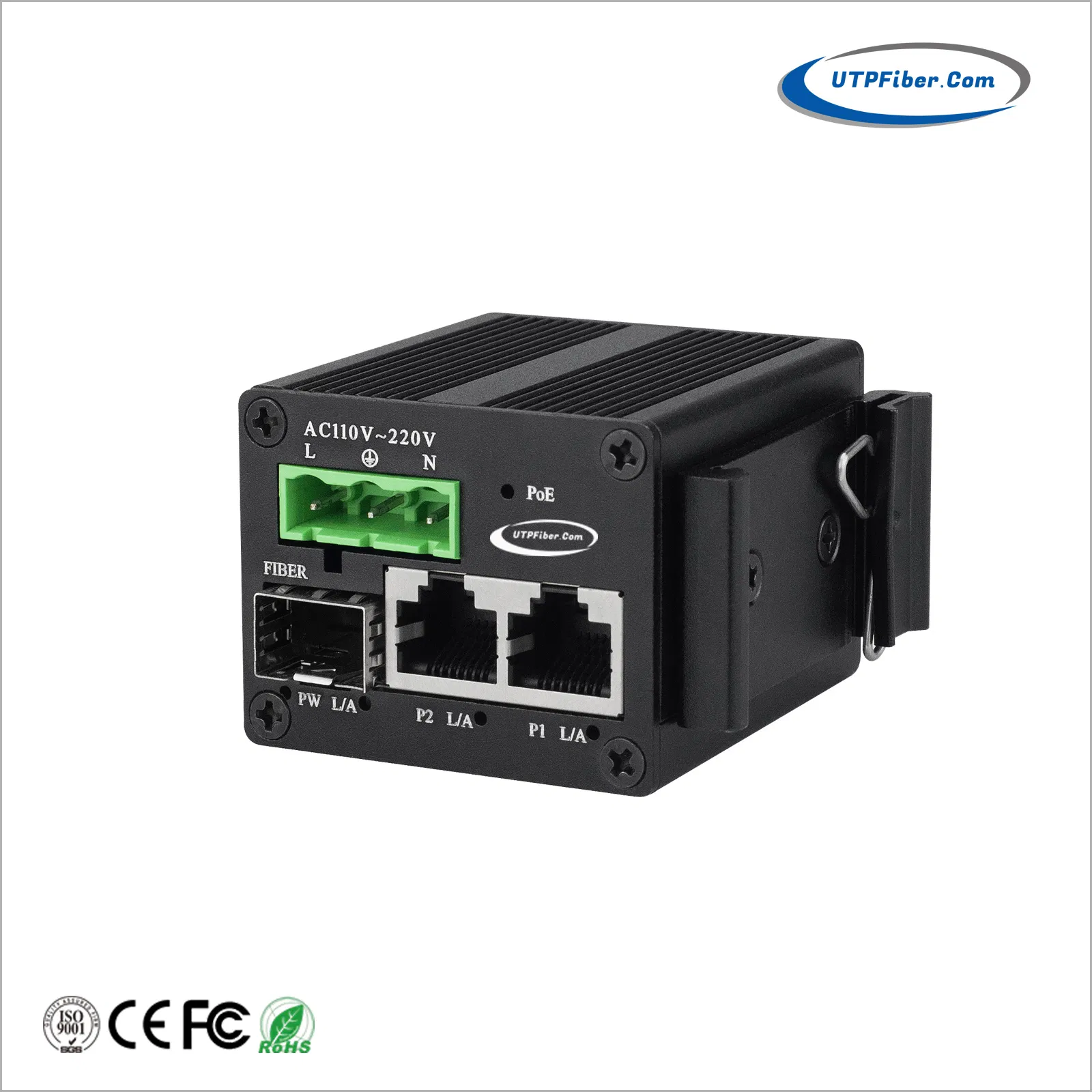

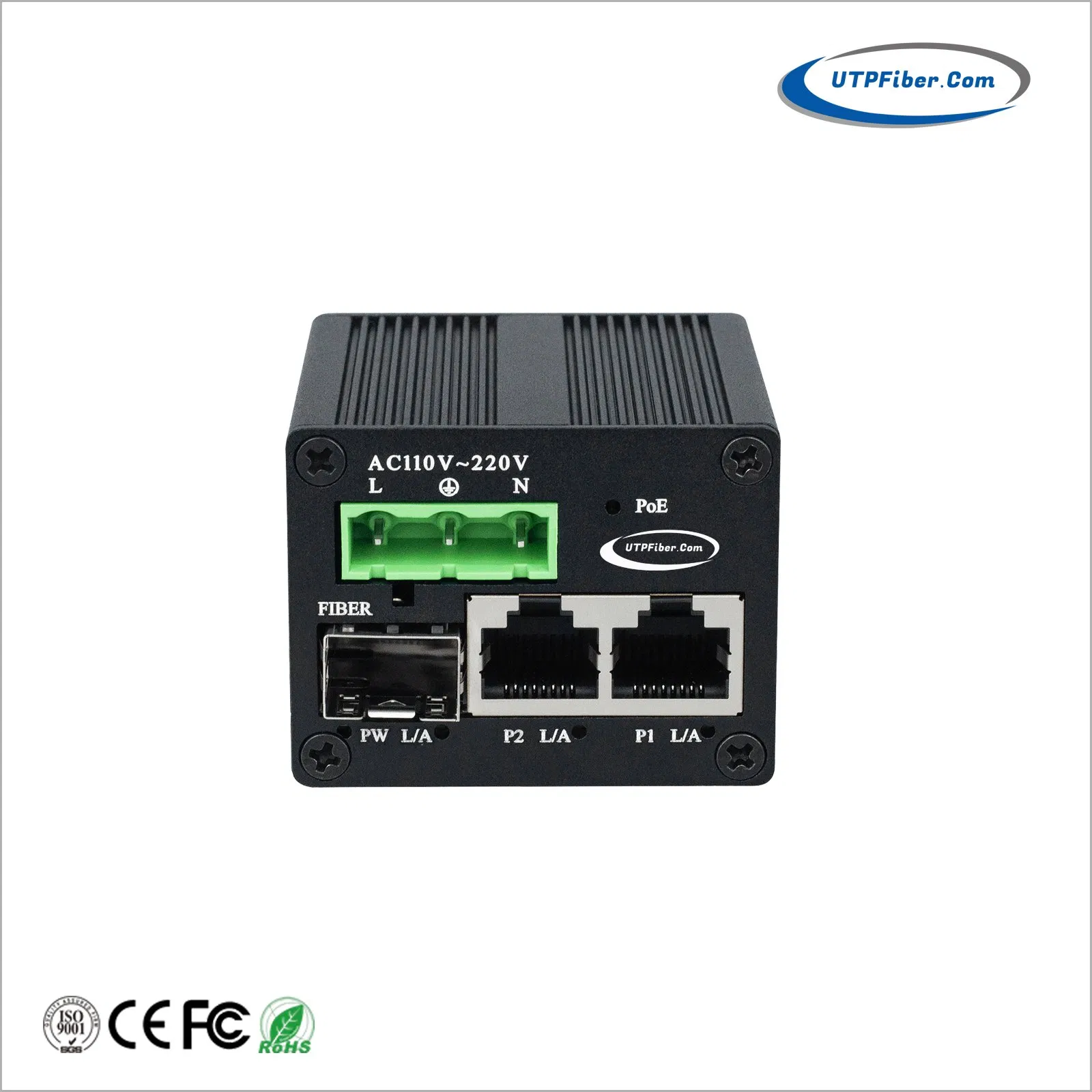

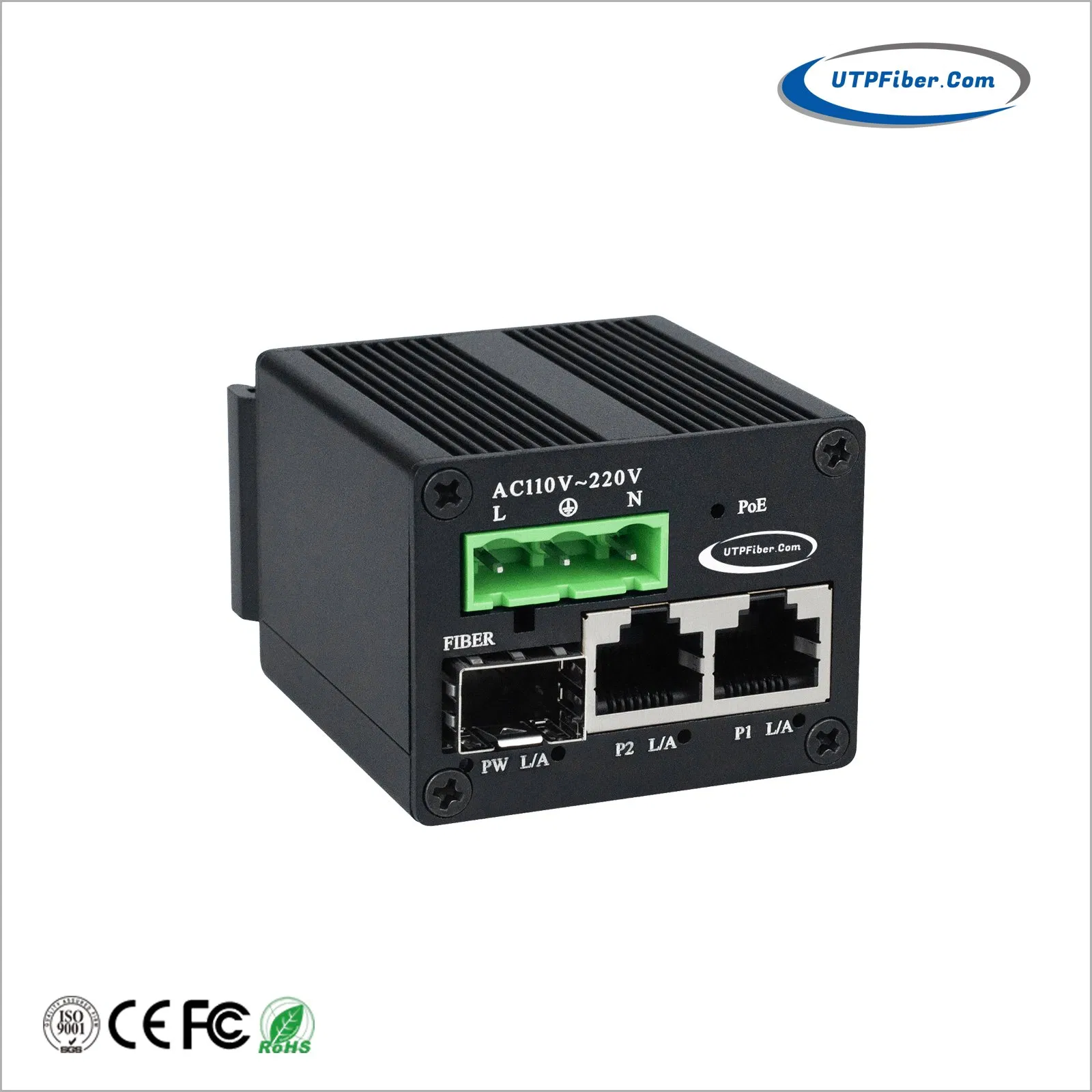

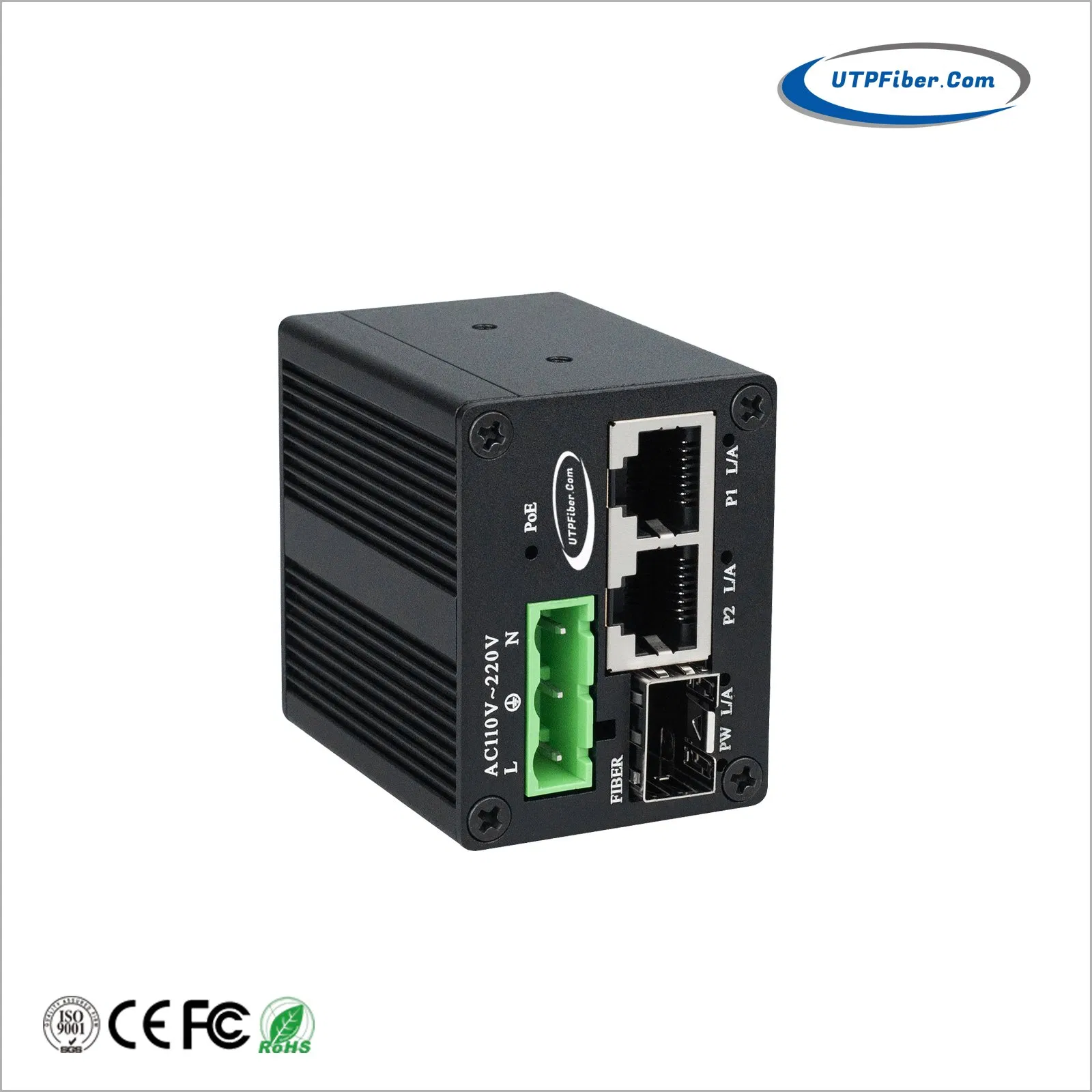

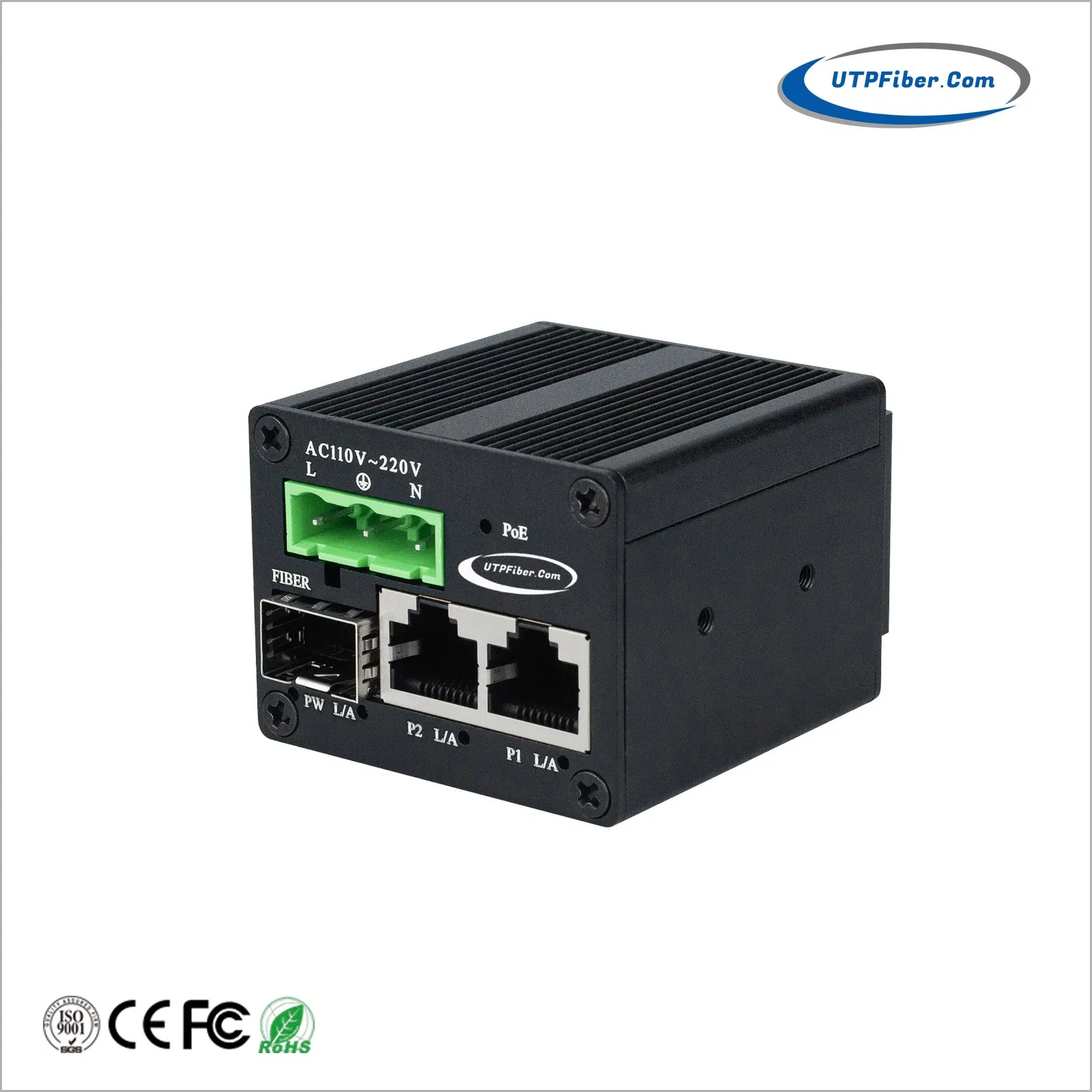

Mini Industrial 2-Port 10/100/1000t 802.3at Poe + 1-Port 100/1000X SFP Gigabit Media Converter with 85-250VAC Power Input, AC Powered Poe Media Converter

Basic Specifications

Model NO.	UF-CIS102GPA-SFP
Ports	≦8
PoE Standard	IEEE802.3af/at
Copper Interface	2*10/100/1000base-T RJ45
Fiber Interface	1*100/1000base-X SFP
Power Input	85-250VAC
Operating Temp	-40°C to 80°C

Product Description

Mini Industrial 2-Port Gigabit PoE + 1-Port SFP Media Converter

The UF-CIS102GPA-SFP series are unmanaged compact industrial grade PoE media converters. With integrated 85-250VAC power input, these converters eliminate the need for extra power adapters, saving significant cost and space in industrial environments.

Key Features

2*10/100/1000Base-T RJ45 PoE ports, 1*100/1000Base-X SFP fiber port
Integrated 85-250VAC power input (Internal Power)
Supports 9K Bytes Jumbo frame and 1M large buffer
Robust aluminum housing with DIN-Rail & Wall-mount options
Specifically designed for harsh environments (-40°C to 80°C)

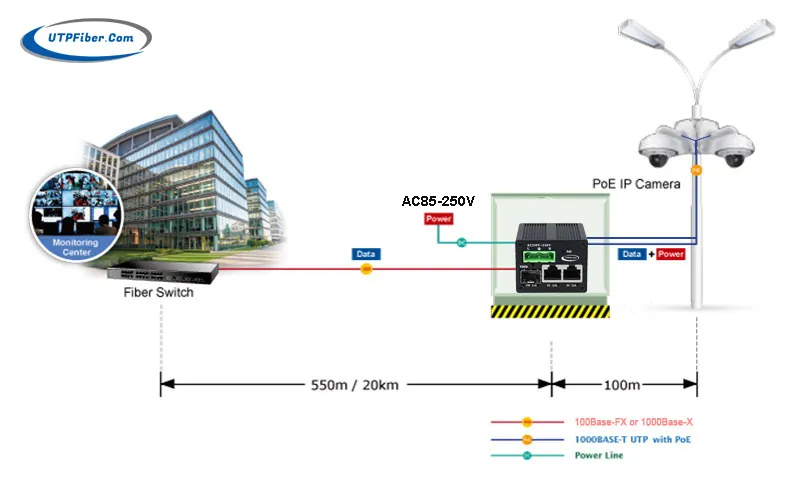

Application & Setup

Technical Parameters

Category	Specifications
PoE Output	Per port 54V DC, Max. 30 Watts
PoE Budget	40W
Processing Type	Store-and-Forward

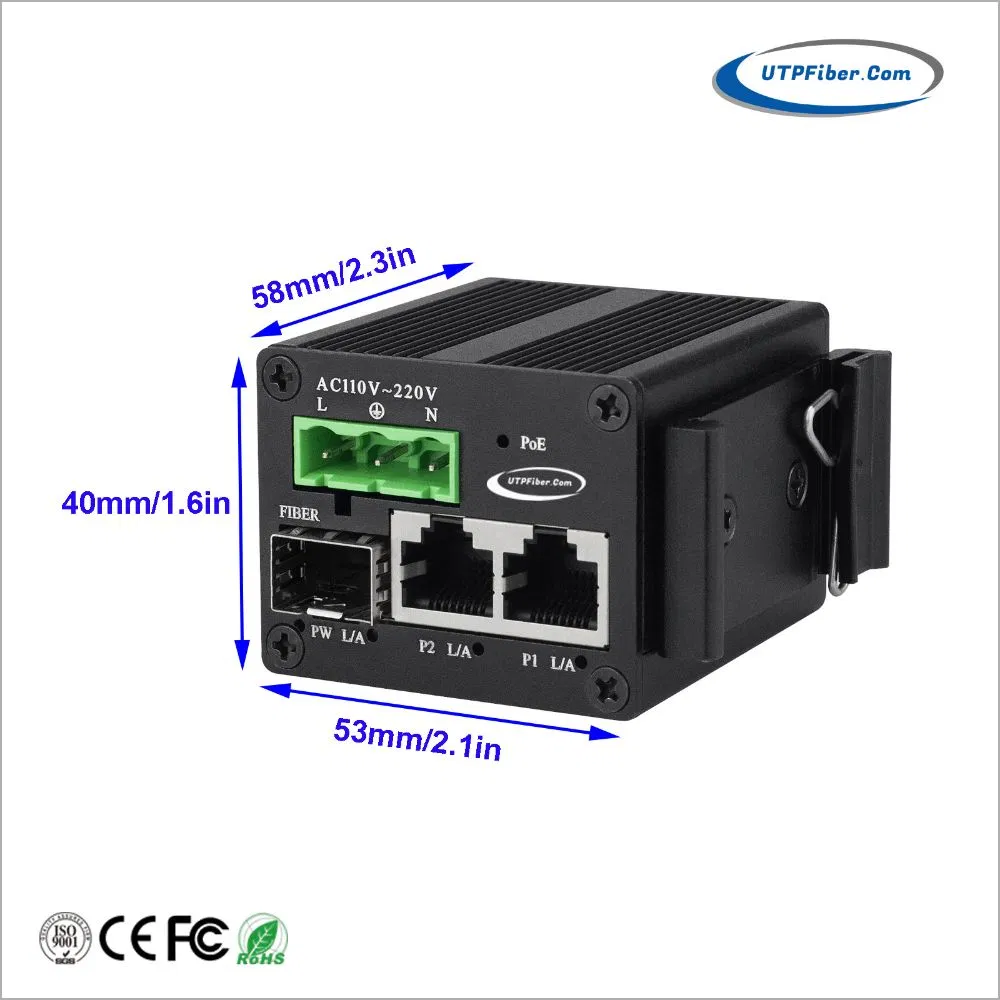

Dimensions	53 x 40 x 58 mm
Case Material	Aluminum Case
Input Voltage	85~250VAC, 3-pin terminal block

Certification & Quality

FAQ

Q: Does this media converter require a separate power adapter? A: No, it features an integrated 85-250VAC power input, allowing you to connect it directly to AC power sources.

Q: What is the maximum PoE power output per port? A: It supports IEEE 802.3at PoE+, providing up to 30 Watts per port.

Q: Can it be used in extreme outdoor temperatures? A: Yes, it is environmentally hardened to operate between -40°C to 80°C (-40°F to 176°F).

Q: What type of fiber connection does it support? A: It features one SFP slot that supports both 100Base-FX and 1000Base-X SFP modules.

Q: How do I mount the device? A: The device comes with a default DIN-Rail bracket installed and also supports wall-mount installation.

Q: Is the housing durable enough for industrial use? A: Yes, it is constructed with a robust aluminum housing designed for heavy industrial environments.
