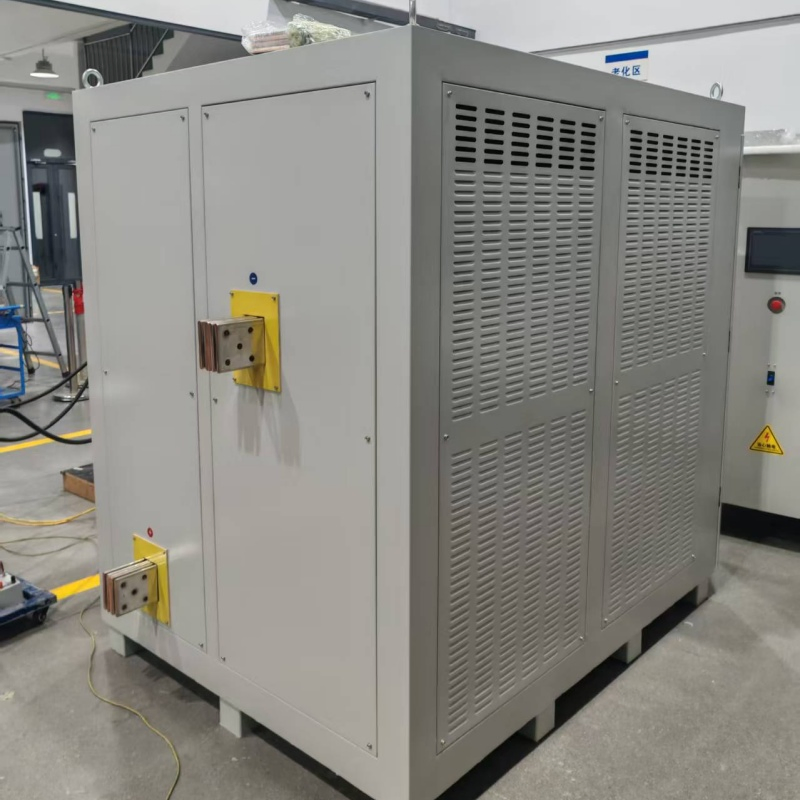

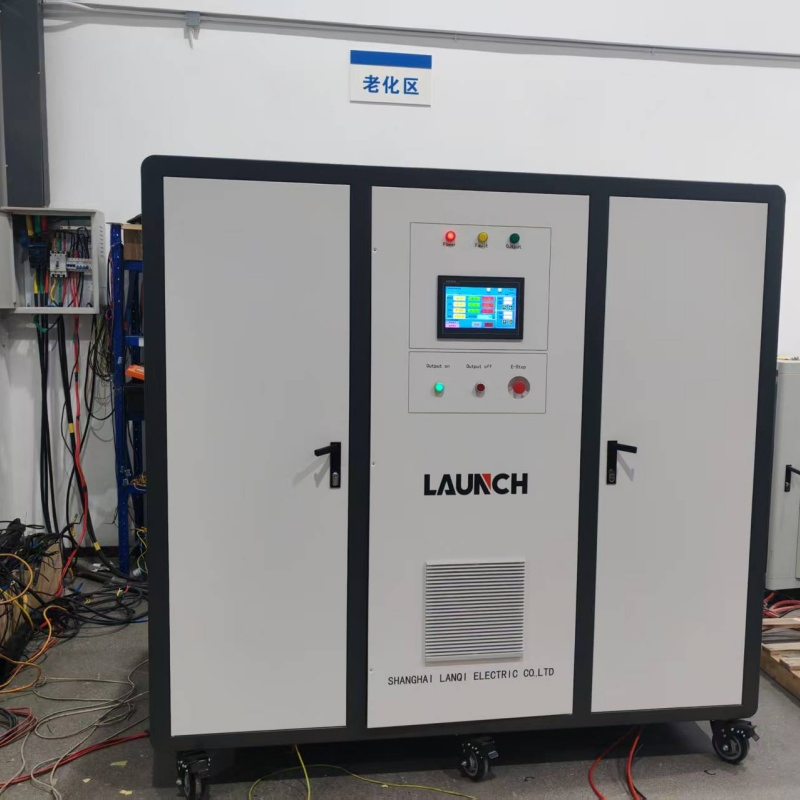

IGBT-Based Variable Frequency AC Test Power Converter for Transformer Testing
IGBT-Based Variable Frequency AC Test Power Converter for Transformer Testing
IGBT-Based Variable Frequency AC Test Power Converter for Transformer Testing
IGBT-Based Variable Frequency AC Test Power Converter for Transformer Testing
IGBT-Based Variable Frequency AC Test Power Converter for Transformer Testing
1 / 5
IGBT-Based Variable Frequency AC Test Power Converter for Transformer Testing
IGBT-Based Variable Frequency AC Test Power Converter for Transformer Testing
IGBT-Based Variable Frequency AC Test Power Converter for Transformer Testing
IGBT-Based Variable Frequency AC Test Power Converter for Transformer Testing
IGBT-Based Variable Frequency AC Test Power Converter for Transformer Testing

IGBT-Based Variable Frequency AC Test Power Converter for Transformer Testing

Output Type: Single
Warranty: 1 Year
Output Power: Customized According to Test Requirements
Send Inquiry

Product Description

Basic Specifications

Model NO.:convert
Input Voltage:Site Power Supply Configurable
Connection Mode:Terminal / Cable (Customizable)
Starting Mode:Self-excited Switching
Regulating Mode:Electronic (IGBT-Based)
Modulation:PWM (IGBT-Based)
Application:Transformer Testing
Control Mode:Local / PLC / Remote
Output Freq:Variable / Configurable
Origin:China
AC Converter
CONVERTER Overview

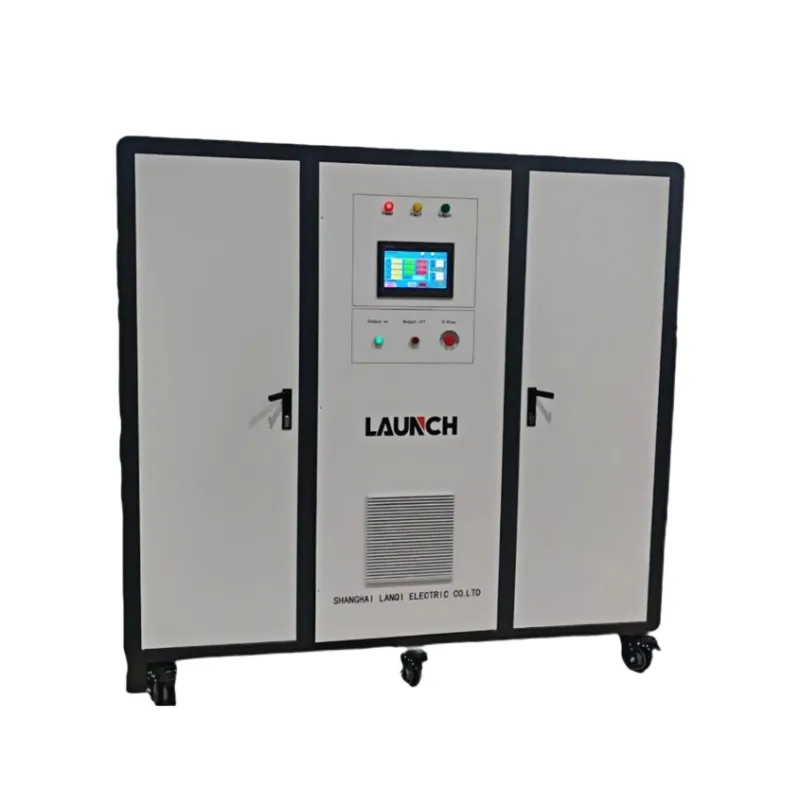

The HVPD-150kVA AC Converter is an IGBT-based variable-frequency source designed for transformer routine tests, factory inspections, and laboratory applications. It delivers stable, low-distortion sine-wave output with precise voltage and frequency control. It features high efficiency, strong load adaptability, and low partial discharge levels, making it ideal for induced voltage, no-load, and load testing.

Technical Parameters

150 kVA Converter Specifications
Rated Capacity150 kVA
Output Voltage40–400 V
Output Frequency50–200 Hz
Rated Current217 A
THD≤ 2%
Partial Discharge≤ 5 pC
CoolingForced air

Product Visualization

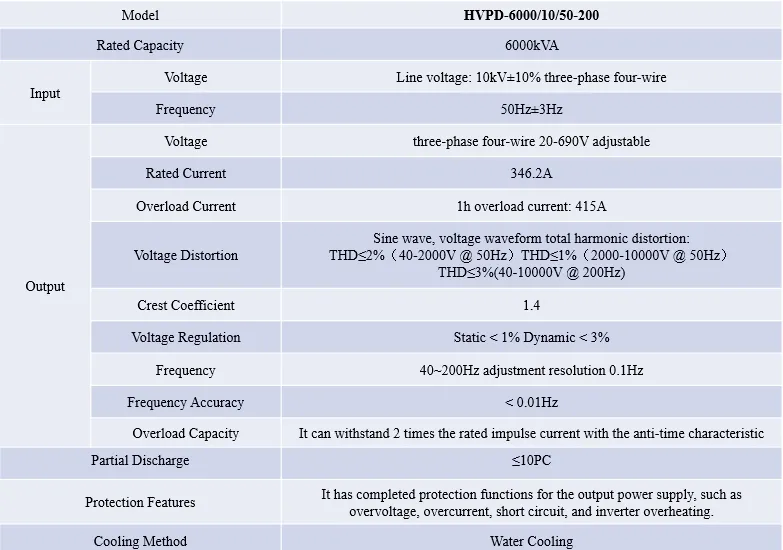

System View 1
System View 2

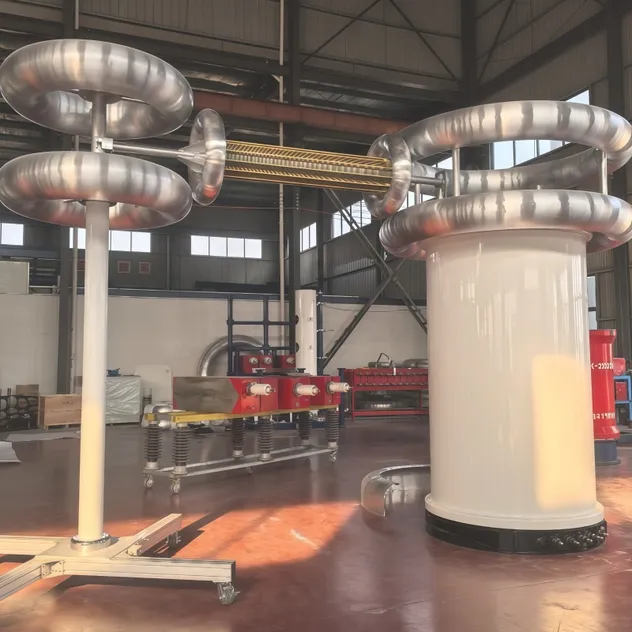

Detail 1

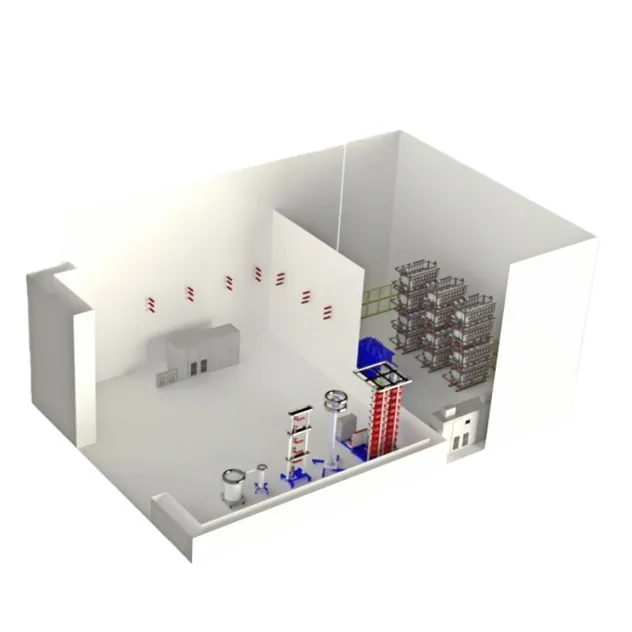

Detail 2

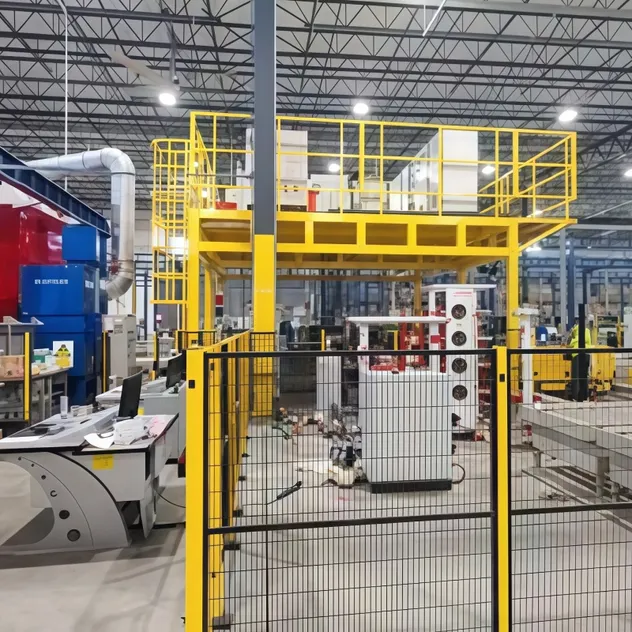

Detail 3

System Setup & Application

Application Diagram

Professional Service & Mission

Mission

Our Mission

To drive progress in high-voltage testing through innovation and safeguard energy security.

Vision

Our Vision

To lead the revolution in testing technologies for a sustainable global energy future.

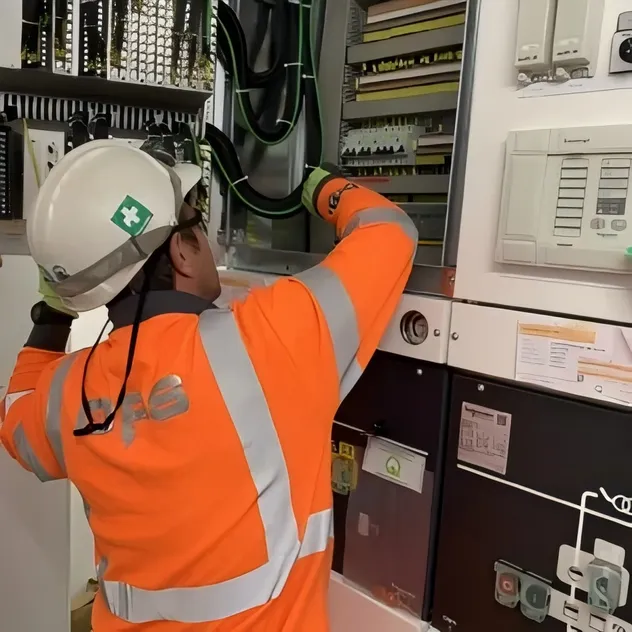

GIS

Skilled GIS Professionals

OEM-trained technicians delivering precise diagnostics and dependable GIS recovery.

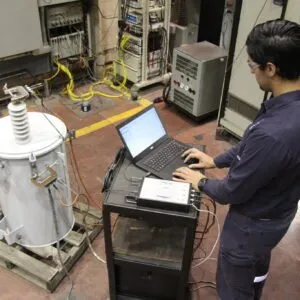

Tools

Precision Tools

Equipped with SF6 handling kits and vacuum pumps for secure servicing.

Installation

Complete Installation

Handling all aspects of GIS/AIS services from dismantling to commissioning.

Frequently Asked Questions

What is the quality assurance of your products?
As the manufacturer, we guarantee high quality and competitive pricing for all equipment.
What are your standard delivery terms?
We offer flexible delivery terms including EXW, FOB, CFR, and CIF to suit your logistical requirements.
How do you provide support if there is difficulty in operation?
We provide comprehensive manuals and operation videos. Remote video call training is available, and if necessary, engineers can provide on-site service.
What is the leading time for production?
Normal items are usually ready within 3 working days. Delivery time typically ranges from 5-7 days depending on the logistics.
How is the equipment packaged for transport?
We use standard export packaging (containerized or wooden packing) to ensure goods are not damaged during transit.
Do you provide door-to-door shipping?
Yes, for most customers, we provide door-to-door service where you only need to handle import customs clearance and tariffs.
