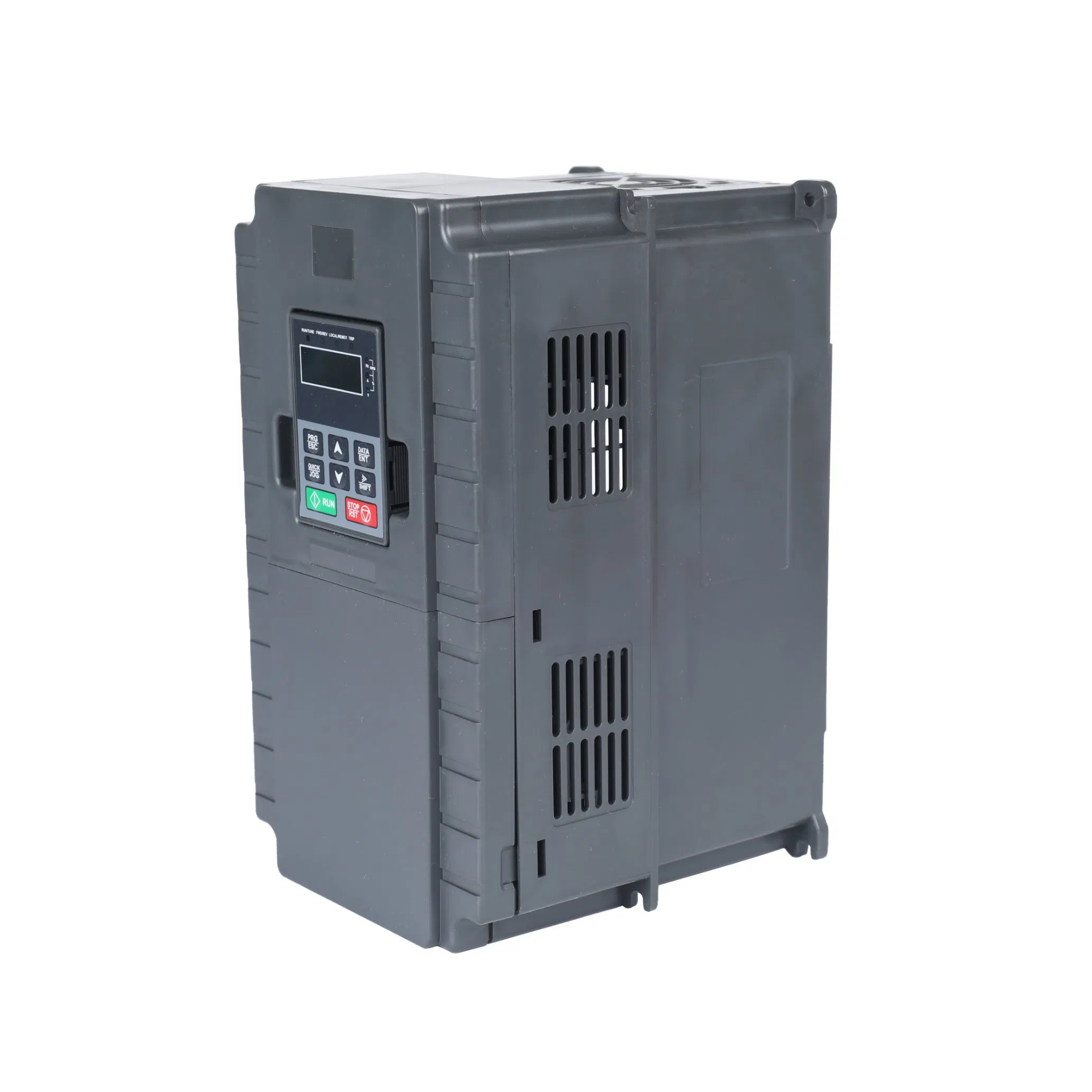

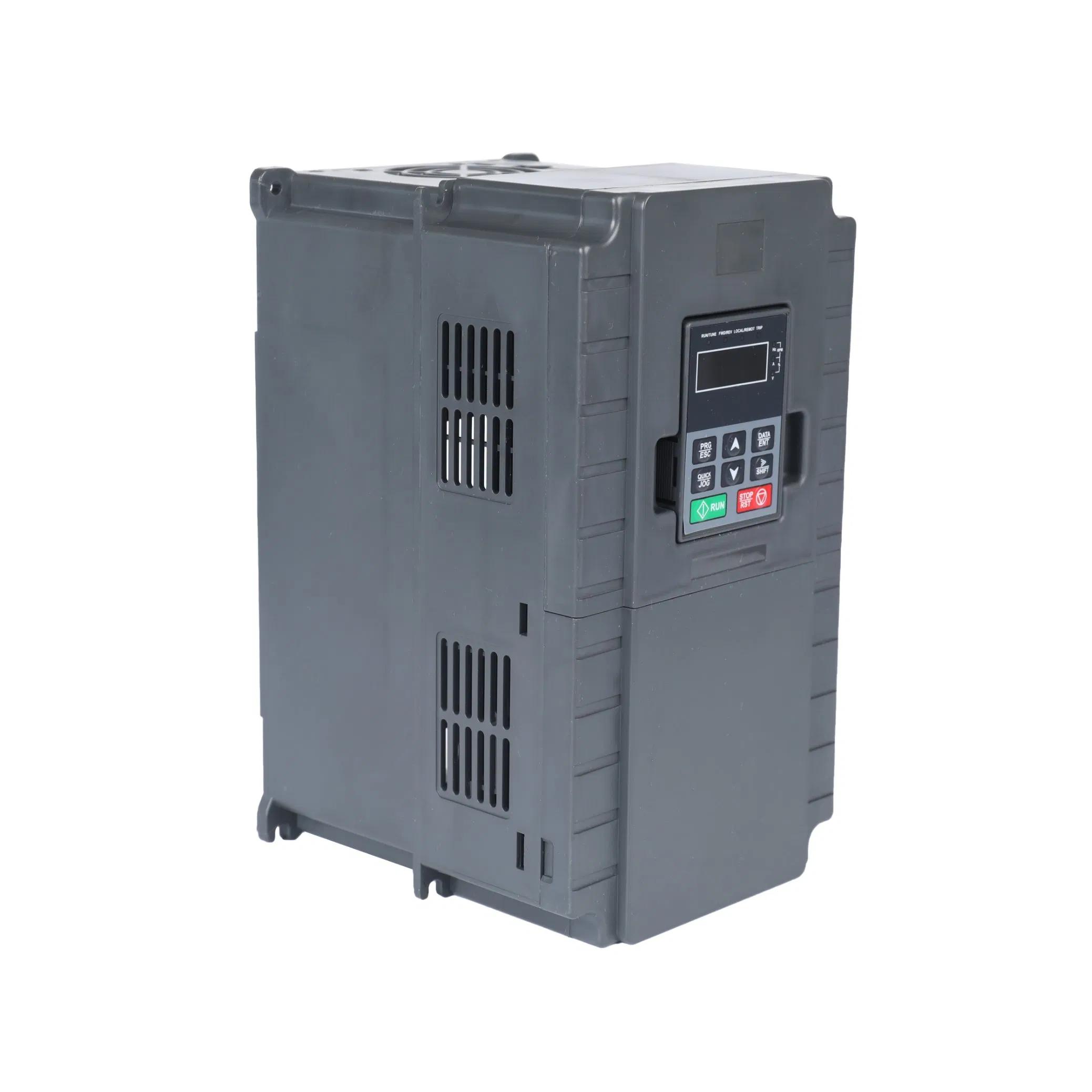

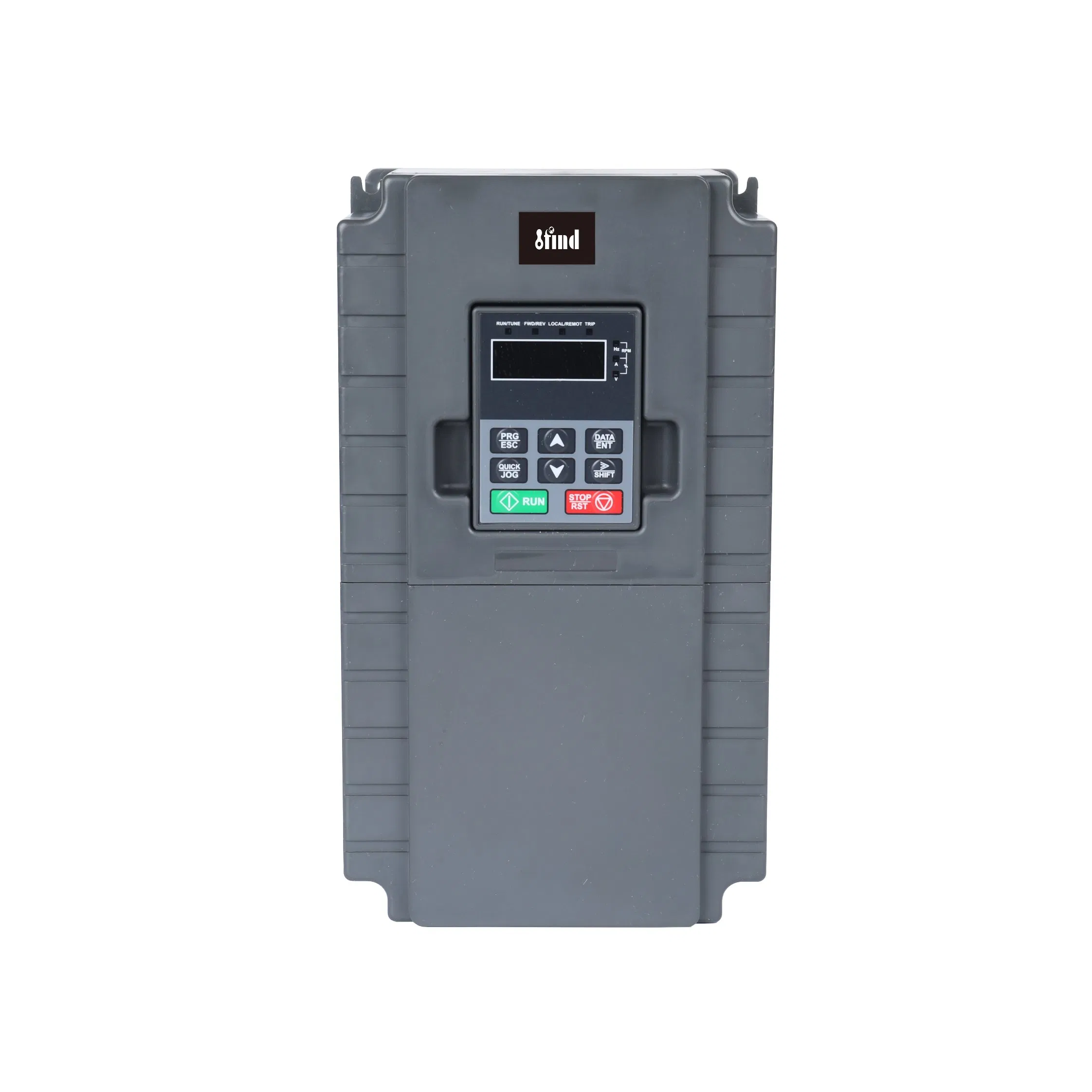

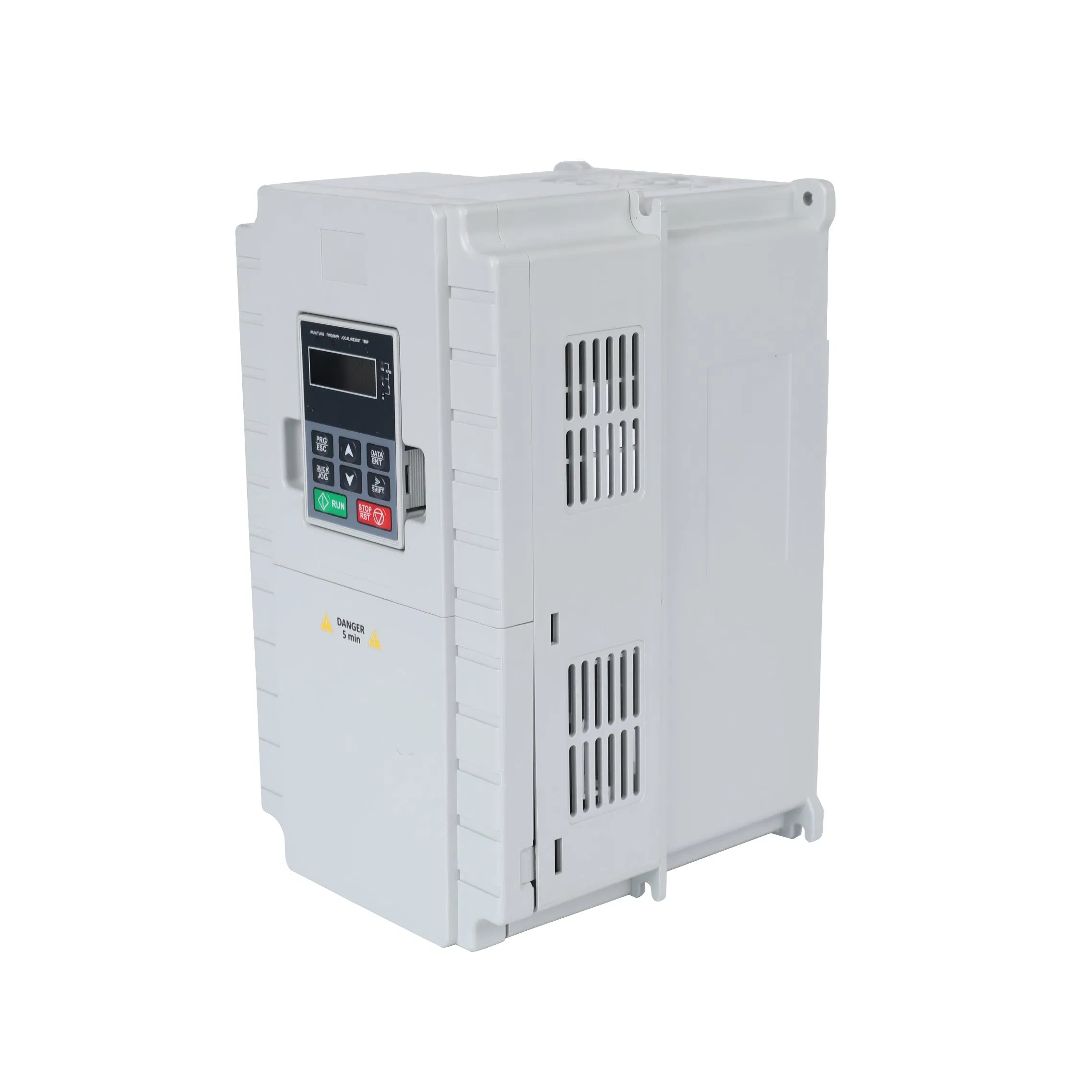

In the Middle East and Africa, as well as countries with abundant sunlight, solar systems for agricultural irrigation are becoming more and more popular. Solar pump inverter is the important part of the whole system, it can directly connect with solar panel, convenient operation and energy saving.

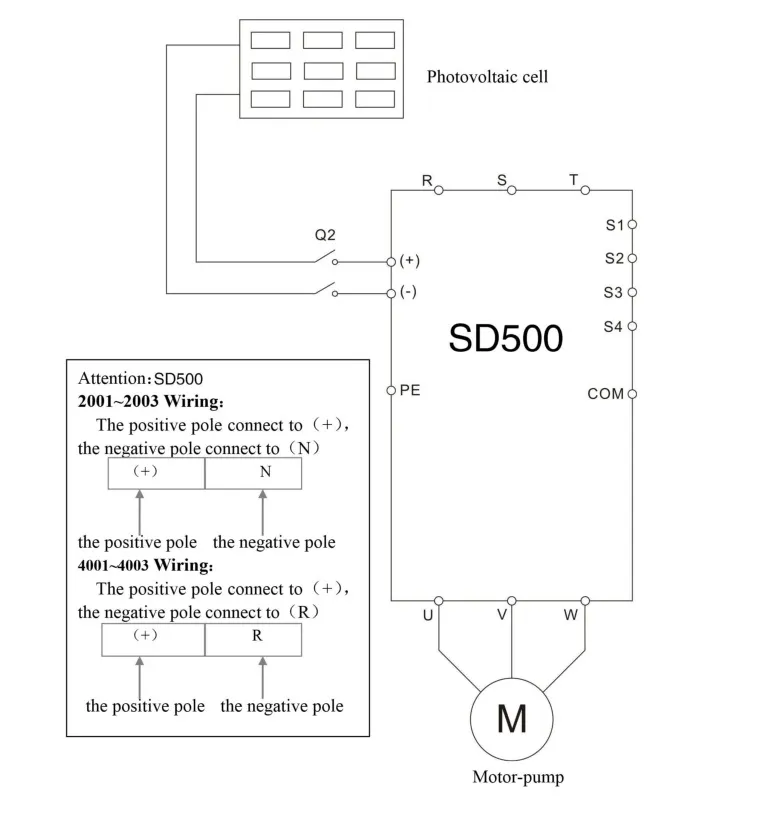

Series applies to transforming three phase 380V or Single phase 220V submersible deep well pump into solar water pump system. It converts DC power from solar modules into AC power to drive all kinds of water pumps.
| Category | Terminal | Function Description |
|---|---|---|
| Power Supply | 24V / COM | Provides 24V±10% (max 200mA) for digital I/O or sensors. |
| Digital Input | S1 - S4 | Forced mains switch, Full-water/Empty-water alarms, Single/two phase algorithm. |
| Communication | RS485 / 422 | ModBus protocol and special terminals for boost module. |
| Relay Output | RO1A/B/C | Contact capacity: 3A/AC250V. Used for auto mains & PV switching control. |

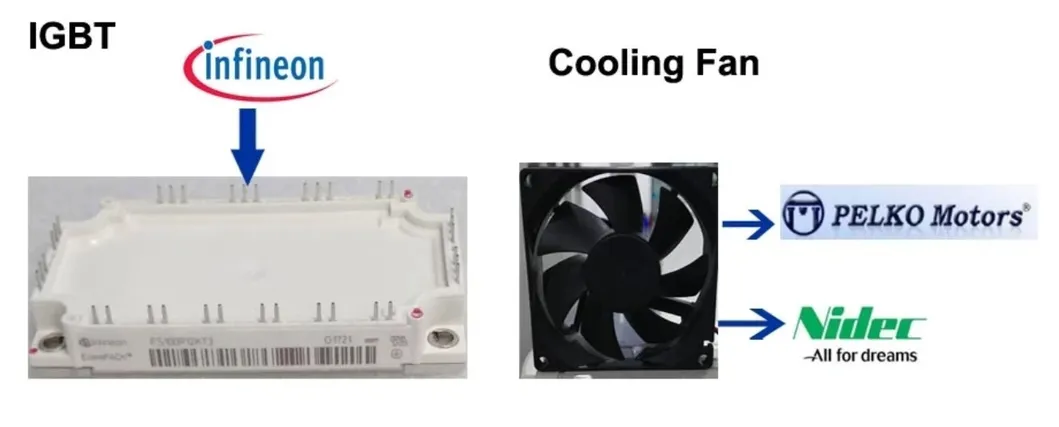

| IGBT | STARPOWER / INFINEON / FUJI |
| Cooling Fan | PELKO / NIDEC |
| Capacitors | RUBYCON / JIANGHAI |
| Electronics | DELTA |
