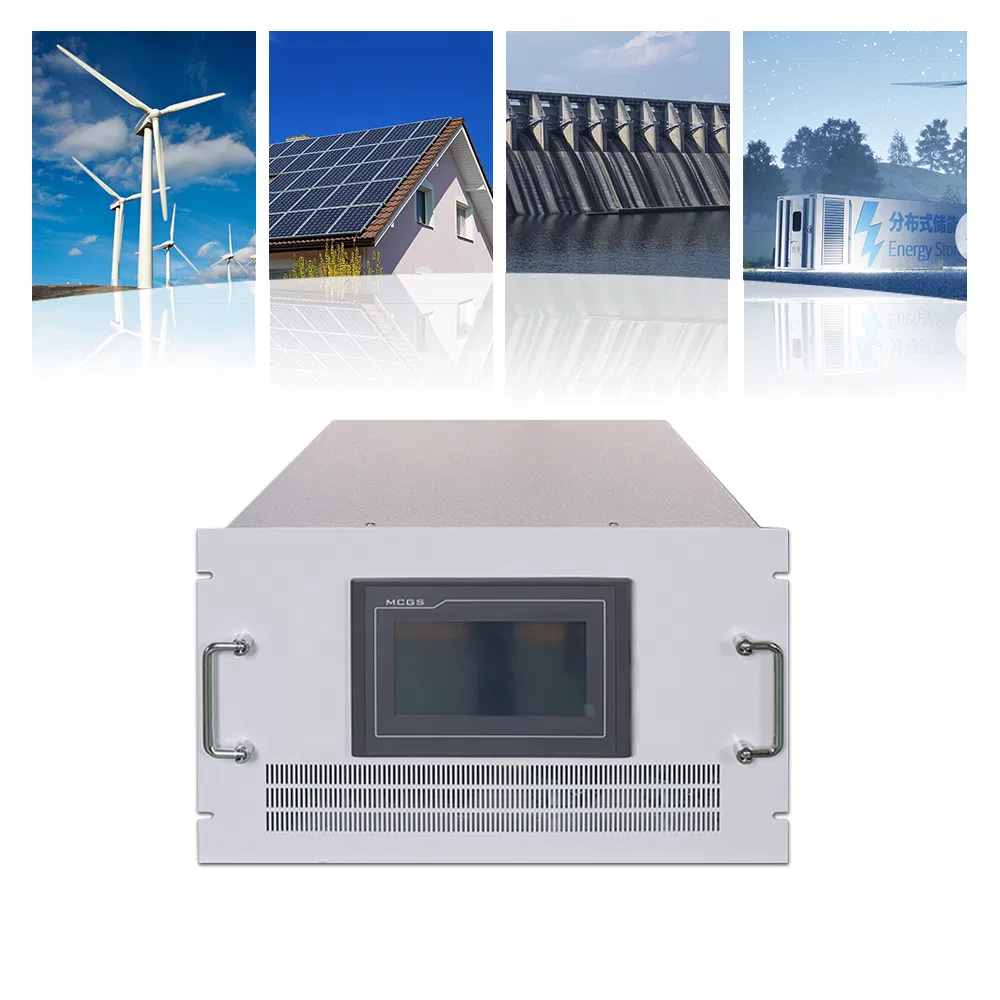

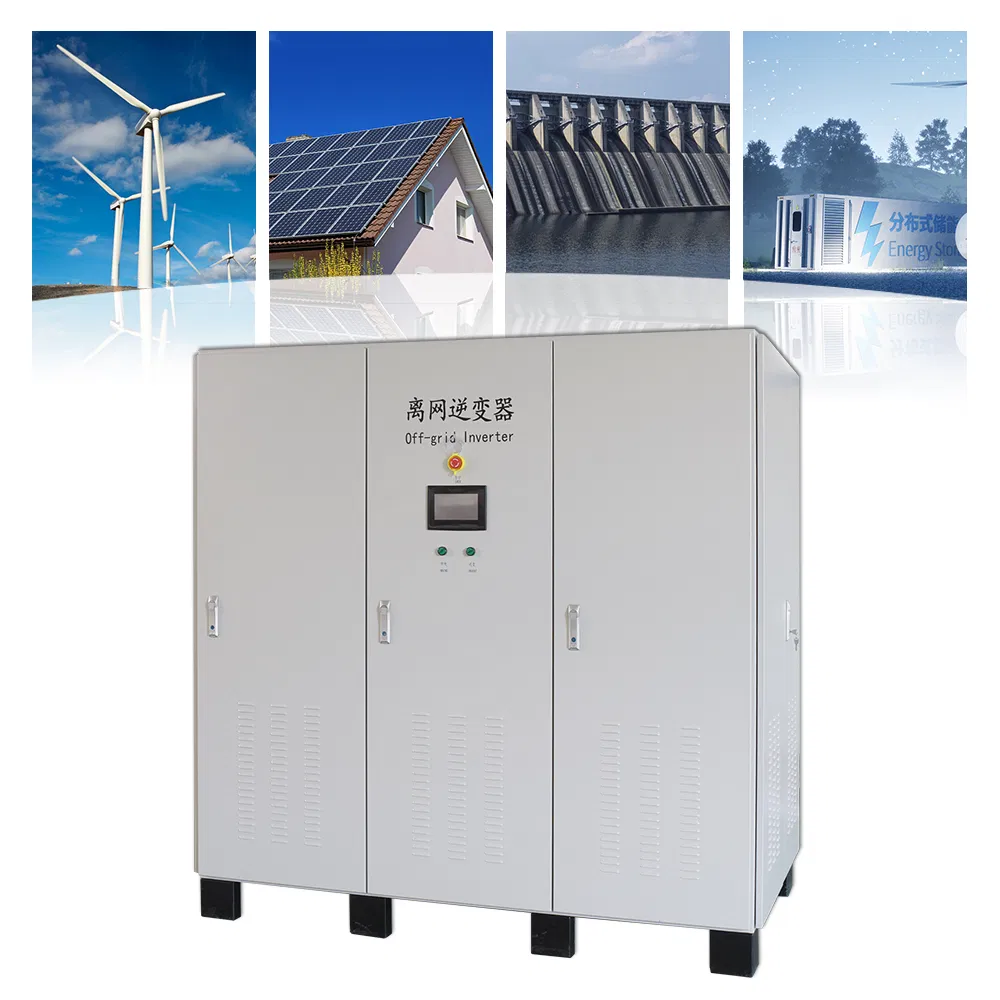

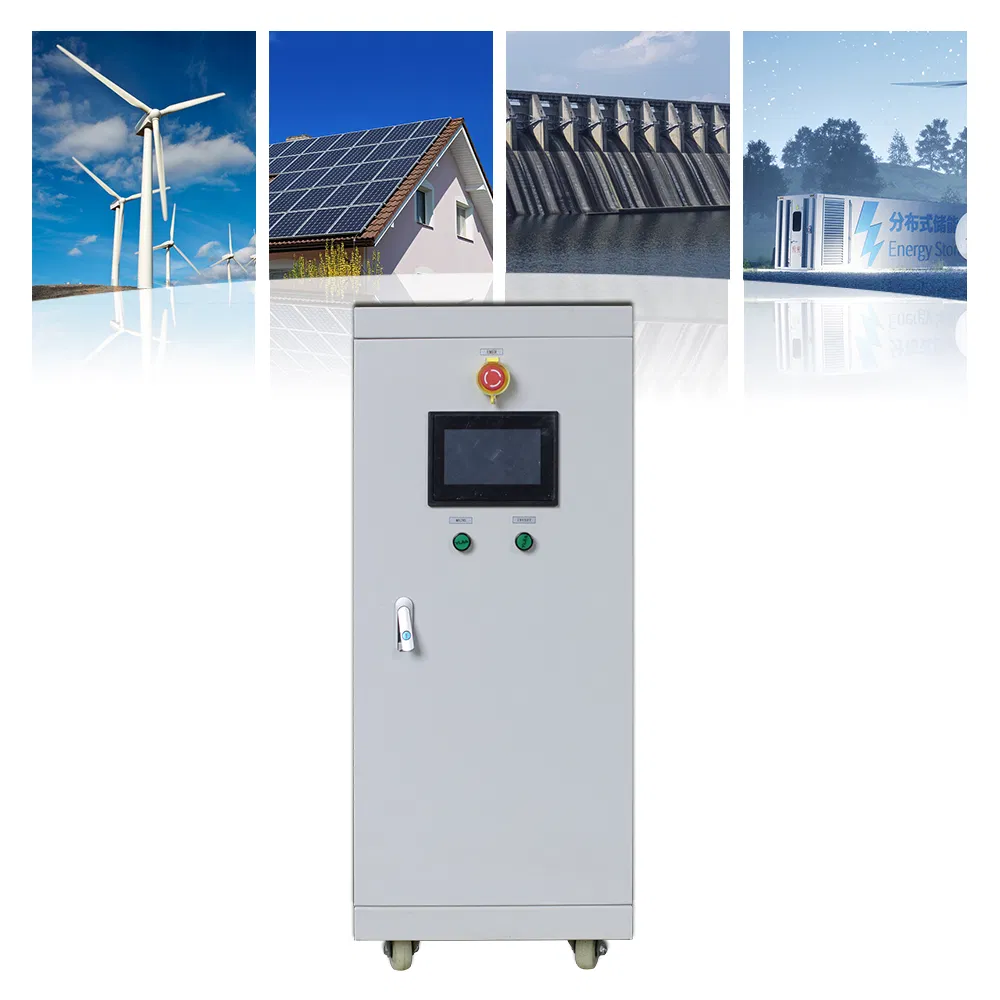

Onboard Microgrid DC DC Step up Converter for 1000V

1 / 5

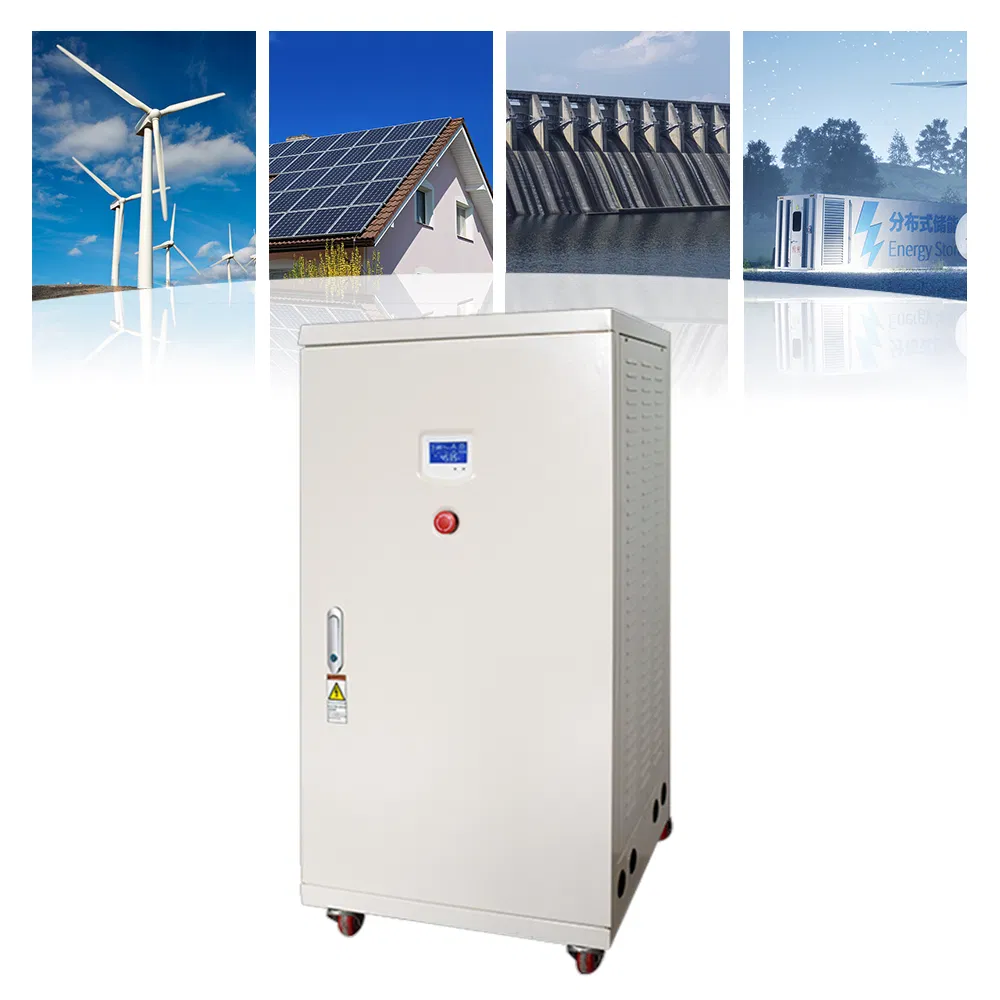

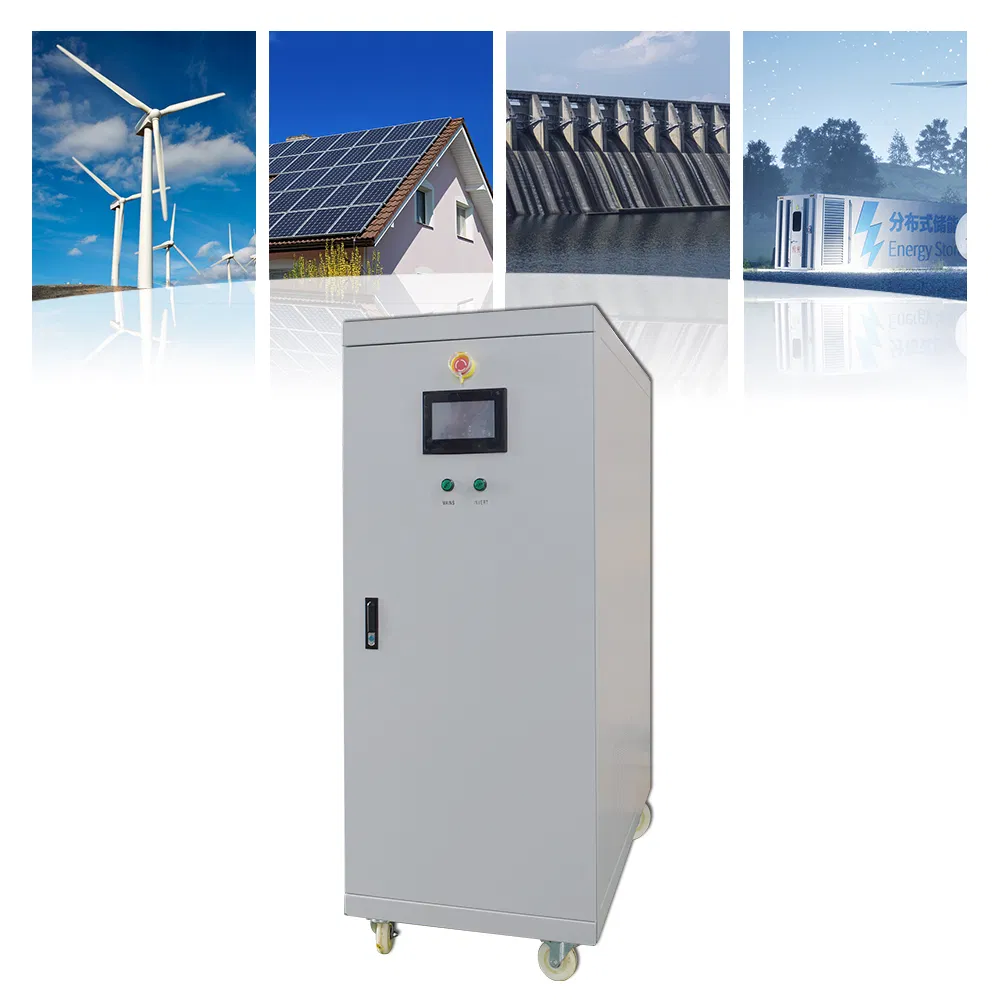

Onboard Microgrid DC DC Step up Converter for 1000V

Customization:	Available
Nature of Source Flow:	Passive inverter
Certification:	ISO9001, CE

Send Inquiry

Product Description

Basic Info.

Output Power:250kw

Grid Type:off-Grid Inverter

Output Type:Triple

Circuit Topologies:Full-Bridge Type

Nature of Wave String:Sine Wave Inverter

Type:DC/DC Inverters

Custom Made:Yes

DC DC Voltage Converter:Yes

DC DC Step Down Converter:Yes

DC to DC Inverter:Yes

Transport Package:Wooden Box

Origin:Shandong

HS Code:8504403090

Production Capacity:100/Month

Onboard Microgrid DC DC Step up Converter

Product Description

Introducing the advanced and reliable power inverter system. Our system is designed to provide a seamless and efficient energy flow for various applications.

Key Features

Bi-directional energy flow for optimal utilization of energy resources
Fully automatic protection functions including overheating, overload, short circuit, and overcurrent protection
Selection of original imported power devices and fully digital circuit design for enhanced reliability
Industrial grade chips capable of operating in extreme environments
Clean and synchronized output with the grid, minimizing current harmonic content
Closed-loop control of grid-connected current for precise power management
Wide input voltage range for versatile power solutions
High efficiency of ≥ 96% with compact circuit structure
Ethernet interface supporting standard Modbus TCP communication protocol

Technical Specifications

Rated Power	250KW / 500KW Options
LV Voltage Range	600-790Vdc
HV Voltage Range	900-1314Vdc
Max. Efficiency	96% - 98% @ full load
Dynamic Response	< 2ms
Protection Level	IP55
Cooling Mode	Air cooling
Communication	Modbus TCP (RJ45), Modbus RTU (RS485)
Working Temp	-10ºC to +50ºC

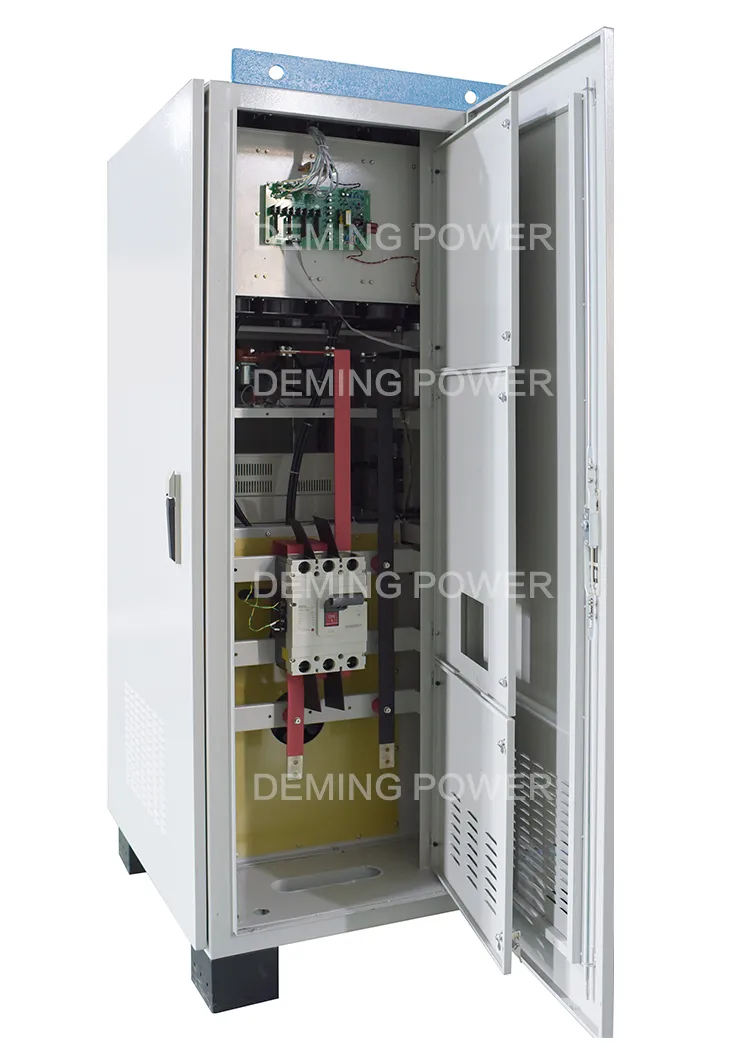

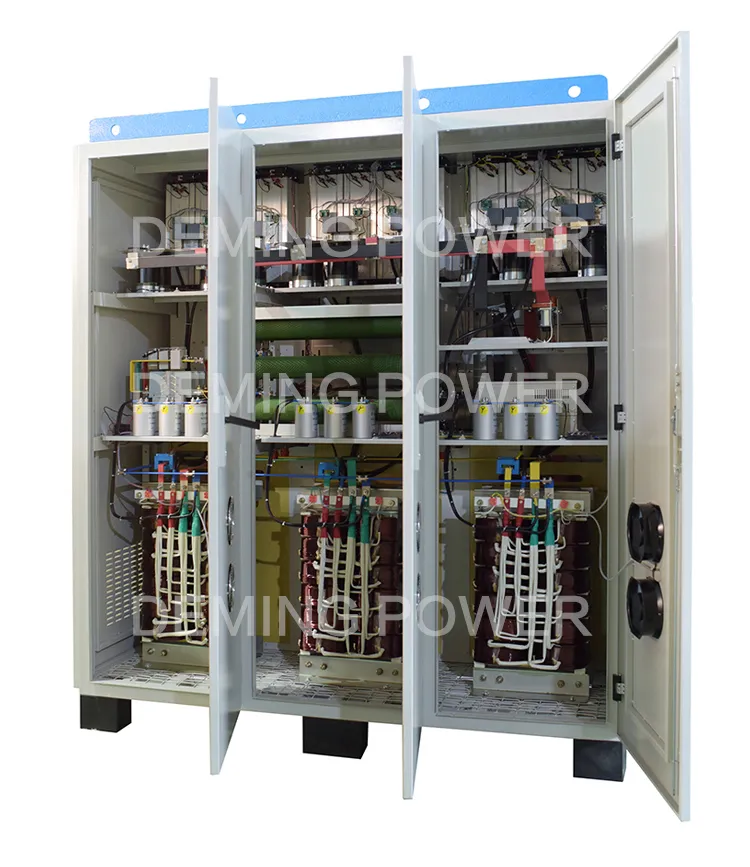

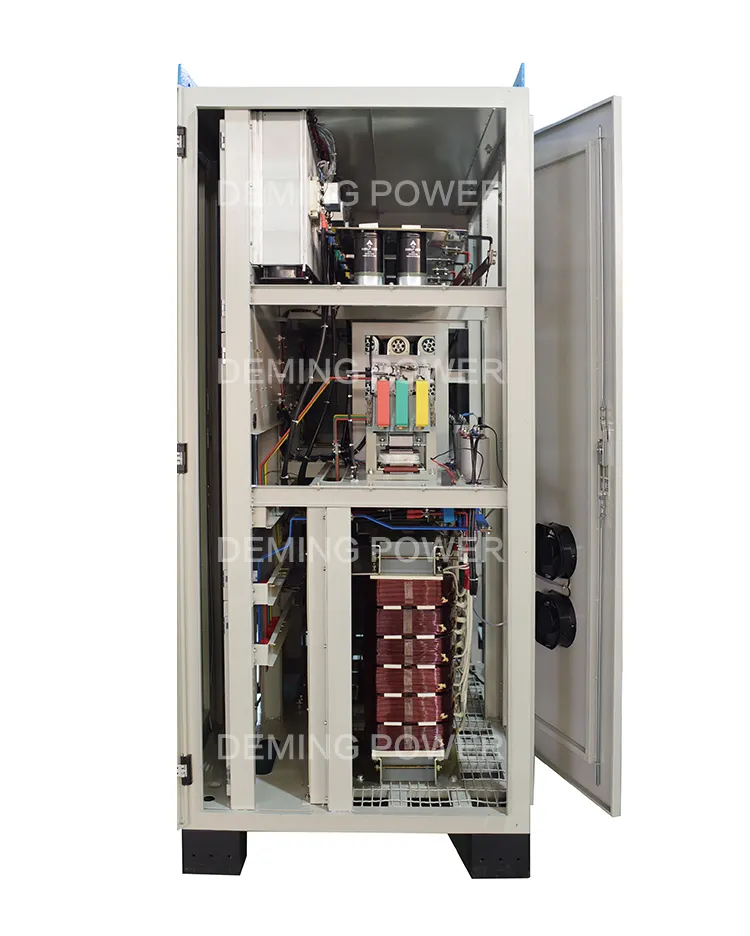

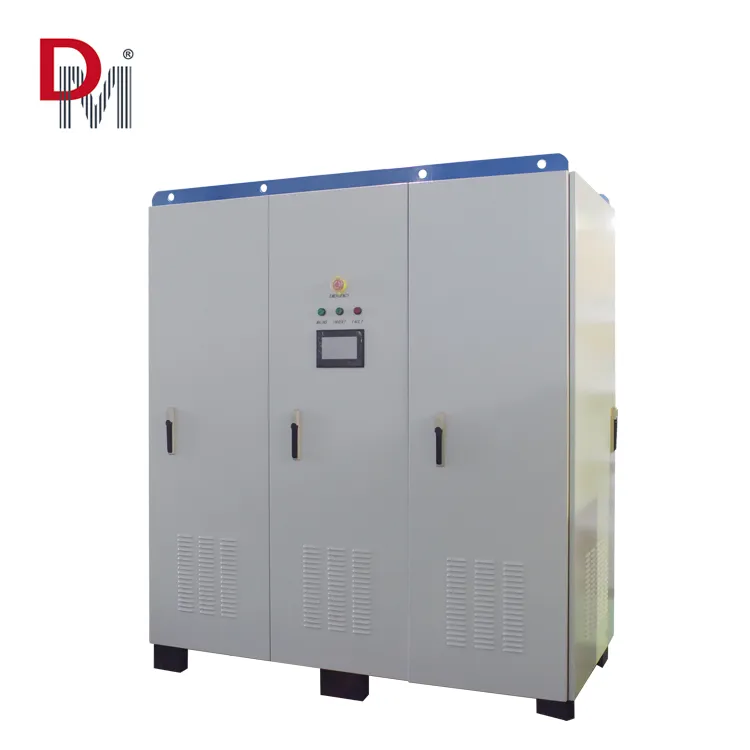

Product Display

Frequently Asked Questions

Q1: What is the maximum efficiency of this DC/DC converter? A1: The system features a highly efficient circuit structure, achieving a maximum efficiency of up to 98% at full load.

Q2: Can the protection level be customized? A2: Yes, while the standard protection level is IP55, we offer customizable protection levels to provide tailored power solutions based on specific needs.

Q3: What communication protocols are supported? A3: The system supports standard Modbus TCP via Ethernet (RJ45) and Modbus RTU via RS485 for seamless integration.

Q4: How does the system handle extreme environmental conditions? A4: We use industrial-grade chips and imported power devices, allowing stable operation in temperatures ranging from -10ºC to +50ºC.

Q5: What safety protections are included? A5: The system includes a comprehensive protection scheme: reverse polarity, overheating, overload, short circuit, and overcurrent protection.

Q6: Is bi-directional energy flow supported? A6: Yes, the system supports bi-directional energy flow, ensuring optimal utilization of power resources and precision management.
