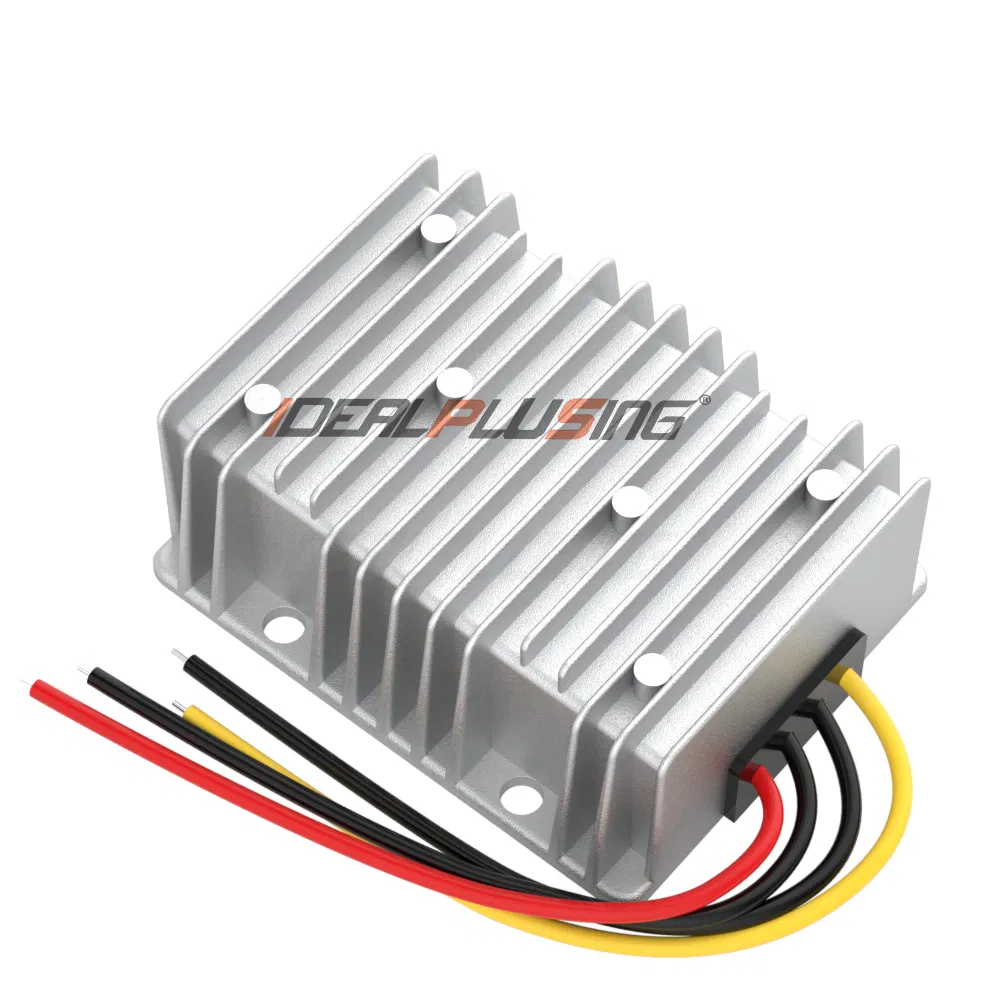

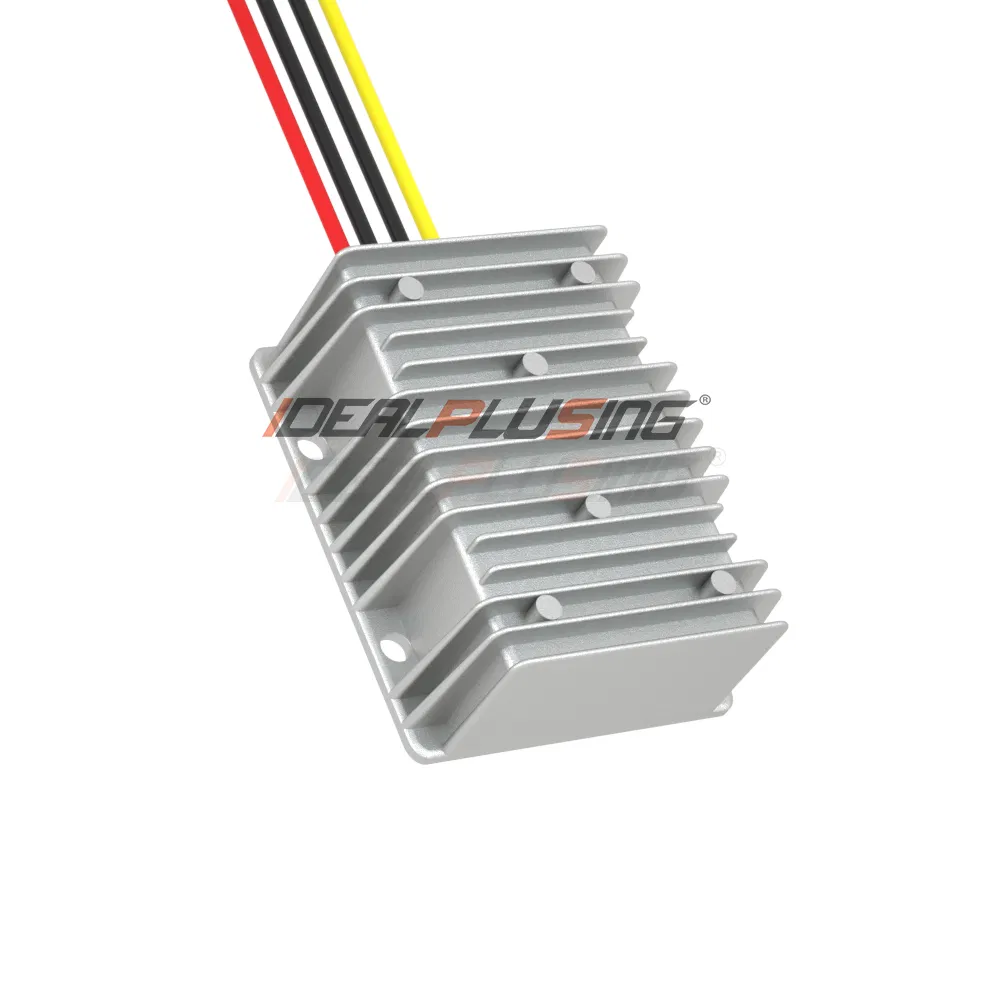

High Precise 12V to 36V Step up Converter 8A 10A 20A DC DC Converter Module for Wind Power

1 / 5

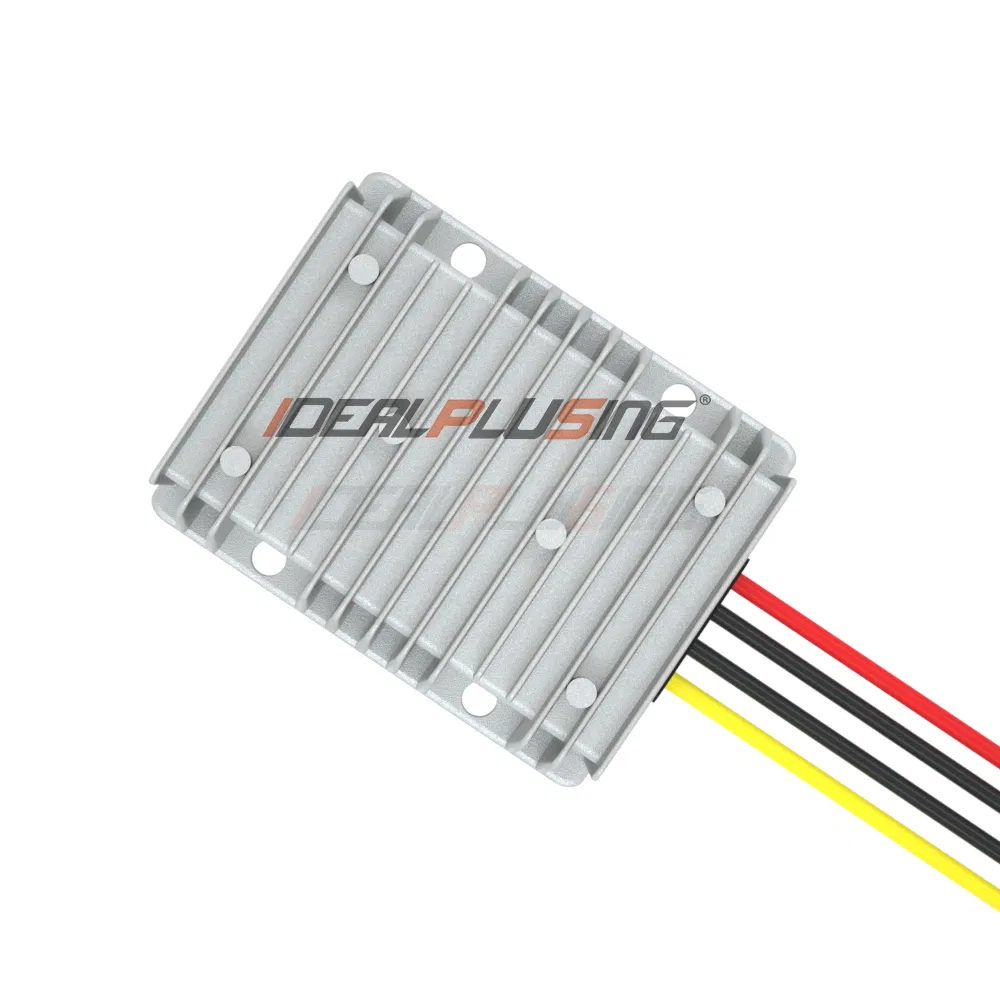

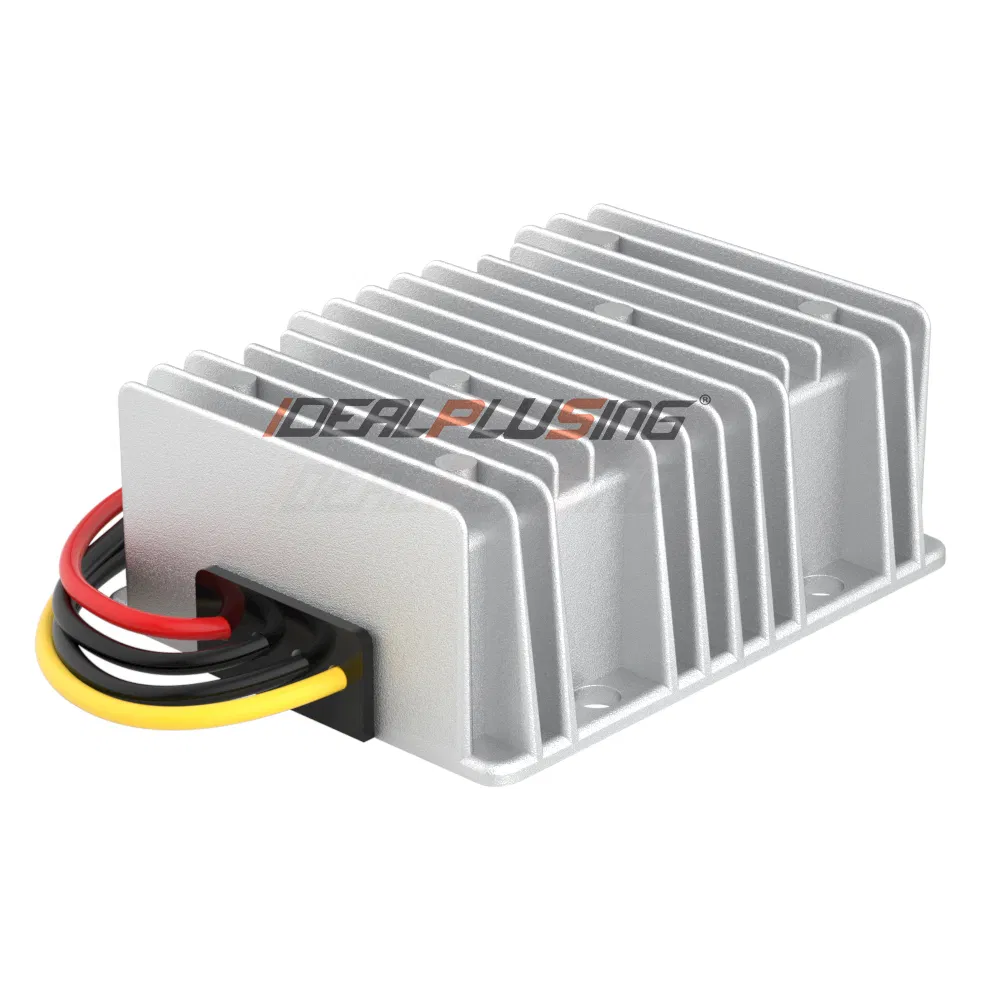

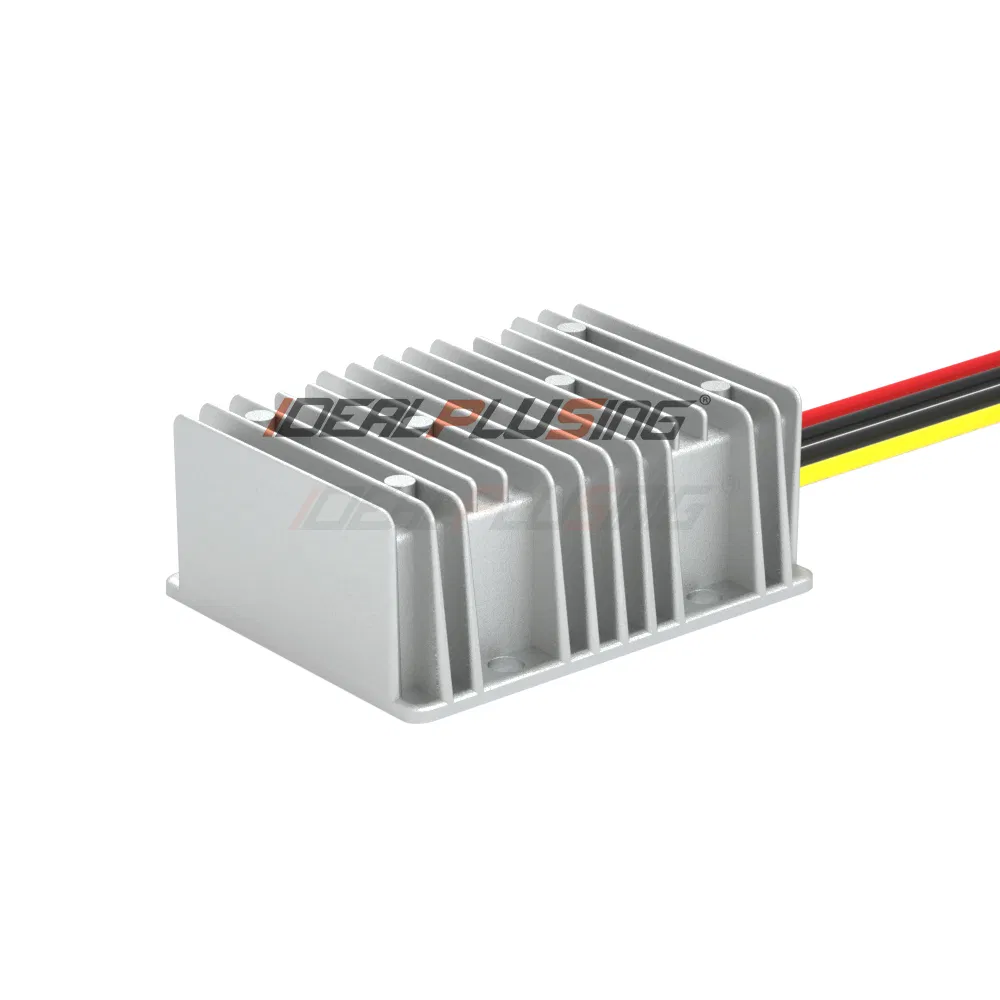

High Precise 12V to 36V Step up Converter 8A 10A 20A DC DC Converter Module for Wind Power

Customization:	Available
Model 1:	12VDC-36VDC 1A 36W
Model 2:	12VDC-36VDC 2A 72W

Send Inquiry

Product Description

Basic Information

Parameter	Details
Model Options	12VDC-36VDC (3A to 40A models available)
Power Range	108W to 1440W
Transport Package	Carton
Specification	1008039 MM
Origin	China
HS Code	8504409999
Production Capacity	100,000 units

Product Description

High Precise 12V to 36V Step Up Converter

A DC/DC converter is a specialized voltage regulator designed to output a stable fixed voltage after converting input source levels. Our modules are widely utilized in wind power systems, mobile devices, and industrial applications.

Boost Type Converter: Efficiently steps up low voltage to the required higher output level.
Dual Control Modes: PWM (Pulse Width Modulation) for high efficiency/low noise and PFM (Pulse Frequency Modulation) for low power consumption under small loads.
Automatic Conversion: Intelligently switches between PFM and PWM based on load conditions.
Customizable Solutions: Tailored voltage and current ranges from 1V to 1000V DC and 1A to 1000A.

Technical Specification

Type	Input Range	Output Volts	Output Current	Max Power	Size (MM)
Non-isolate	10-15VDC	36VDC	1A	36W	665722
Non-isolate	9-20VDC	36VDC	3A	108W	747432
Non-isolate	9-20VDC	36VDC	5A	180W	747432
Non-isolate	9-20VDC	36VDC	8A	288W	747432
Non-isolate	10-15VDC	36VDC	10A	360W	1008039
Non-isolate	10-15VDC	36VDC	20A	720W	15012763
Non-isolate	10-15VDC	36VDC	30A	1080W	22012763
Non-isolate	10-25VDC	36VDC	40A	1440W	22012763

Hot Selling Models

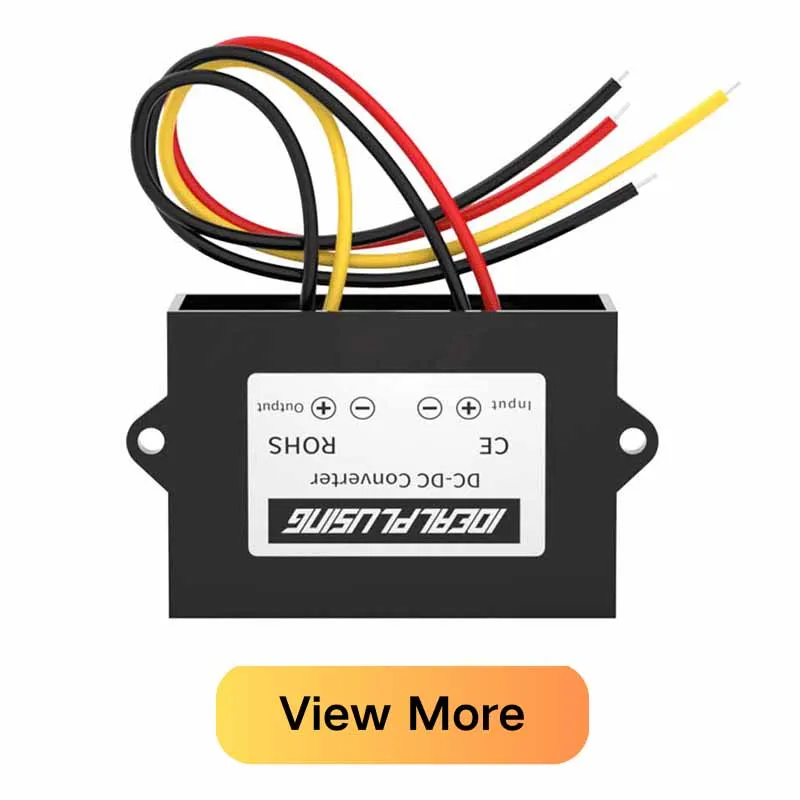

24V to 12V Converter - 1A to 10A Models

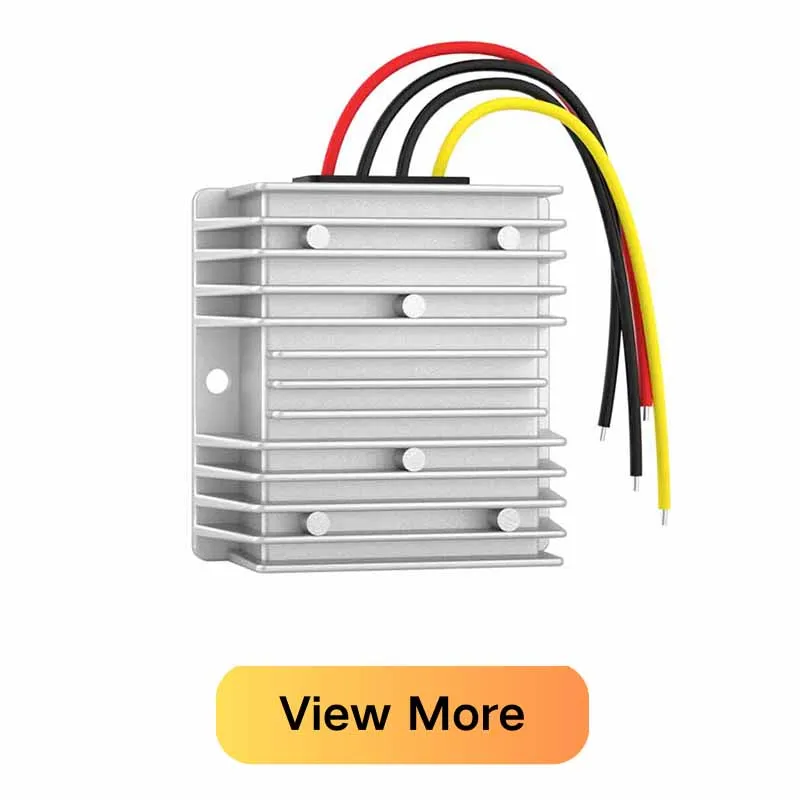

5V to 12V 5A DC-DC Converter

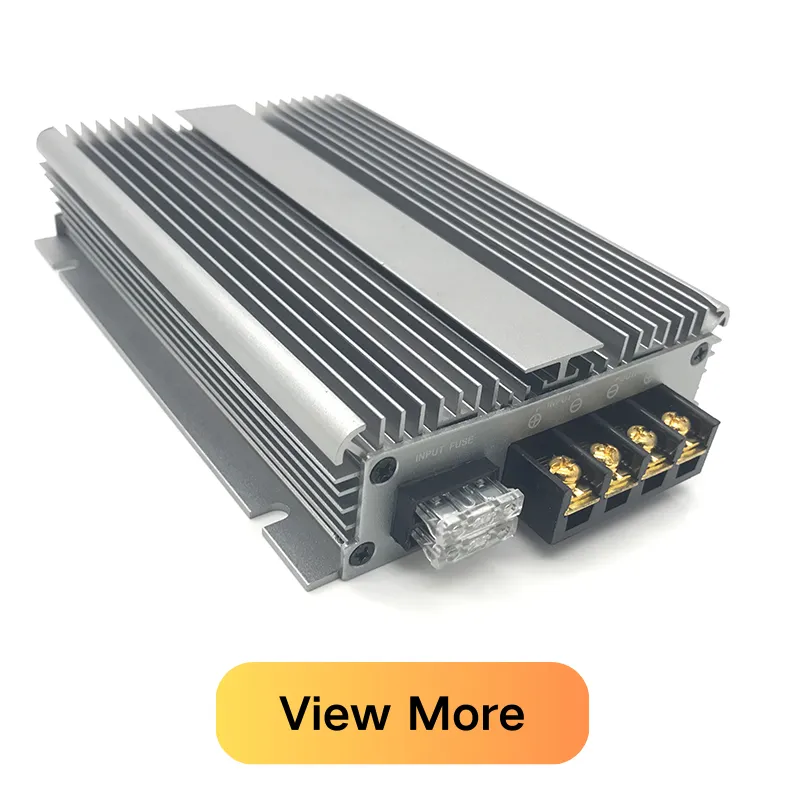

High Power 36V-72V to 12V 20A

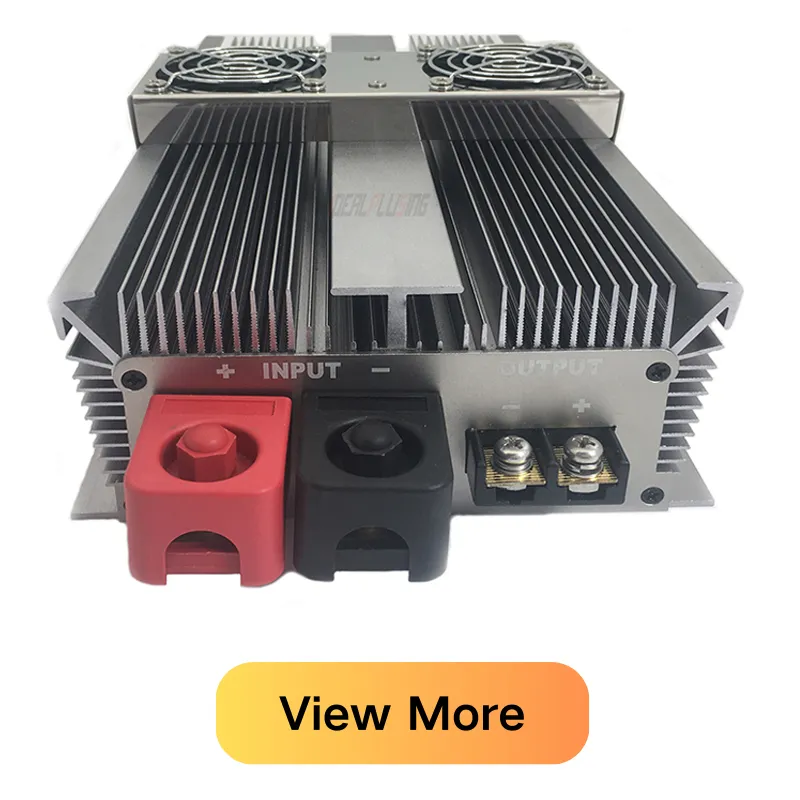

12V to 28V 60A Power Module

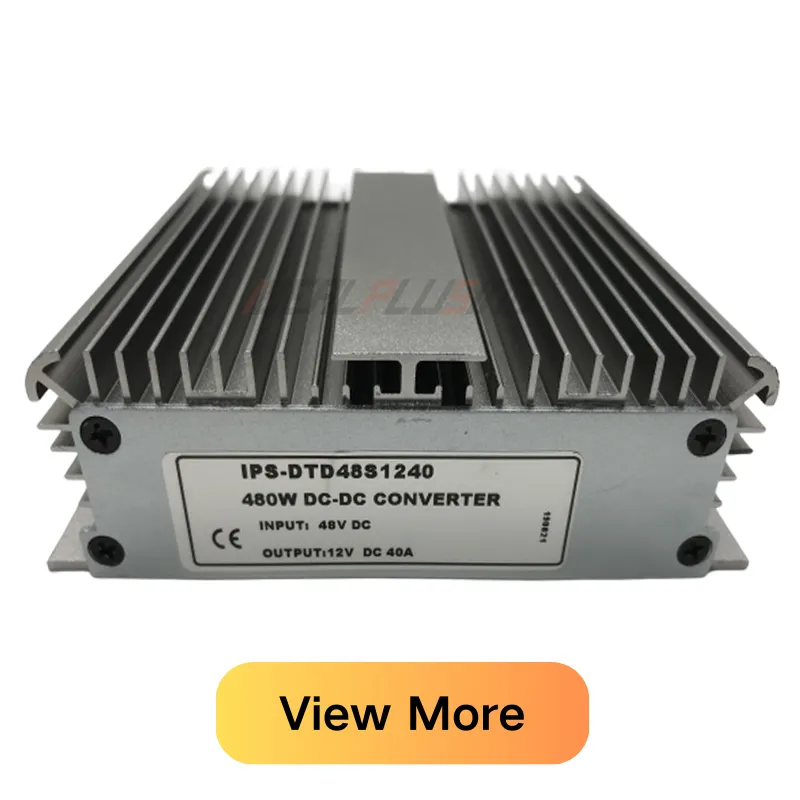

48V to 12V 40A Regulator

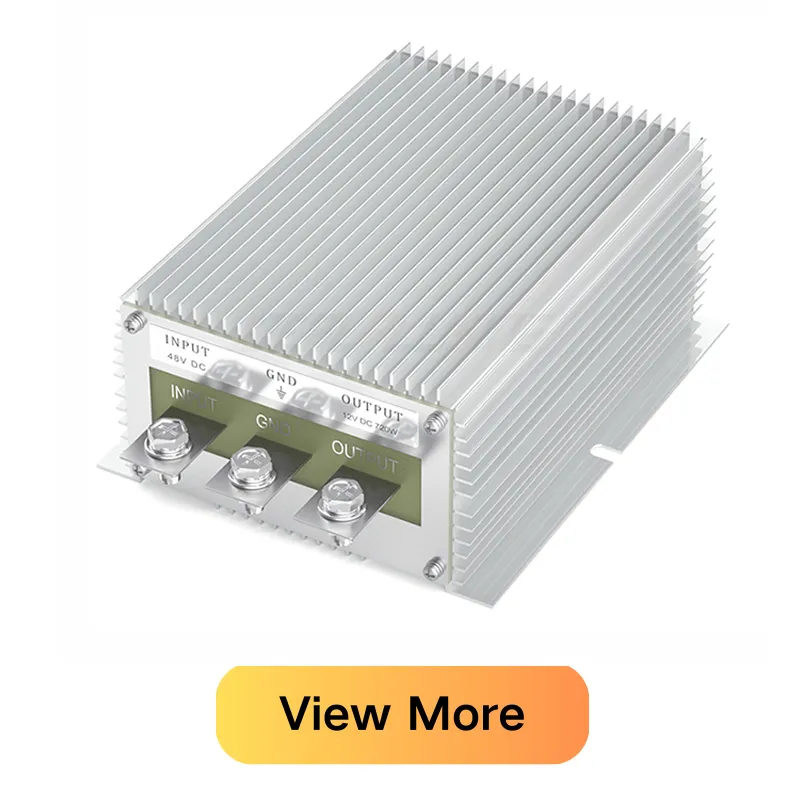

24V to 48V 50A Boost Module

Detailed Product Overview

Wide Applications

Our converters are engineered for diverse environments, providing reliable power for:

Wind power generation and storage systems.
Vehicle electronics, LED power, and motor control.
Industrial machinery and telecom equipment.
Portable media players and digital cameras.

Production Excellence

Frequently Asked Questions

1. What is the difference between PWM and PFM control? PWM (Pulse Width Modulation) provides high efficiency and low noise under heavy loads, while PFM (Pulse Frequency Modulation) is optimized for ultra-low power consumption during small load or standby periods.

2. Is the DC-DC converter waterproof? Yes, many of our models feature an IP65 waterproof rating, combined with a durable aluminum shell that is dustproof and shockproof.

3. Can I request a customized voltage or current? Absolutely. We specialize in customizing DC-DC converters to meet specific requirements, with ranges from 1V to 1000V DC and 1A to 1000A.

4. Do you offer isolated converter designs? We provide both isolated and non-isolated converter options depending on your application's safety and noise requirements.

5. What protection features are included? Our converters typically include over-voltage, over-current, and short-circuit protection to ensure the safety of both the converter and the connected equipment.

6. How quickly can I expect a technical response? Our dedicated technical team endeavors to respond to all inquiries within one hour to provide the best power solutions for your project.
