High Power Converter Boost Mode 600W 20A 25A 10-20VDC 12V to 24V DC-DC Step up Converter for Car Truck

1 / 5

High Power Converter Boost Mode 600W 20A 25A 10-20VDC 12V to 24V DC-DC Step up Converter for Car Truck

Customization:	Available
Model 1:	24VDC 1A 24W
Model 2:	24VDC 2A 48W

Send Inquiry

Product Description

Basic Information

Model Range	24VDC 3A to 40A (72W - 960W)	HS Code	8504409999
Origin	China	Package	Carton
Specification	L125W105H52MM	Capacity	100,000 Units

Product Description

High Power Converter Boost Mode: 12v to 24v DC-DC step up converter designed for Car and Truck applications. DC/DC converter is a voltage regulator that output fixed voltage after converting input voltage. Available in Boost type, Boost & Buck type, and Buck type configurations.

🔹 PWM & PFM Control: High efficiency PWM control with low ripple and noise; PFM control for low power consumption under small loads.

Customization services are available for DC-DC converters to meet specific requirements, with voltage ranges from 1V to 1000V DC and current ranges from 1A to 1000A. Both isolated and non-isolated designs are provided.

Technical Specifications

Model	Input Range	Output Voltage	Output Current	Max Power	Size (MM)
IPS-DTD12S2425	10-20VDC	24VDC	25A	600W	12510552
IPS-DTD12S2410	9-20VDC	24VDC	10A	240W	747432
IPS-DTD12S2415	10-15VDC	24VDC	15A	360W	1008039
IPS-DTD12S2430	10-15VDC	24VDC	30A	720W	15012763

Hot Selling Models

Model: 24V to 12V 1A-10A

Model: 5V to 12V 5A

Model: 48V to 12V 20A

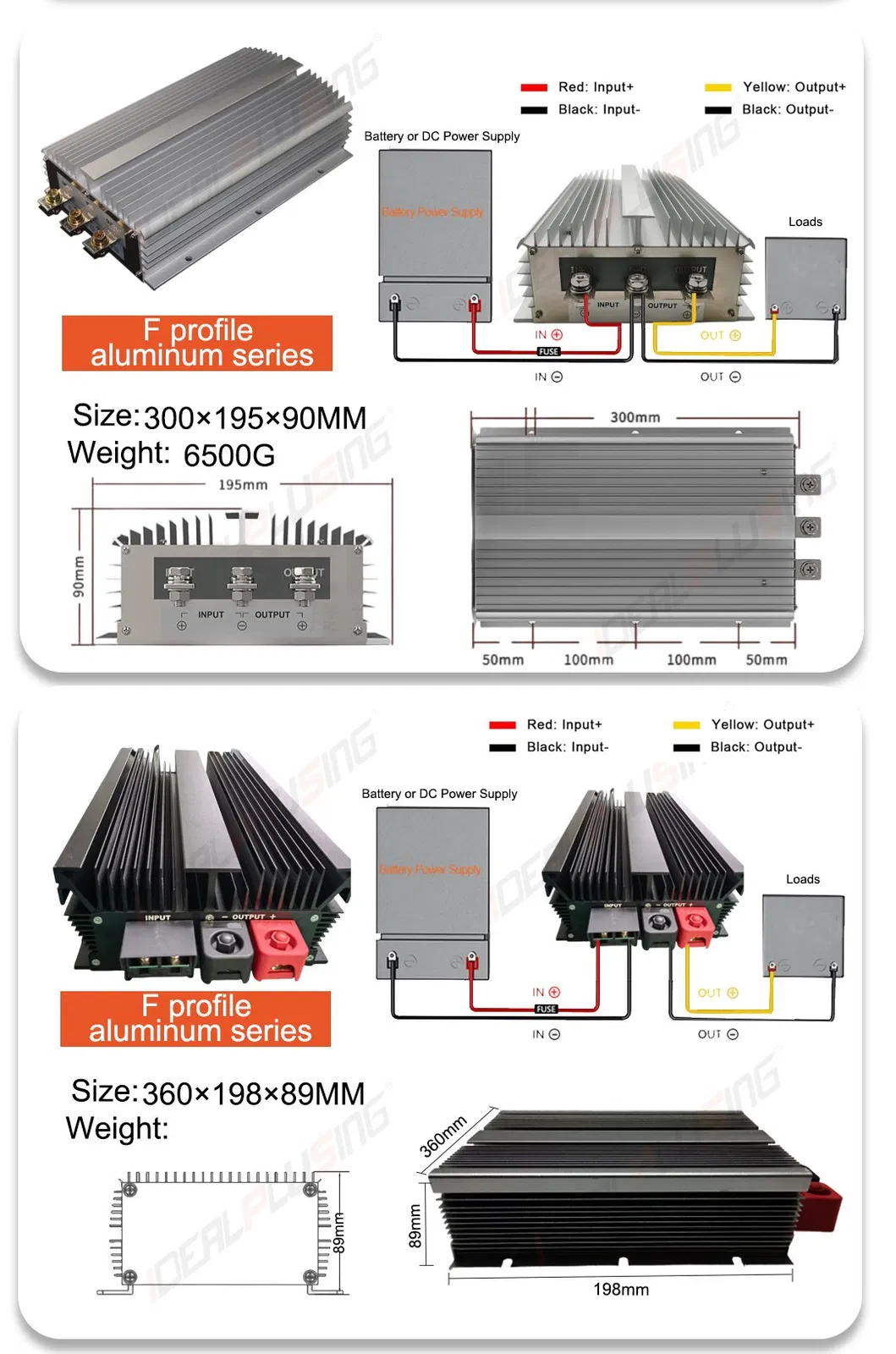

Detailed Photos & Construction

Applications

💡 Widely used in: Mobile phones, digital cameras, portable media players, Car/Truck systems, LED power modules, and industrial equipment.

Frequently Asked Questions (FAQ)

Q1: What is the main function of a DC-DC converter? A: It is a voltage converter that converts an input DC voltage to a fixed, regulated output DC voltage, used to bridge different power requirements of electronic devices.

Q2: What is the difference between isolated and non-isolated converters? A: Isolated converters have a physical barrier between input and output for safety and noise reduction, while non-isolated converters are typically more efficient and smaller.

Q3: Can these converters be used in all types of vehicles? A: Yes, they are specifically designed for 12V and 24V systems commonly found in cars, trucks, golf carts, and forklifts.

Q4: What protections are built into these power modules? A: Most modules feature waterproof (IP65/IP67), dustproof, and shockproof designs, including over-voltage and short-circuit protection.

Q5: Can I request a customized voltage specification? A: Yes, customization is available for input/output ranges from 1V to 1000V to suit specific industrial or commercial requirements.

Q6: How efficient are these DC-DC converters? A: Most of our high-power converters achieve an efficiency of approximately 90% ± 4% depending on the specific model and load conditions.
