1W, 2W, 3W, 5W DC DC Converter Step-up DC-DC Converter

1 / 5

1W, 2W, 3W, 5W DC DC Converter Step-up DC-DC Converter

Customization:	Available
Voltage Type:	DC Voltage
Input Signal Type:	DC Voltage Transmitter

Send Inquiry

Product Description

Basic Specifications

Model NO.

GRB24110D-2W-A

Output Signal Type

Analog Output

Accuracy Grade

Certification

Input Voltage Range

18-36VDC

Output Voltage

110VDC

Output Current

18mA

Efficiency

83%

Operation Temperature

-40 to +85 Degree

Warranty Time

Two Years

Product Description

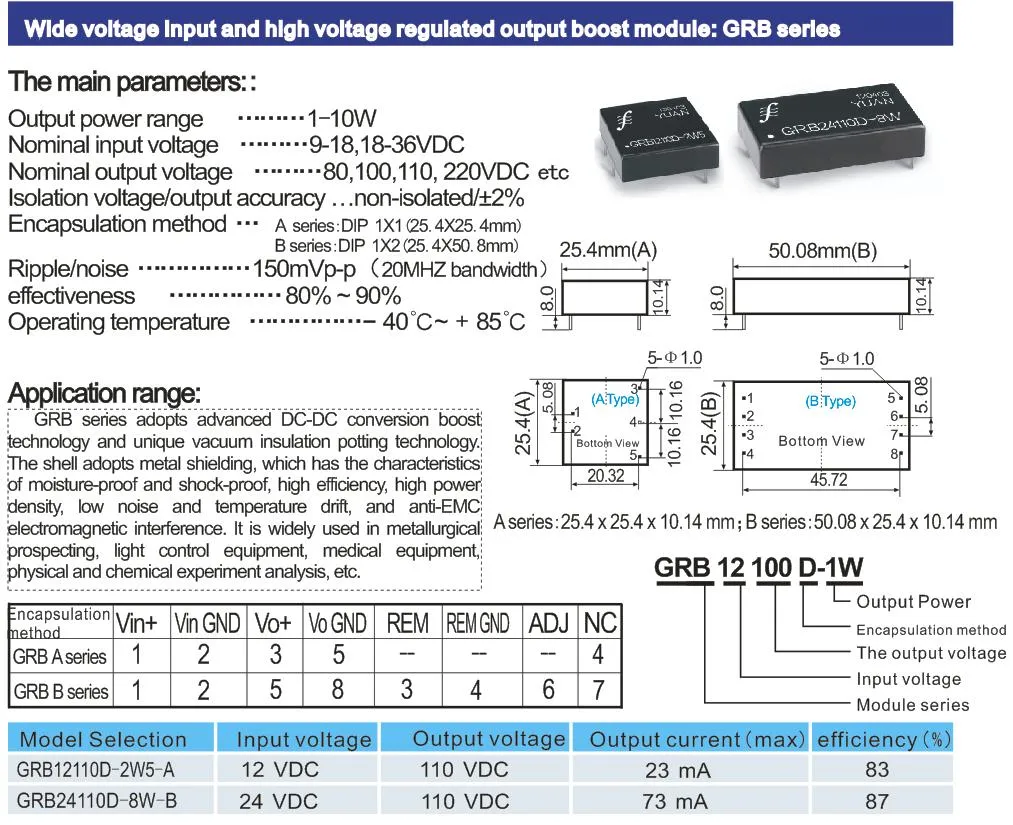

100V/110V/220VDC High Voltage Boost DC DC Converter Power Modules

GRB Series power modules adopt advanced DC-DC conversion and pressor technology, featuring unique vacuum insulation and encapsulation design. The metal shield case provides moisture-proof, shockproof, high efficiency, low noise, and anti-EMC electromagnetic interference characteristics.

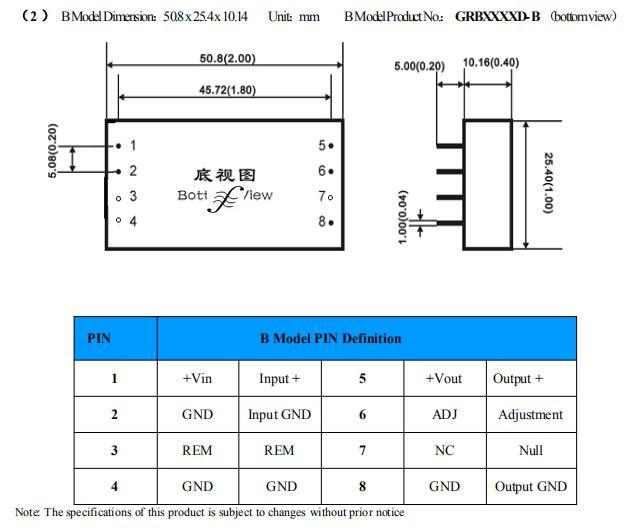

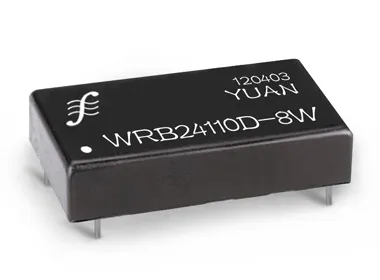

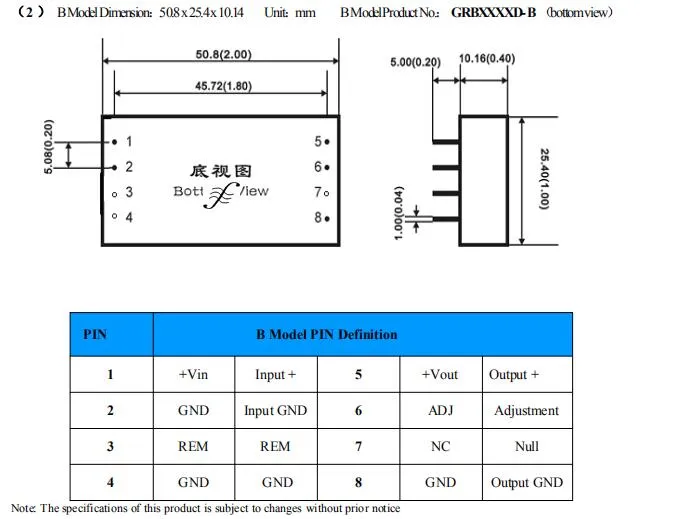

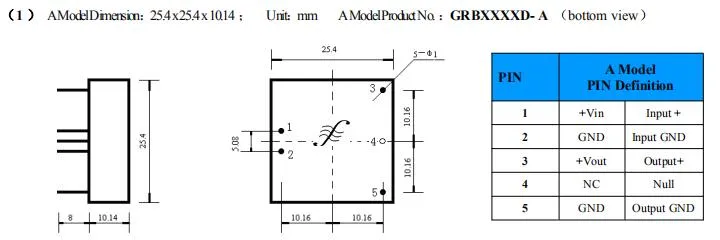

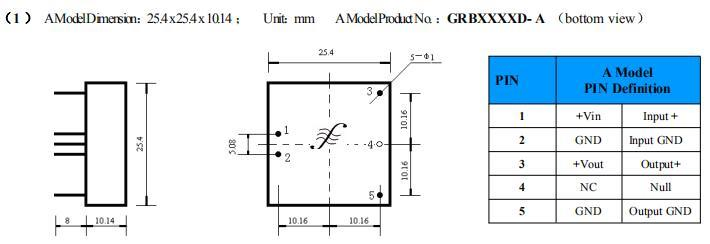

Packaging Appearance (Series A & B):

Technical Specifications

Output Power	1~10W
Input Voltage	9-18 / 18-36VDC
Output Voltage	80/100/110/220VDC
Output Accuracy	±2%
Ripple	150mVp-p
Efficiency	80%~90%

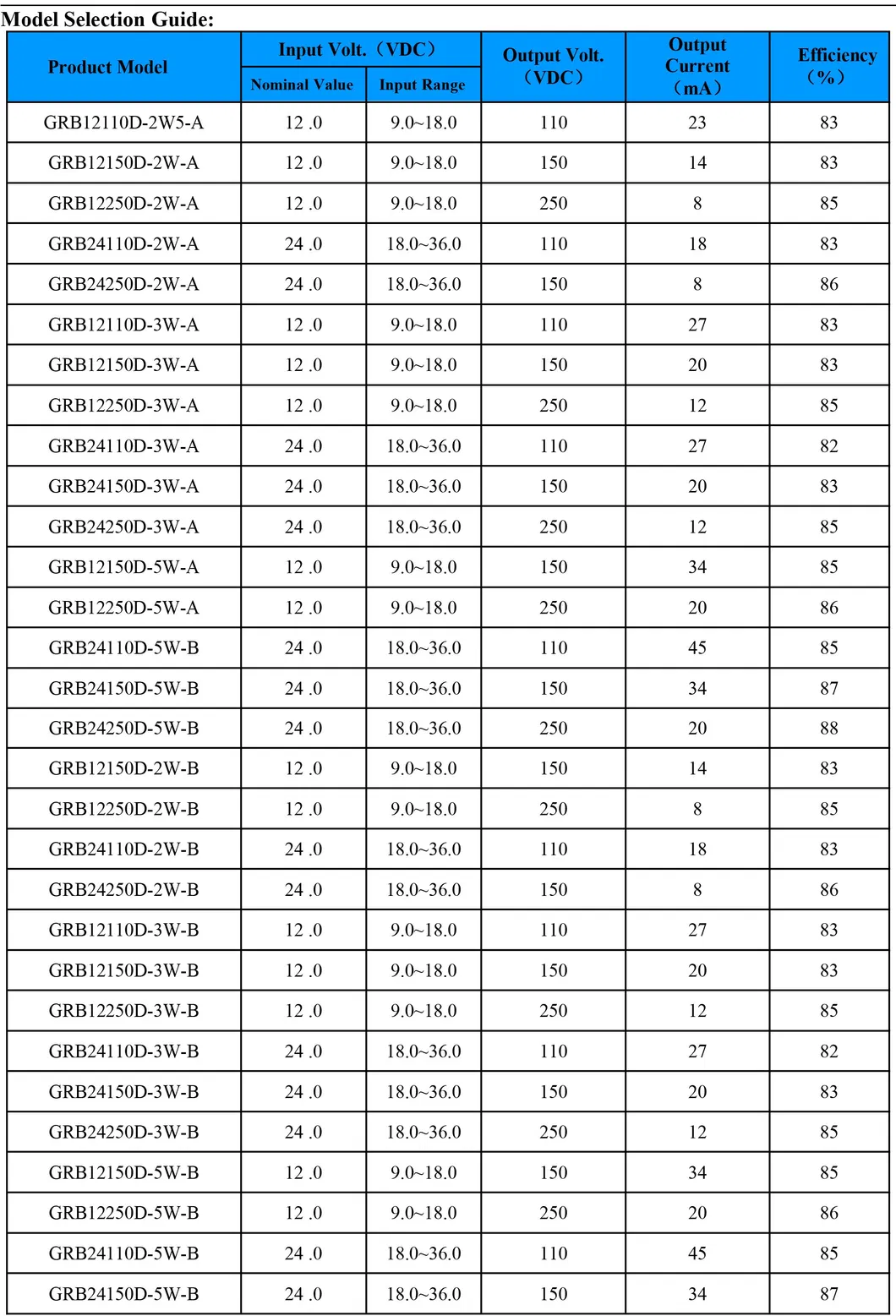

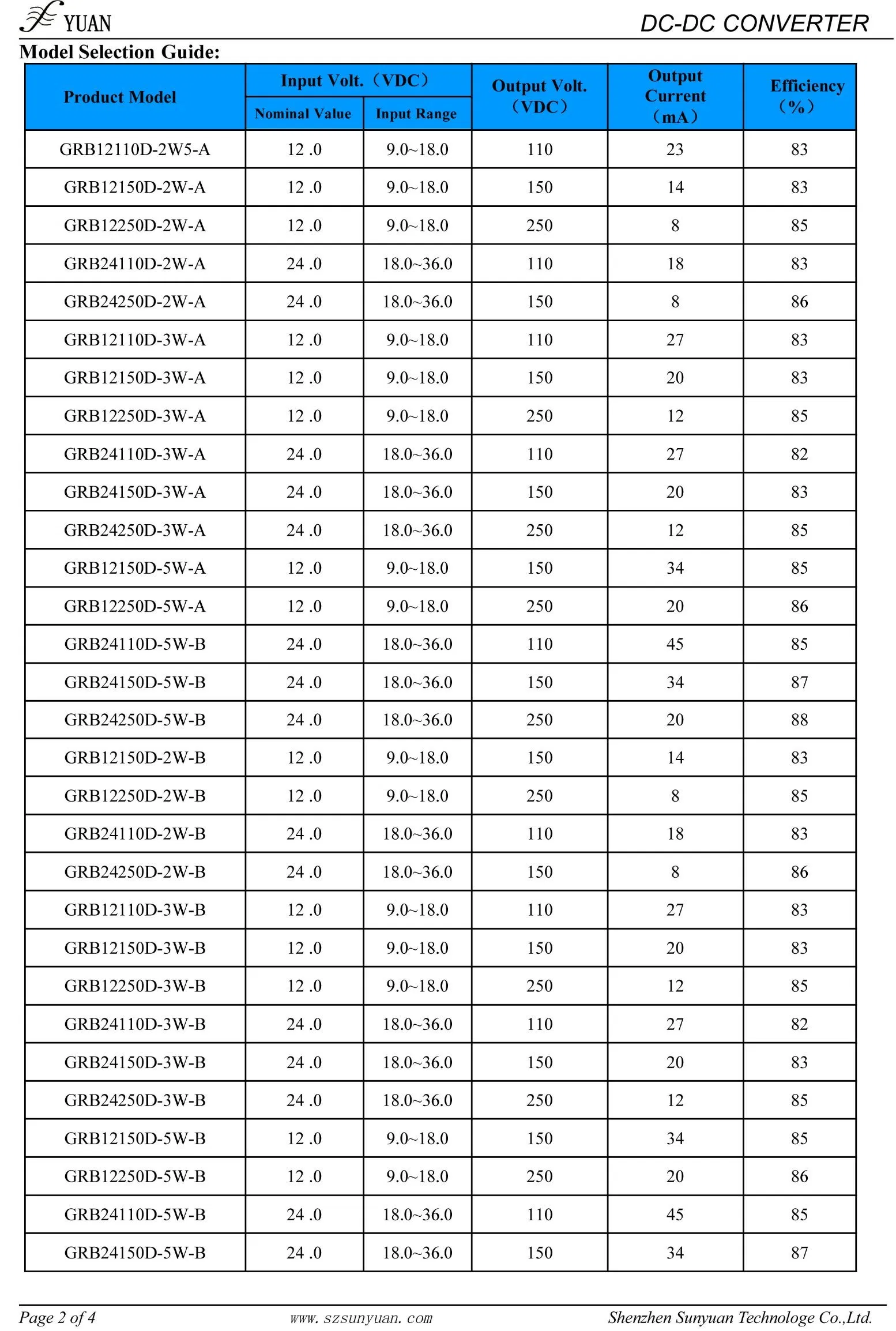

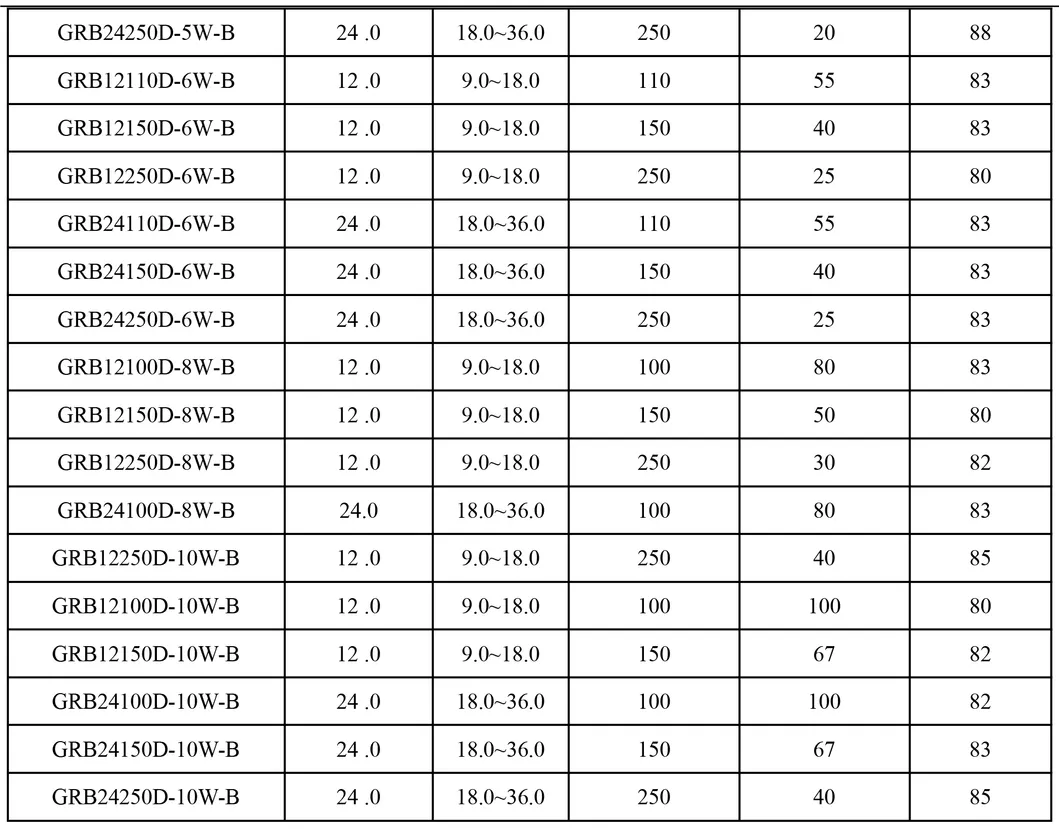

Product List & Technical Charts

Series Overview

1. GRS Series: 1-3W Small Size 6KV High Isolation DC-DC Module.

2. GRC Series: 5V-24V Input to 250V-400V Output Isolated Converter.

3. GRE Series: 6kvd Double Loop Isolated Output for Medical Instruments.

4. WHB Series: 10KV High Isolation Antistatic Converter.

5. IB/VB Series: 1KV Isolation, 1W/2W regulated output, standard SIP/DIP package.

Frequently Asked Questions

What are the main applications for these modules?

They are widely used in mine exploration, metallurgy, optical control technology, medical equipment, and physical/chemical experimental analysis.

What protection functions do these converters include?

The modules feature OTP (Over Temperature Protection), OCP (Over Current Protection), UVL (Under Voltage Lockout), and SCP (Short Circuit Protection).

What is the isolation range for the medical grade series?

The medical-grade GRE series and WHB series provide high isolation levels ranging from 6KVDC up to 10KV high isolation antistatic protection.

Do you support customized input/output voltages?

Yes, the products are listed as "Customized" supported, covering a wide range of input (up to 36VDC) and high voltage output requirements.

What is the standard operating temperature?

The standard operating temperature range is -40 degrees to +85 degrees Celsius, suitable for industrial environments.

What packaging types are available?

Most products use flame retardant SIP 4/7 Pin or DIP 8/14 Pin packages with optional metal shielding.
