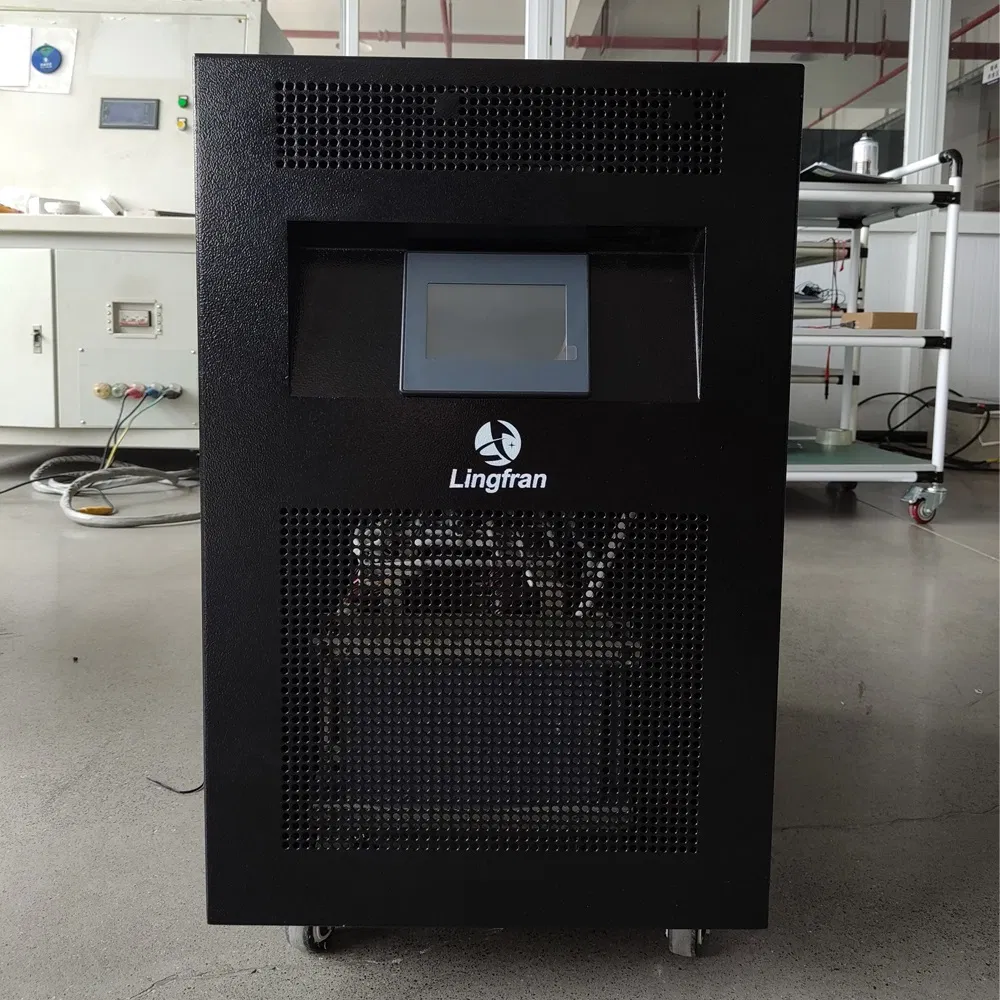

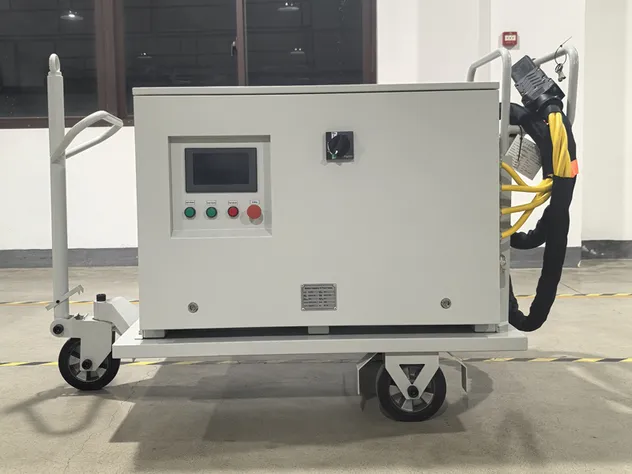

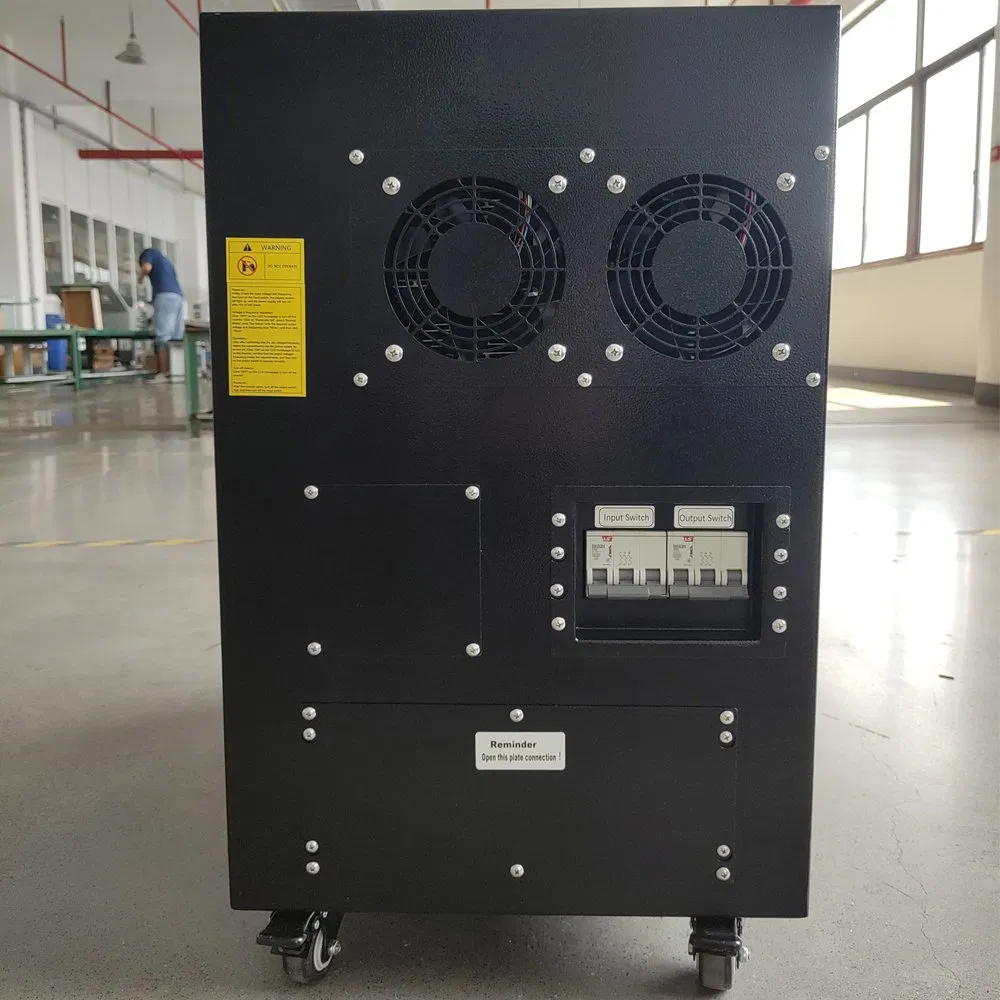

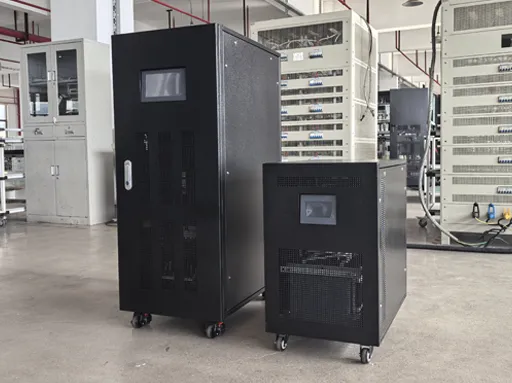

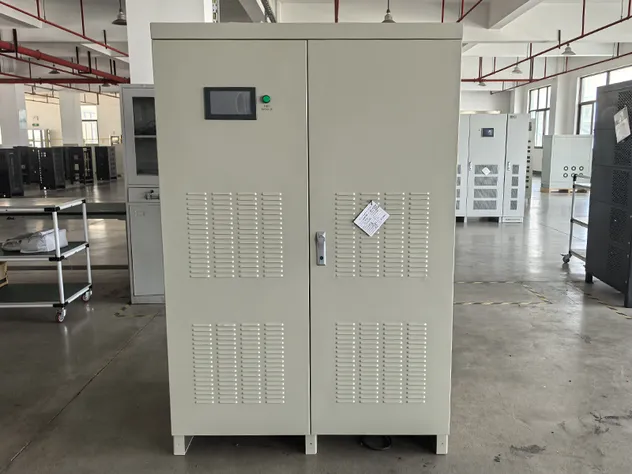

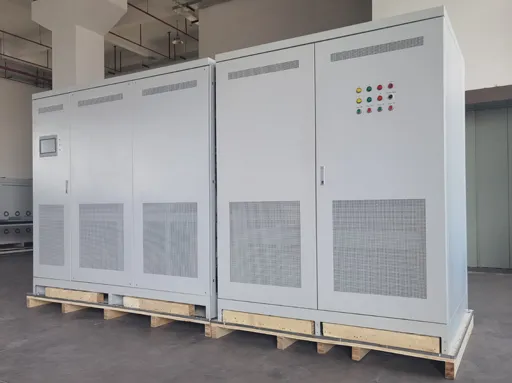

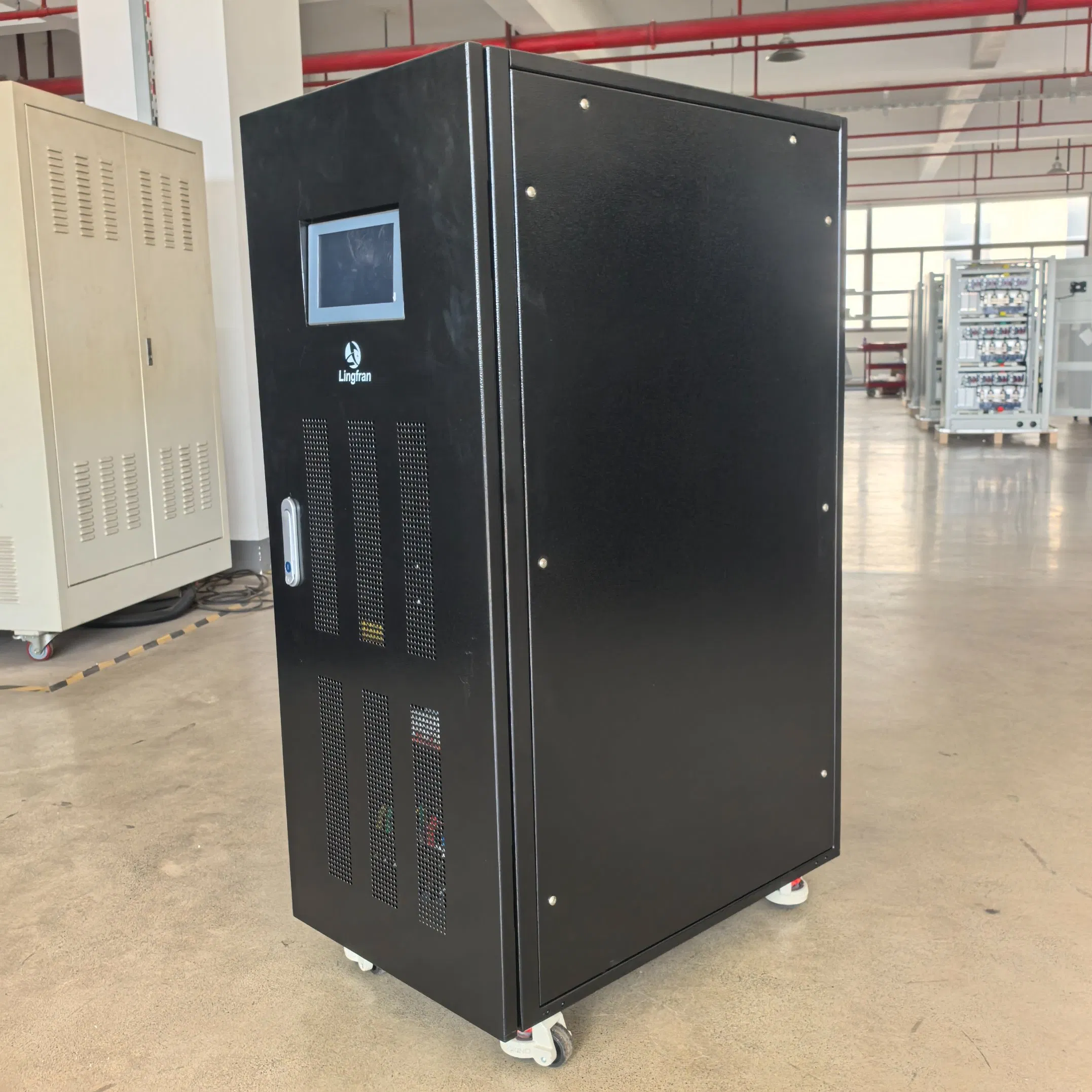

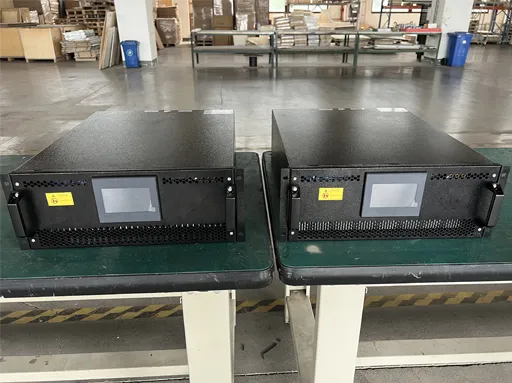

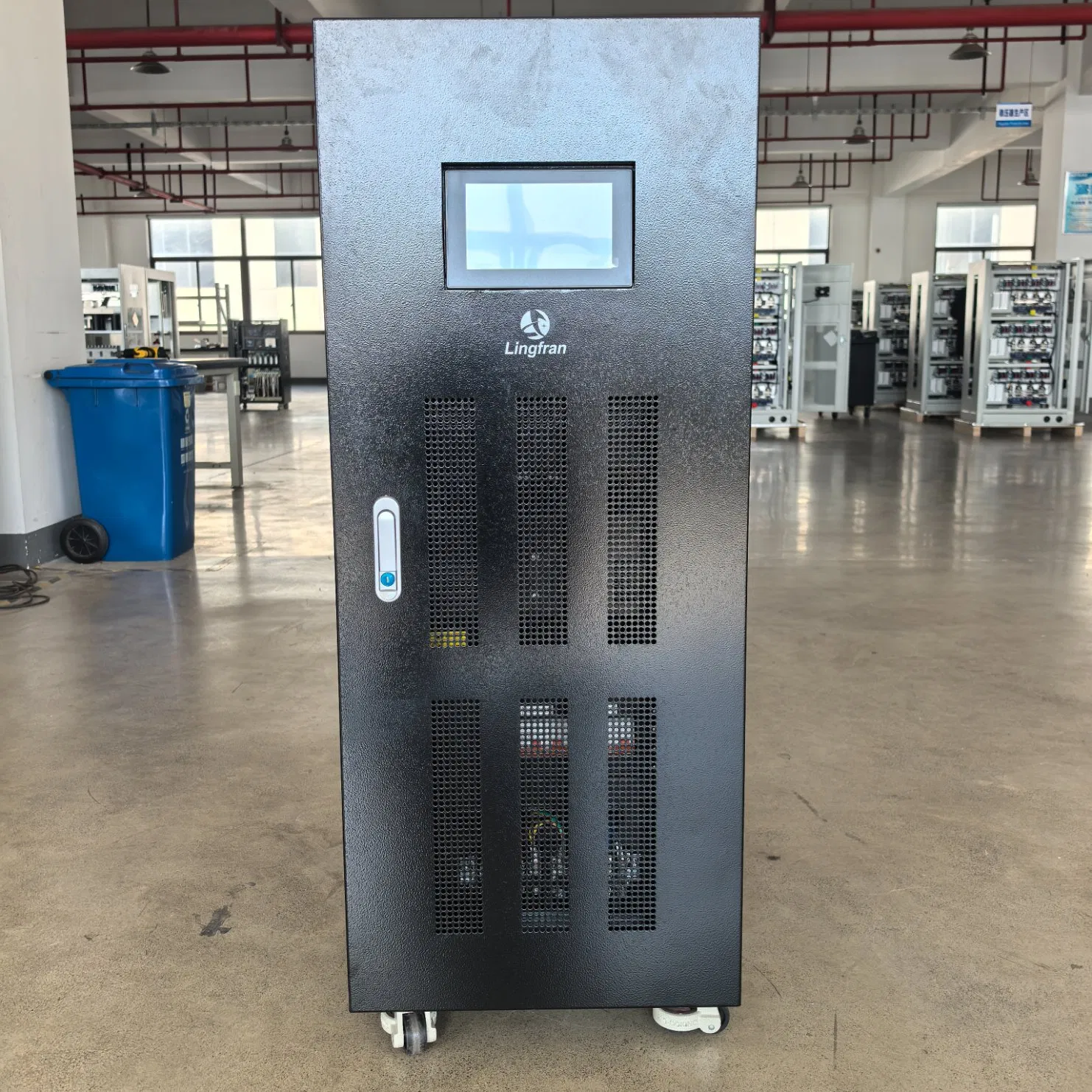

Around the world there are many different power systems, while different voltages can easily be rectified, changing frequency typically from 50 Hz to 60 Hz or vice versa is much more difficult. This frequency converter is a single or 3 phase static frequency converter designed to enable the connection of 50 Hz equipments to a 60 Hz power supply.
| Technology | Solid-State PWM IGBT Design (Rectifier: SCR, Inverter: IGBT) | ||
| Display | Touchable 7'' LCD Screen | Waveform | Sine Wave |
| Voltage Accuracy | ±1% | Frequency Accuracy | ±0.01% |
| Protections | Circuit Breaker, Fuse Blown, IGBT Fault, Over/Under Voltage, Over Current, Over Load, Overheat, Short Circuit | ||
| Efficiency | ≥92% | Duty Cycle | Continuous |
| Standard | IEC 61000-6-2, IEC 61000-6-4, IEC 62477-1 | ||
* Specifications subject to change without prior notice. Customization service is available for detailed requirements.
AC-DC-AC true online double conversion technology for stable performance.
Pulse-width modulation, 100% solid state circuit, static without moving parts.
Output with built-in isolation transformer to provide full galvanic isolation.
High-frequency IGBT technology guarantees a perfect sine wave output for sensitive loads.
Can convert and stabilize voltage & frequency, and change phase numbers as needed.

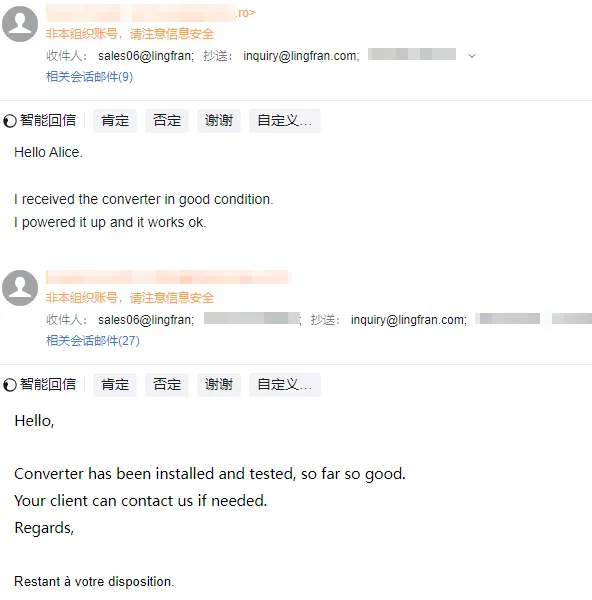

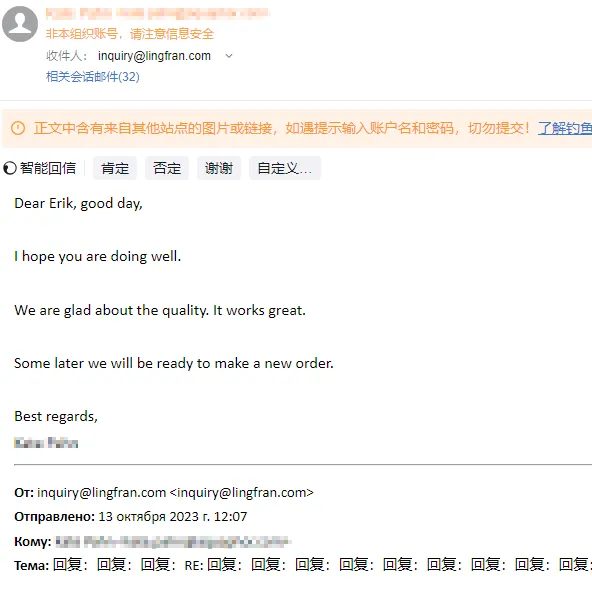

What Our Clients Say: We are proud of the feedback regarding our quality and commitment. See the verified customer feedback below:
