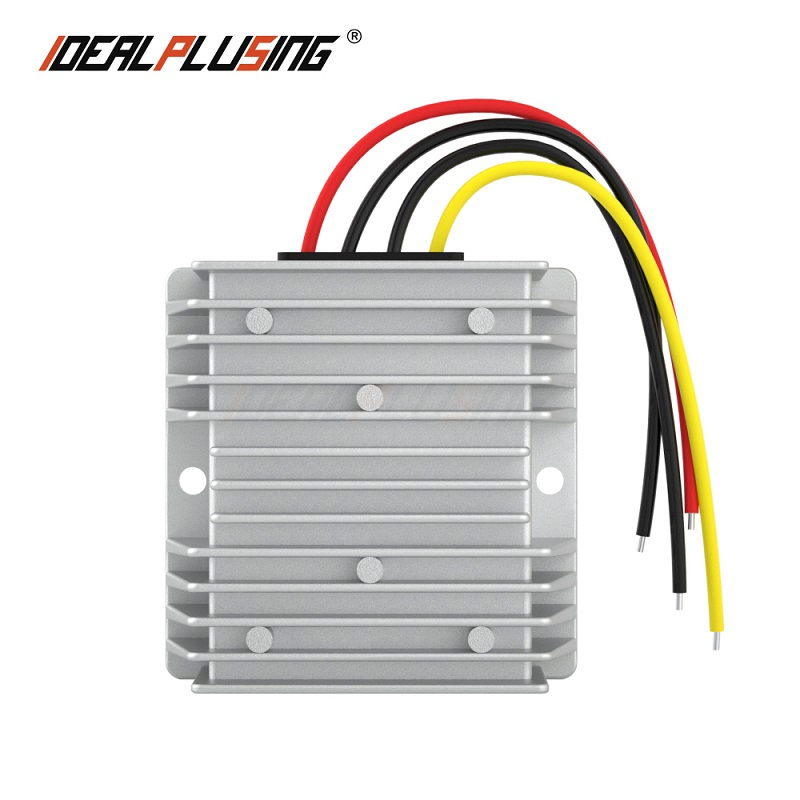

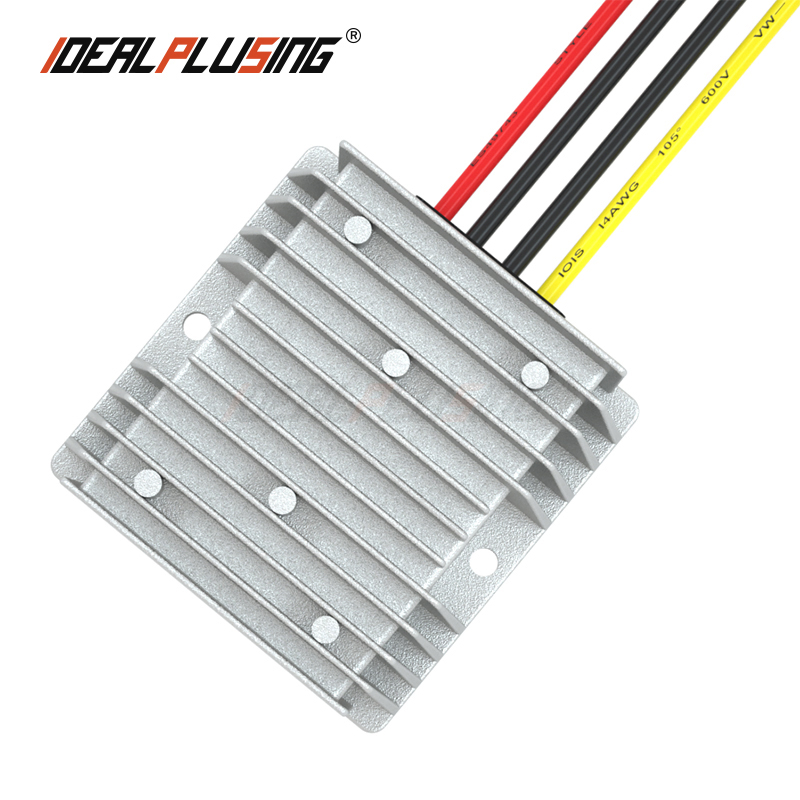

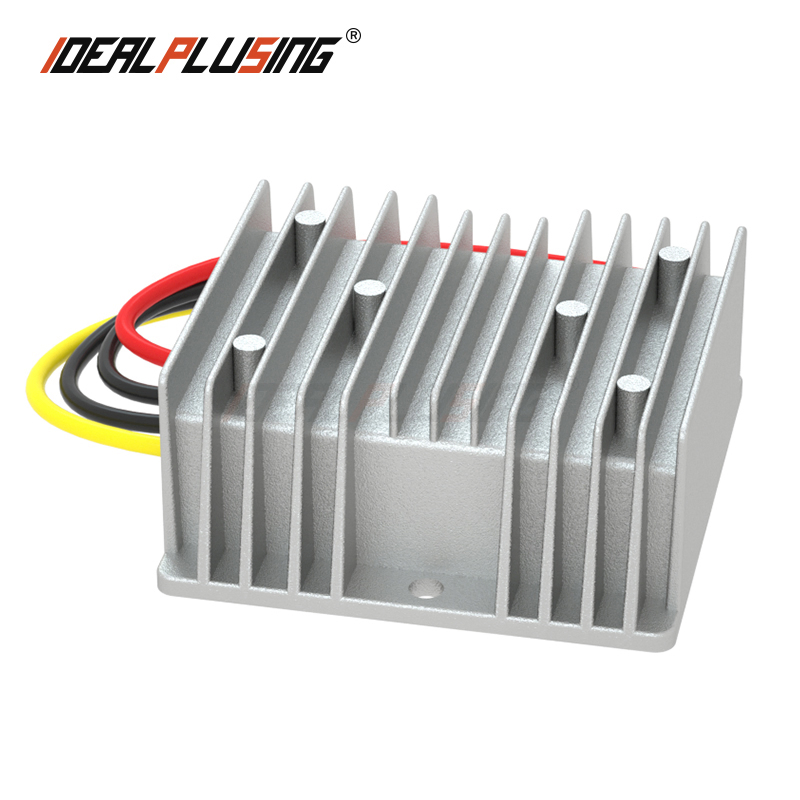

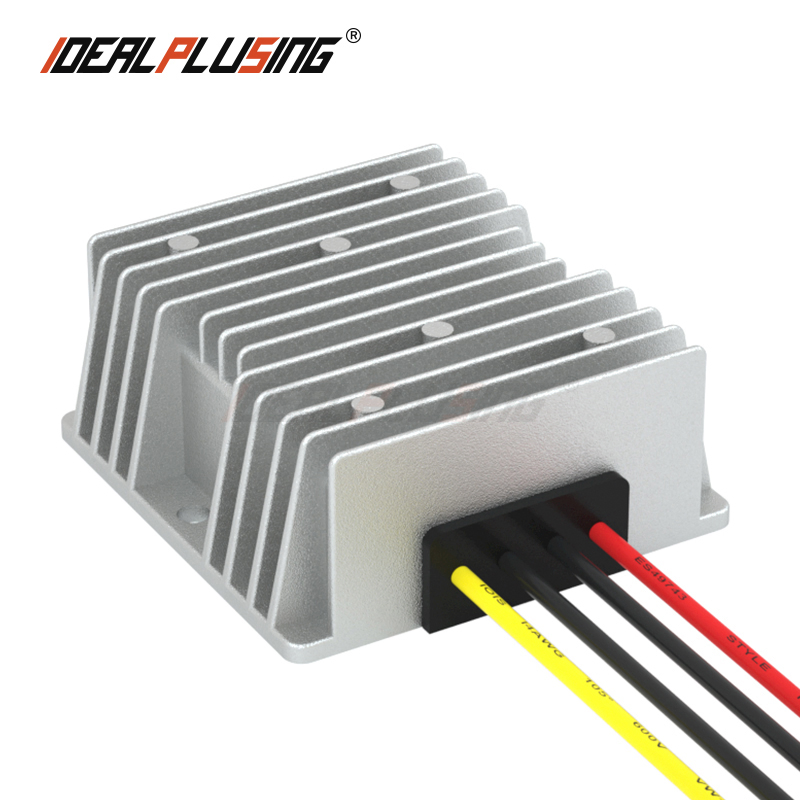

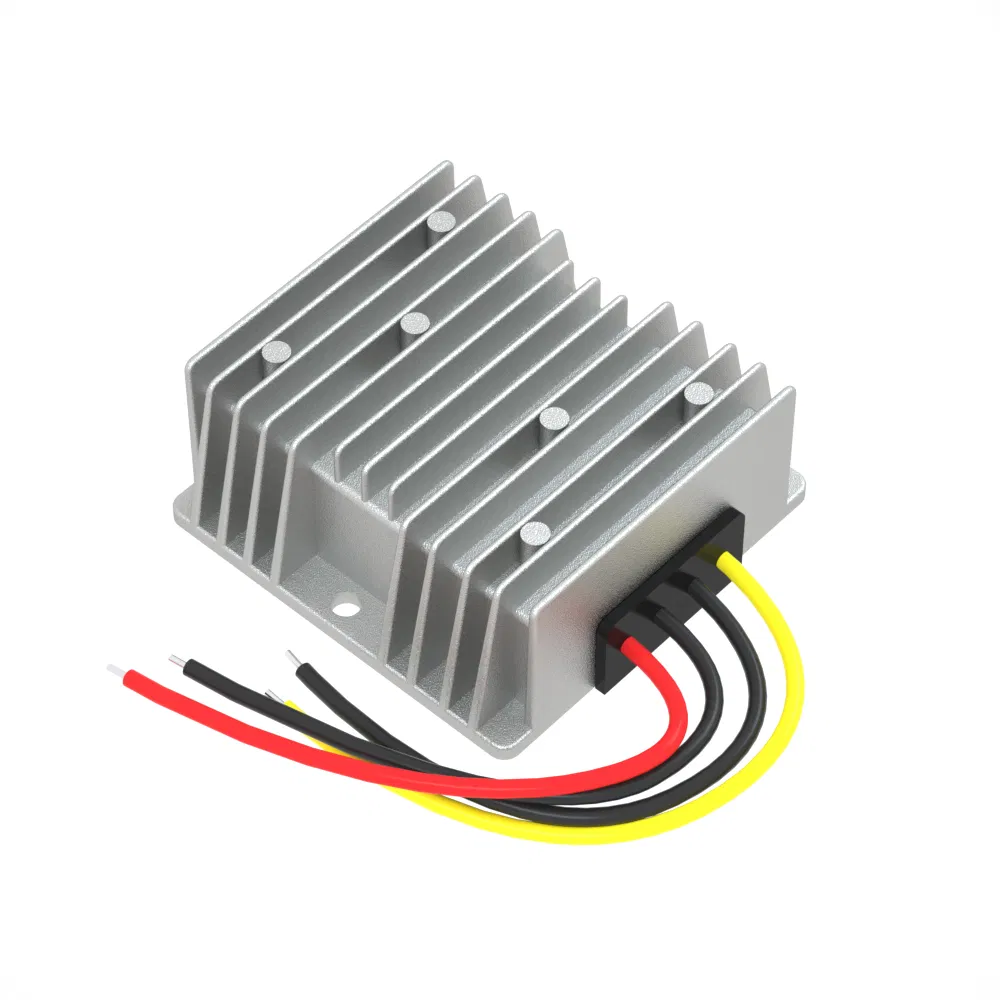

9-30V 12V Step up Converter 12V 24V to 60V 1.5A 90W DC to DC DC Boost Converter Non-Isolated Converter

1 / 5

9-30V 12V Step up Converter 12V 24V to 60V 1.5A 90W DC to DC DC Boost Converter Non-Isolated Converter

Customization:	Available
Model 1:	60VDC 1A 60W
Model 2:	60VDC 2A 120W

Send Inquiry

Product Description

📊 Overview

Model:60VDC 3A 180W

Customization:Available

Package:Carton

Specification:74*74*32MM

Origin:China

HS Code:8504409999

💡 Product Description

9-30V to 60V DC Boost Converter

DC/DC converter is a voltage converter which can effectively output fixed voltage after converting input voltage. Our converters are divided into three categories: Boost type, boost & buck type, and buck type.

PWM control provides high efficiency with low noise, while PFM control ensures low power consumption under small loads. Our units automatically switch between modes to optimize performance.

⚡ Custom Solutions:

We specialize in customizing DC-DC converters from 1V to 1000V DC and 1A to 1000A. Both isolated and non-isolated designs are available to meet your specific industrial requirements.

📋 Specifications

Input Range	Output Voltage	Output Current	Power	Size (MM)	Weight
10~20VDC	60VDC	1A	60W	747432	300G
10~20VDC	60VDC	2A	120W	747432	300G
10~20VDC	60VDC	3A	180W	747432	300G

🔥 Hot Selling Models

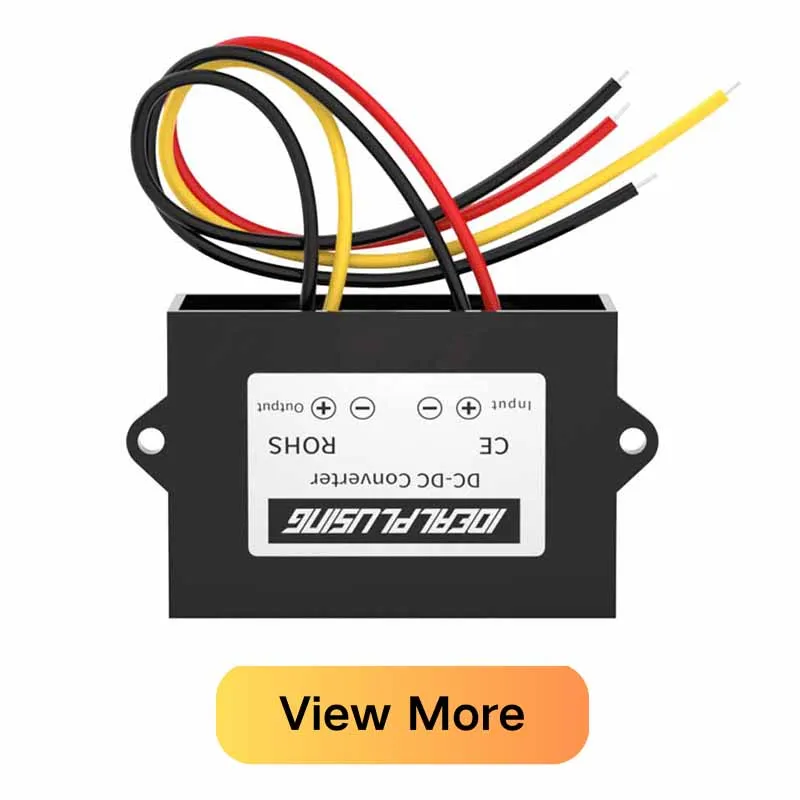

IPS-24S121 (12V 1A 12W)

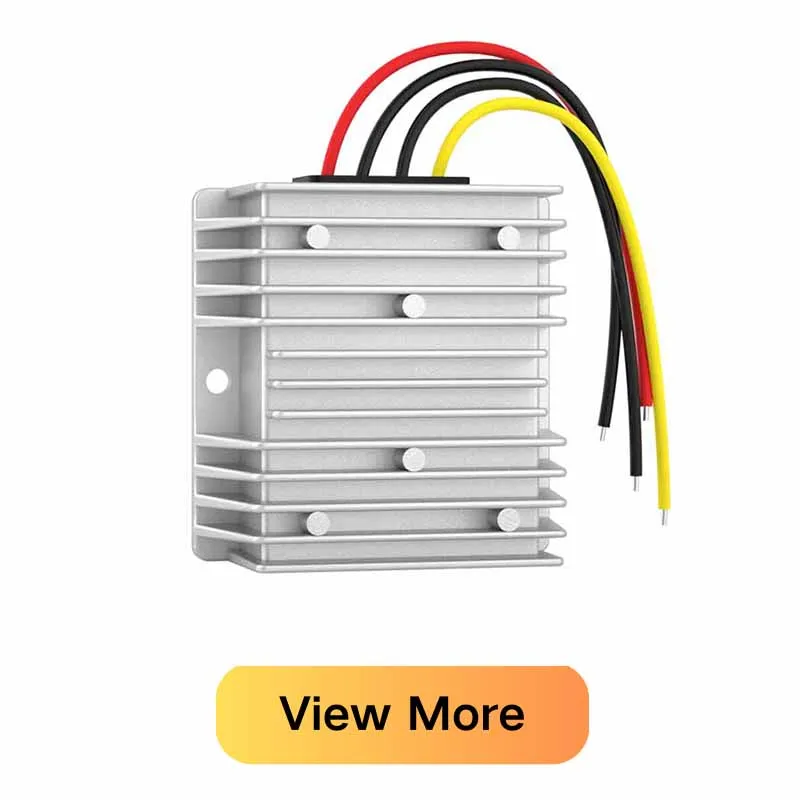

IPS-DTD5S125 (12V 5A 60W)

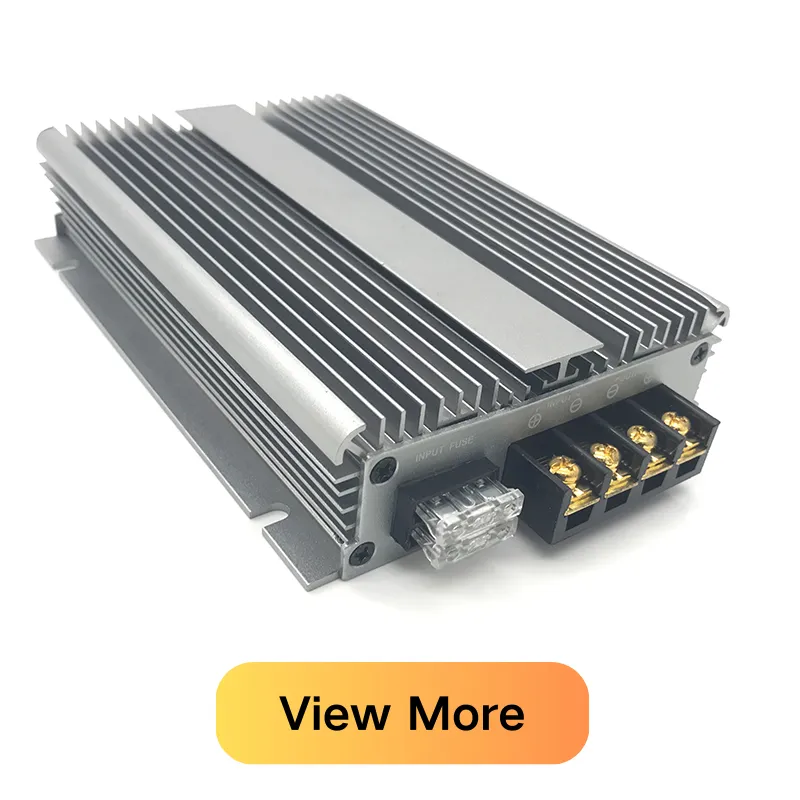

IPS-DTD72S1220 (12V 20A 240W)

📝 Industrial Model List

Non-Isolated Boost Series
Series	Conversion	Current Range
IPS-DTD12S24	12V to 24V	1A - 50A
IPS-DTD12S48	12V to 48V	1A - 20A
IPS-DTD24S48	24V to 48V	2A - 40A

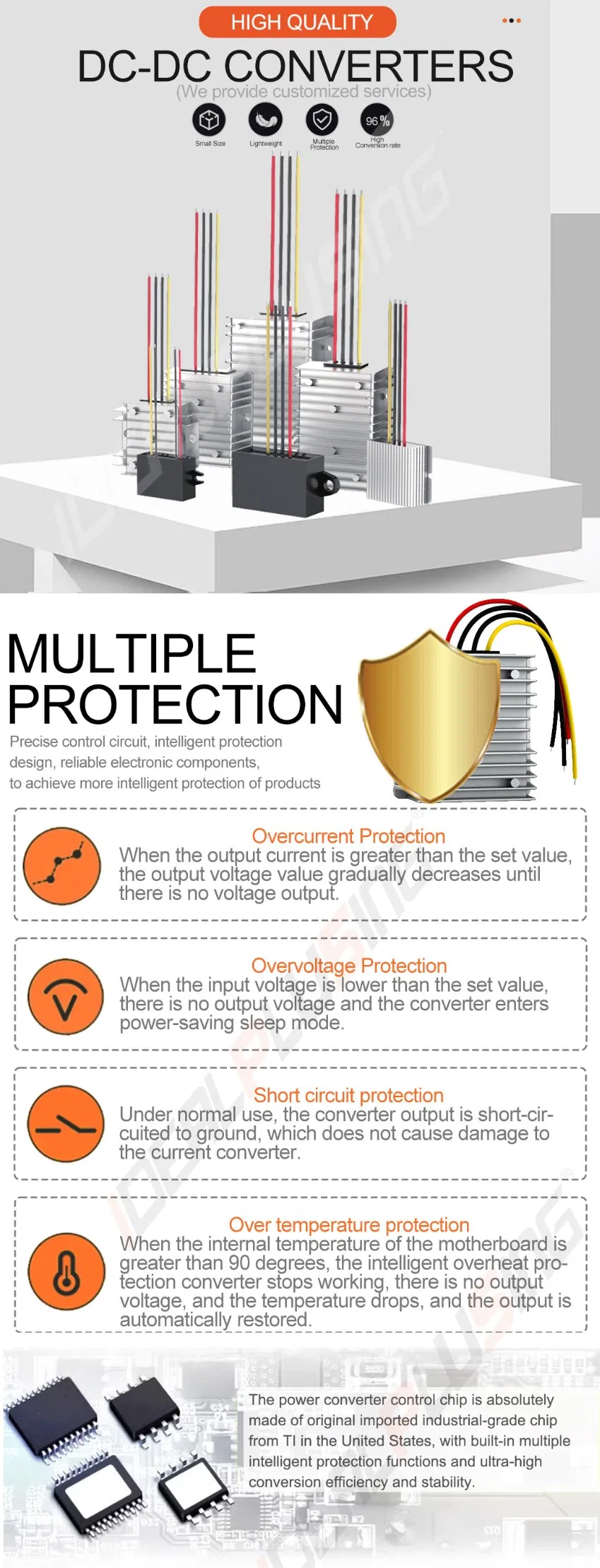

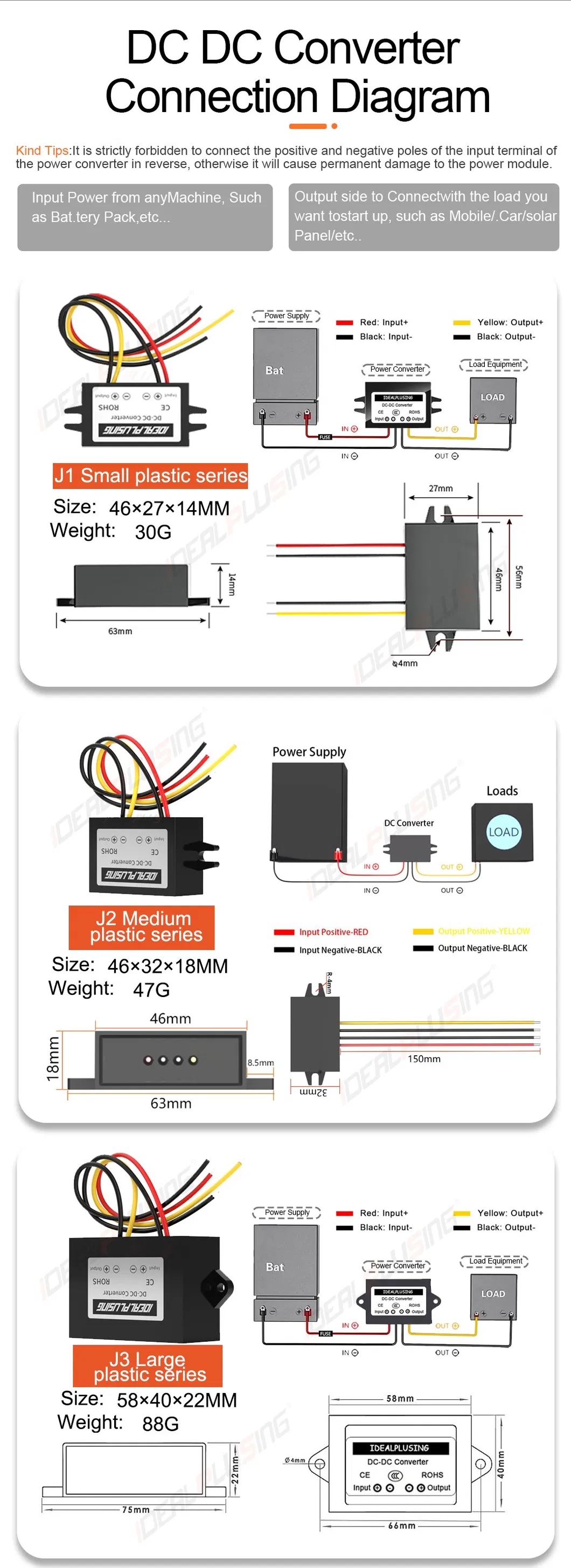

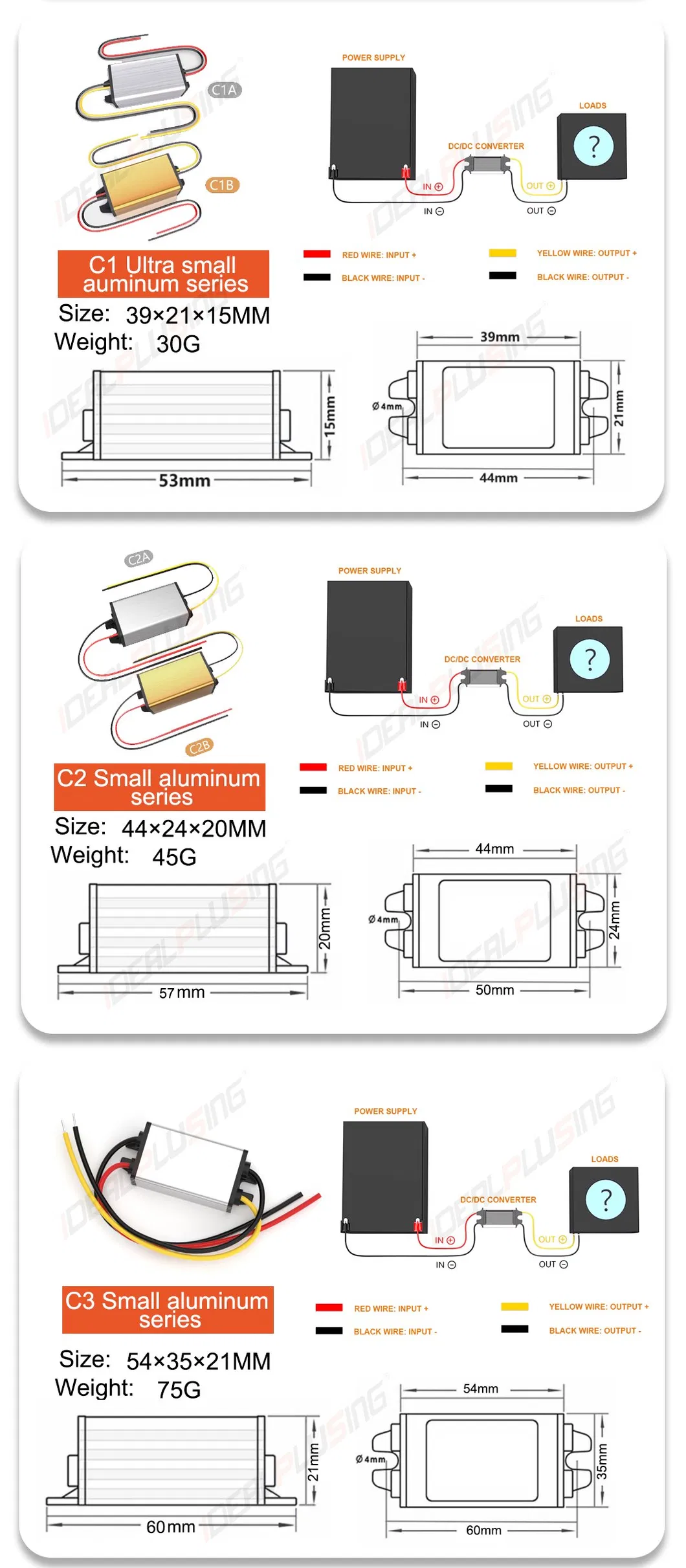

📸 Detailed Photos

🚀 Applications

❓ Frequently Asked Questions

Q1: What is the difference between Isolated and Non-Isolated converters?

Isolated converters have a physical barrier between input and output for safety and noise reduction, while non-isolated converters share a common ground and are typically smaller and more efficient for simple tasks.

Q2: Can I get a customized voltage range?

Yes, we provide customization for input/output voltages ranging from 1V up to 1000V DC to meet specific industrial requirements.

Q3: How do the PWM and PFM control modes work?

PWM handles heavy loads with high efficiency and low noise, while PFM optimizes power consumption during standby or light load periods. The system switches automatically.

Q4: Are these converters waterproof?

Many of our models feature IP65 or higher protection levels, making them dustproof and water-resistant for harsh environments.

Q5: What safety protections are included?

Our units typically include over-voltage, over-current, over-temperature, and short-circuit protection for reliable operation.

Q6: What is the typical response time for technical inquiries?

Our dedicated technical team endeavors to respond to all specification and solution inquiries within one hour.
