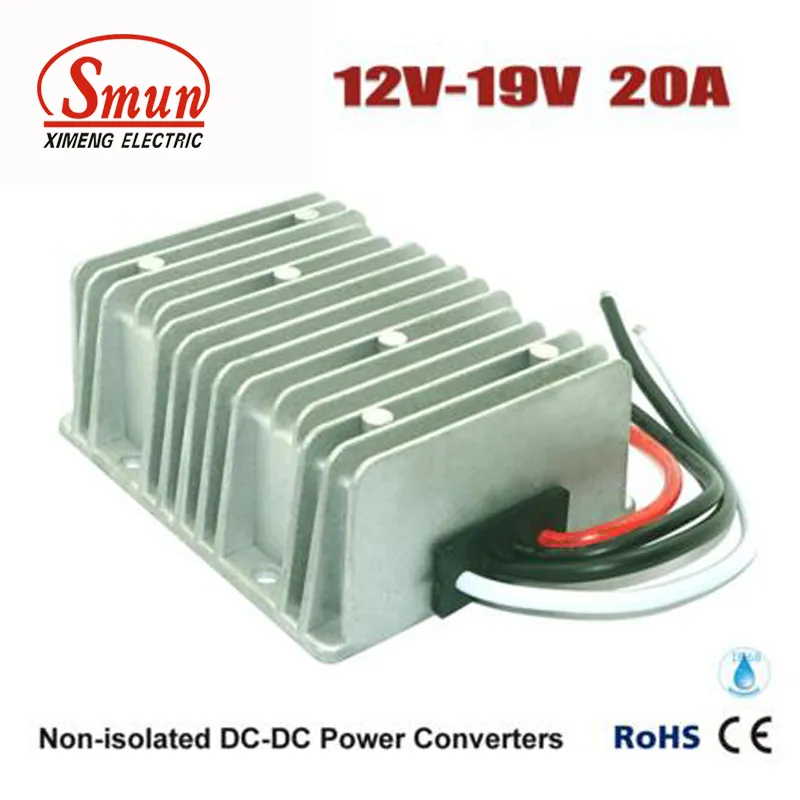

12V to 19V 20A DC-DC Converter Step up Voltage Regulator

1 / 5

12V to 19V 20A DC-DC Converter Step up Voltage Regulator

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.:SDS-12S1920

Output Power:301 - 400W

Input Voltage:12VDC

Certification:CE, RoHS, ISO

Rated Power:380W

Output Current:20A

Waterproof IP:IP68

Efficiency:Up to 94%

Product Description

Key Features

100% full power & stable current output with imported components.

Industry grade DC12V to DC19V step-up with up to 95% efficiency.

100% waterproof (IP68) & anti-shock protection.

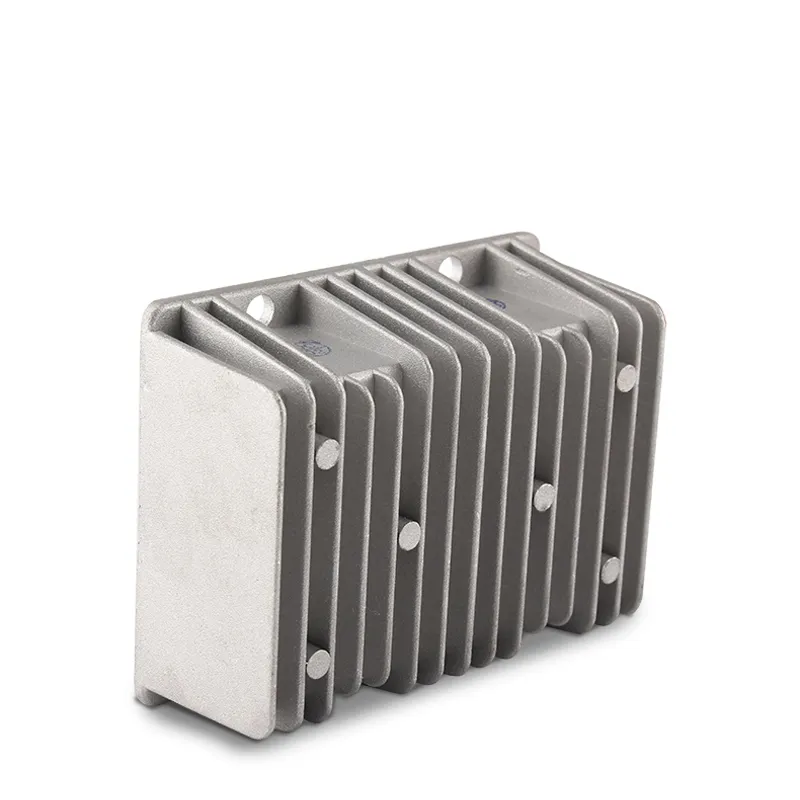

Die-cast aluminum shell with cooling by free air convection.

Comprehensive Protections: Over-current, Over-voltage, Over-temperature, and Over-load.

Long lifetime up to 100,000 hours with auto-recovery function.

Technical Specifications

Model	SDS-380(12)-19
Input Rated Voltage	12V DC
Input Voltage Range	10-19V DC
Efficiency	96.5% (half load), 95% (full load)
Output Voltage	19V DC
Output Current	20 Amps
Output Rated Power	380 Watts
Working Temperature	-40°c ~ +80°c
Waterproof Rating	IP68
Short-circuit Protection	NO

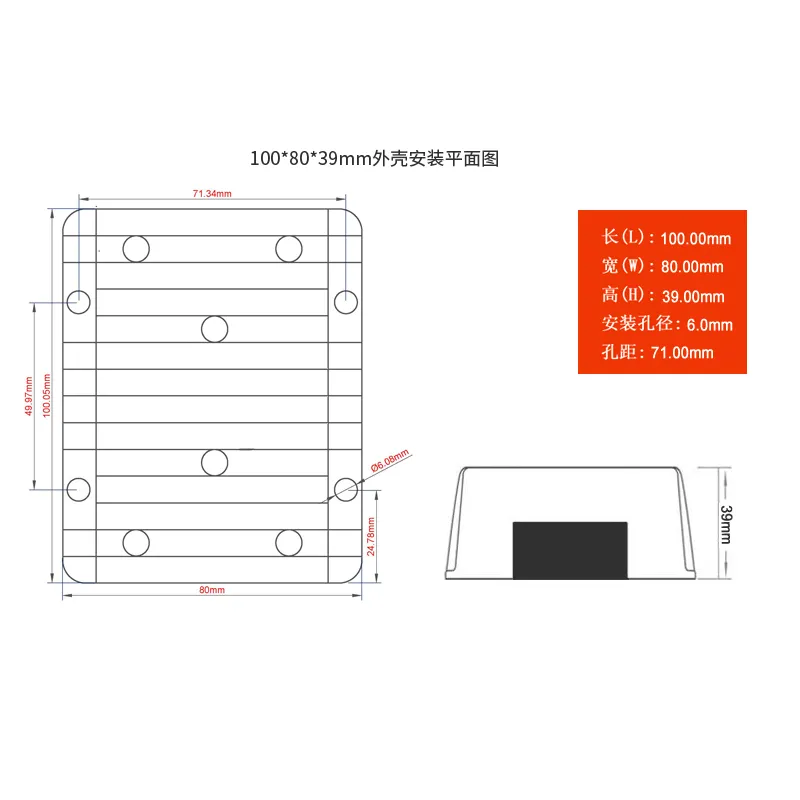

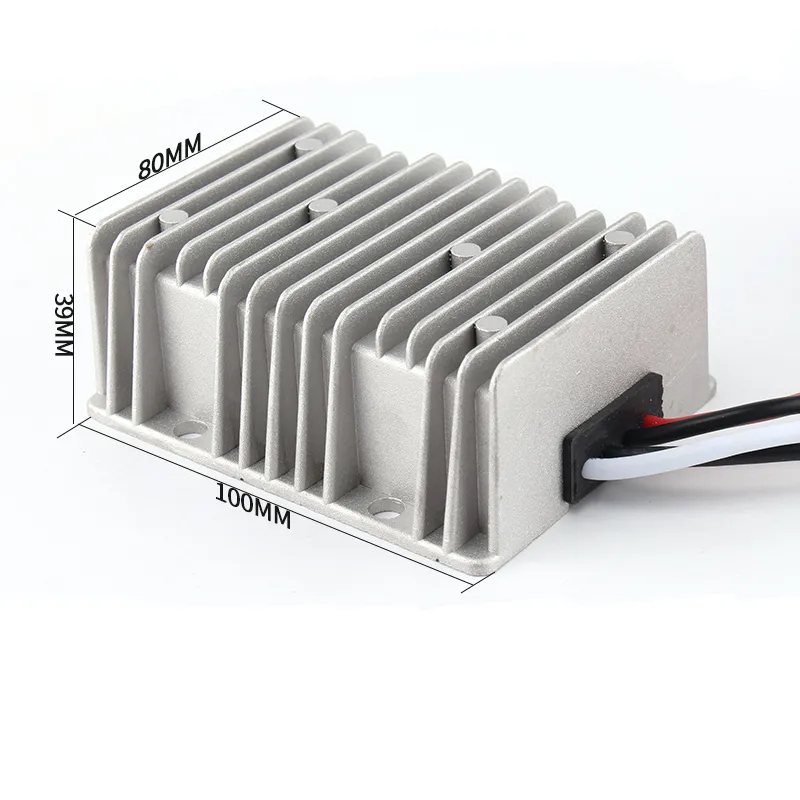

Machine Size	1008039mm

Frequently Asked Questions

What is the conversion efficiency of this 12V to 19V converter?

The converter offers high efficiency up to 96.5% at half load and 95% at full load, ensuring minimal energy loss and reduced heat generation.

Is this device suitable for outdoor use?

Yes, it features an IP68 waterproof rating and a die-cast aluminum shell with epoxy potting, making it 100% waterproof and anti-shock.

What safety protections are built into the unit?

It includes over-current, over-voltage, over-temperature, and over-load protections with auto-recovery once conditions return to normal.

Can this unit handle extreme temperatures?

Absolutely. The device is designed to operate reliably in a wide temperature range from -40°c to +80°c.

What is the expected lifespan of this DC-DC converter?

Built with imported components and industry-grade design, the lifetime of this module is rated for up to 100,000 hours.

Does this model support short-circuit protection?

No, as per the technical specifications, this specific model (SDS-12S1920) does not include short-circuit protection.
