JDI Power Supply
1 / 5

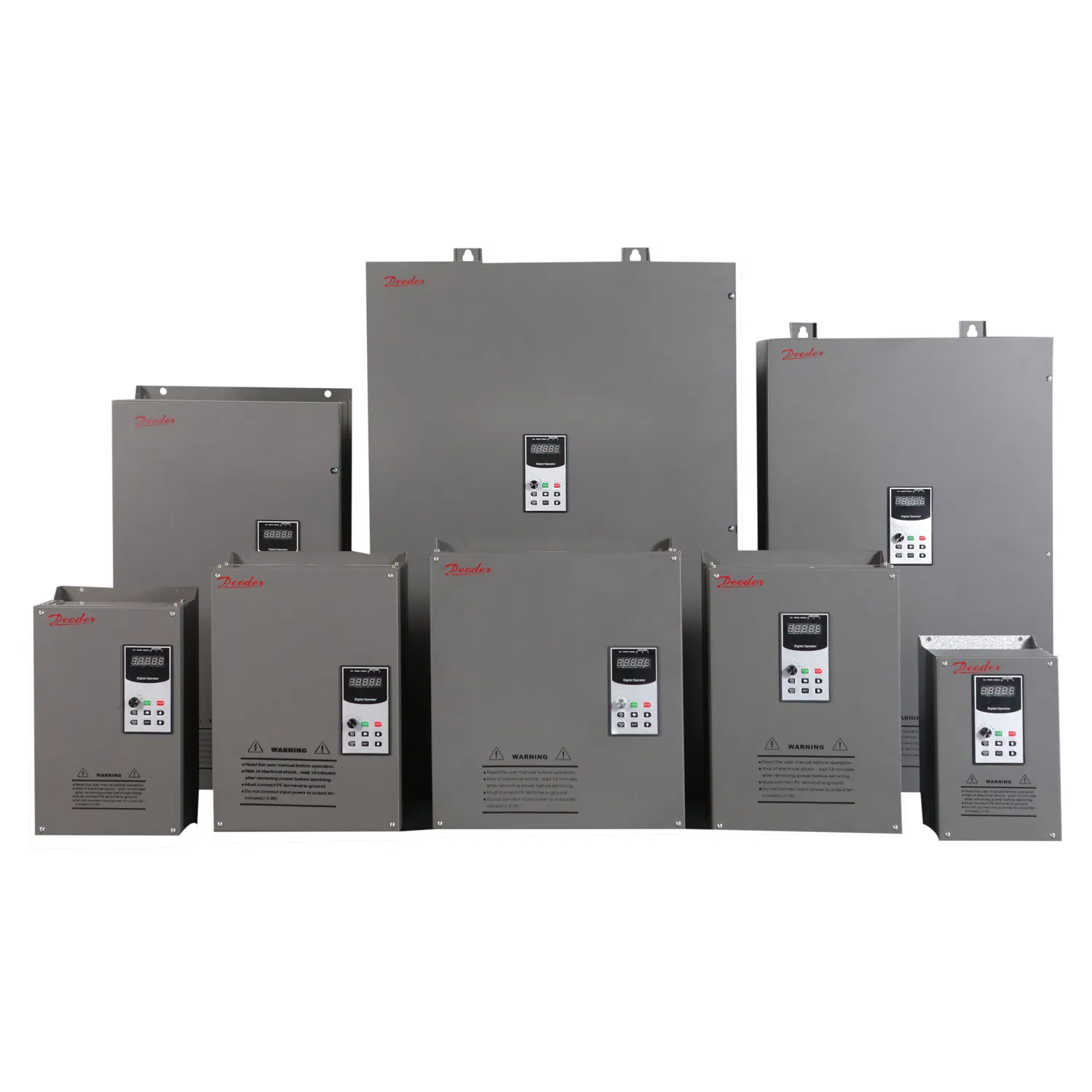

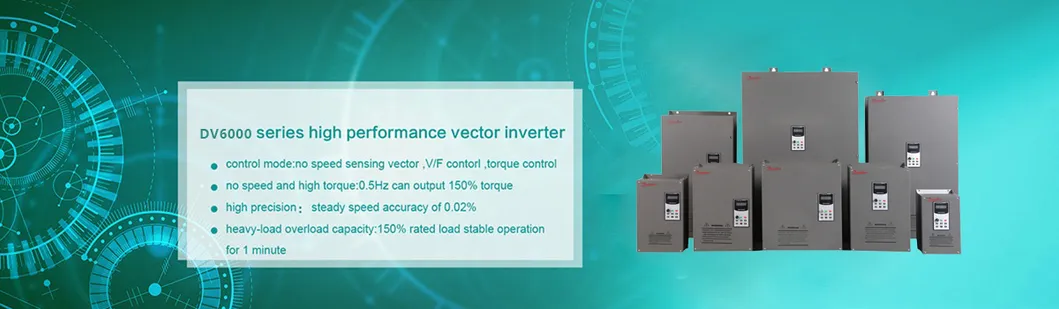

| Model | H100 & DV6000 Series |
| Power Range | 3 Phase AC 380V~480V, 0.75KW ~ 550KW |
| Output Frequency | 0.00~1000Hz (Default 50/60Hz) |
| Control Mode | V/F Control, Sensorless Vector Control, Torque Control |
| Starting Torque | 0.5Hz / 150% (SVC) |
| Energy Saving | 30% - 80% Power saving rate |
| Fault Protection | Over current, over voltage, under voltage, over temperature, phase failure, over load. |
| Model | Power (kW) | Input | Output (A) | Dim (W×H×D) mm |
| DV6000-5R5G-4T-H | 5.5 | 380V | 13 | 176 × 300 × 207 |
| DV6000-7R5G-4T-H | 7.5 | 380V | 17 | 176 × 300 × 207 |

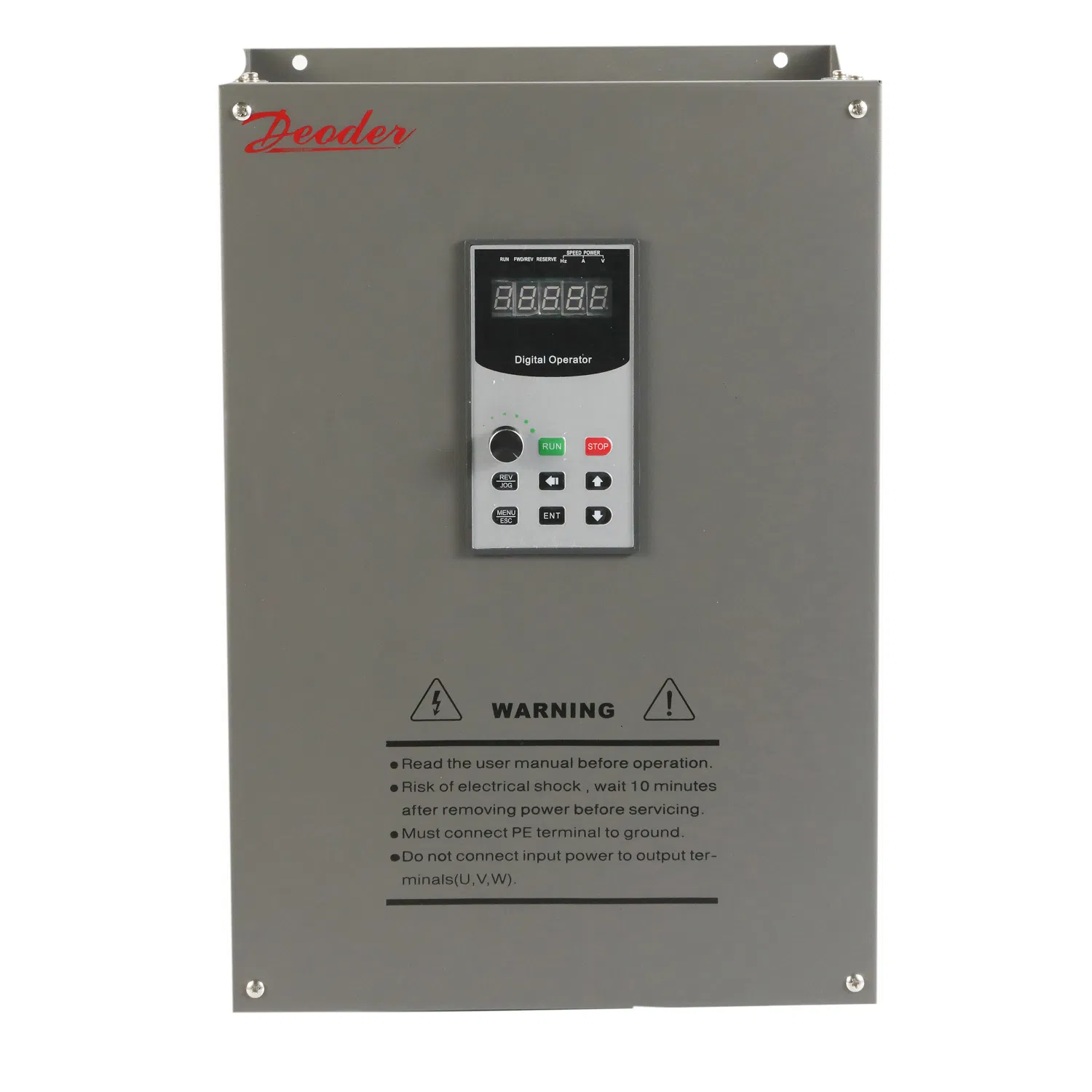

| DV6000-011G-4T-H | 11 | 380V | 25 | 176 × 300 × 207 |
| DV6000-015G-4T-H | 15 | 380V | 32 | 220 × 380 × 204 |
| DV6000-030G-4T-H | 30 | 380V | 60 | 282 × 430 × 242 |
| DV6000-055G-4T-H | 55 | 380V | 110 | 380 × 460 × 251 |
| DV6000-110G-4T-H | 110 | 380V | 210 | 390 × 722 × 278 |
Broadly applicable for: Fans, Pumps, 3-Phase Motors, Machine Tools, Textile, Mining, Chemical, Plastic machinery, Metallurgy, Oil, Woodworking, Pharmaceutical, Ceramics, Paper, Lifting, Printing, Packaging, Air Compressors, Agricultural Irrigation, etc.
