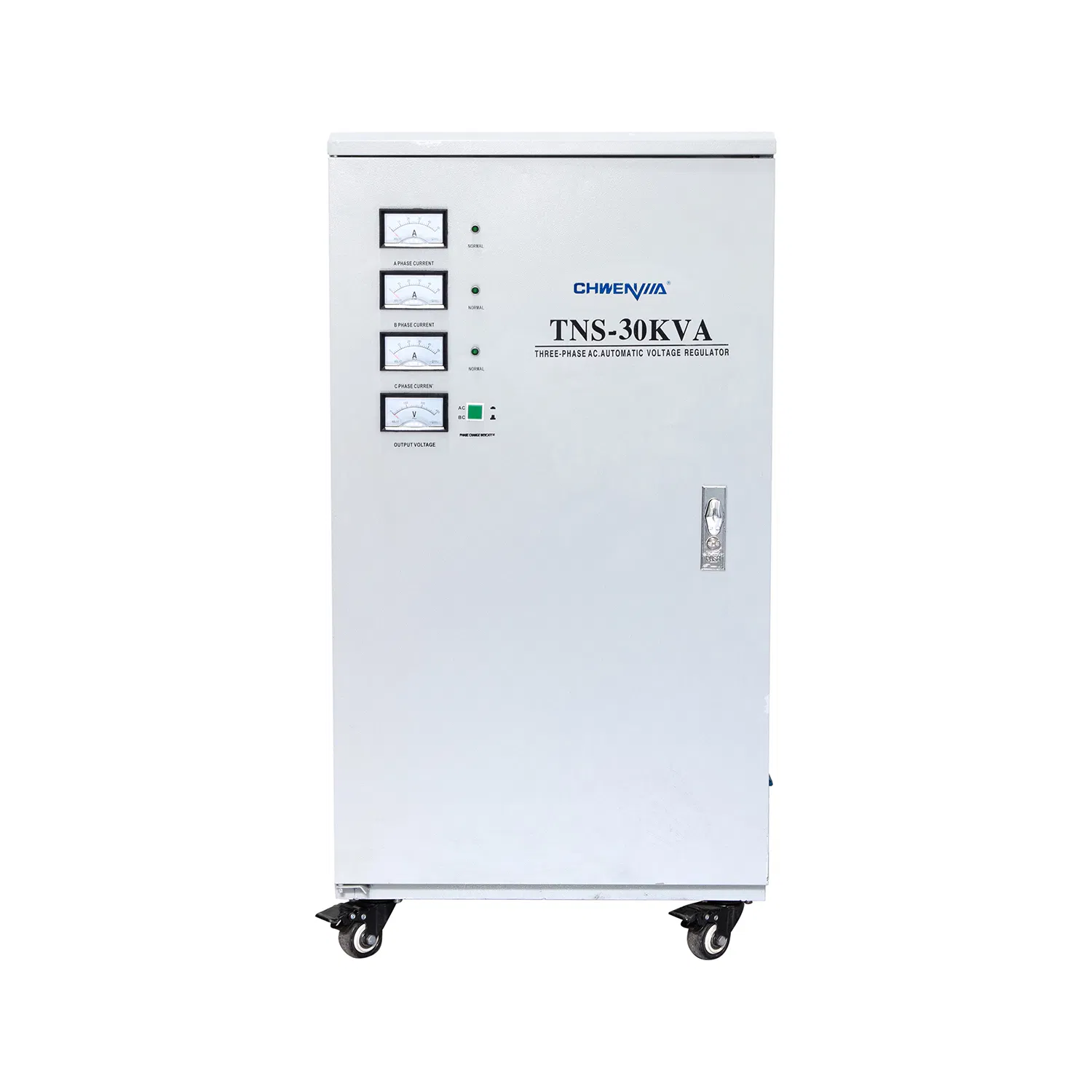

The Third Generation Three-Phase Voltage Regulator 380V

Customization:	Available
Current Type:	AC
Phase:	Three Phase

Send Inquiry

Product Description

🔹 Basic Specifications

Model NO.:TNS-10-40KVA

Usage:SVC, JIW, Tns

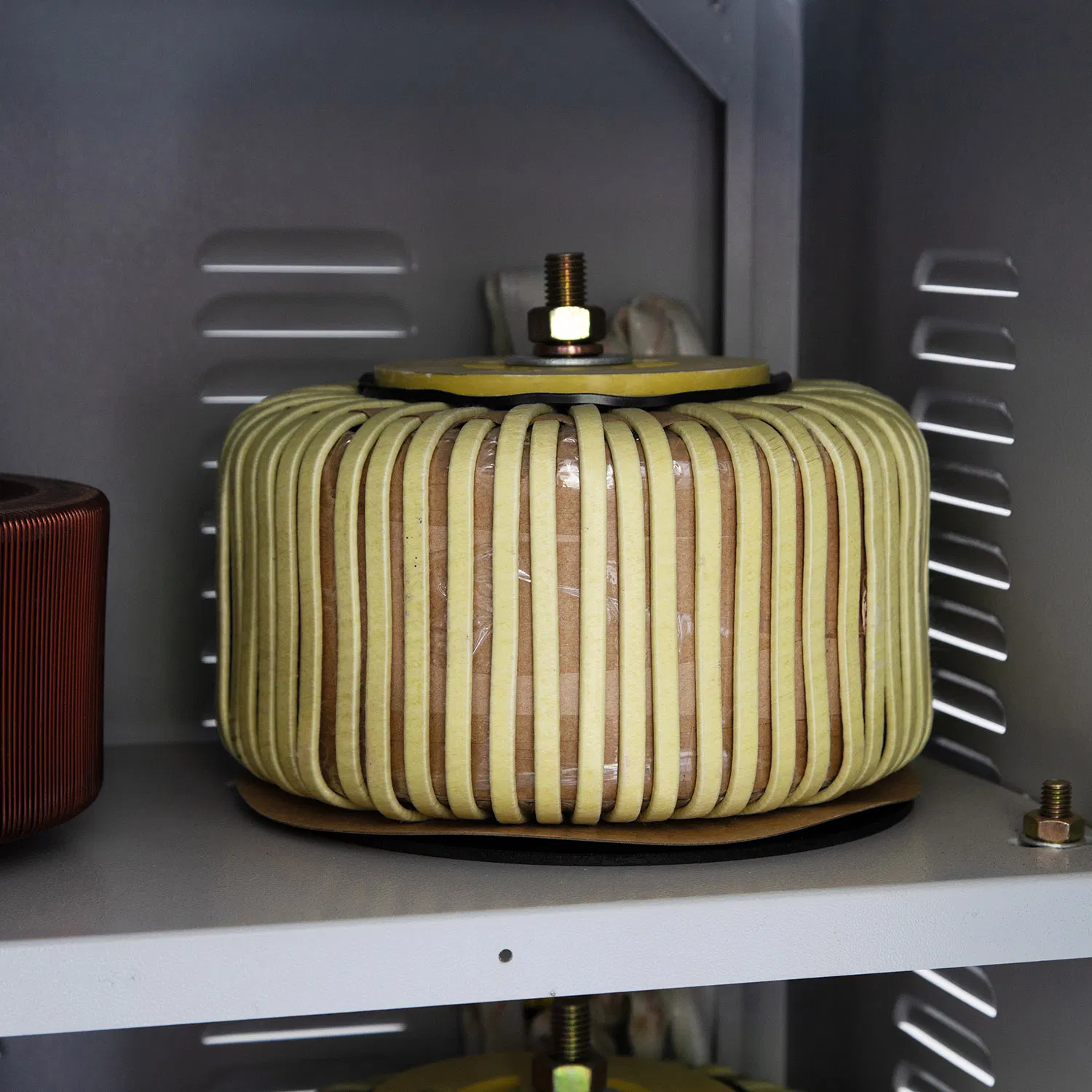

Iron Core Shape:Ring

Power Source:Switching Regulated

Efficiency:≥98%

Frequency:50~60Hz

Input Voltage:380V/400V/440V/480V

Accuracy:±1% ~ 5%

📝 Product Overview

💡

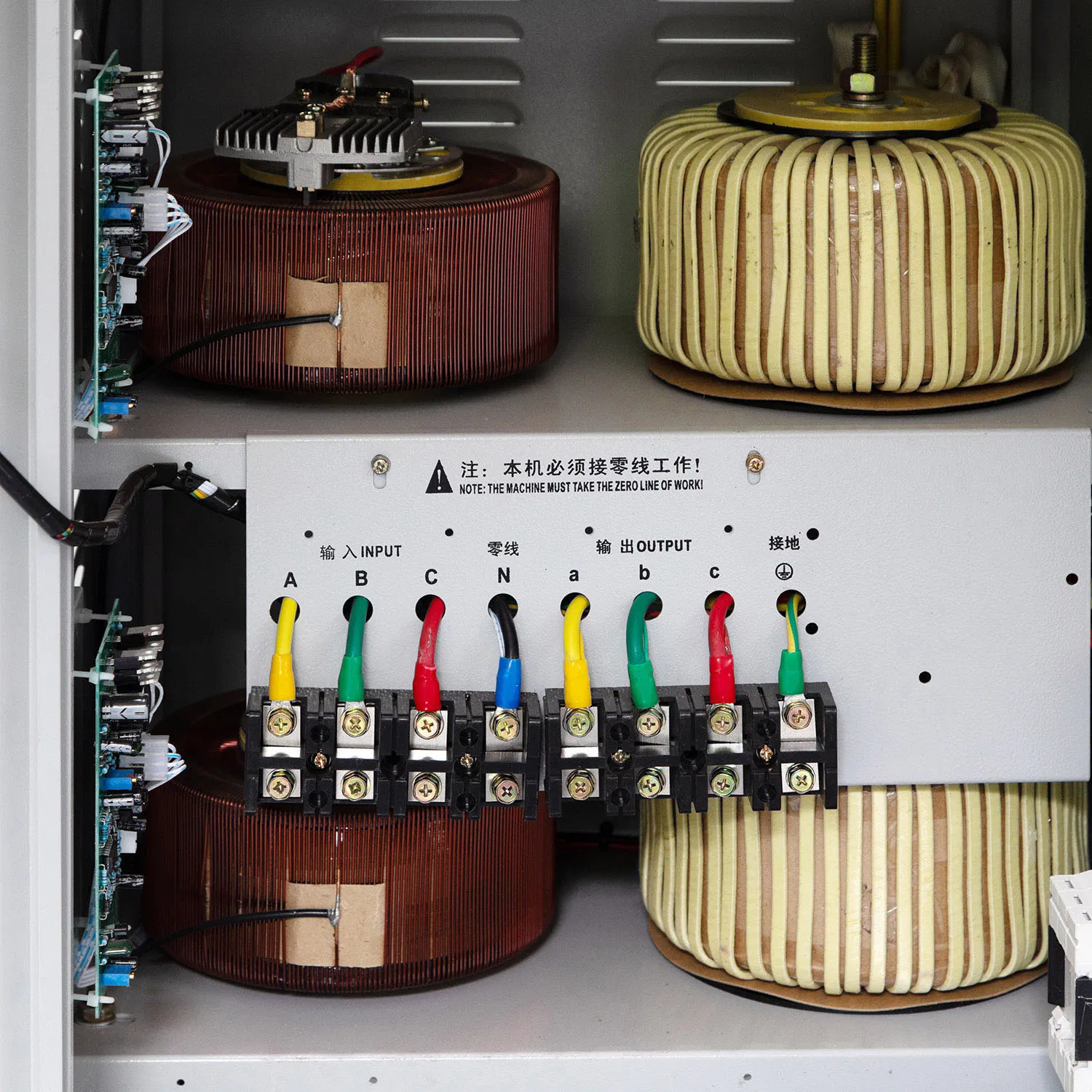

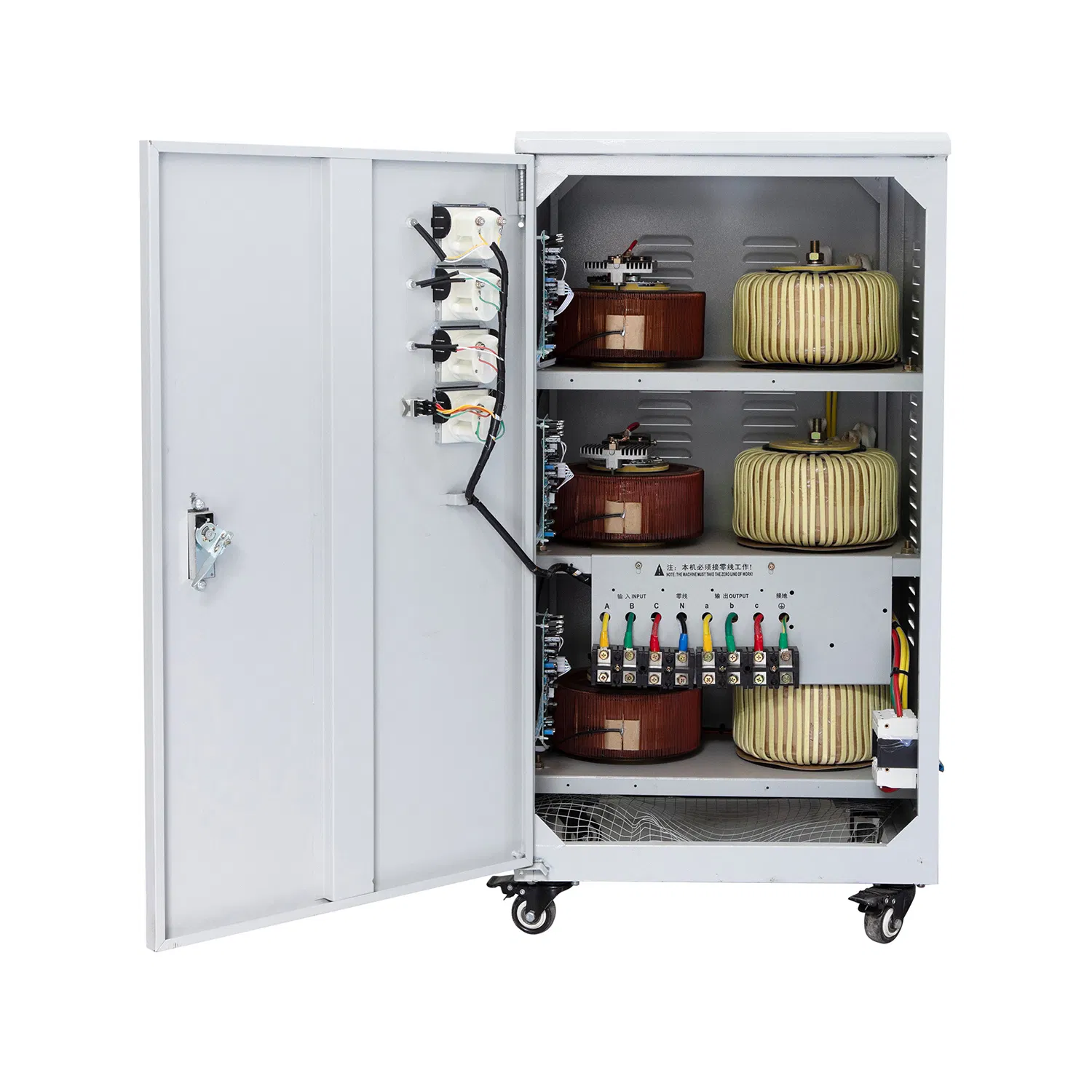

TNS (SVC) series medical equipment equipped with special regulators. These three-phase regulators feature anti-interference capabilities and are designed for automatic AC household voltage stabilization. Consisting of an automatic coupling regulator, sampling control board, and actuator, it offers a compact volume, light weight, and minimal output waveform distortion.

Especially suitable for home air conditioning, refrigerators, televisions, and music centers. It extends the service range of appliances, making it an ideal AC stabilizer for modern homes. Designed for minimum power consumption and continuous operation.

📊 Technical Parameters

No.	Item Name	Description
1	OUTPUT VOLTAGE	260-450V
2	WORKING FREQUENCY	50 / 60Hz
3	REGULATION MODE	Simultaneous phase regulation
4	CONSTANT VOLTAGE PRECISION	±(1~5%) adjustable
5	NOISE	55 dB
6	INSULATION CLASS	F
7	OPERATION TIME	≥ 100,000 hours
8	PROTECTION CLASS	IP 20
9	VOLTAGE WITHSTANDING	2000V, 1min. Not broken
10	WAVE DEFORMATION	≤ 0.1%
11	EFFICIENCY	≥ 98%
13	RESPONSE TIME	≤ 100ms
19	COOLING METHOD	Forced air cooling with fan
20	ANTI-SURGE	Equipped with high-energy surge impulse suppressor

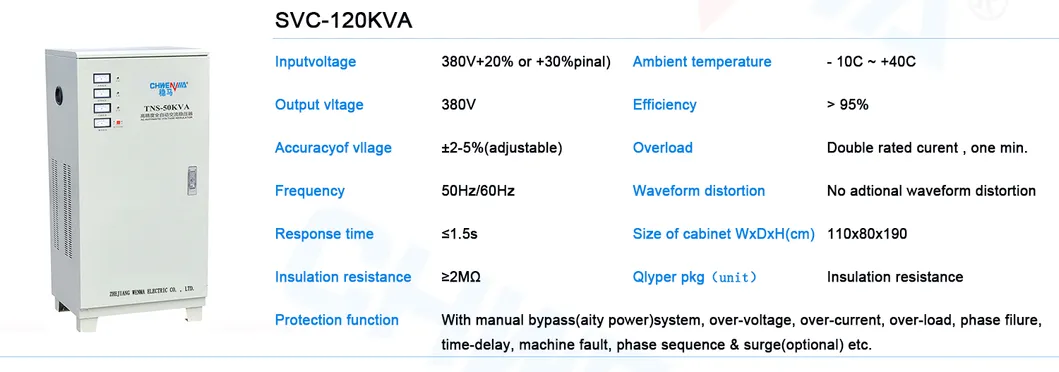

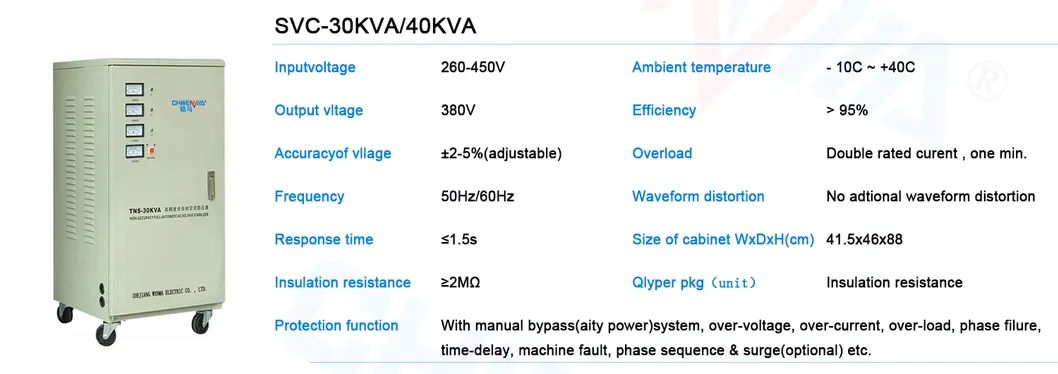

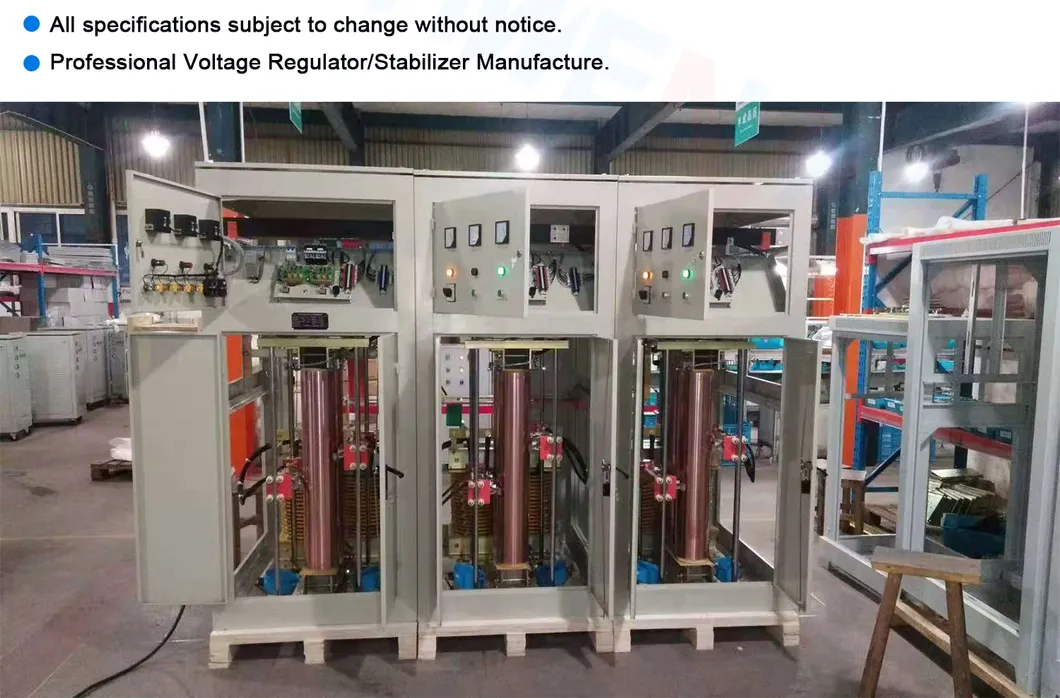

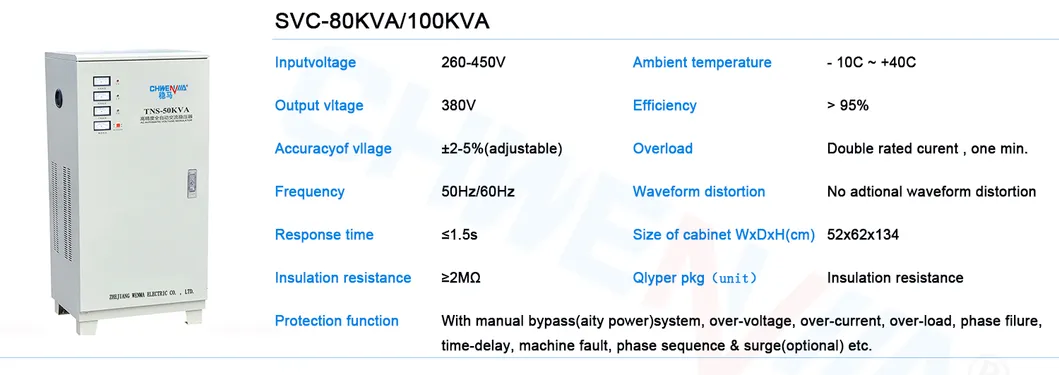

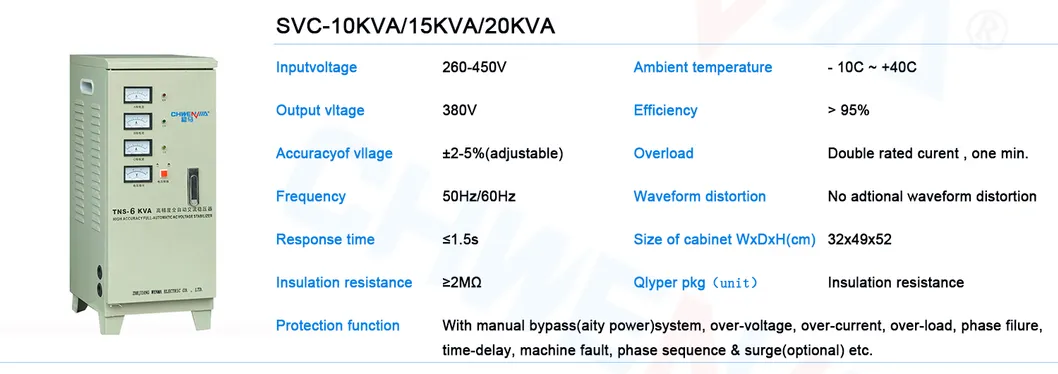

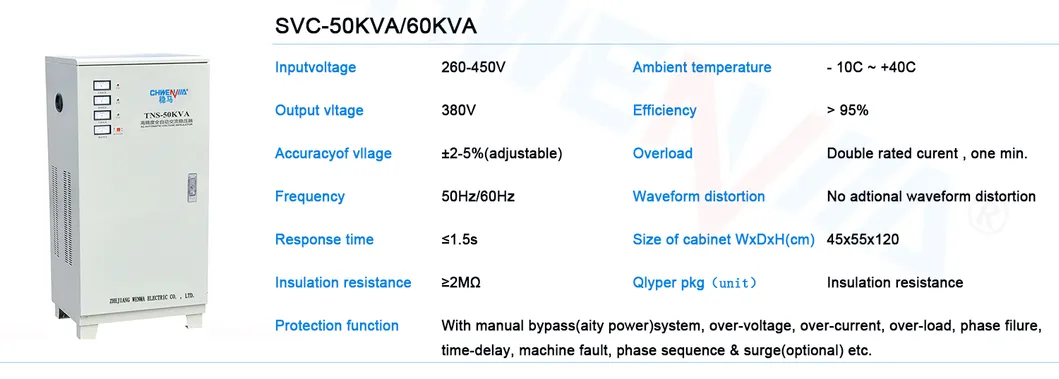

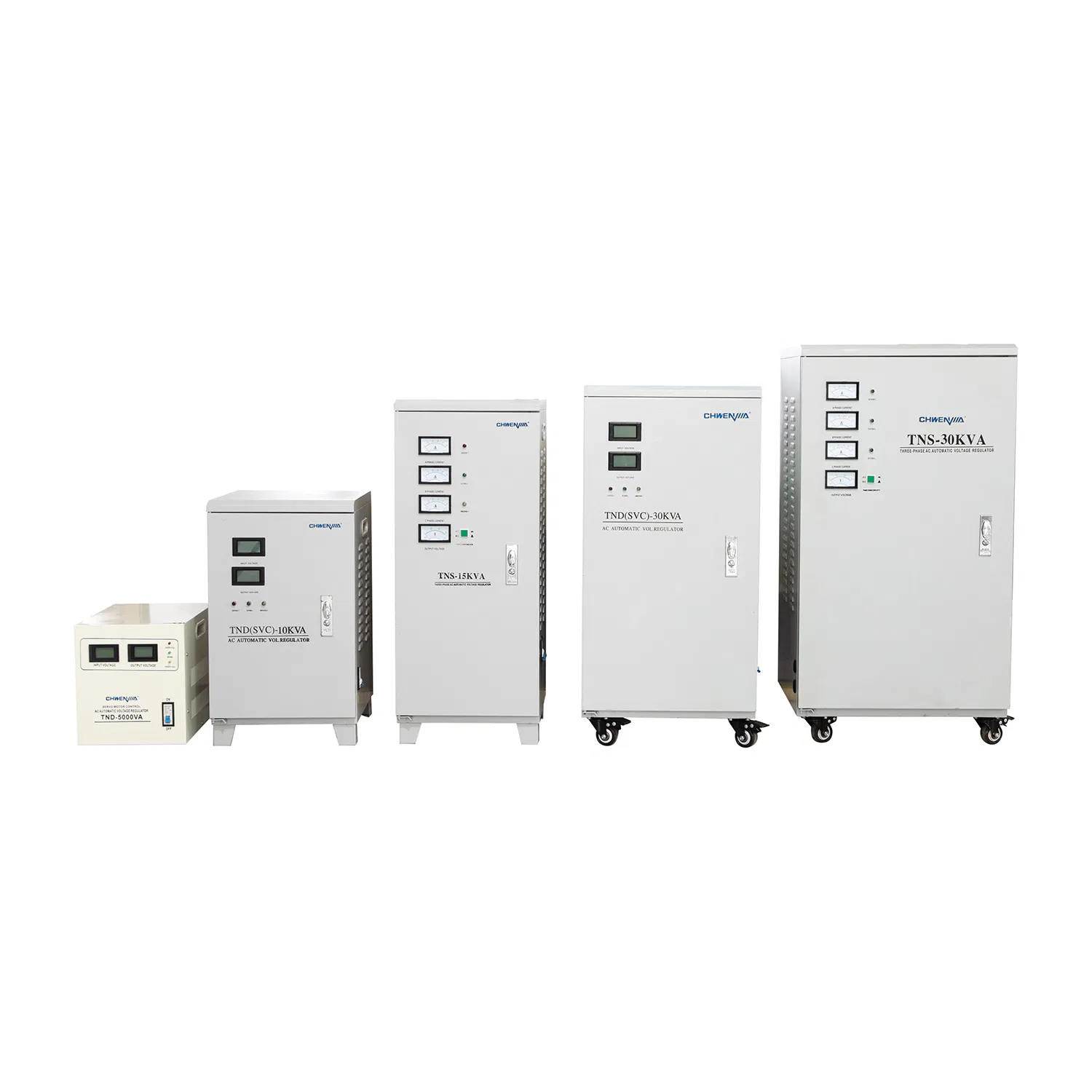

🖼️ Product Gallery

❓ Frequently Asked Questions (FAQ)

Q1: What are the main applications for the TNS series regulators?

They are ideal for industrial and mining enterprises, medical equipment, and high-end home appliances like air conditioners and refrigerators.

Q2: How does the anti-surge performance work?

The input terminal is equipped with a high-energy surge impulse suppressor to protect against pulse spike voltages caused by lightning induction.

Q3: Is the output voltage adjustable?

Yes, the constant voltage precision is adjustable between ±1% and 5% to meet specific equipment requirements.

Q4: What is the expected lifespan of this voltage stabilizer?

The design operation time is rated for ≥ 100,000 hours under standard working conditions.

Q5: Does this regulator cause waveform distortion?

The waveform distortion is extremely low, maintained at ≤ 0.1%, ensuring clean power delivery for sensitive electronics.

Q6: What cooling method is used for higher power models?

The system utilizes forced air cooling with integrated fans to maintain optimal operating temperatures.
