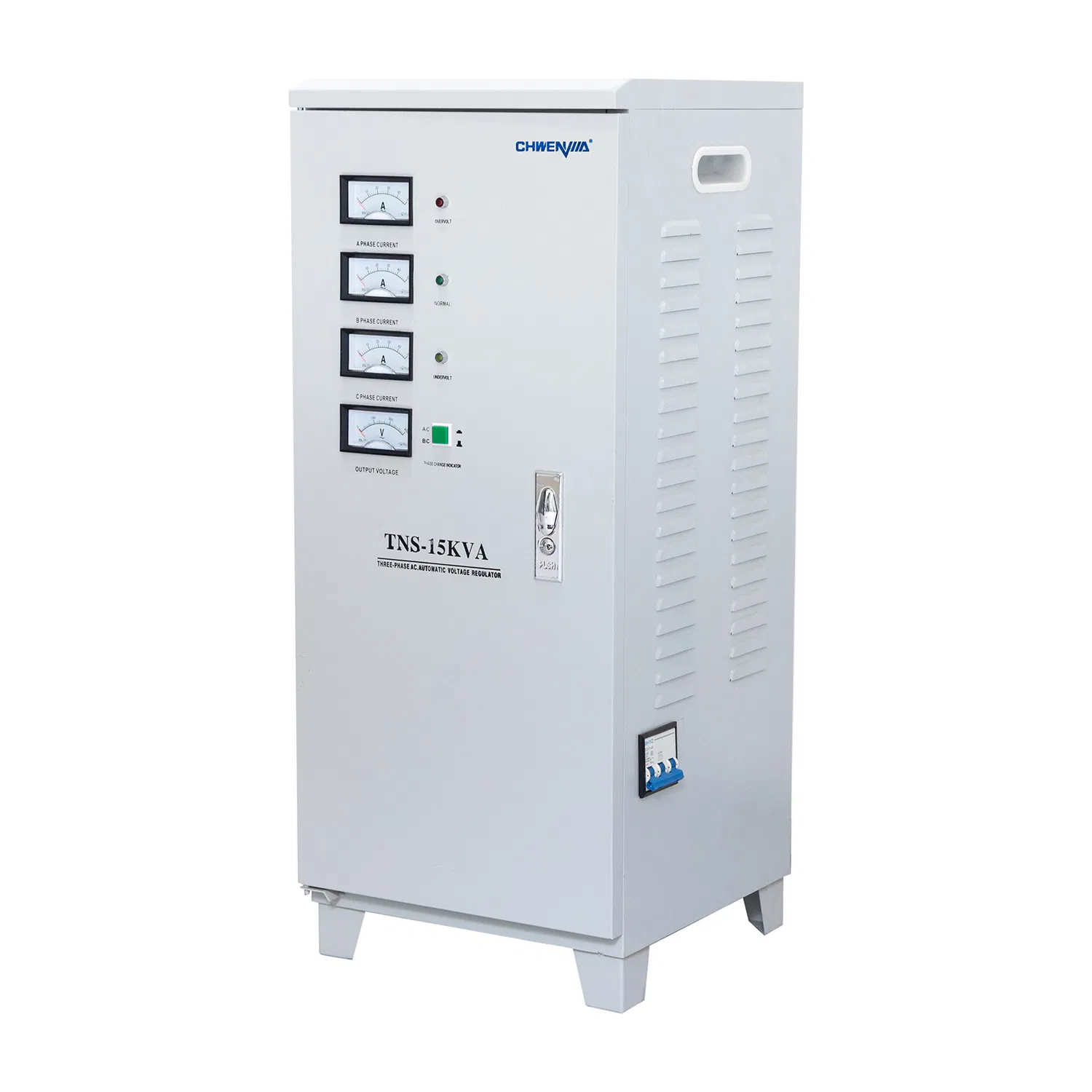

380V Voltage Regulator

Customization:	Available
Current Type:	AC
Phase:	Three Phase

Send Inquiry

Product Description

🟦 Basic Information

Model NO.:TNS-10-40KVA

Usage:SVC, JIW, Tns

Frequency:50~60Hz (Low Frequency)

Iron Core Shape:Ring

Efficiency:≥98%

Insulated Strength:2500V, 1min

Input Voltage:380V/400V/440V/480V

Ambient Temp:-15℃~+45℃

Stabilizing Accuracy:±1% ~5%

Waveform Distortion:≤ 0.1%

Package Size:75.00cm * 62.00cm * 125.00cm

Gross Weight:210.000kg

🟦 Product Description

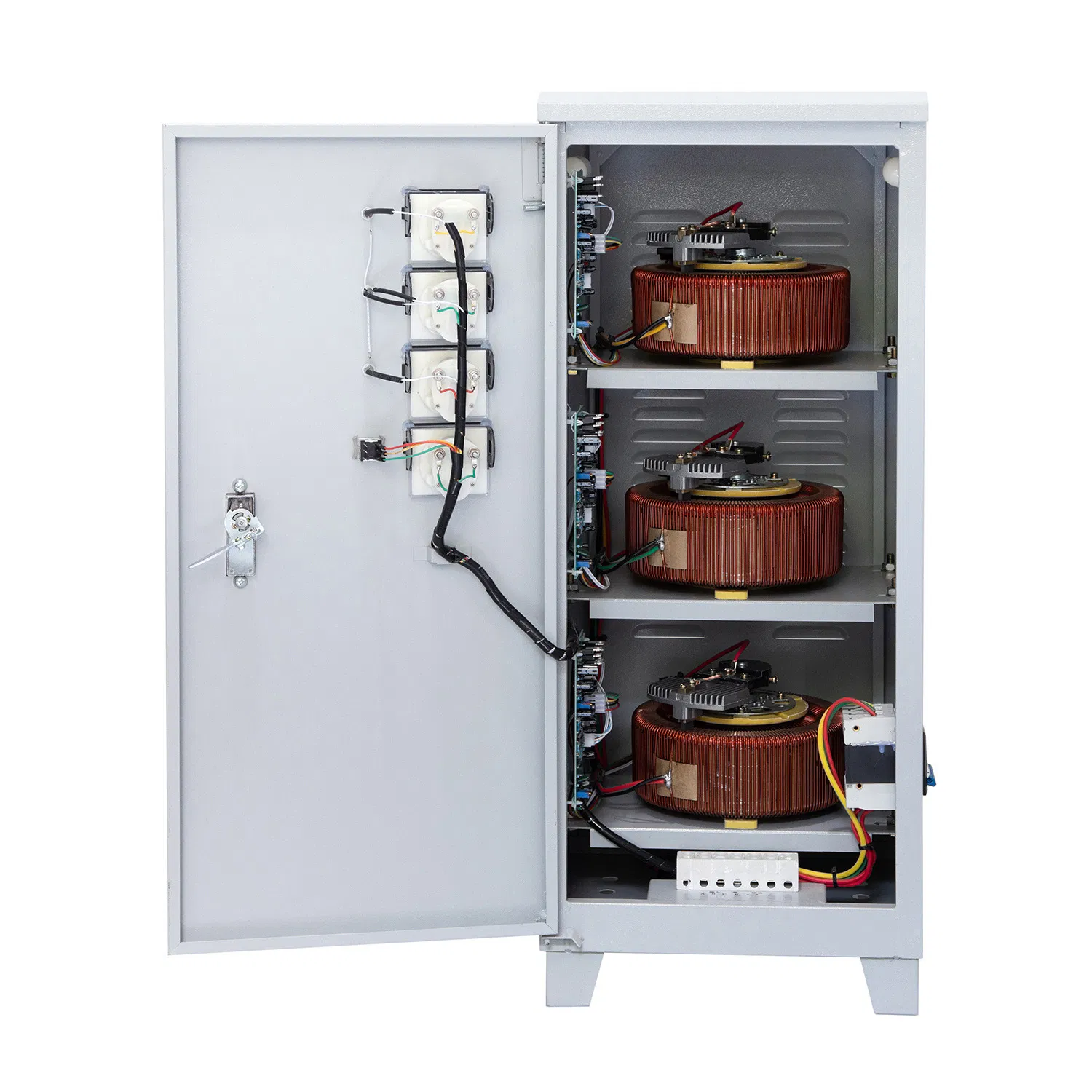

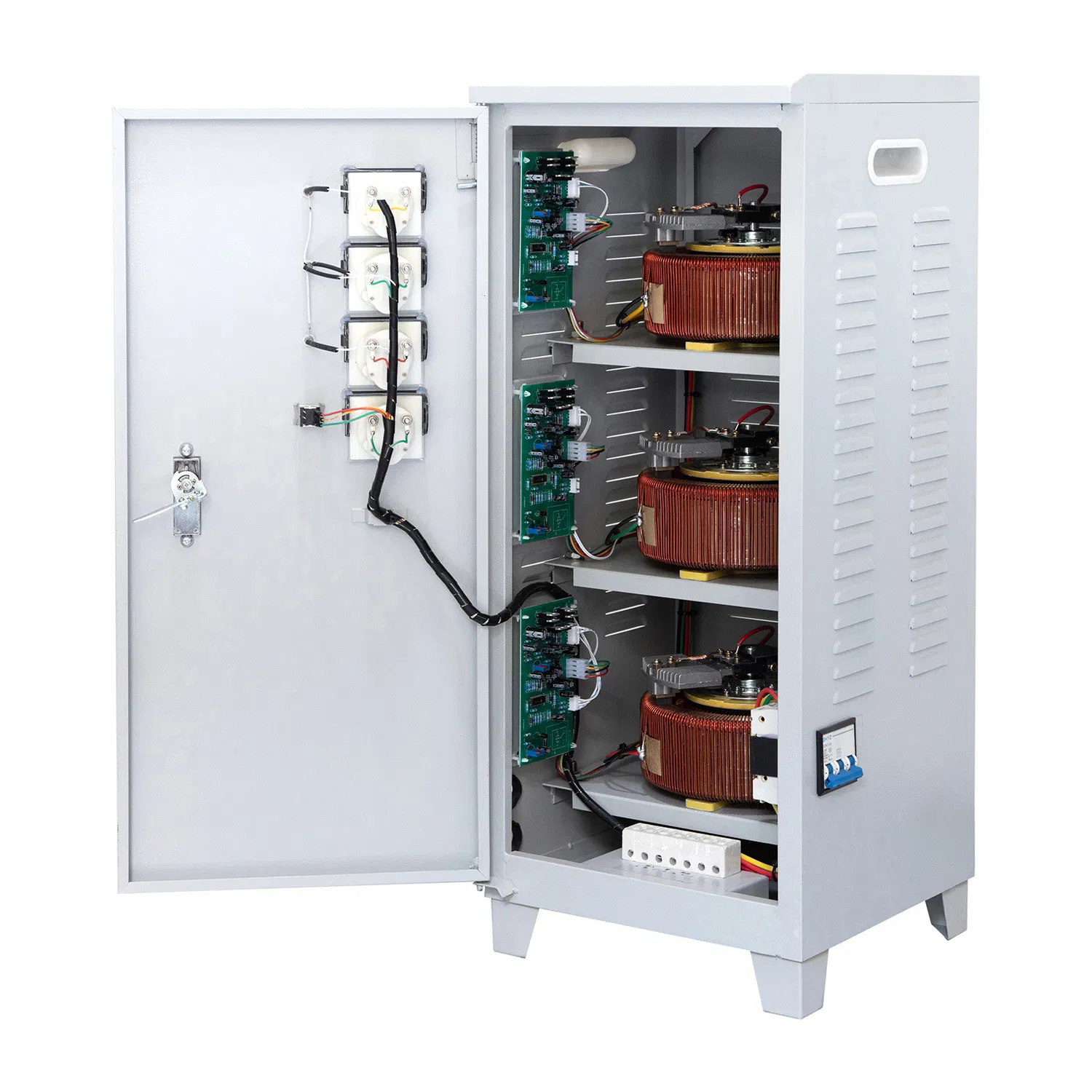

TNS (SVC) equipment equipped with special regulators SFW - 100 kva three-phase regulator anti-interference. This automatic AC household voltage stabilizer consists of an automatic coupling regulator, sampling control board, and actuator.

Key Features: Small volume, light weight, small distortion of output waveform, and fast response. Especially suitable for home air conditioning, refrigerator, television, and music centers.

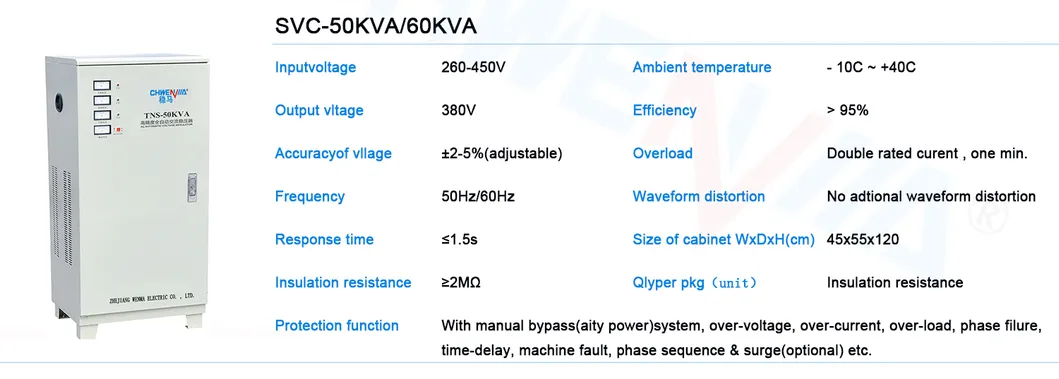

No.	Item Name	Item Description
1	OUTPUT VOLTAGE	260-450V
2	WORKING FREQUENCY	50 / 60Hz
3	REGULATION MODE	Simultaneous phase regulation
4	PRECISION	±(1~5%) adjustable
5	NOISE	55 dB
6	PROTECTION CLASS	IP 20
7	RESPONSE TIME	≤ 100ms
8	COOLING METHOD	Forced air cooling with fan
9	ANTI-SURGE	Equipped with high-energy surge impulse suppressor

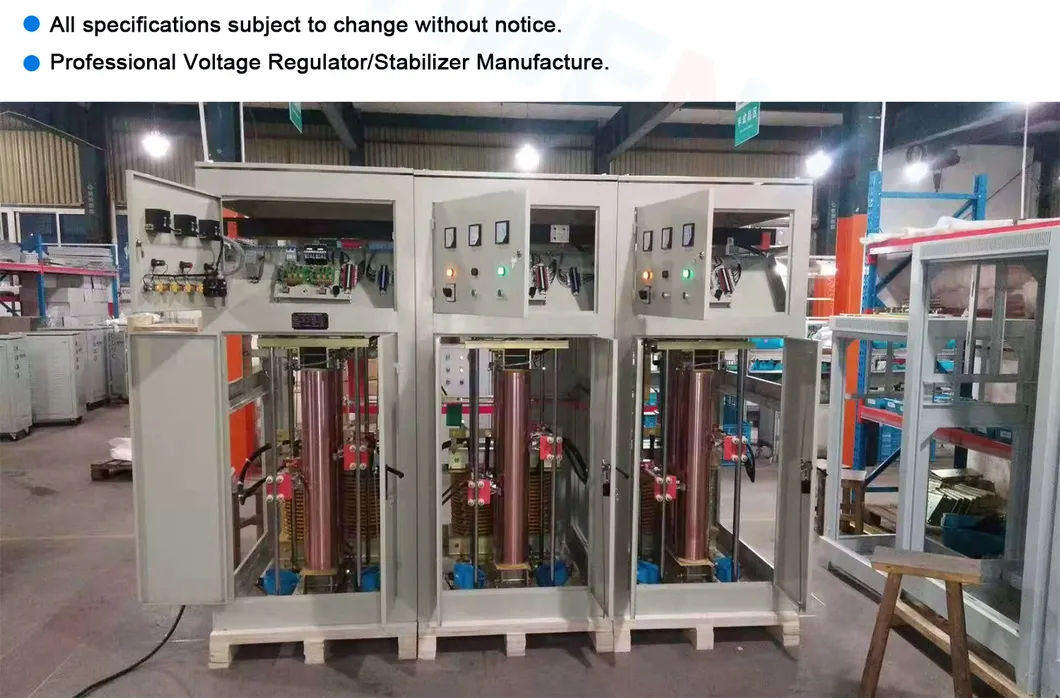

🟦 Visual Exhibition

🟦 FAQ

Q1: What are the main applications for the TNS voltage stabilizer? It is ideal for industrial and mining enterprises, and also highly effective for household appliances like air conditioners and refrigerators.

Q2: How efficient is this voltage regulator? The efficiency of this unit is rated at ≥98%, ensuring minimal power consumption during continuous use.

Q3: Does the device provide protection against power surges? Yes, the input terminal is equipped with a high-energy surge impulse suppressor to handle pulse spike voltages from lightning or induction.

Q4: What is the stabilization response time? The response time is ≤ 100ms. For a 10% jump in input voltage, the total stabilizing time is less than 1.5s.

Q5: Can the input voltage be customized? Yes, standard options include 380V, 400V, 440V, and 480V, but other specifications can be customized upon request.
