Product Description

Basic Information

Model NO.
APM150DA
Certification
TUV, RoHS, ISO9001, CCC, CE, Ukca, UL, Rcm, PSE, Kc
Color
Black or White
Input
100~240VAC, 50/60Hz
Output Voltage
12V~48V
Rate Power
168W Max
Specification
IEC/EN/UL 60601-1
HS Code
8504401400

Product Description

Medical-Grade 150W Desktop AC-DC Power Adapter - Selectable 24V / 36V / 48V Output, 2×MOPP, IEC/EN/UL 60601-1 Certified, CE Marked.

This high-reliability 150W desktop AC-DC power adapter is engineered specifically for medical electrical equipment, delivering three factory-configurable output options: 24V 6.25A, 36V 4.17A, or 48V 3.125A. It provides 2 Means of Patient Protection (2×MOPP), ensuring the highest level of electrical safety for devices including BF-type applied parts.

💎 Key Medical Safety Features:
  • 2×MOPP isolation between AC input and DC output
  • Patient leakage current <100 µA
  • Input-to-output isolation: 4,000 VAC
  • Compliant with IEC 60601-1-2 Ed. 4.1 for hospital environments
Model NO. Max Power Output Voltage Max Load Line Regulation Ripple & Noise
APM150DA150W24V6.25A±1%100mV
APM150DC150W36V4.17A±1%100mV
APM150DE150W48V3.13A±1%100mV

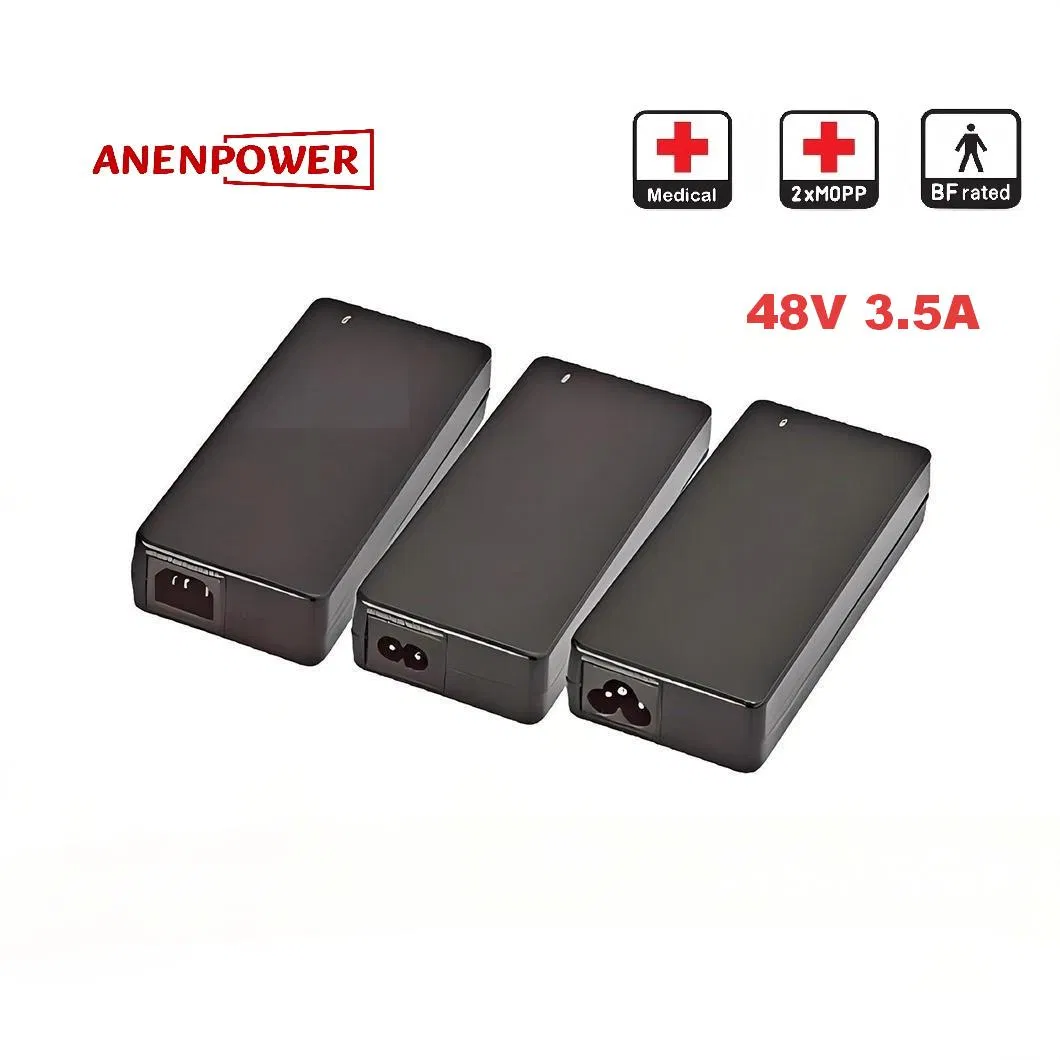

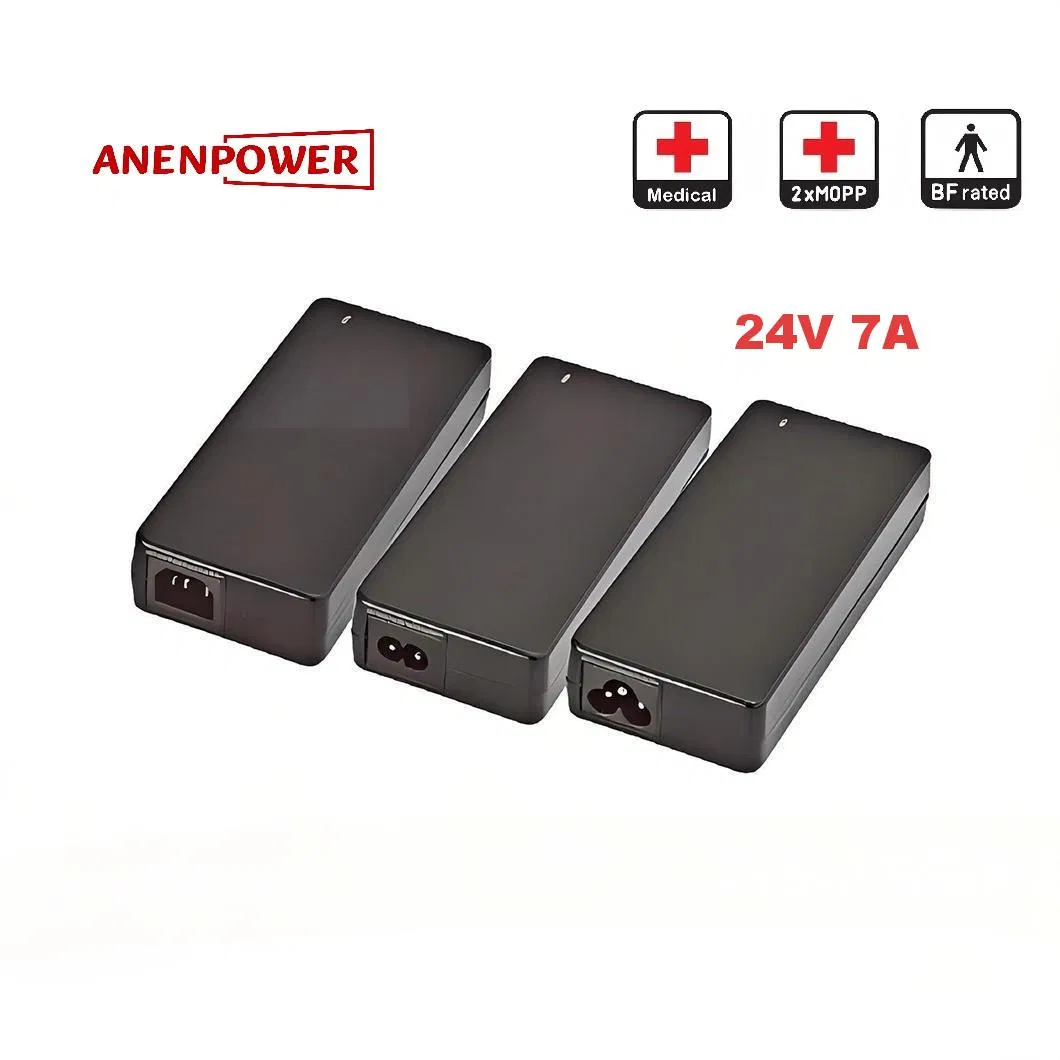

Power Adapter Front Power Adapter Angle Power Adapter Back Power Adapter Detail

Our Advantages

🚀
Ultra-high Production Efficiency: Fully automated production lines operating 24/7.
🛡️
Consistent Premium Quality: Automated precision eliminates human error.
⏱️
Flexible Delivery: Fast model switchover to meet peak-season demands.
💰
Cost-effective: 80% reduction in repetitive labor costs via automation.

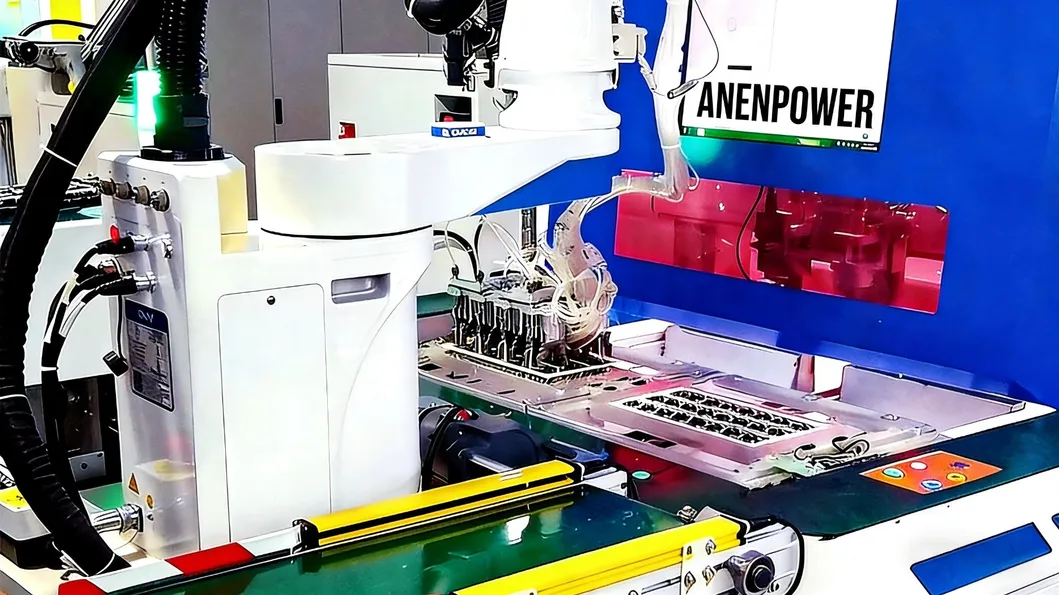

Production Line

Warranty & Service

24-Month Warranty: Covering defects in materials and workmanship.

30-Day Return Policy: Unused products in original packaging may be returned or exchanged.

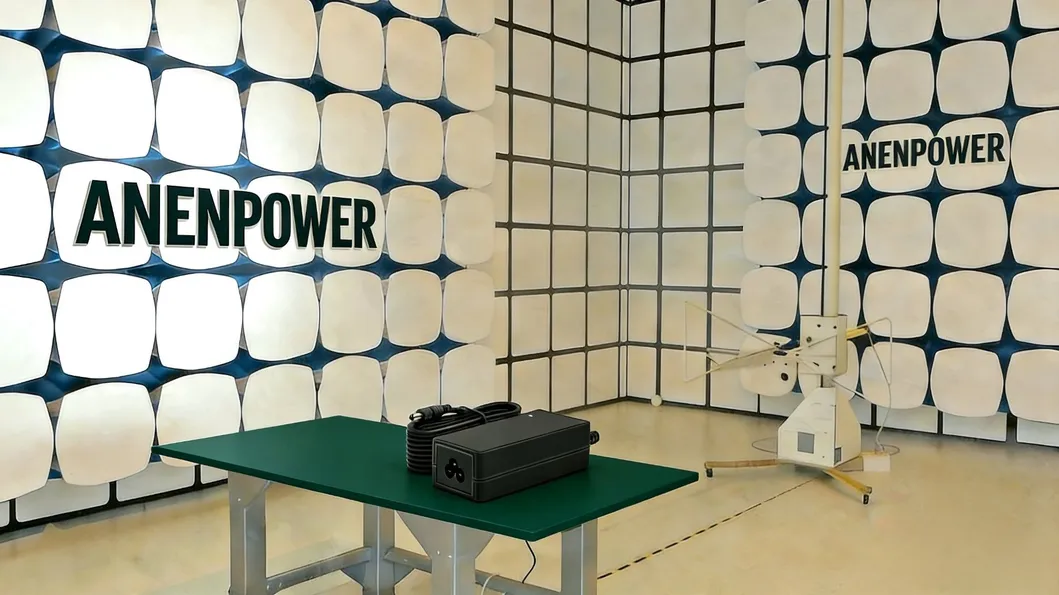

Quality Certification

Frequently Asked Questions

Q1: Is the output voltage user-switchable?
No, the voltage is factory-set during manufacturing to maintain regulatory compliance and safety. You can choose 24V, 36V, or 48V at the time of order.
Q2: What medical safety standards does this power supply meet?
It is certified under IEC/EN/UL 60601-1 (4th Edition) with 2×MOPP patient protection and ultra-low leakage current (<100 µA).
Q3: Is this adapter suitable for patient-contact devices?
Yes, its 2×MOPP isolation and low leakage current make it suitable for devices that make contact with patients, including BF-type applied parts.
Q4: What is the warranty period for the APM150 series?
We provide a standard 24-month warranty covering any manufacturing defects under normal operating conditions.
Q5: Can I request a customized DC connector?
Yes, the output connector can be customized to a 4-pin locking DC plug, terminal block, or other types based on your equipment's needs.
Q6: Does it operate quietly for clinical environments?
Absolutely. The fanless design ensures quiet operation at less than 35 dBA, making it ideal for hospital and clinical settings.
