Product Overview

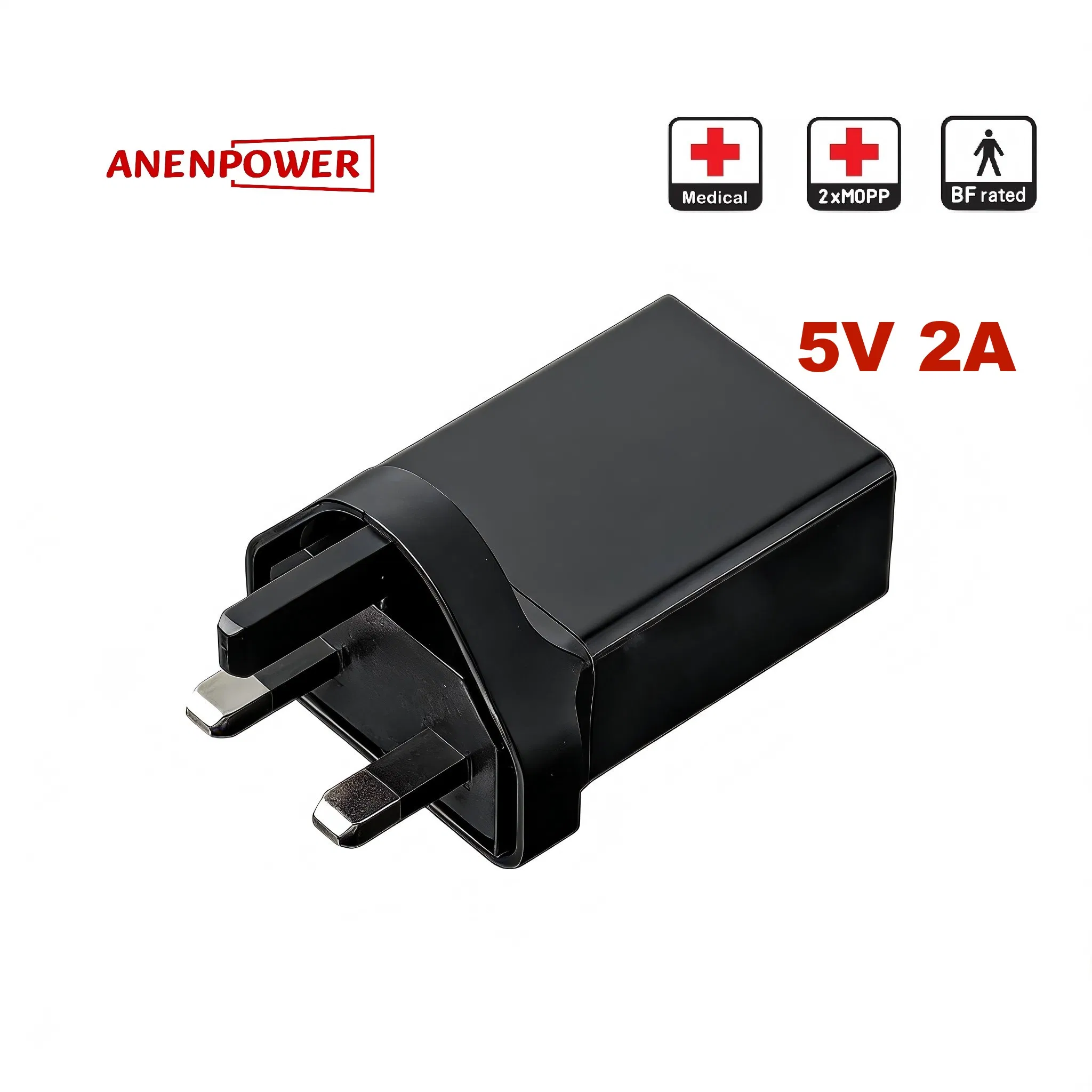

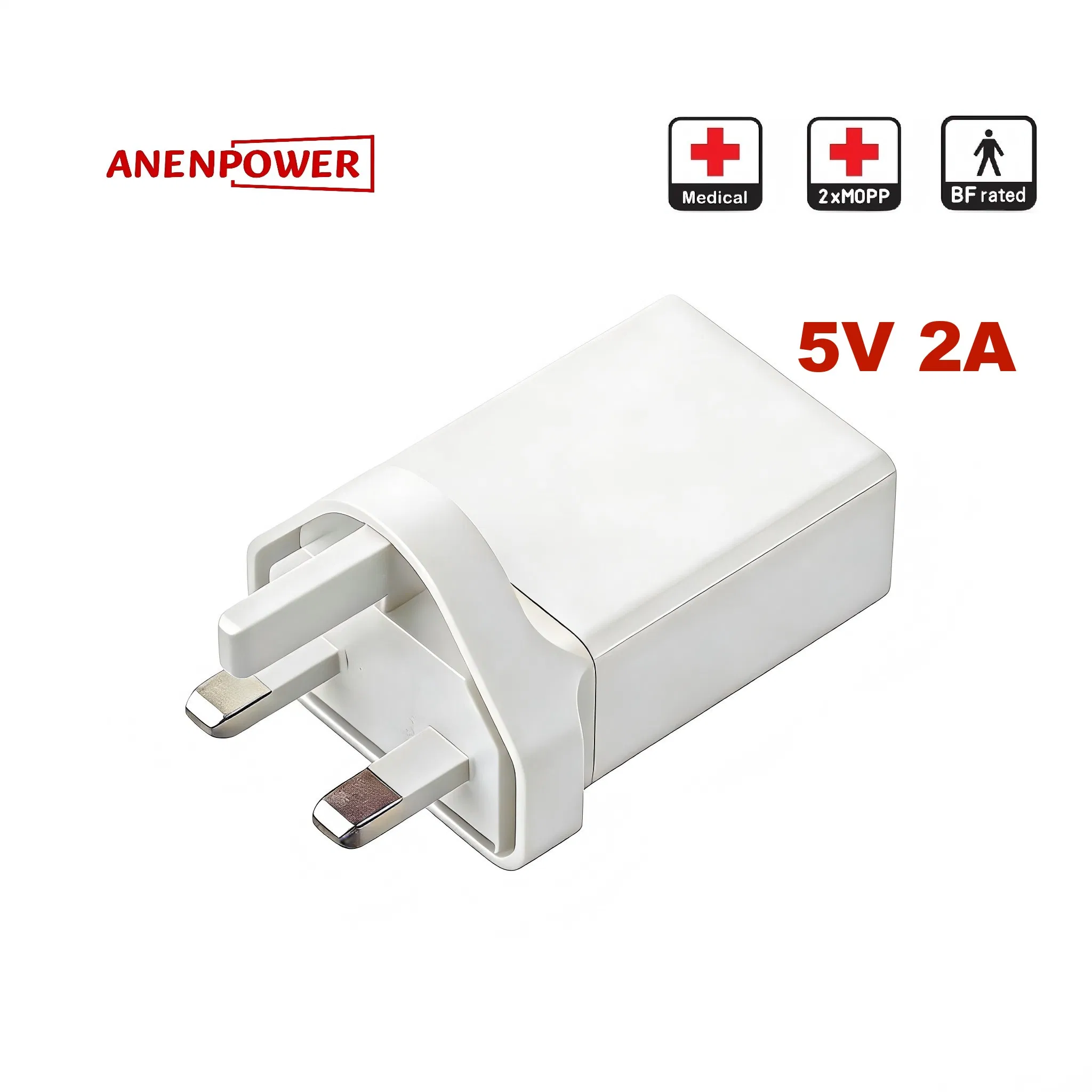

This 10W (5V, 2A) plug-top (wall-mount) medical AC/DC power adapter features an integrated UK BS 1363 (Type G, 3-pin fused) plug and is fully certified to IEC 60601-1 (3rd Edition + Amendment 2). Designed for use in patient-care and home healthcare environments, it provides 2 x MOPP (Means of Patient Protection) isolation and meets stringent limits for leakage current and mechanical safety. With patient leakage current below 10 µA (DC) and 100 µA (AC) and reinforced insulation rated at 4 kV AC, it is suitable for BF-type (Body Floating) applications.
| Model NO. | Max Power | Voltage | Max Load | Regulation | Ripple & Noise |
|---|---|---|---|---|---|
| APM010KA | 5W | 5V | 1.0A | ±5% | 100mV |
| APM010KB | 6W | 5V | 1.2A | ±5% | 100mV |
| APM010KC | 10W | 5V | 2.0A | ±5% | 100mV |
| APM010KD | 9W | 9V | 1.0A | ±5% | 100mV |
| APM010KF | 10W | 12V | 0.83A | ±5% | 100mV |
| APM010KH | 10W | 24V | 0.42A | ±5% | 100mV |

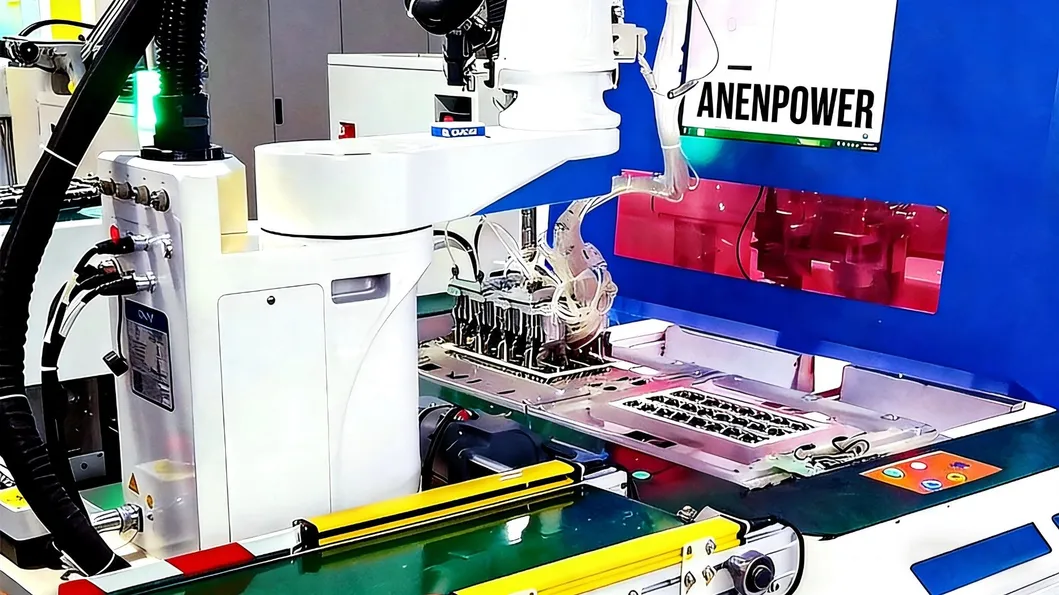

Our power adapters are manufactured by fully automated production lines, which operate 24/7 without interruption. Efficiency is significantly higher than manual assembly lines, enabling us to handle large-volume orders quickly.
Automated production eliminates human operation errors. Equipped with high-precision robotic arms and intelligent testing systems, each power adapter features stable voltage & current output with ultra-low defect rates.

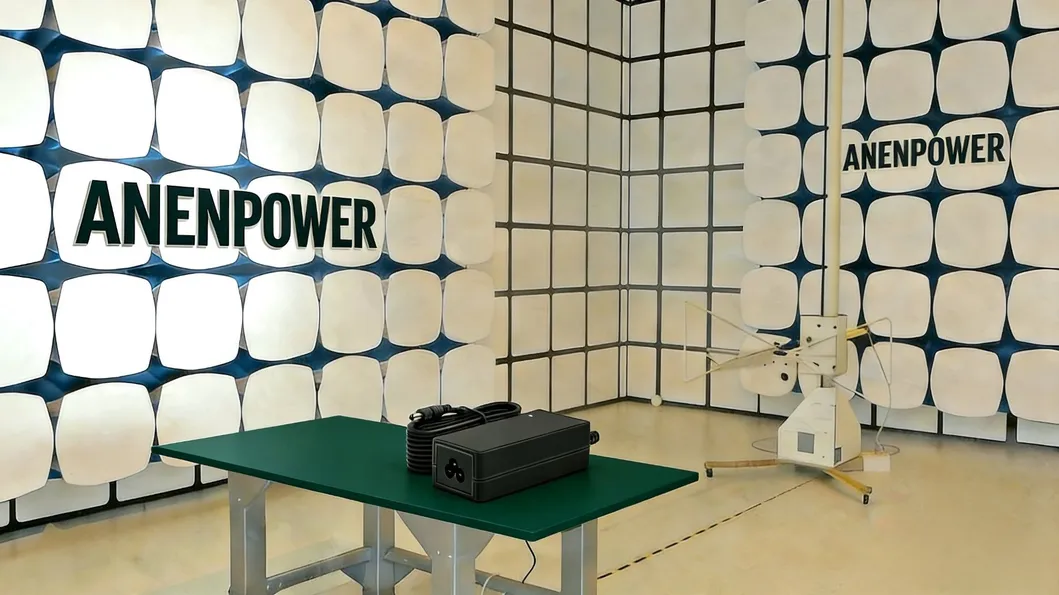

Specializing in IEC 60601-rated medical power adapters from 5W to 1000W. All products undergo rigorous testing with state-of-the-art equipment to guarantee durability and performance.
