Isolated DC-DC Converter IC for Numerical Control Machine IB0505D-W75
📌 Key Features:
- Low cost, small size, high power density
- High galvanic isolation (1KV isolation)
- No heat sink required
- Regulated single/dual output with fixed input
- Rated 2-5W, 6-12W, 13-20W output
- Industrial standard pin-out PCB Mounting
- Over current and short circuit protection
🚀 Applications:
- Electric Power System, Power monitoring, voltage conversion
- Dual power isolation in digital communication ports (RS232/485, CAN bus)
- Intelligent control, security equipment, and telecom power supply
- Medical equipment and instrument safety isolation
- Isolation for analogue electric circuits (Transmitters & sensors)
- PLC, DCS, and PC isolation regulated power supplies

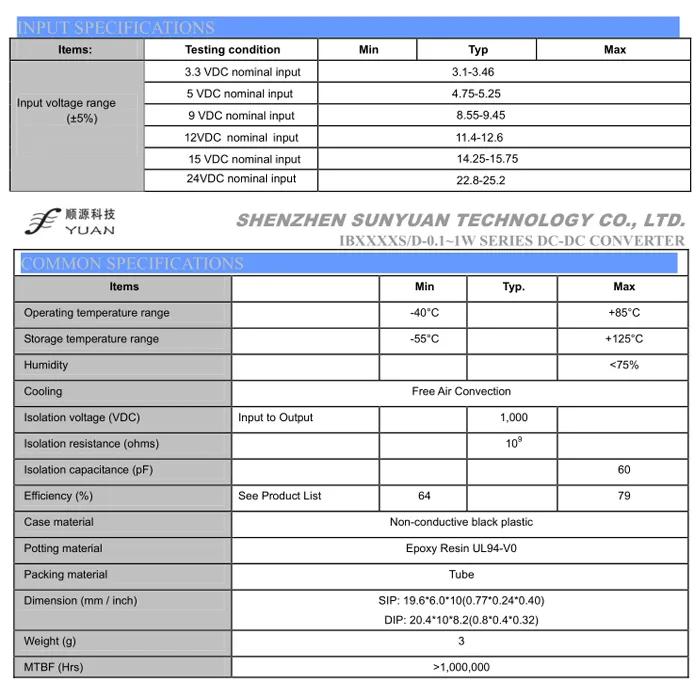

| Category |
DC-DC Converter >> Fixed Volt. Input, Isolated and Regulated Output |
| Input |
5VDC, 12VDC, 15VDC, 24VDC, etc. |
Output |
3.3VDC, 5VDC, 9VDC, 12VDC, 15VDC, 18VDC, 24VDC, etc. |
| Power |
1W-2W |
Isolation Voltage |
1000VDC |
| Package |
DIP / SIP |
Frequently Asked Questions
What is the primary function of the IB0512S-1W converter?
It provides fixed voltage input to regulated output with 1000VDC galvanic isolation, specifically designed for numerical control machines and digital communication ports.
Does this module require an external heat sink?
No, the design is optimized for high power density and efficiency, meaning no heat sink is required for standard industrial operations.
Is this product compatible with medical equipment?
Yes, its high isolation properties make it suitable for safety isolation in medical instruments and ground loop elimination.
What protections are built into the device?
The converter includes integrated over-current and short-circuit protection to ensure long-term reliability in industrial environments.
What are the available packaging options?
The standard models are available in both DIP (Dual In-line Package) and SIP (Single In-line Package) configurations for PCB mounting.
Can I request OEM branding for this product?
Yes, the product supports Trademark customization and OEM manufacturing to meet specific business requirements.
