50Hz to 60Hz frequency converter
Around the world there are many different power systems, while different voltages can easily be rectified, changing frequency typically from 50 Hz to 60 Hz or vice versa is much more difficult.

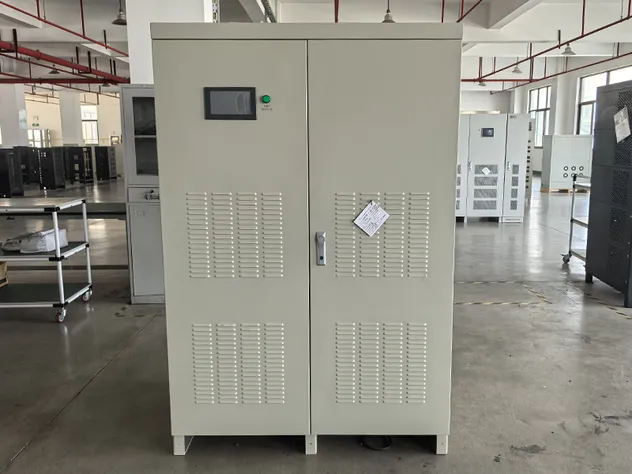

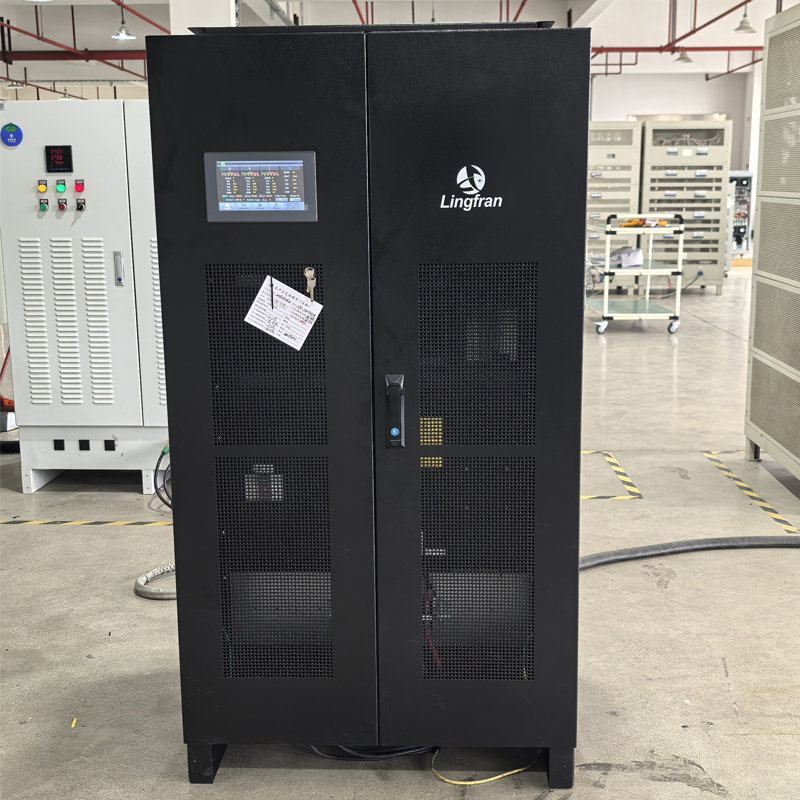

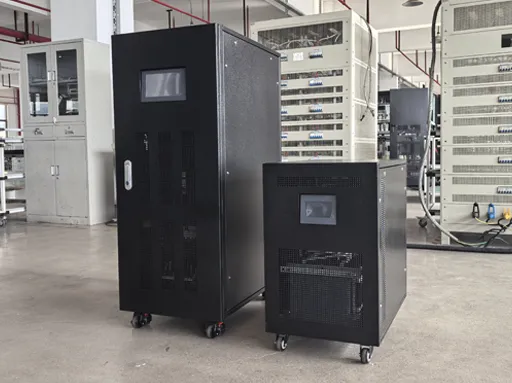

A 50Hz to 60Hz frequency converter is a single or 3 phase static frequency converter designed to enable the connection of 50 Hz equipment to a 60 Hz power supply.
| Link of Transformation | AC-DC-AC Variable-Frequency Drive |
| Function | Simple Type |
| Power | Customer to Specify |
| Input Voltage | 240VAC |
| Input Frequency | 50Hz |
| Output Voltage | 220VAC |
| Output Frequency | 60Hz |
| IP Rating | IP20 |

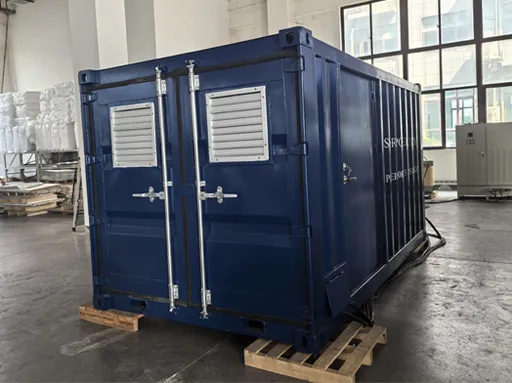

| Transport Package | Plywood Case |
| HS Code | 8504401990 |
| Technology | Solid-State PWM IGBT Design (Rectifier: SCR, Inverter: IGBT) | ||

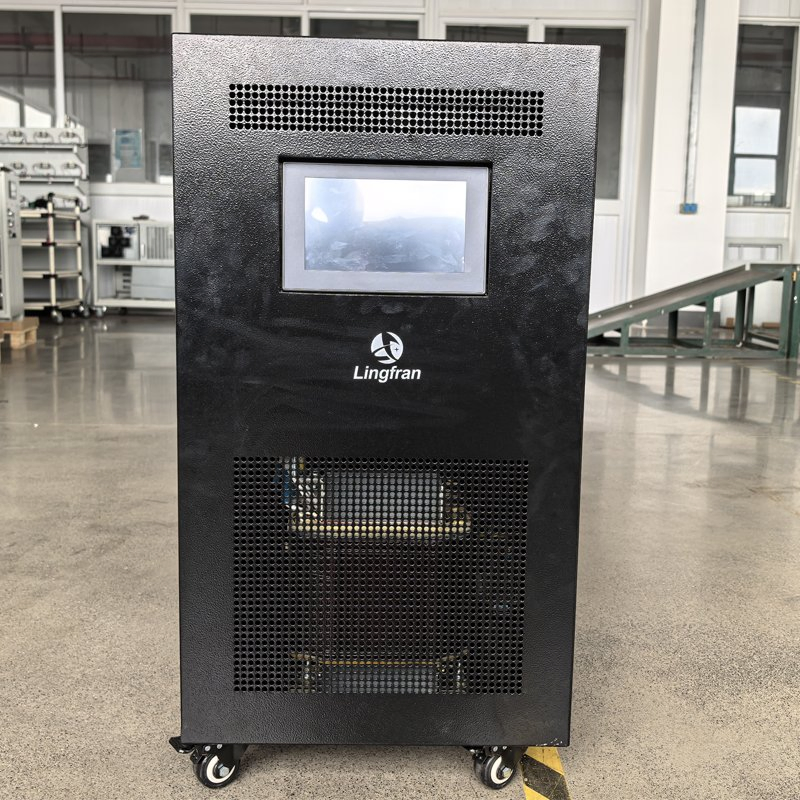

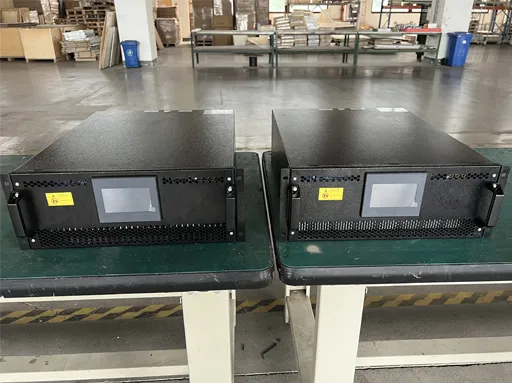

| Display | Touchable 7'' LCD Screen | ||
| Output Waveform | Sine Wave | Output THD | ≤2% (Linear Load) |
| Protections | Circuit Breaker, Fuse Blown, IGBT Fault, Over/Under Voltage, Over Current, Over Load, Overheat, Short Circuit | ||
| Efficiency | ≥92% | Voltage Accuracy | ±1% |
| Standard | IEC 61000-6-2, IEC 61000-6-4, IEC 62477-1 | ||
AC-DC-AC true online double conversion technology for stable power delivery.
Pulse-width modulation, 100% solid state circuit, static without moving parts.
Output with built-in isolation transformer to provide full galvanic isolation.
Equipped with protection for Under Voltage, Over Voltage, Overload, Short Circuit, and more.
High-frequency IGBT technology guarantees a perfect sine wave output for sensitive loads.
Can convert and stabilize voltage & frequency, and can also change the phase number.

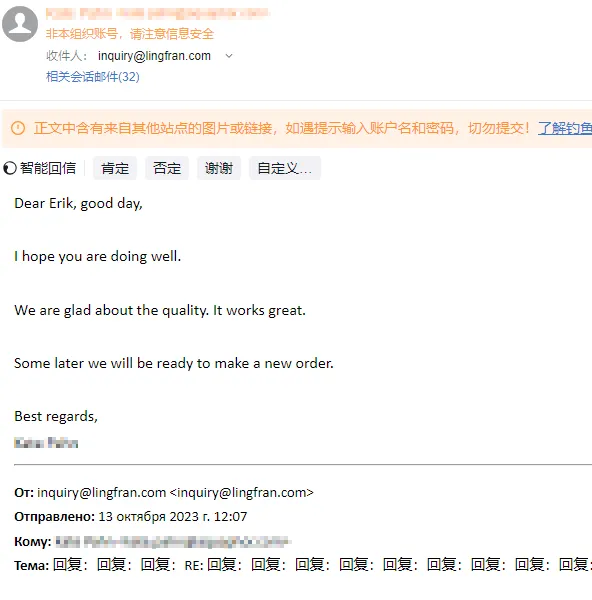

We are very proud of the feedback that we have received for the quality of our work and our commitment to making every product a success.
