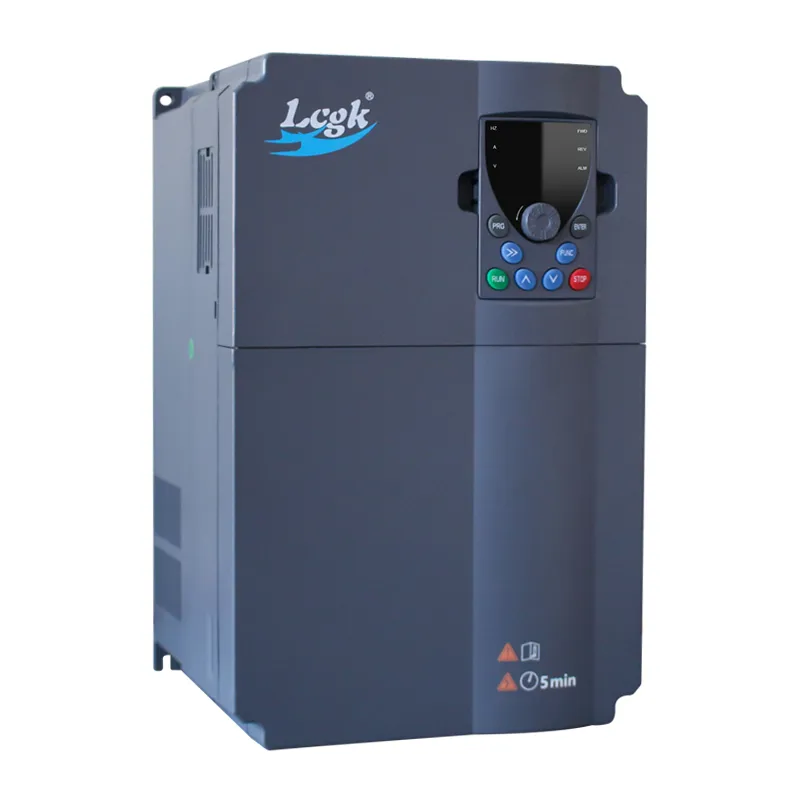

| Model NO. | LC410 | Principle of Work | Vector Control Transducer |
| Switch Mode | High Carrier Frequency PWM Control | Main Circuit Type | Current |
| Power Supply | Low Voltage Variable-Frequency Drive | Link of Transformation | AC-DC-AC |
| Nature of DC Power | Current Variable-Frequency Drive | Function | Simple Type, Textile Special |
| Input Voltage | 3AC 380~460V±15% | Output Voltage | 0~Rated Input Voltage |
| Control Mode | V/F, SVC, FVC | Frequency | 0-500Hz |
| Communication | RS485/Modbus | Protection Class | IP20 |
| Specification Item | Details |
|---|---|
| Available Power Range | 1.5KW - 500KW |
| Overload Capacity | G mode: 150% 60s; 180% 3s | P mode: 120% 60s; 150% 3s |
| Braking Unit | 1.5~22kw: Standard Built-in; 30~37kw: Optional |
| Built-in PID | Enables closed-loop control for pressure, temperature, and flow. |
| Application Scope | CNC tools, textile machinery, blowers, plastic machinery, food machinery. |
Our focus is on the R&D, production, and service of high-performance electrical drive products. Key product lines include vector inverters, servo control systems, and AC permanent magnet synchronous motor drivers. With over 31 national patents and CE/ISO9001 certifications, we ensure technical excellence and reliability in every unit.
