Around the world there are many different power systems, while different voltages can easily be rectified, changing frequency typically from 60 Hz to 50 Hz or vice versa is much more difficult.

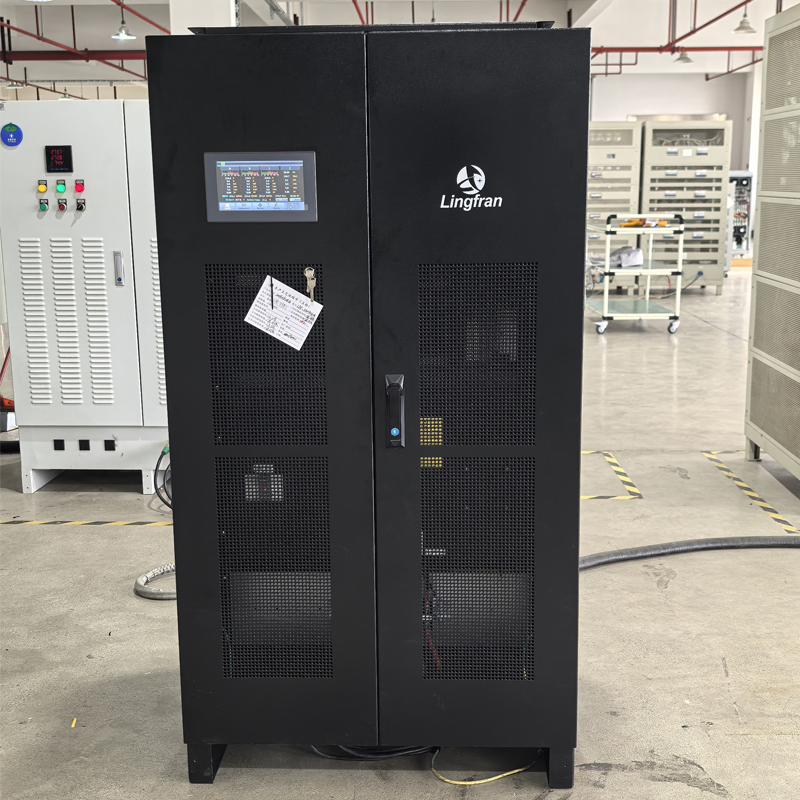

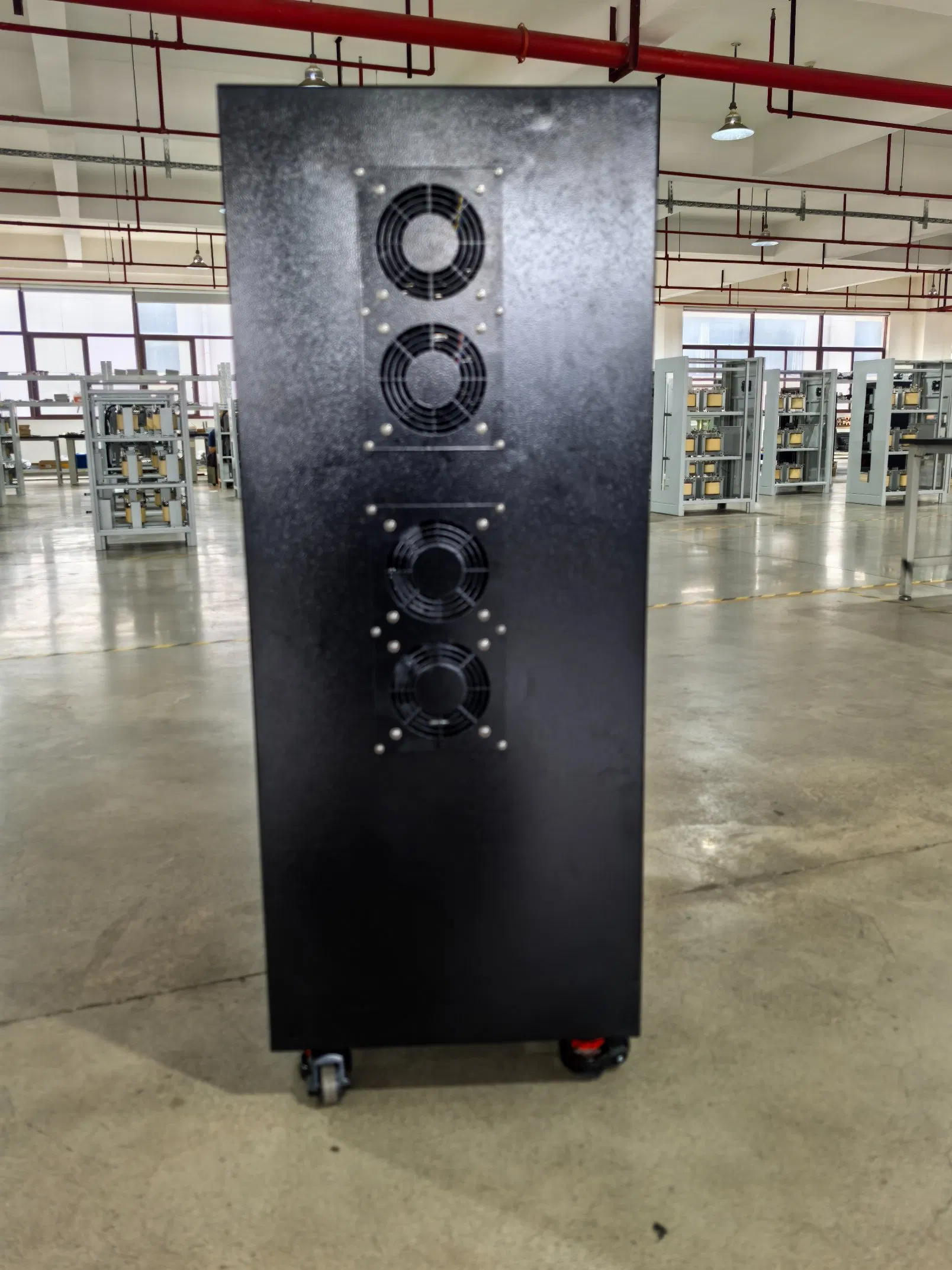

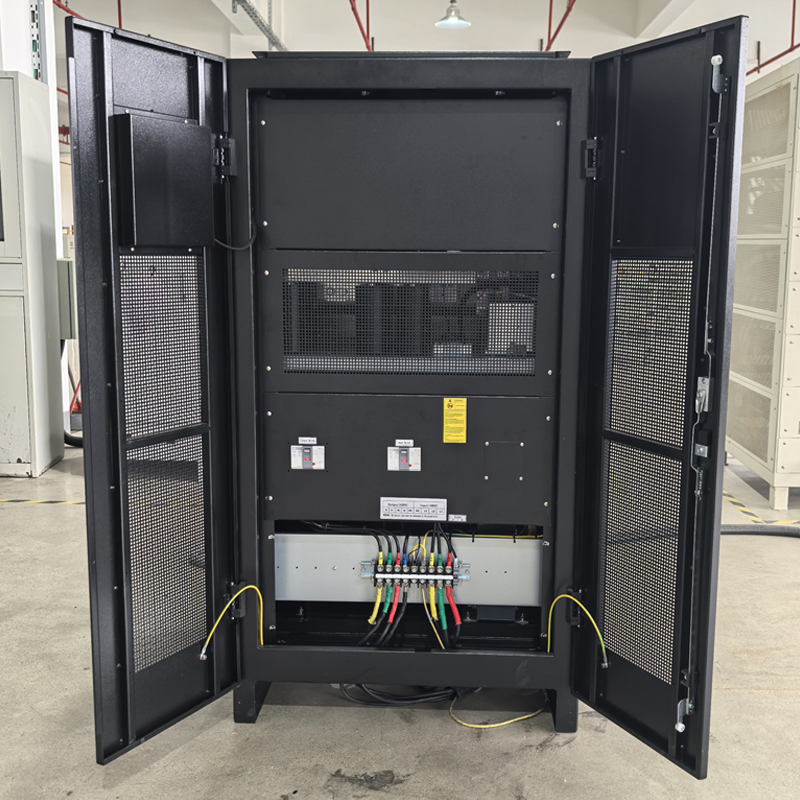

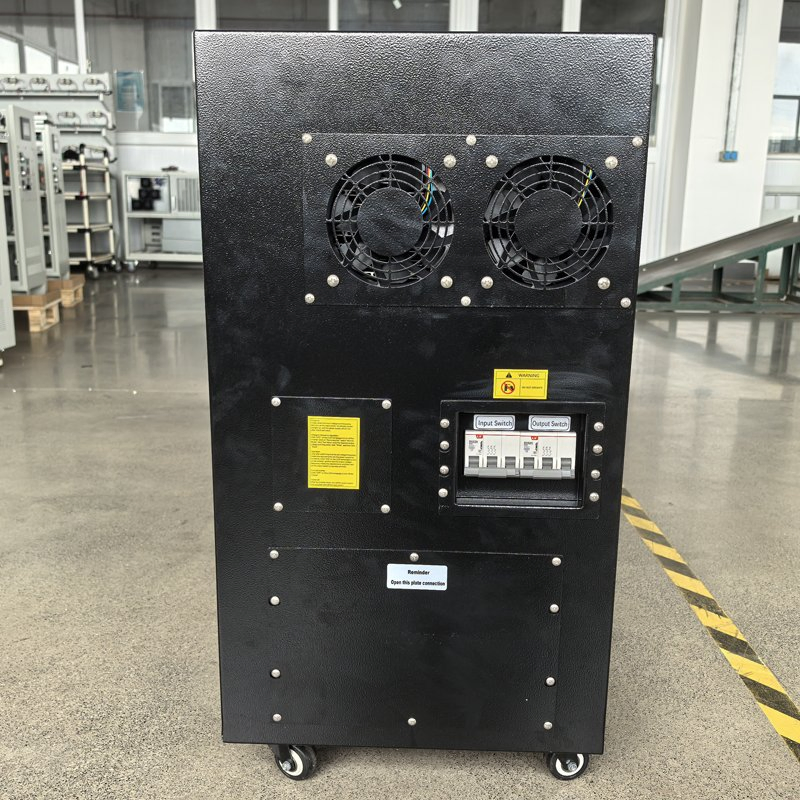

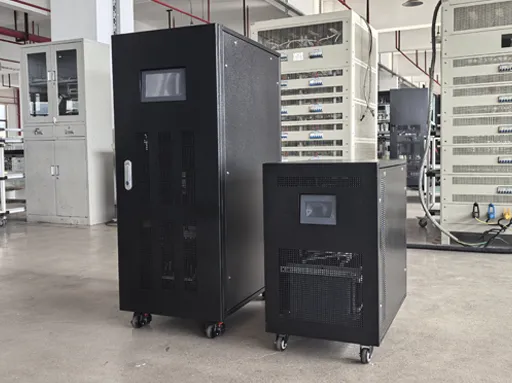

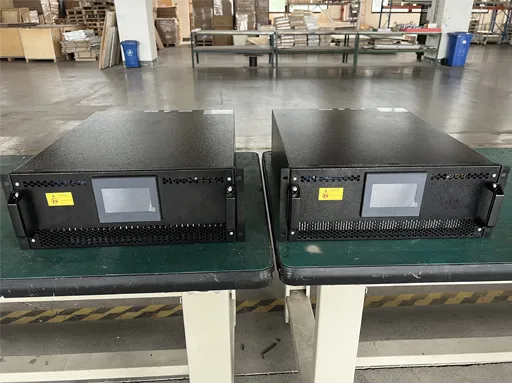

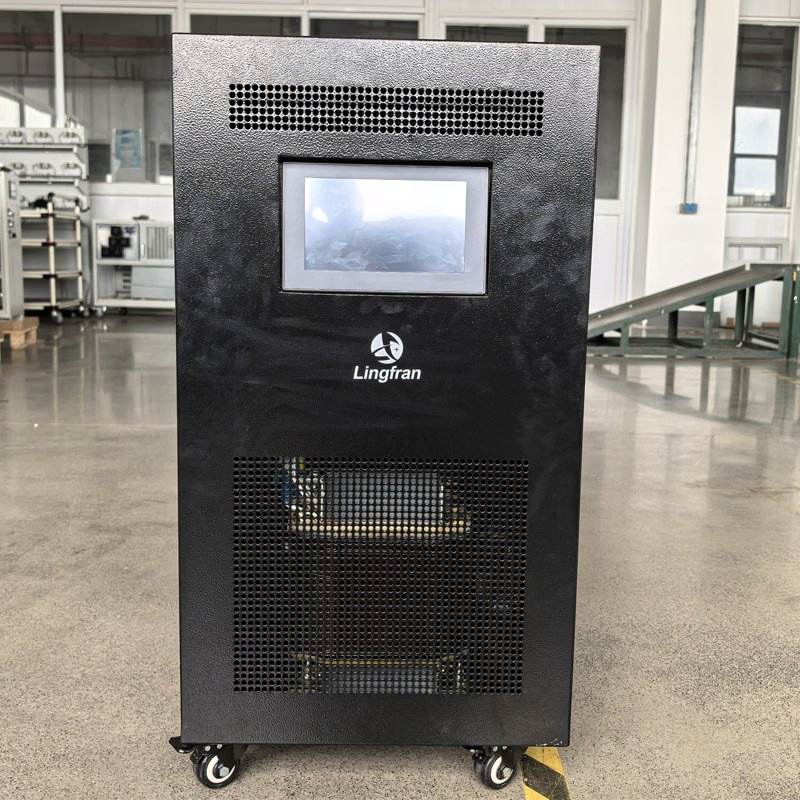

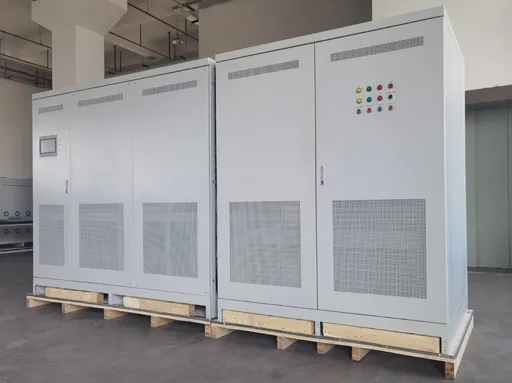

A 60Hz to 50Hz frequency converter is a single or 3 phase static frequency converter designed to enable the connection of 50 Hz equipments to a 60 Hz power supply.
| Technology | Solid-State PWM IGBT Design (Rectifier: SCR, Inverter: IGBT) | Rated Power | Customer to specify |
| Display | Touchable 7'' LCD Screen | Input Voltage | 480VAC |
| Input Frequency | 60Hz | Phase Number | 3 |
| Output Frequency | 50Hz | Output Voltage | 400VAC |
| Output Waveform | Sine Wave | Output THD | ≤2% (Linear Load) |
| Voltage Accuracy | ±1% | Frequency Accuracy | ±0.01% |
| Efficiency | ≥92% | Duty Cycle | Continuous |
| Ambient Temp | -15℃ to +45℃ | Protection Degree | IP20 (IP44 and above optional) |
* Specifications subject to change without prior notice. Customization service available.

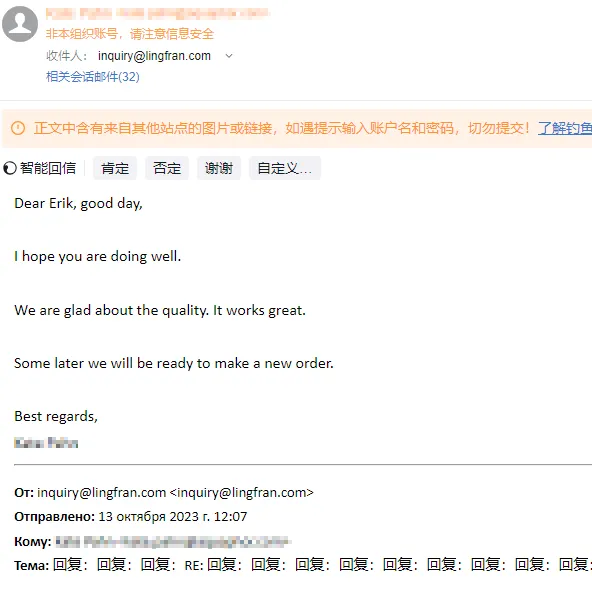

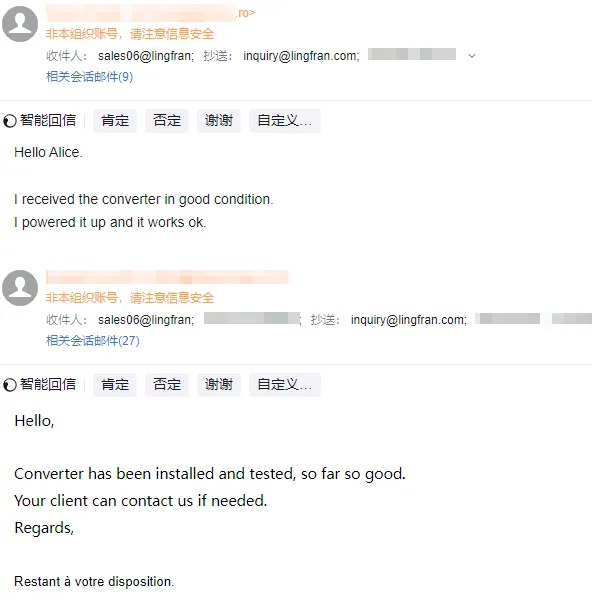

We take pride in the positive feedback from our global clients regarding our commitment to quality and technical success.
