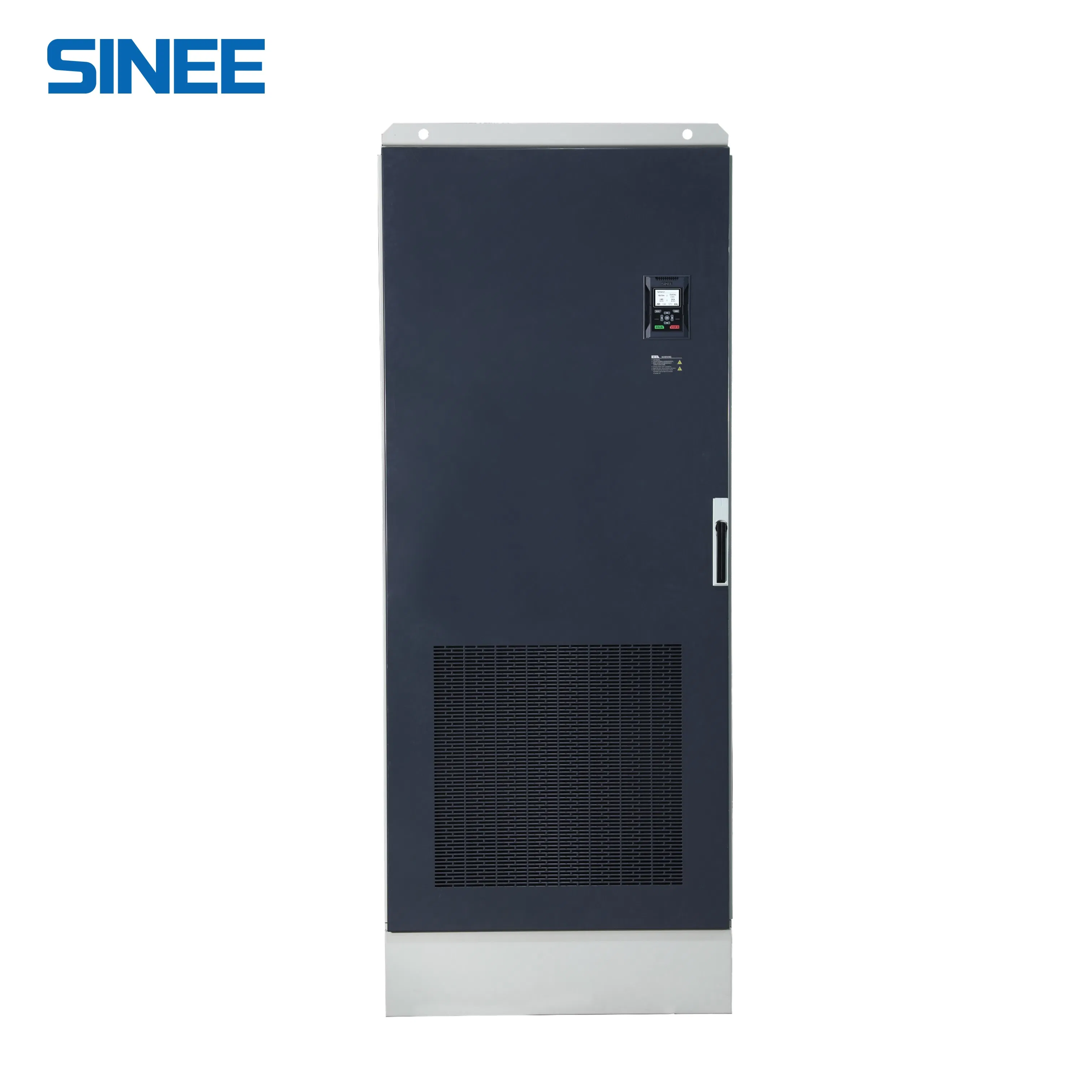

High-Performance Frequency Converter for Reliable Power Conversion in Industrial Automation and Renewable Energy Systems
High-Performance Frequency Converter for Reliable Power Conversion in Industrial Automation and Renewable Energy Systems
High-Performance Frequency Converter for Reliable Power Conversion in Industrial Automation and Renewable Energy Systems
High-Performance Frequency Converter for Reliable Power Conversion in Industrial Automation and Renewable Energy Systems
High-Performance Frequency Converter for Reliable Power Conversion in Industrial Automation and Renewable Energy Systems
1 / 5
High-Performance Frequency Converter for Reliable Power Conversion in Industrial Automation and Renewable Energy Systems
High-Performance Frequency Converter for Reliable Power Conversion in Industrial Automation and Renewable Energy Systems
High-Performance Frequency Converter for Reliable Power Conversion in Industrial Automation and Renewable Energy Systems
High-Performance Frequency Converter for Reliable Power Conversion in Industrial Automation and Renewable Energy Systems
High-Performance Frequency Converter for Reliable Power Conversion in Industrial Automation and Renewable Energy Systems

High-Performance Frequency Converter for Reliable Power Conversion in Industrial Automation and Renewable Energy Systems

Customization: Available
Application: General Transducer
Output Type: Triple
Send Inquiry

Product Description

High-Performance Frequency Converter for Reliable Power Conversion

Reliable Power Conversion in Industrial Automation and Renewable Energy Systems.

General VFD Product
Basic Information
Model:EM760
Principle:Vector Control Transducer
Main Circuit:Voltage
Function:General VFD
Driving Mode:Vvf; SVC; Fvc
Frequency:0.00~600.00Hz / 0.0~3000.0Hz
Speed Range:1:50 (Vvf), 1:200 (SVC), 1:1000 (Fvc)
Cooling:Forced Air Cooling
Capacity:400,000 pieces/Year
Product Description

Voltage Ratings: Three-phase AC 340V-460V (0.75kW-710kW) & 660V-690V (18.5kW-800kW)

The EM760 series inverter is a high-performance vector control inverter which integrates synchronous motor drive and asynchronous motor drive. It supports various technologies like VVF, SVC, and FVC, and features Wi-Fi access for background software debugging.

  • ✔ Standard built-in C3 filter for electromagnetic compatibility.
  • ✔ Built-in DC reactor for power factor enhancement.
  • ✔ Standard LCD panel for easy operation.
  • ✔ Support for PROFINET, CANopen, and EtherCAT bus expansion.

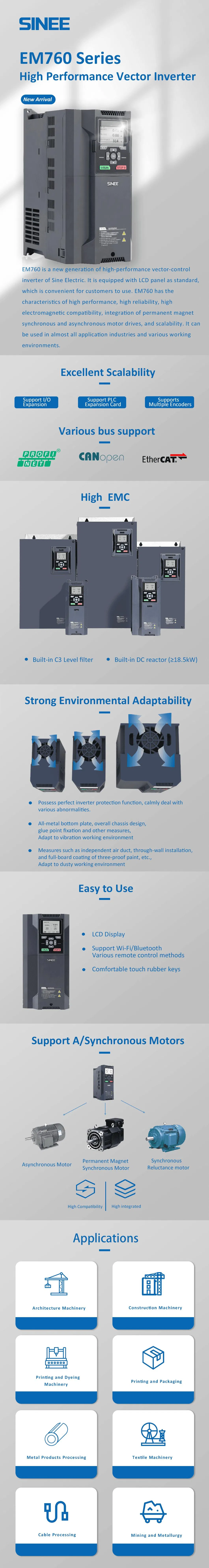

Specifications Diagram
Product Parameters
Item Specification
Power SupplyThree-phase 340V-460V, 50-60Hz ± 5%
Output Voltage0 to Input Power Voltage
Overload CurrentG model: 150% for 60s; P model: 120% for 60s
Frequency Range0.00 ~ 600.00Hz / 0.0 ~ 3000.0Hz
ProtectionShort circuit, Overcurrent, Overvoltage, Undervoltage, Phase loss, Overload, Overheat
Protection LevelStandard IP21/IP20
Installation Instructions

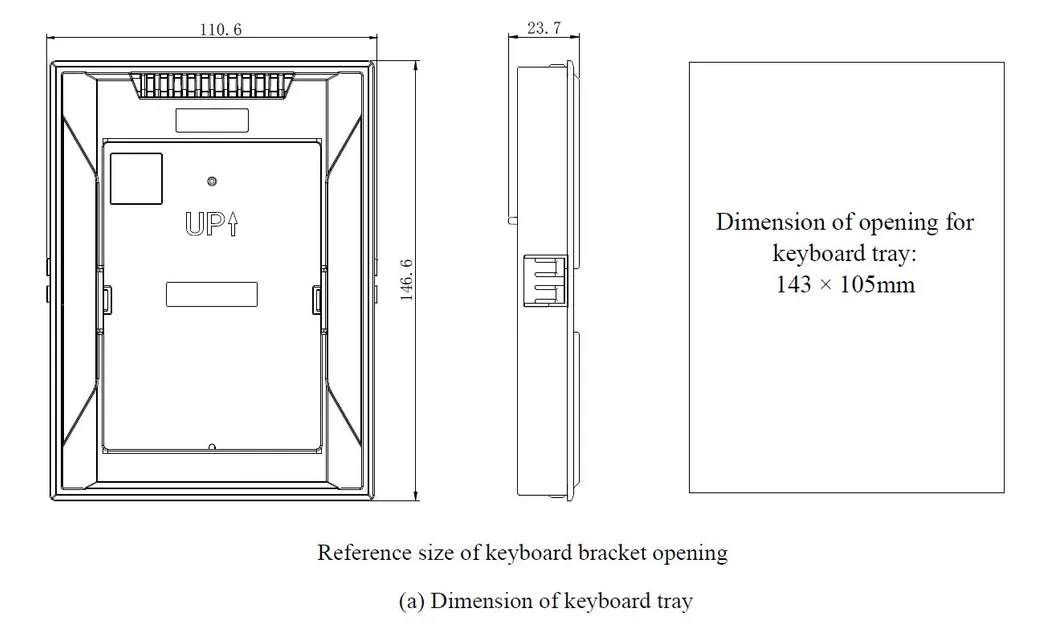

Installation 1

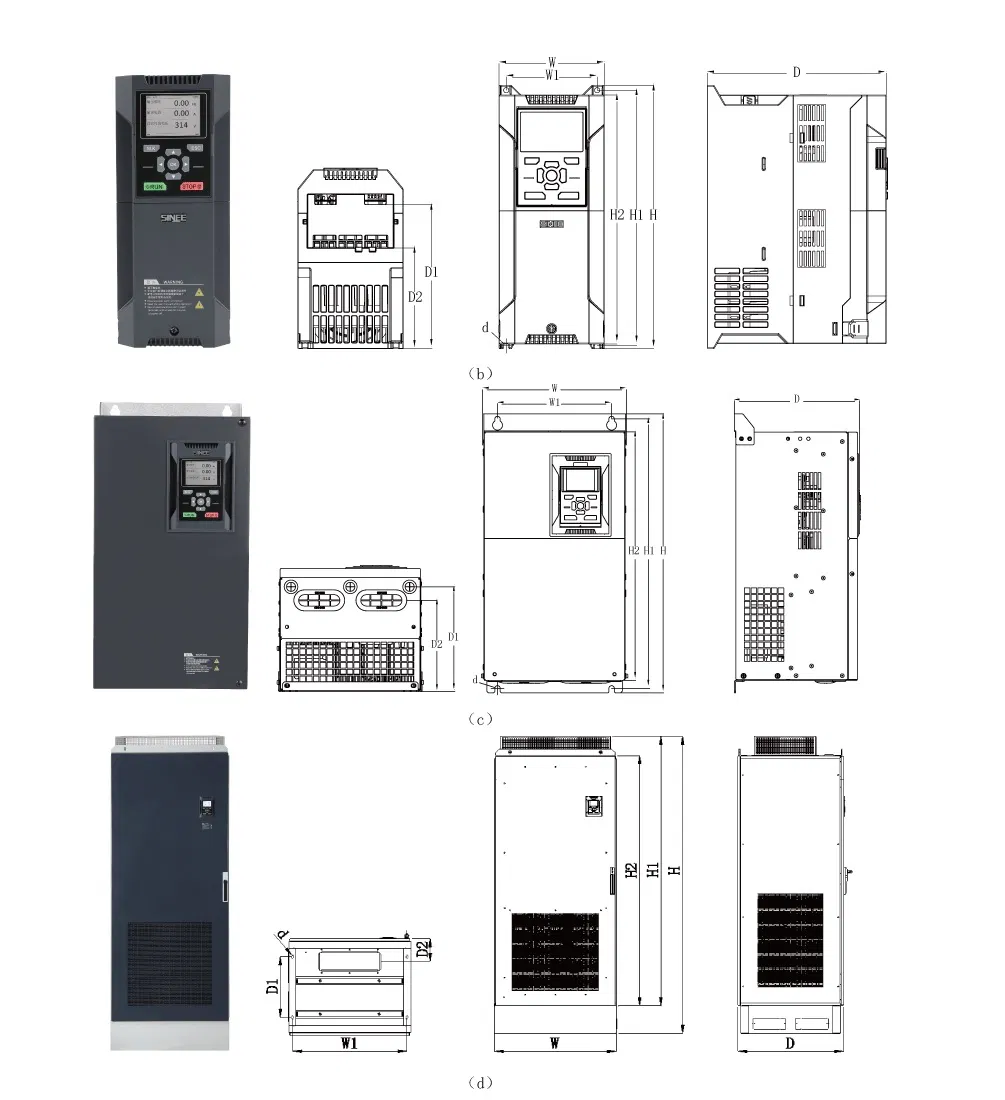

Installation 2
Packaging & Manufacturing

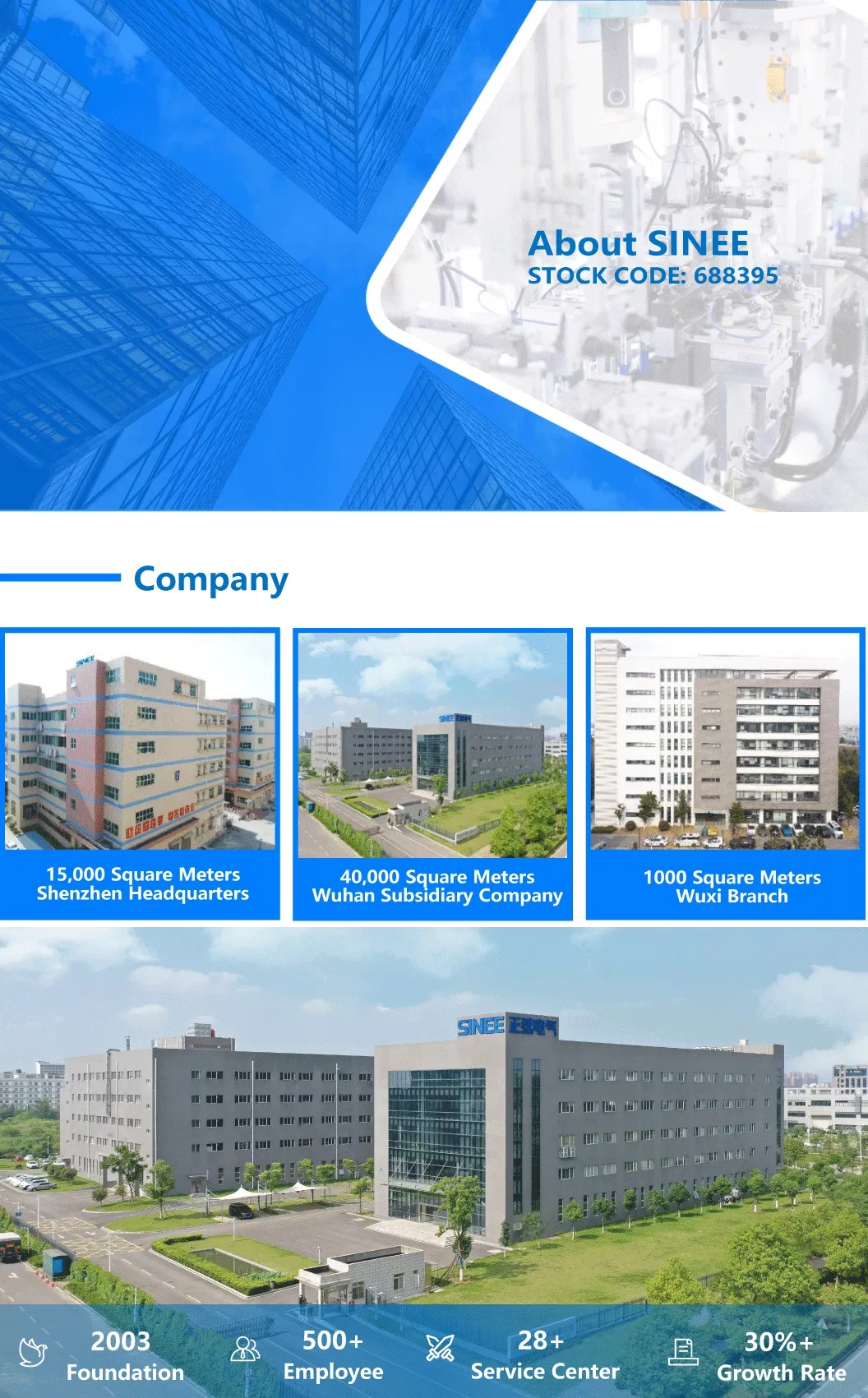

Factory
Production Line

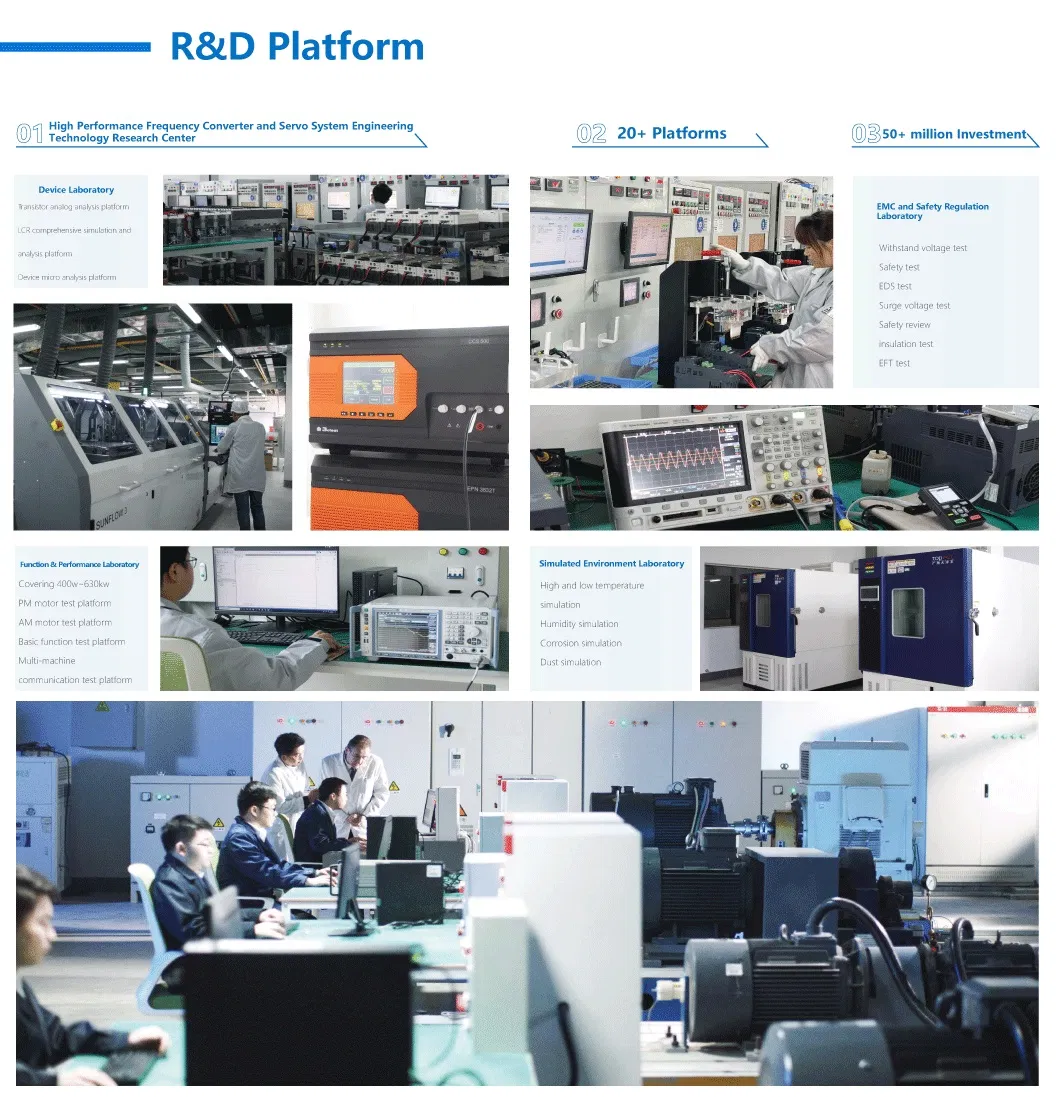

Warehouse
Quality Control

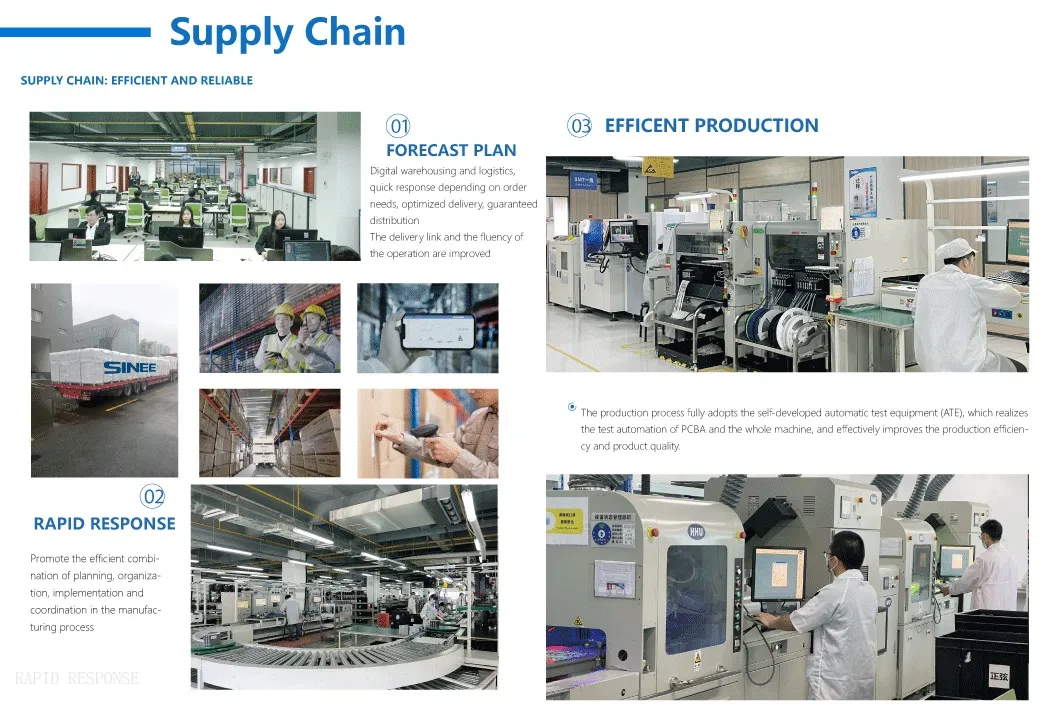

Shipping
Packing details
Frequently Asked Questions
Q1: What motor types does the EM760 series support?
A1: It supports both three-phase AC asynchronous motors and permanent magnet synchronous motors.
Q2: What are the primary control modes available?
A2: The drive supports V/F control (VVF), Speed sensorless vector control (SVC), and Speed sensor vector control (FVC).
Q3: Does the unit include built-in filters?
A3: Yes, it comes with a standard built-in C3 filter to meet high electromagnetic compatibility requirements.
Q4: What communications protocols are supported via expansion?
A4: It supports mainstream bus expansion cards including PROFINET, CANopen, and EtherCAT.
Q5: Can the inverter handle high starting torque?
A5: Yes, it can provide up to 180% starting torque at 0Hz in FVC mode.
Q6: What is the environmental protection rating?
A6: The standard protection level is IP21/IP20, suitable for indoor installations.
