Available 240W GaN 19V 12.63A IEC60601 complied external compact desktop medical power adapter. Compact and portable design developed to meet the highest performance standards.
This medical-grade power supply is designed for professional and consumer environments:
| Input Characteristic | Specification Details |
|---|---|
| Rated Input Voltage | 100-240Vac (Range: 90-264Vac) |
| Input Frequency | 50/60Hz (+/- 3Hz) |
| Standby Power | Less than 0.21W |
| Power Factor | > 0.9 (Full load) |
| Configuration | Class I Conductor 3pins (C6/C14) |
| Output Requirements | Value |
|---|---|
| DC Output Voltage | 19V |
| Rating Load Current | 12.63A |
| Rating Output Power | 240.0W |
| Line/Load Regulation | ±3% |
| Average Efficiency | 88.00% Min (Level VI) |
Tailored power solutions based on specific needs:
| Output Voltage (VDC) | Output Current (Amp) | Max Power |
|---|---|---|
| 12.0 - 15.0 | 0.01 - 16.00 | 200W |
| 19.0 - 21.0 | 0.01 - 12.63 | 240W |
| 24.0 - 26.0 | 0.01 - 10.00 | 240W |
| 47.0 - 50.0 | 0.01 - 5.10 | 240W |

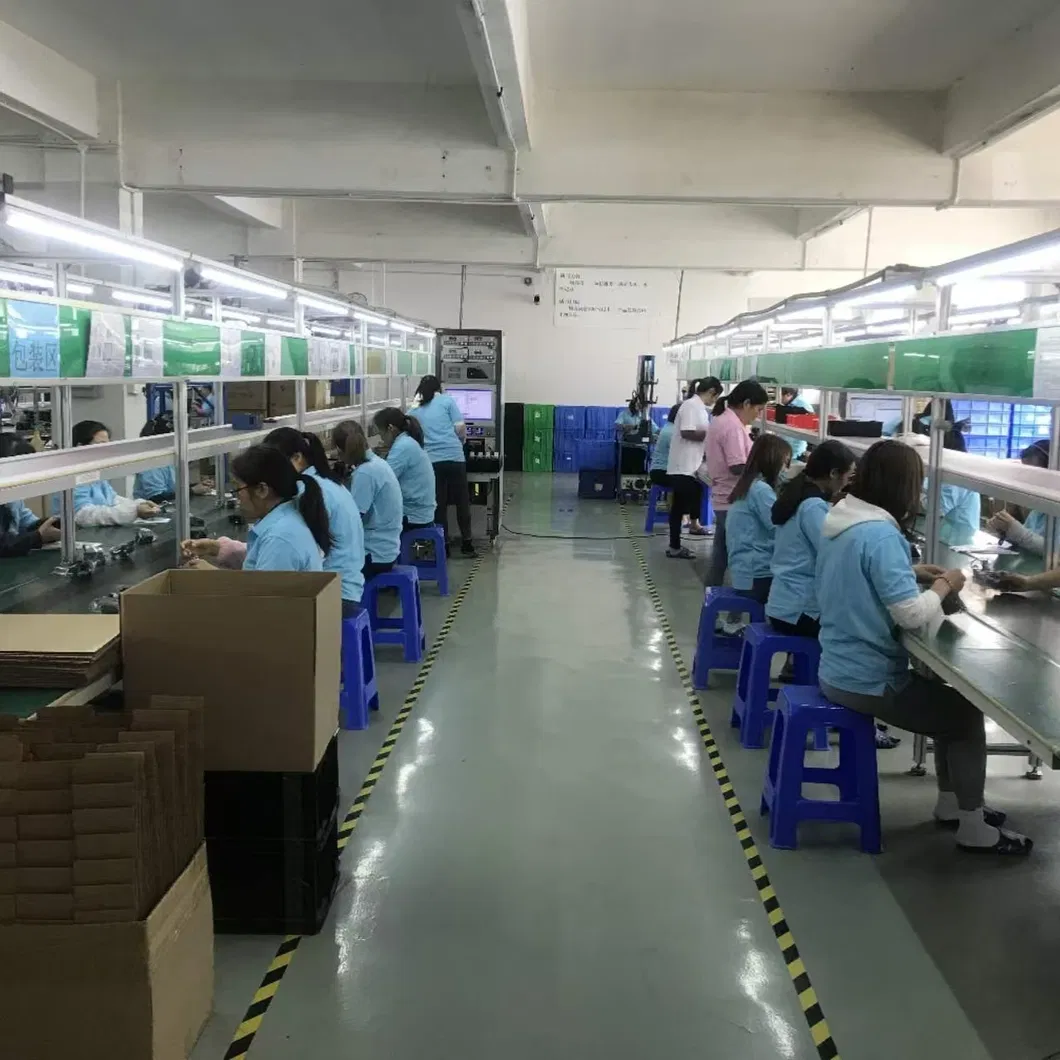

Devoted to manufacturing high-quality external power supplies (1W to 360W) under ISO9001 criteria for over 15 years. Strategy focuses on sustainability and quality as the paramount offering.
