Home > Medical Power Adapters > 12V 2A AC DC LED LCD CCTV Router Cell Phone Medical Power Adapter 4V 5V 7V 8V 10V 14V 18V 20V 24V 1A 3A 4A 5A 6A 7A Charger CE U L RoHS Kc PSE SAA Approval
12V 2A AC DC LED LCD CCTV Router Cell Phone Medical Power Adapter 4V 5V 7V 8V 10V 14V 18V 20V 24V 1A 3A 4A 5A 6A 7A Charger CE U L RoHS Kc PSE SAA Approval
12V 2A AC DC LED LCD CCTV Router Cell Phone Medical Power Adapter 4V 5V 7V 8V 10V 14V 18V 20V 24V 1A 3A 4A 5A 6A 7A Charger CE U L RoHS Kc PSE SAA Approval
12V 2A AC DC LED LCD CCTV Router Cell Phone Medical Power Adapter 4V 5V 7V 8V 10V 14V 18V 20V 24V 1A 3A 4A 5A 6A 7A Charger CE U L RoHS Kc PSE SAA Approval
12V 2A AC DC LED LCD CCTV Router Cell Phone Medical Power Adapter 4V 5V 7V 8V 10V 14V 18V 20V 24V 1A 3A 4A 5A 6A 7A Charger CE U L RoHS Kc PSE SAA Approval
12V 2A AC DC LED LCD CCTV Router Cell Phone Medical Power Adapter 4V 5V 7V 8V 10V 14V 18V 20V 24V 1A 3A 4A 5A 6A 7A Charger CE U L RoHS Kc PSE SAA Approval
1 / 5
12V 2A AC DC LED LCD CCTV Router Cell Phone Medical Power Adapter 4V 5V 7V 8V 10V 14V 18V 20V 24V 1A 3A 4A 5A 6A 7A Charger CE U L RoHS Kc PSE SAA Approval
12V 2A AC DC LED LCD CCTV Router Cell Phone Medical Power Adapter 4V 5V 7V 8V 10V 14V 18V 20V 24V 1A 3A 4A 5A 6A 7A Charger CE U L RoHS Kc PSE SAA Approval
12V 2A AC DC LED LCD CCTV Router Cell Phone Medical Power Adapter 4V 5V 7V 8V 10V 14V 18V 20V 24V 1A 3A 4A 5A 6A 7A Charger CE U L RoHS Kc PSE SAA Approval
12V 2A AC DC LED LCD CCTV Router Cell Phone Medical Power Adapter 4V 5V 7V 8V 10V 14V 18V 20V 24V 1A 3A 4A 5A 6A 7A Charger CE U L RoHS Kc PSE SAA Approval
12V 2A AC DC LED LCD CCTV Router Cell Phone Medical Power Adapter 4V 5V 7V 8V 10V 14V 18V 20V 24V 1A 3A 4A 5A 6A 7A Charger CE U L RoHS Kc PSE SAA Approval

12V 2A AC DC LED LCD CCTV Router Cell Phone Medical Power Adapter 4V 5V 7V 8V 10V 14V 18V 20V 24V 1A 3A 4A 5A 6A 7A Charger CE U L RoHS Kc PSE SAA Approval

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

ℹ️

Basic Specifications

Model NO.
JJY120020
Certification
TUV, RoHS, ISO9001, CE FCC Ukca
Input Voltage
100-240V AC
Output Voltage
12V 2A
Color
White
Internal Structure
AC DC
Efficiency
85%Min
Cable Length
1.2m
Protection
Ovp Ocp Otp SCP
HS Code
8504401400
📦

Product Highlights

About this item

  • Wide Compatibility: 12V 2A output, 24W max wattage. Supports devices from 100mA to 2000mA.
  • Standard DC Plug: 5.5 * 2.5mm (Compatible with 5.5 * 2.1mm) with internal positive polarity.
  • Multi-Application: Ideal for LED strips, routers, security cameras, keyboards, and CD players.
  • Full Protection: Built-in overcurrent, overvoltage, short circuit, and moisture protection.
  • Energy Efficient: Features VI level efficiency standard for optimal power management.
Input Volt.& Freq.100~240VAC & 50-60Hz Typ. (90~264VAC Range)
Energy LevelVI level
Output Power24W Max. (12VDC 2A)
Ripple & Noise<120mVp-p
Operating Temp.-10~40ºC
Mean Time (MTBF)Over 100K Hours Full Load @25ºC
Safety StandardFCC / ROHS / CE
📷

Detailed Photos

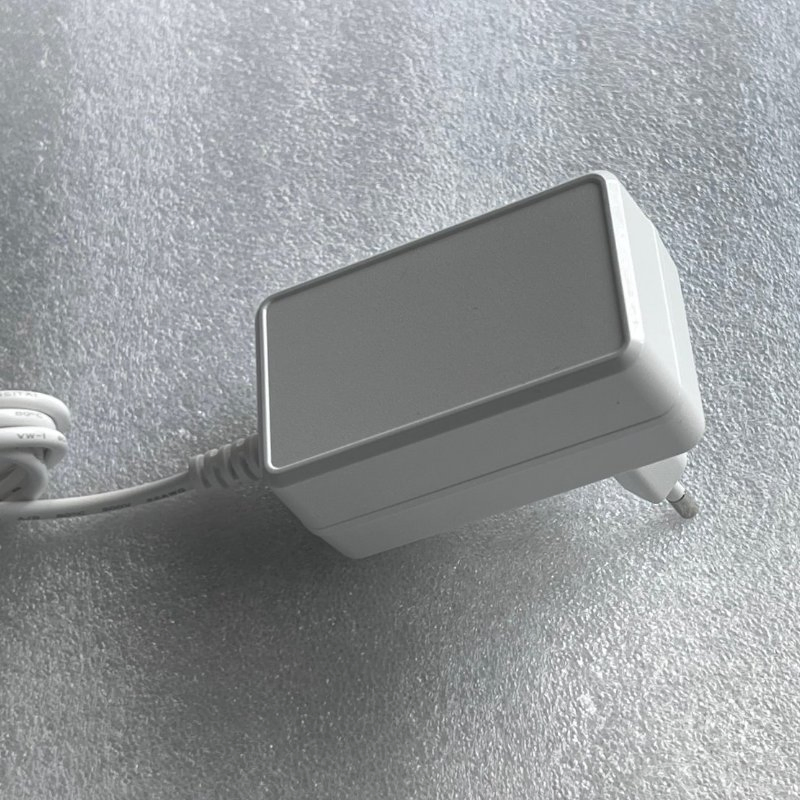

12V 2A Power Adapter View 1

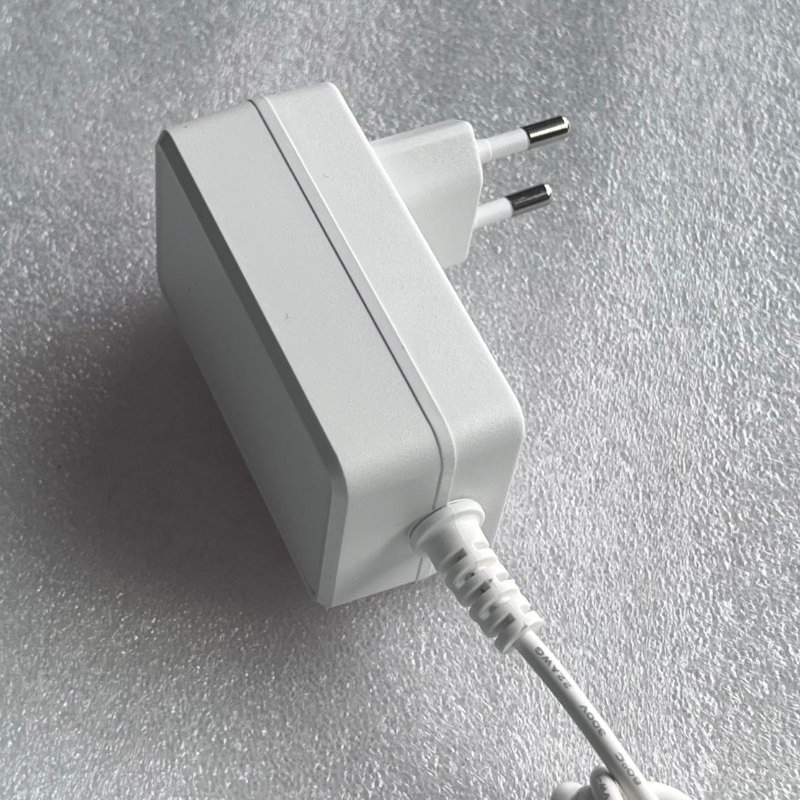

12V 2A Power Adapter View 2

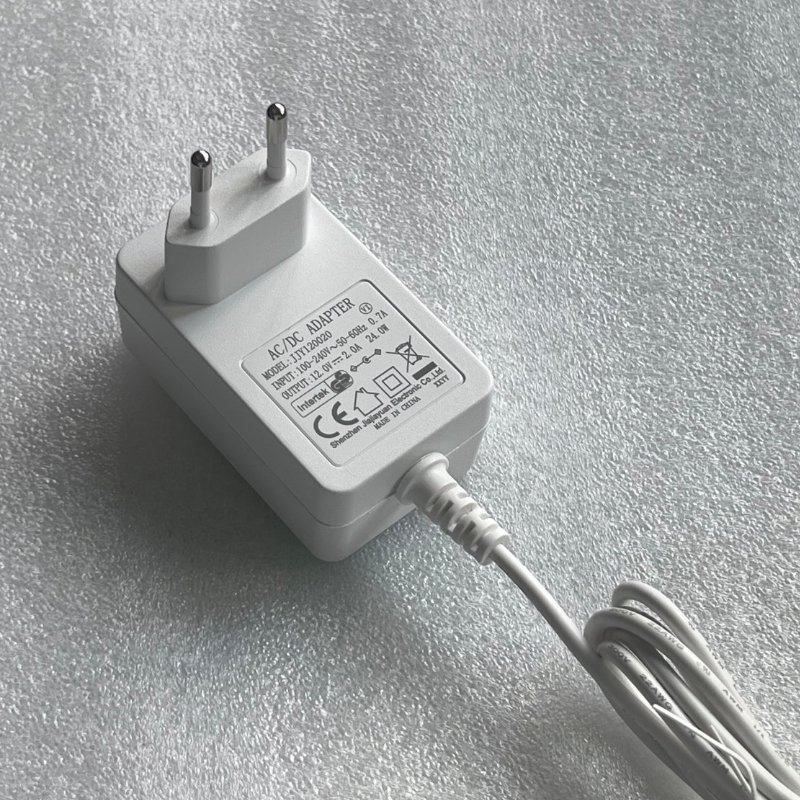

12V 2A Power Adapter View 3

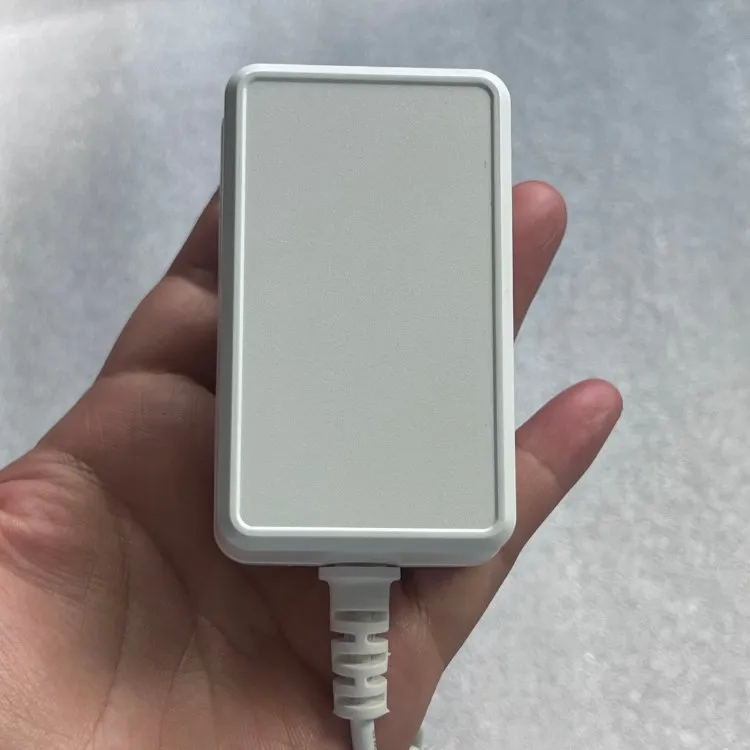

Plug Specification

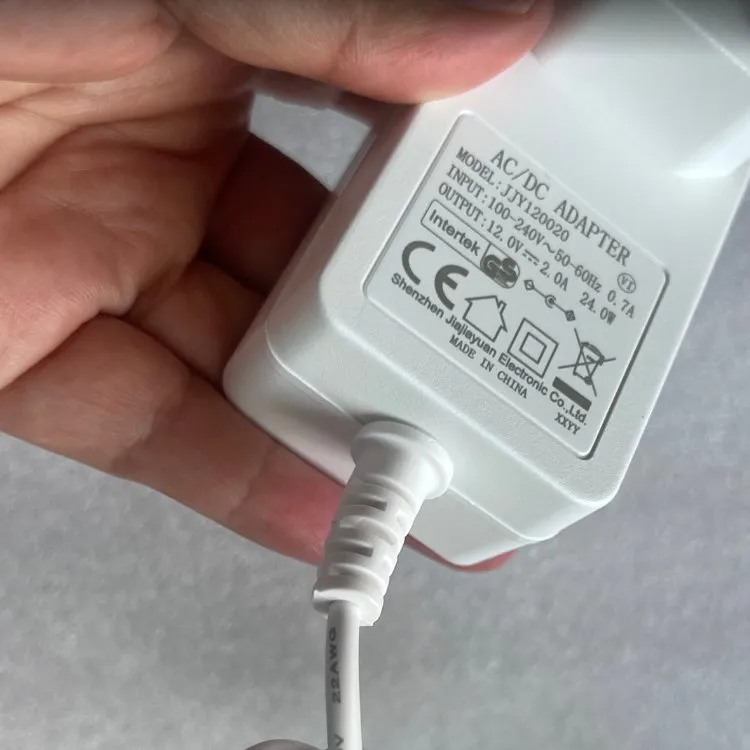

Internal Structure

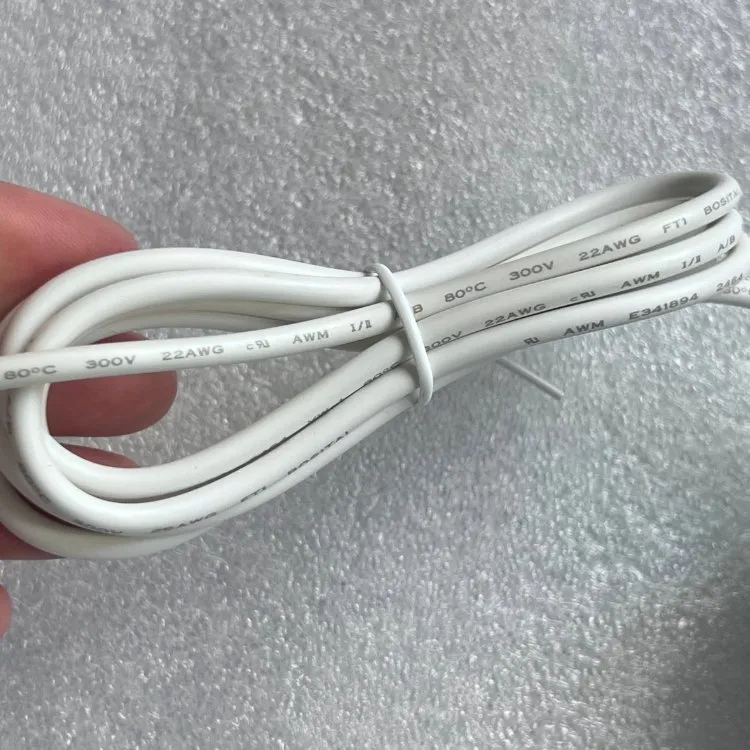

Certification Marks
✈️

Packaging & Shipping

Packaging Detail
❓

Frequently Asked Questions

Q: Is this 12V 2A adapter compatible with 12V 1A devices?
A: Yes, it is compatible. A 2A adapter can provide any current up to 2A as required by the device, making it safe for 1A or lower current devices.
Q: What is the DC plug size of this adapter?
A: The standard plug is 5.5 * 2.5mm, which is also compatible with 5.5 * 2.1mm sockets.
Q: Can I use this power supply for outdoor equipment?
A: No, this adapter is designed for indoor use only to ensure safety and longevity.
Q: What safety protections are included?
A: It includes overcurrent, overvoltage, overcharge, short circuit, and electromagnetic protection for maximum security.
Q: Does this adapter support lithium battery charging?
A: No, this is a constant voltage power adapter and is not intended for charging lithium batteries directly.
Q: How long is the DC power cord?
A: The cable length is approximately 1.2 meters (about 4 feet), providing flexible installation for your devices.
