Basic Information (Model: GW240W-1201600M3)
Certification:TUV, RoHS, ISO9001, CCC, GS CE UL FCC Kc PSE
Internal Structure:On-Off Type
Connection:Desktop
PFC:Pfc+LLC
Size:162X73.5X35mm
Weight:680g
Efficiency:Level VI of DOE & ERP, 88% and Above
Protection:Ocp, Ovp, SCP, Otp

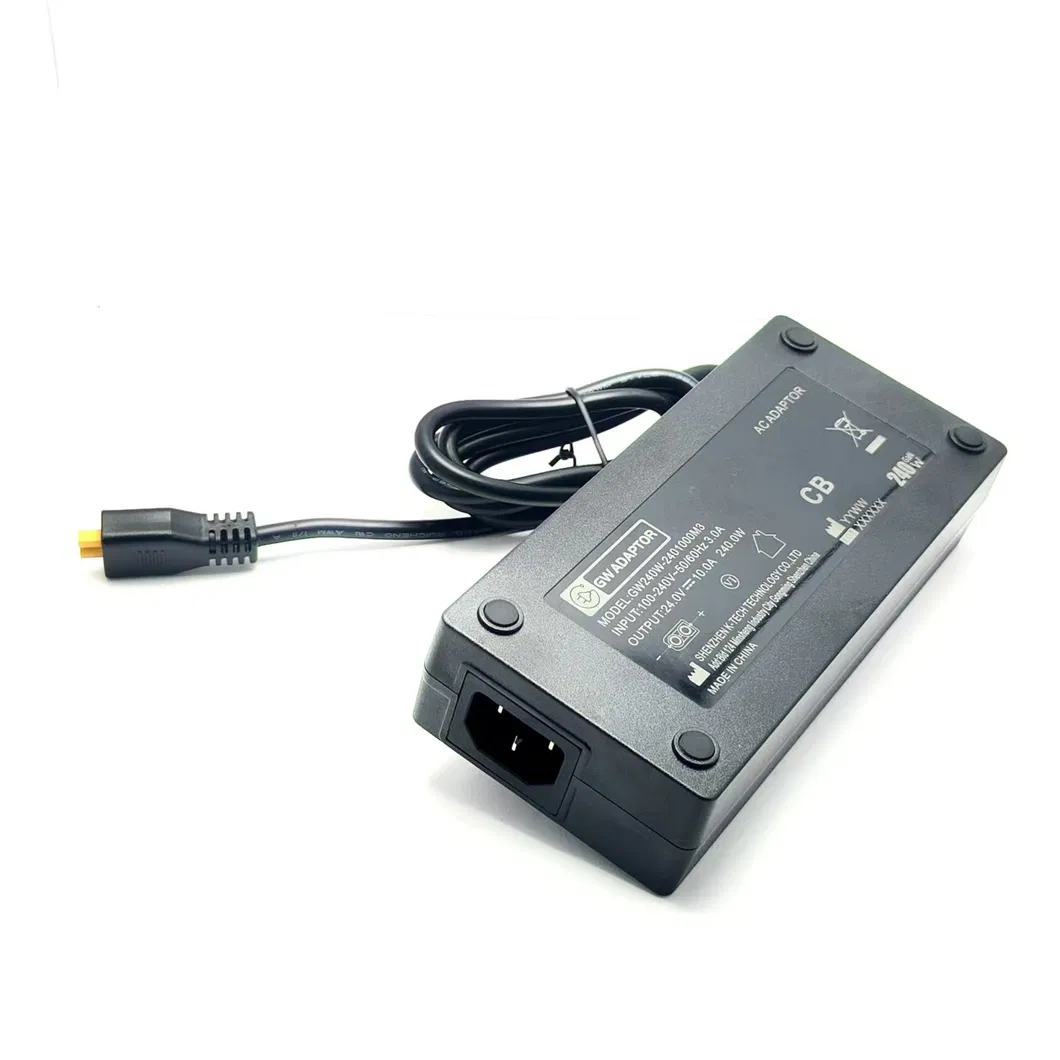

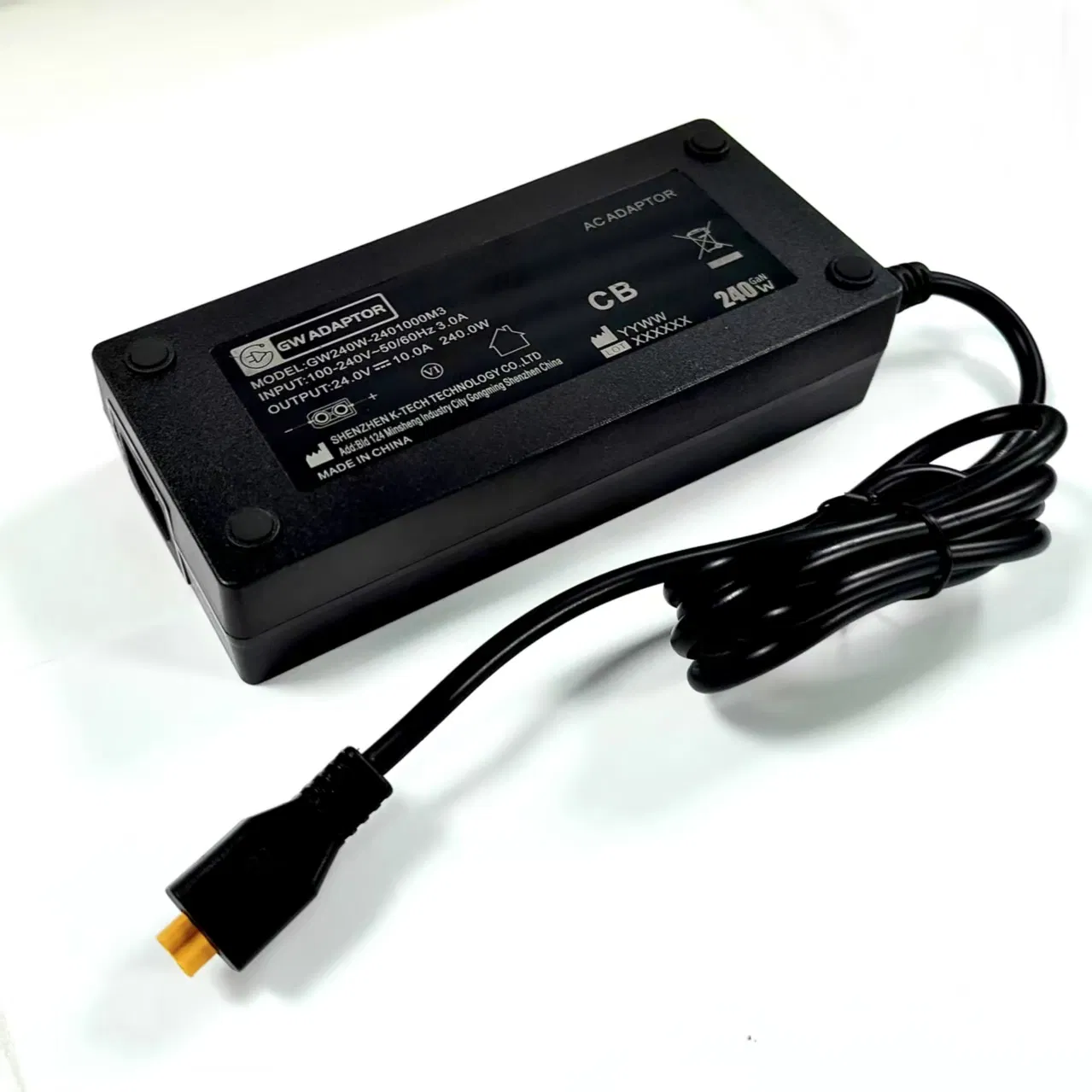

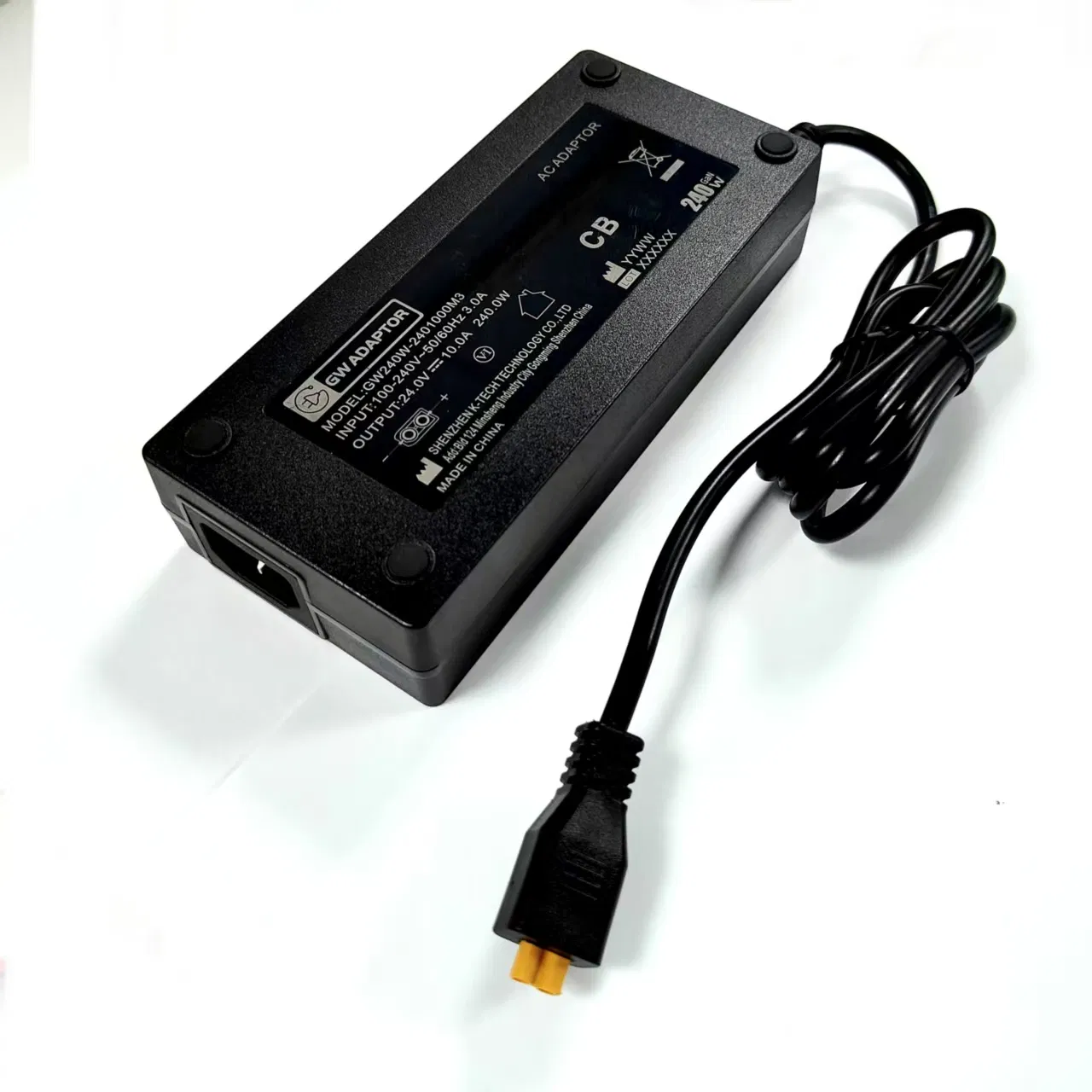

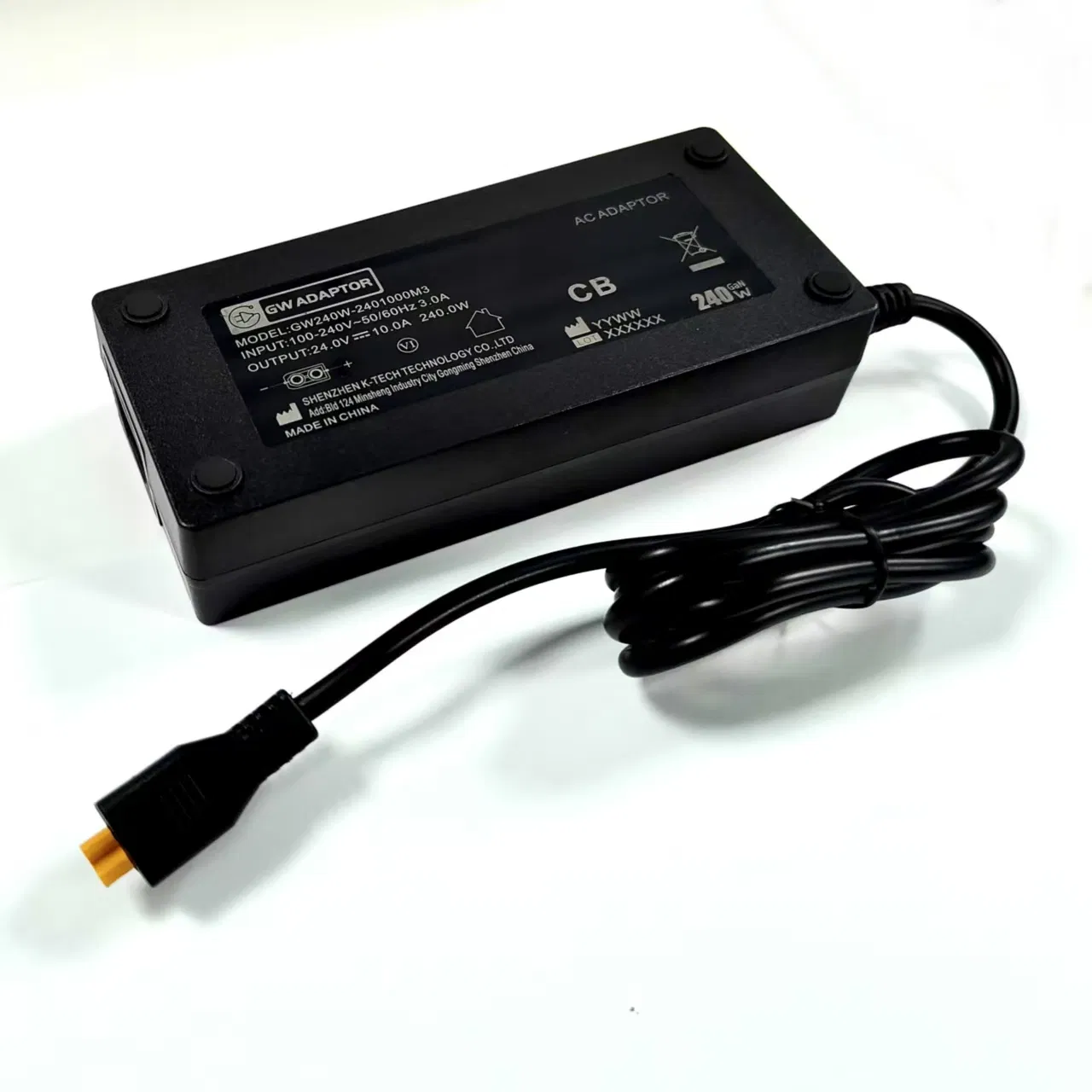

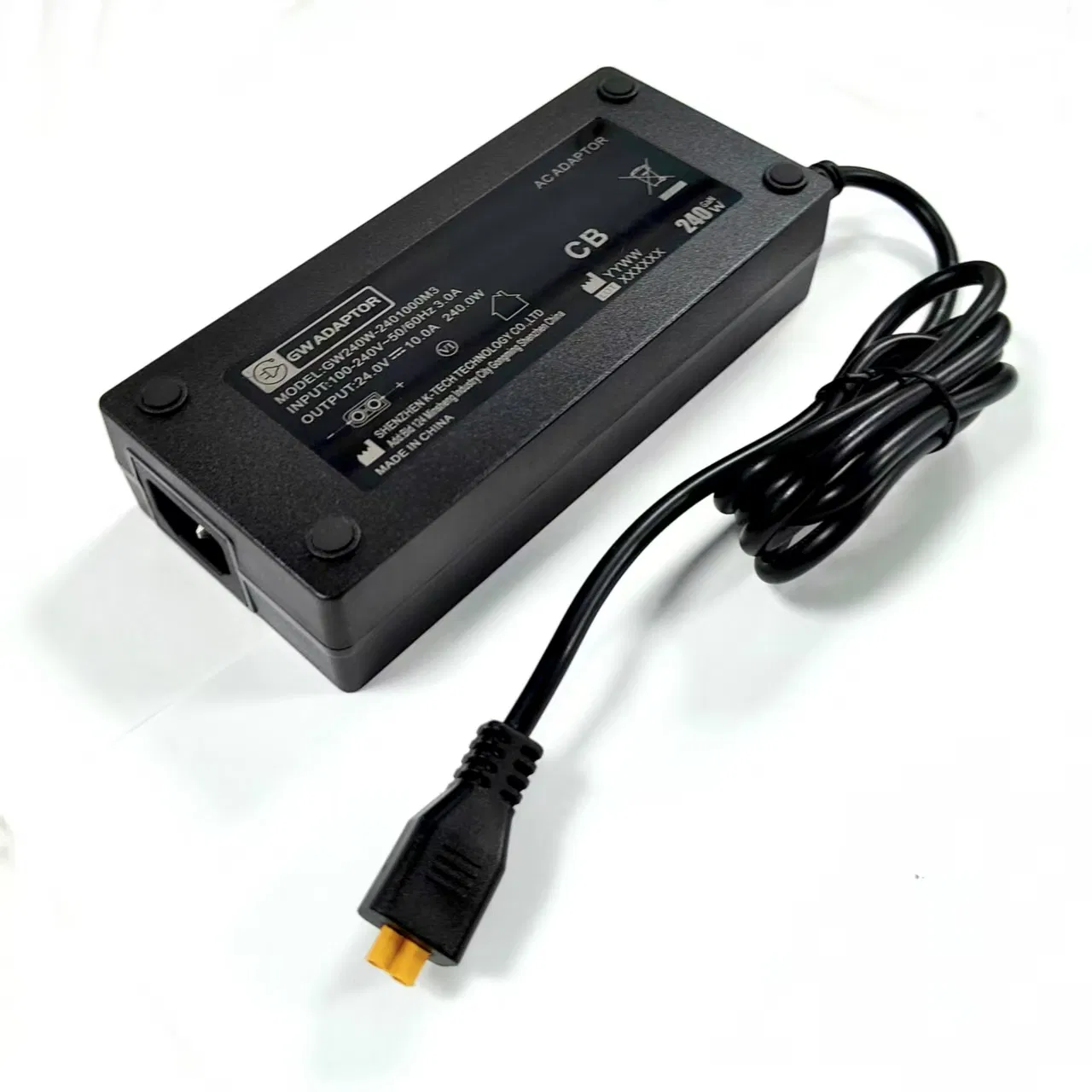

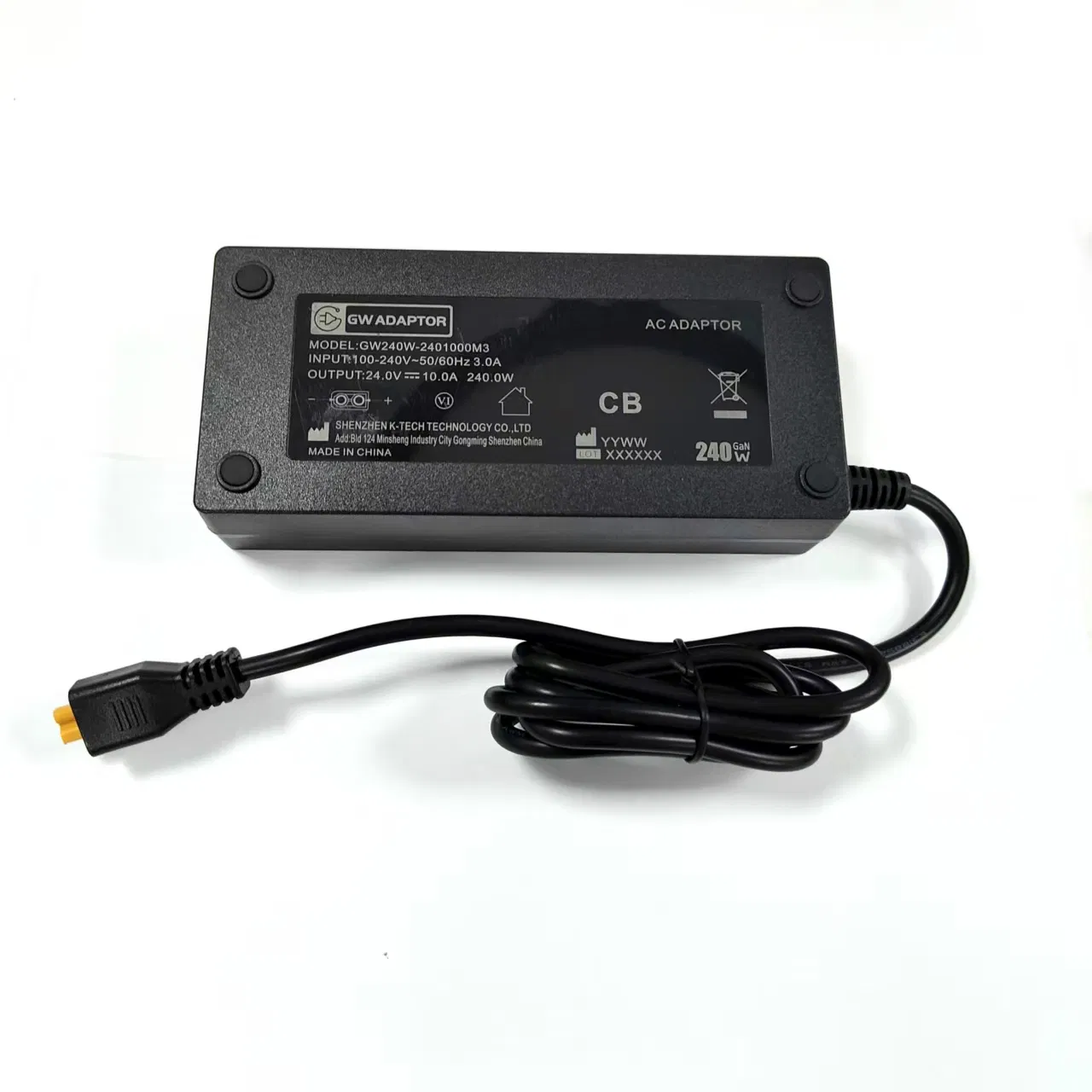

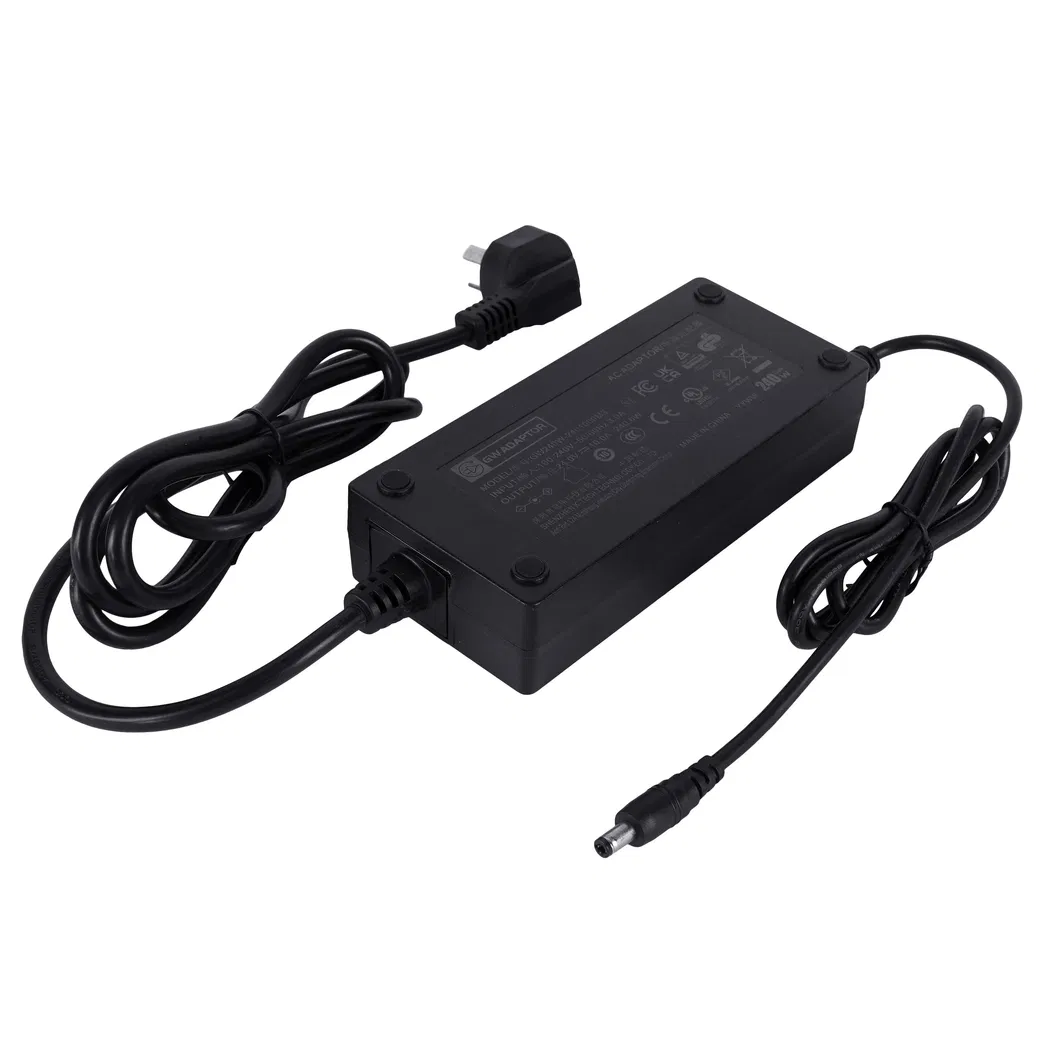

12V 16A 192W Medical Power Adaptor Overview
We're thrilled to present 12V 16A 192W compact desktop medical power adaptor for oxygenerator, patient monitor, respirator, and other medical electrical equipments. Compact, portable, at the par with Meanwell 240W power supply (neck to neck, actually better).
Key Features & Technology
- GaN (Gallium Nitride) technology based: ensures small size, light weight.
- Active PFC (power factor correction).
- Low ripple & noise cancellation: 100 - 150mV P-P.
- Supreme safety: fully protected by OCP, OVP, OLP, SCP, UVLO, OTP.
- International Certification: Certified by UL, cUL, FCC, CE, GS, UKCA, PSE, KC, 62368 complied.
- IEC60601 compliant: dedicated medical power supply.
- Maximum durability: 3 years nonstop working.
⚠️ WARNING: UL Listed Products - the product has successfully met stringent requirements. Don't buy potentially inferior or dangerous power supplies that can harm your device.
Input & Output Characteristics
| INPUT DATA |
| Rated input voltage | 100-240Vac (90-264Vac Operating) |
| Rated input frequency | 50/60Hz +/- 3Hz |
| Power consumption (no loading) | 0.21W Max. |
| Power Factor | 0.9 Min @ Full load |
| OUTPUT REQUIREMENTS |
| DC output voltage | 12V |
| Rating load current | 16A |
| Rating output power | 192.0W |
| Ripple and noise | 150mVp-p Max. |
| Line/Load regulation | ±3% |
Testing & Reliability Report
| Test Item |
Standard Spec |
Result |
| Efficiency (115Vac) | 88.00 % Min | 92.57% (Pass) |
| Efficiency (230Vac) | 88.00 % Min | 93.90% (Pass) |
| Standby Power | 0.21 W max | 0.10W - 0.14W (Pass) |
| Hi-pot test | 1500Vac/5mA/60S | OK (Pass) |
| Burn in | Full Load 4hrs | OK (Pass) |
Customization & Delivery

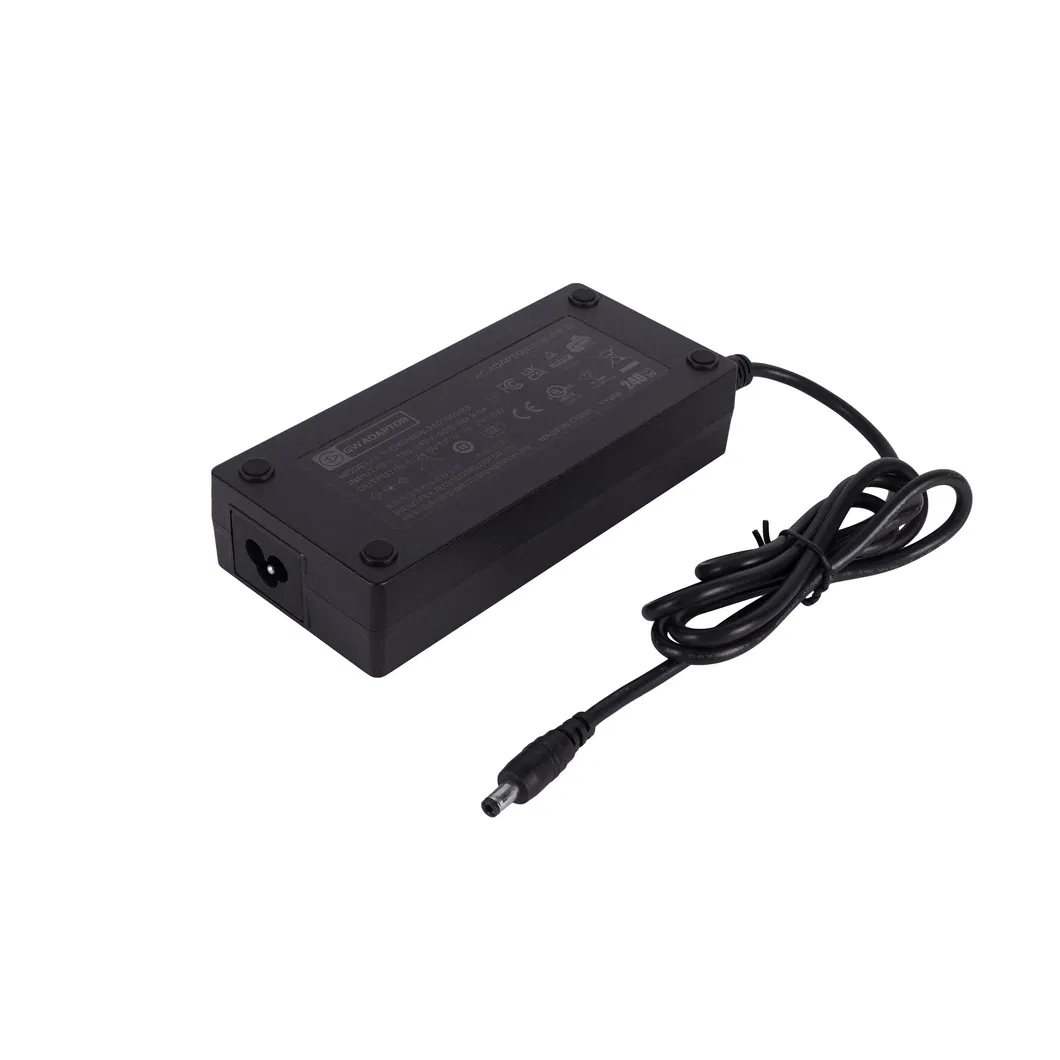

The things you can define: AC inlet (C14/C6), DC cable type/length, DC connector, and nameplate information. Range available from 12V to 50V, up to 240W.
Manufacturing Philosophy
We are a reputable leading manufacturer devoting to external power supplies for more than 15 years under ISO9001. Our 240W GaN model carries IEC60601 CB report, ideal for medical grade applications. Our quality-first strategy ensures sustainability and provides safety-enhanced solutions for innovative projects globally.
Frequently Asked Questions (FAQ)
Does this power supply meet medical safety standards?
Yes, it is IEC60601 compliant and carries an IEC60601 CB report, making it suitable for medical electrical equipment like oxygenerators and monitors.
What are the benefits of GaN technology in this adaptor?
GaN (Gallium Nitride) technology allows for a significantly smaller size and lighter weight compared to traditional silicon-based power supplies, while maintaining higher efficiency.
What is the energy efficiency rating?
This adaptor meets the Efficiency Level VI of DOE, ERP, and COC Tier 2, with an average efficiency of 88% and above.
Can I customize the DC connector and cable?
Absolutely. We offer customization options for DC cable type, length, connector types, and nameplate information to fit your unique project needs.
What protection mechanisms are built-in?
The unit is fully protected by Over Current Protection (OCP), Over Voltage Protection (OVP), Over Load Protection (OLP), Short Circuit Protection (SCP), and Over Temperature Protection (OTP).
What is the standard lead time and warranty?
The standard lead time is approximately 30 working days with a 12-month warranty, though the unit is designed for 3 years of nonstop durability.
