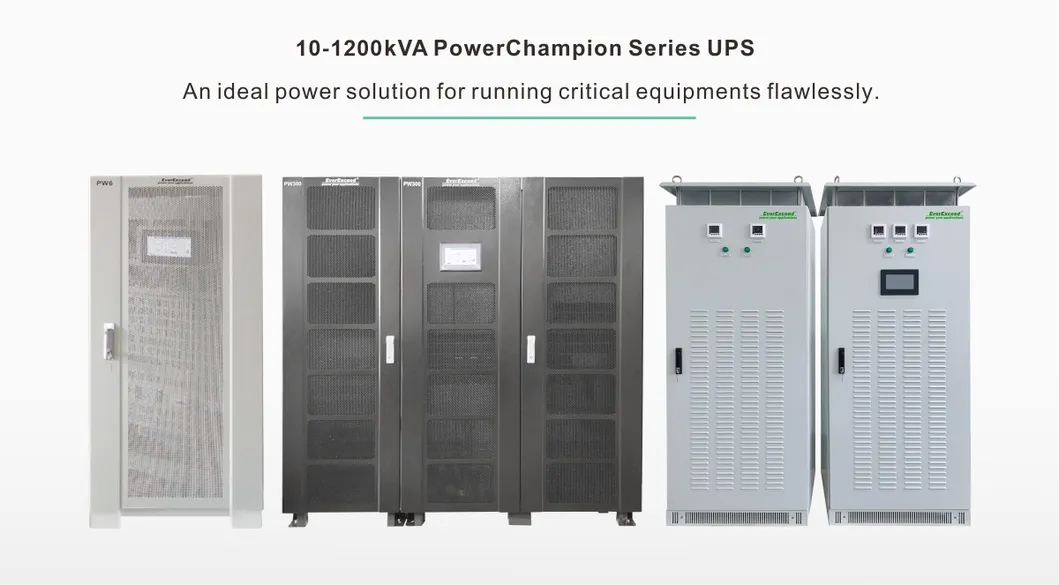

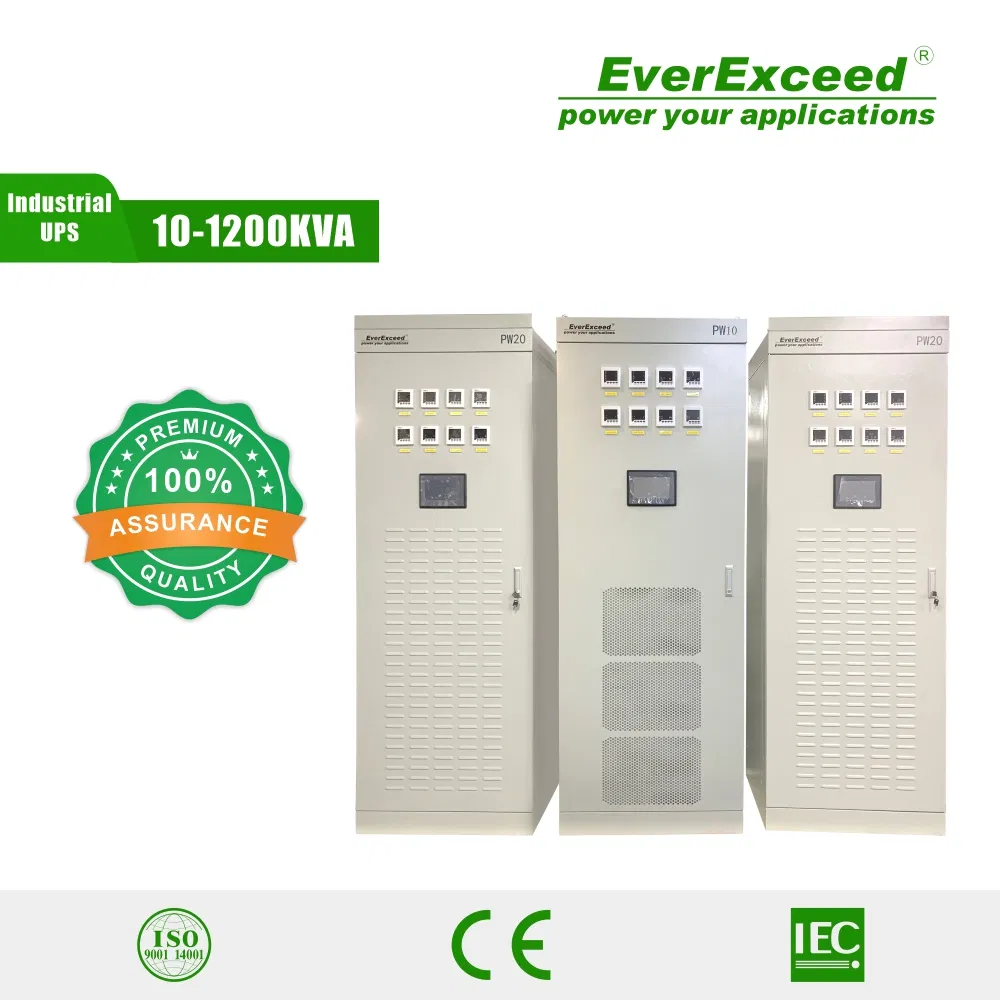

PowerChampion Series Low Frequency Industrial UPS is a configurable uninterruptible power supply (UPS) system that offers true industrial modular architecture and maximized power performance. It combines conservative design (SCR) with battery management system and proven digital control to ensure the utmost reliability in any electrical and environmental conditions.

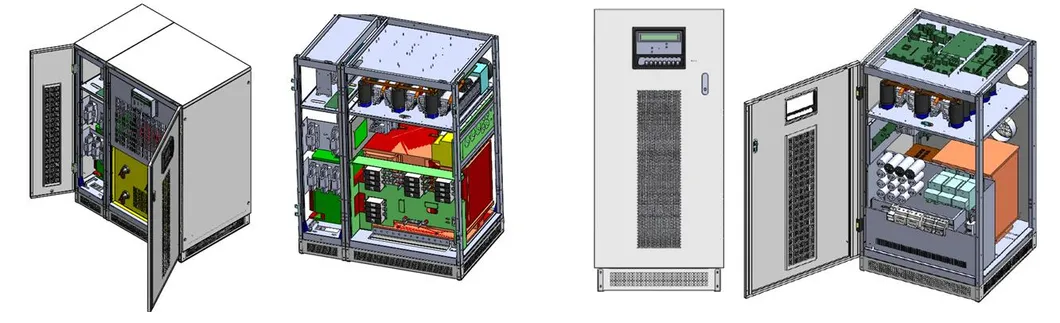

The system consists of rectifier / charger, inverter, static bypass, maintenance bypass, and isolation transformers. PowerLead3 series power supply adopts online double conversion design and digital control technology, featuring high input/output power factor and intelligent battery management.
| GENERAL | |
| Model / Capacity | PW10-PW1200 / 10kVA-1200kVA |
| Topology | Double Conversion Online System with Output Isolation Transformer |
| RECTIFIER | |
| Nominal Input Voltage | 110 VAC to 480 VAC ±15% (1 phase or 3 phase) |
| Input PF | ≥ 0.8 to ≥ 0.95 Inductive (Based on Pulse configuration) |
| INVERTER | |
| Voltage Tolerance Static | ± 1% |
| Waveform | Pure Sinusoidal |
| SYSTEM EFFICIENCY | |
| AC / Battery / ECO Mode | 90% / 92% / 99% |
