Basic Information
Classification
Lighting/Power
Standby Time
Standard Machine
Output Capacity
Large Type
Dimension(mm)
533X260X501 or 717X260X710

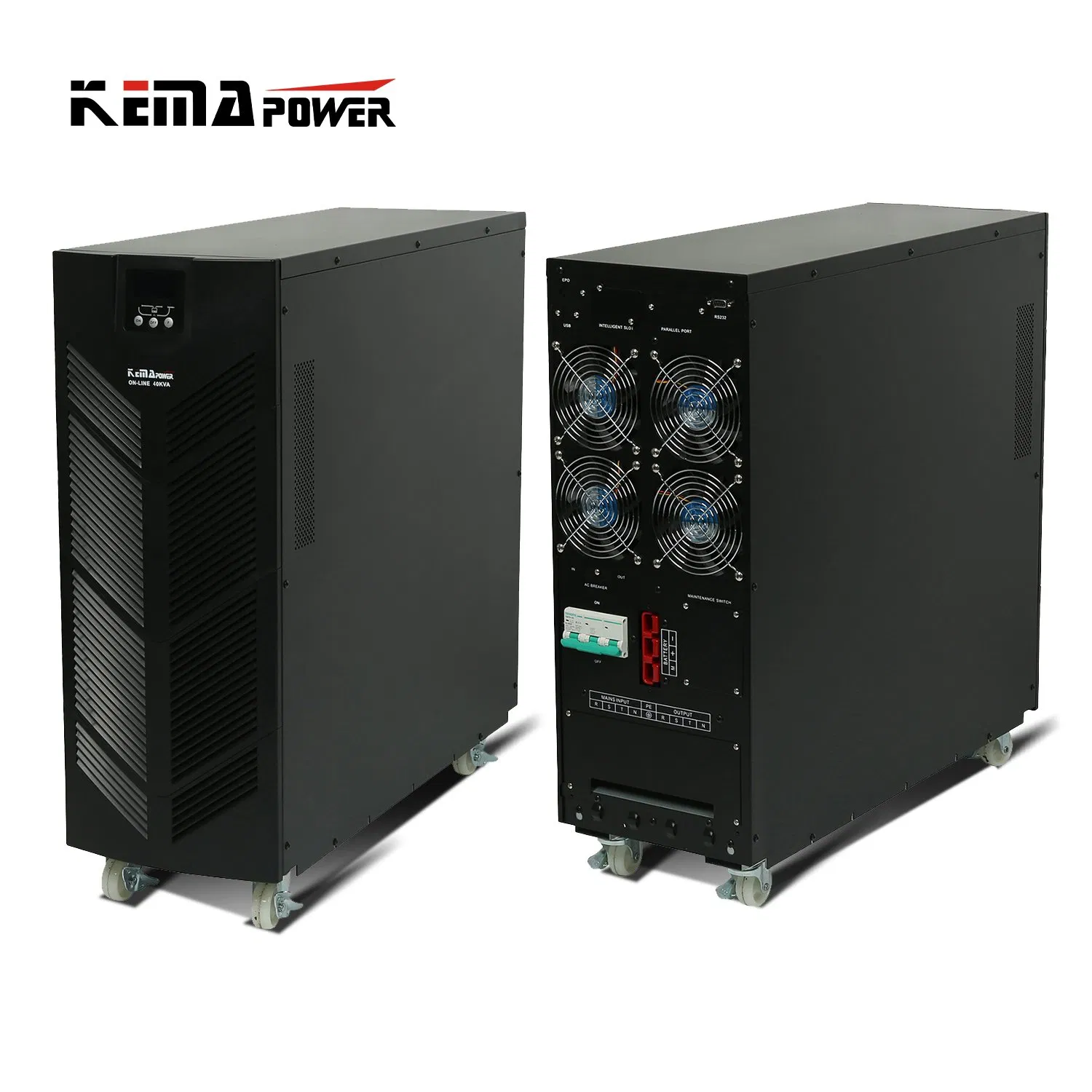

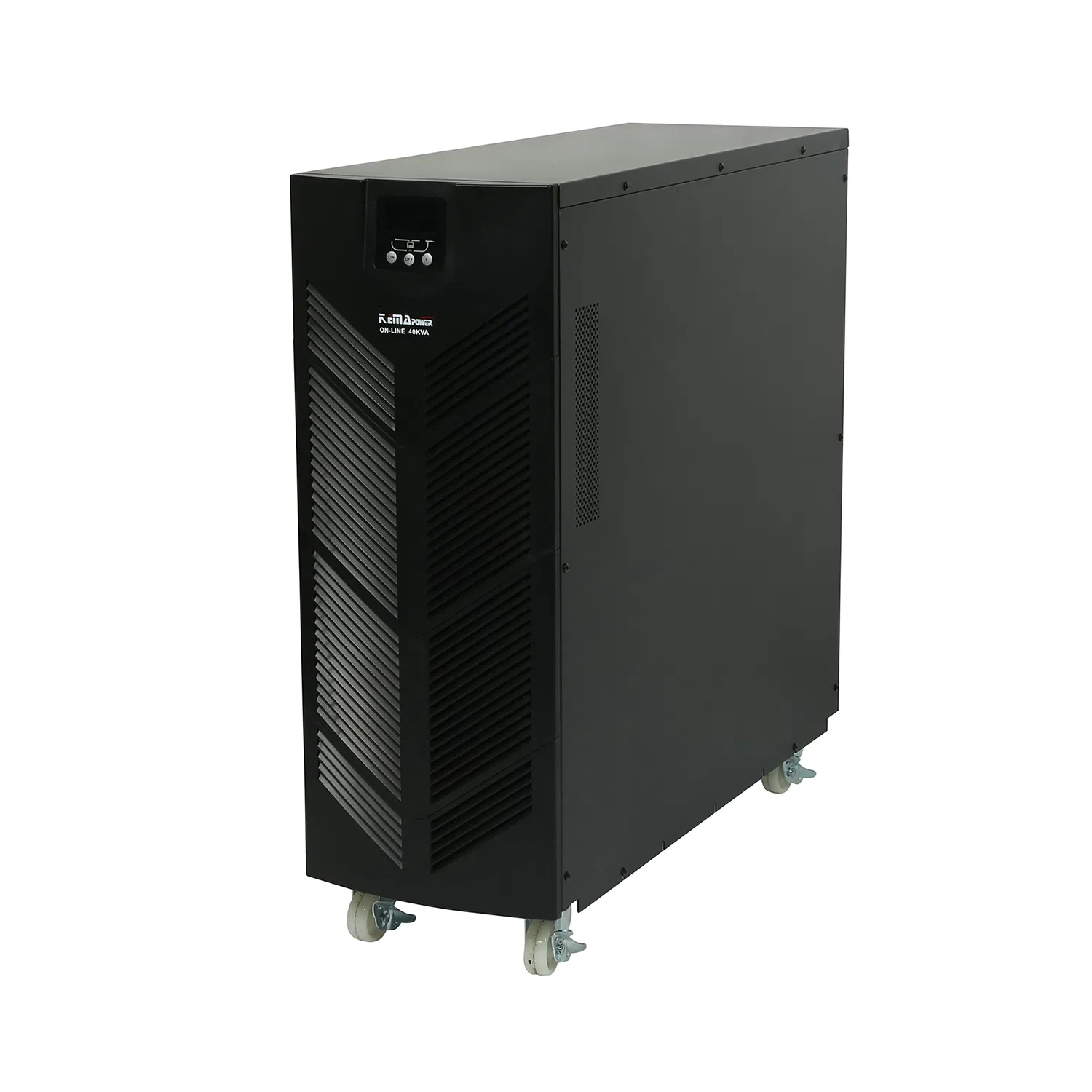

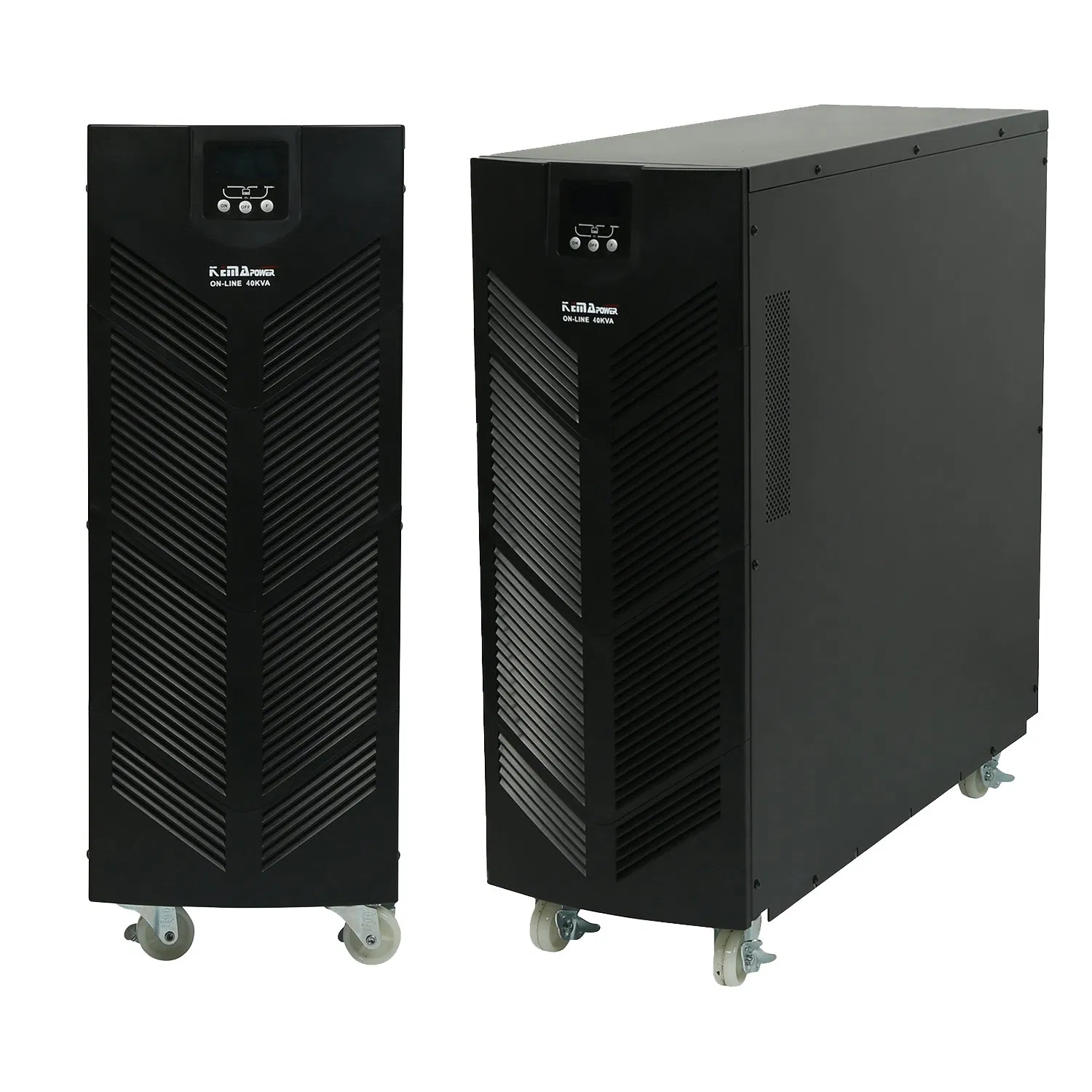

High Frequency Three Phase Online UPS (10-40KVA)
⚡DSP digital control technology with Zero transfer time.
⚡Three phase sine wave, output Power Factor 0.9.
⚡Wide input voltage range (274-478V) and frequency (40-70Hz).
⚡Advanced Input PFC technology, 0.99.
⚡Full protection: overload, over voltage, short circuit, and over temperature.
⚡Generator compatible with Adaptive Load Management.
Technical Specifications
| Model |
33XG10KS |
33XG10K |
33XG20KS |
33XG20K |
33XG30KS |
33XG40KS |
| Capacity |
10KVA/9KW |
20KVA/18KW |
30KVA/27KW |
40KVA/36KW |
| Input |
Voltage Range |
(274-478) VAC (Full load) |
| Breaker |
32A |
50A |
60A |
80A |
| Factor |
> 0.99 |
| Output |
Voltage |
200/208/220/230/240VAC (1±1%) |
| Efficiency |
Line: ≥ 93%, Battery: ≥ 90% |
| Dimensions (mm) |
533x260x501 |
717x260x710 |
Product Visuals

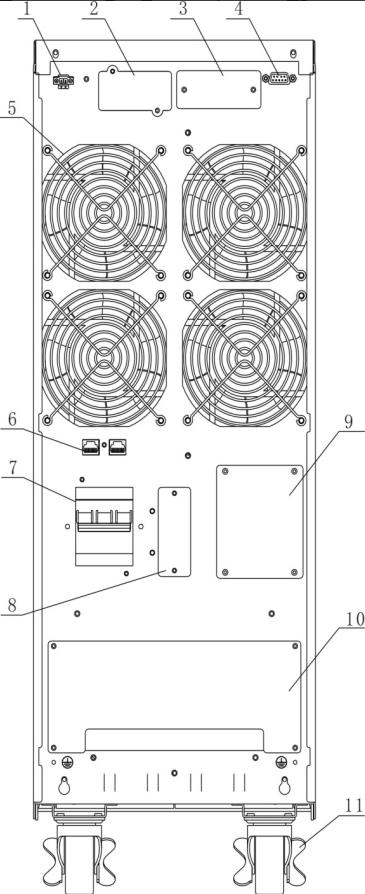

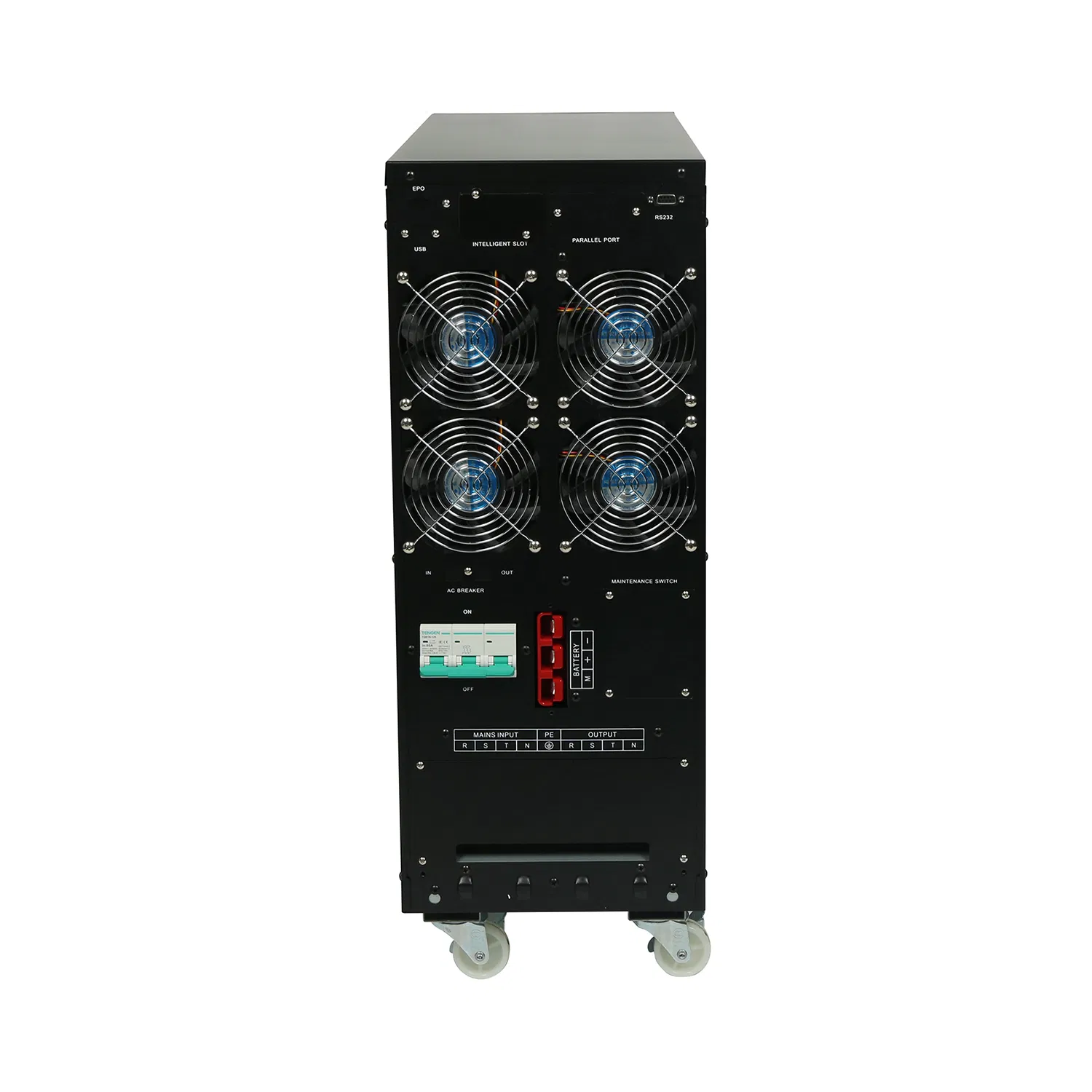

10-40KVA Back View Structure

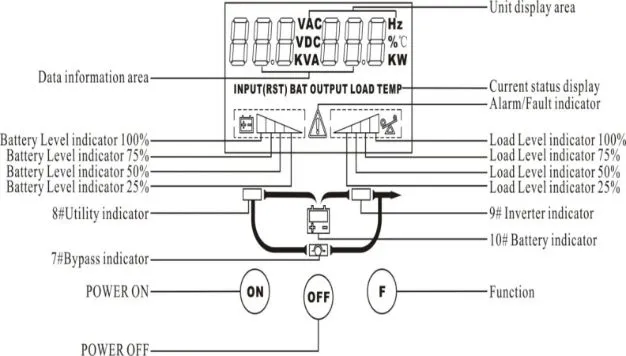

10-40K High-Definition Display Panel
Packaging & Delivery
Package Size
495.00cm * 470.00cm * 345.00cm
Transport Package
Safety Packing
Frequently Asked Questions
What is the transfer time of this UPS?
This model features DSP digital control technology providing Zero (0 ms) transfer time, ensuring uninterrupted power for sensitive industrial equipment.
Does this UPS support use with a generator?
Yes, it is fully generator compatible and features a wide input frequency range (40-70Hz) to handle unstable power sources.
What are the main protection features?
It includes full protection against overload, overvoltage, short circuit, and over temperature to ensure the safety of both the UPS and connected loads.
Can the output voltage be adjusted?
Yes, the output voltage can be adjusted via software to 200/208/220/230/240VAC depending on your specific requirements.
What is the efficiency of the 33XG series?
The system achieves an efficiency of ≥ 93% in Line Mode and ≥ 90% in Battery Mode, optimizing energy consumption.
Is remote monitoring available?
Yes, the unit supports RS232 communication with monitoring software and offers optional SNMP cards for network-based management.
