JDI Power Supply
1 / 5

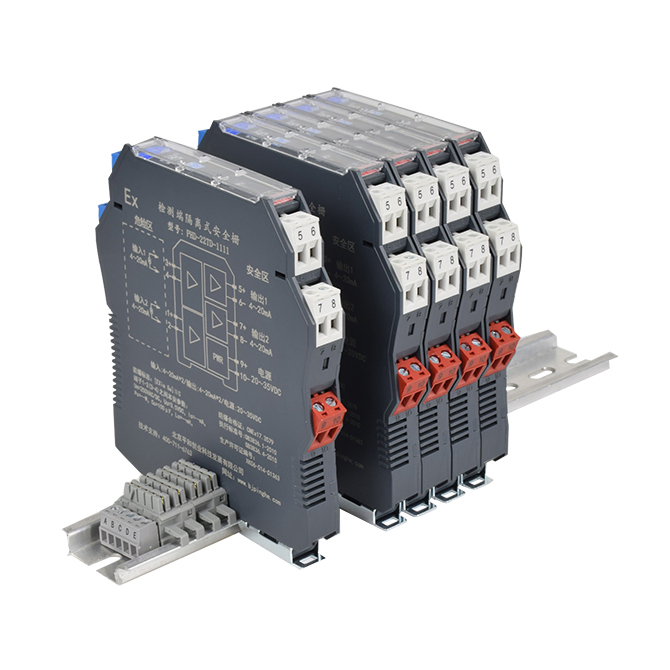

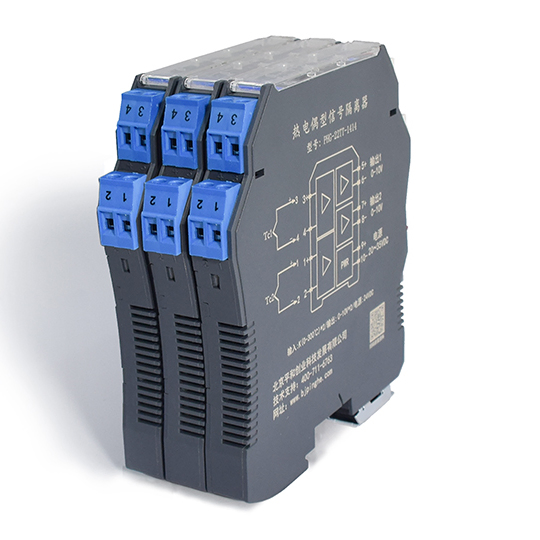

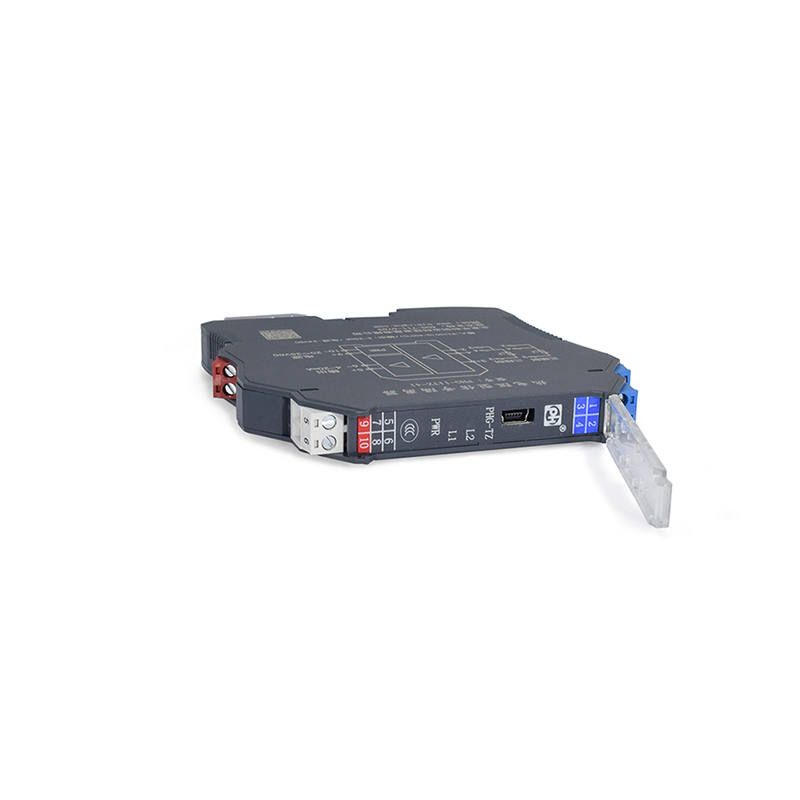

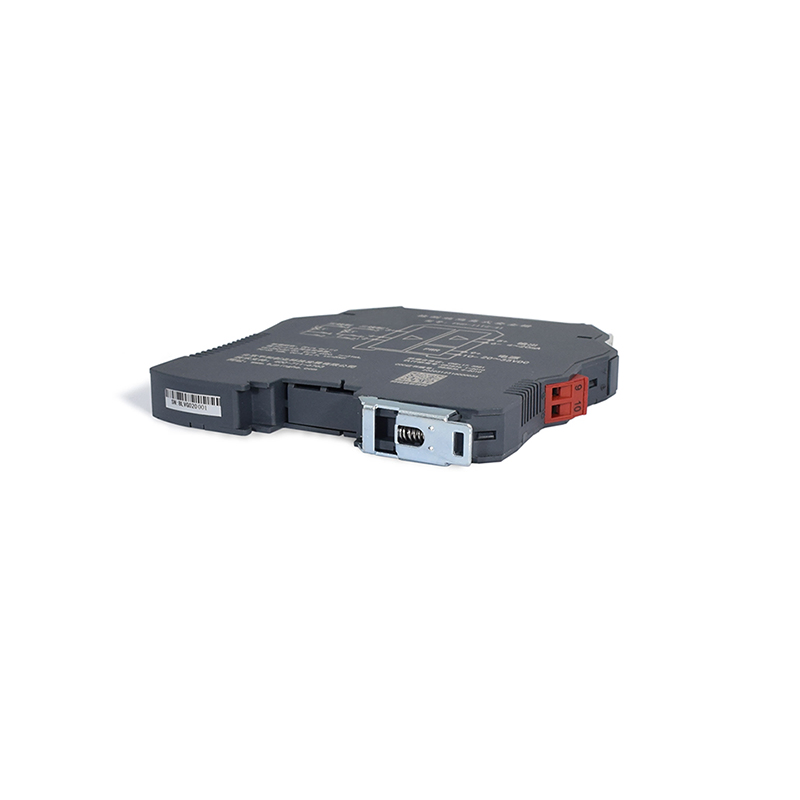

Overview: DC signal input, dual input, dual DC signal output. The parameters of input and output can be customized according to requirements. Supply power: 24 VDC.
| Input Impedance | Type of voltage ≥100KΩ, current type ≤100Ω |
| Load Capacity | Current type load resistance ≤500Ω, voltage type load current < 5mA |
| Output Accuracy | 0.1%F.S (Typical value: 0.05% F.S) |
| Temperature Drift | 0.005% F.S/ºC |
| Working Temperature | -20ºC~+60ºC (Storage: -40ºC~+80ºC) |
| Relative Humidity | 10%~95% RH no condensation |
| Insulation Resistance | Between input/output/power supply ≥100MΩ (500VDC) |
| Dielectric Strength | Between input/output/power supply ≥2000VAC/min |
| Response Time | <5ms |
| Power Consumption | Current output <1.6W, voltage output <1W |

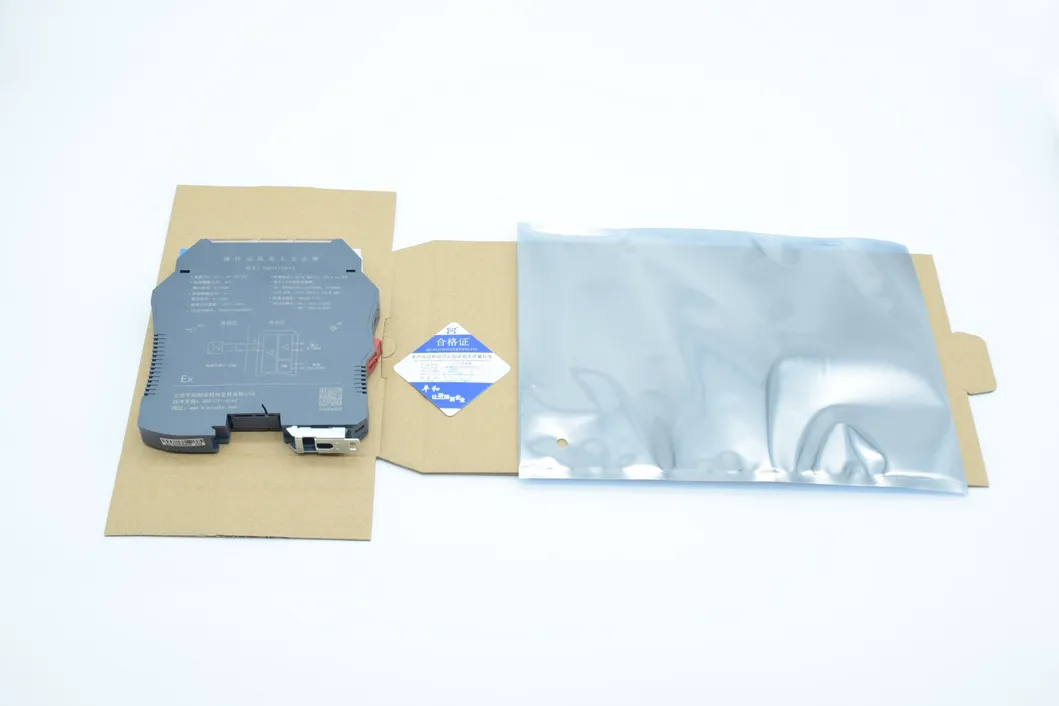

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
We specialize in Isolated Safety Barriers, Signal Isolators, and Surge Protective Devices for industrial control systems.

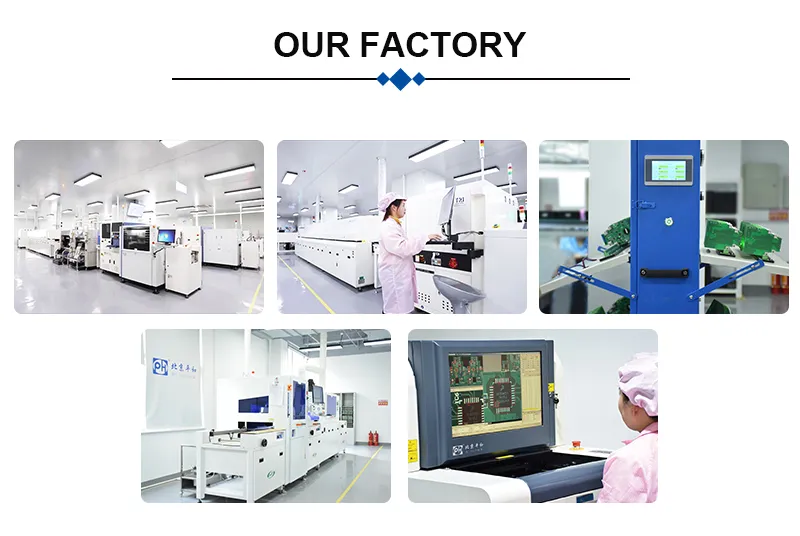

We ensure quality through a pre-production sample before mass production and a final inspection process before shipment.
Products are widely applied in nuclear power, aerospace, petrochemical, metallurgy, shipbuilding, and bio-pharmaceutical industries.
The response time is less than 5ms, and the output accuracy is 0.1% F.S (typical value 0.05% F.S).
We accept various currencies including USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, and CHF.
Yes, products carry certifications such as SIL Functional Safety (TUV), ATEX explosion-proof, CE, FCC, and CCS.
