Yingjiao&OEM 1.2W AC or DC Linear Power Adapter for CATV

1 / 1

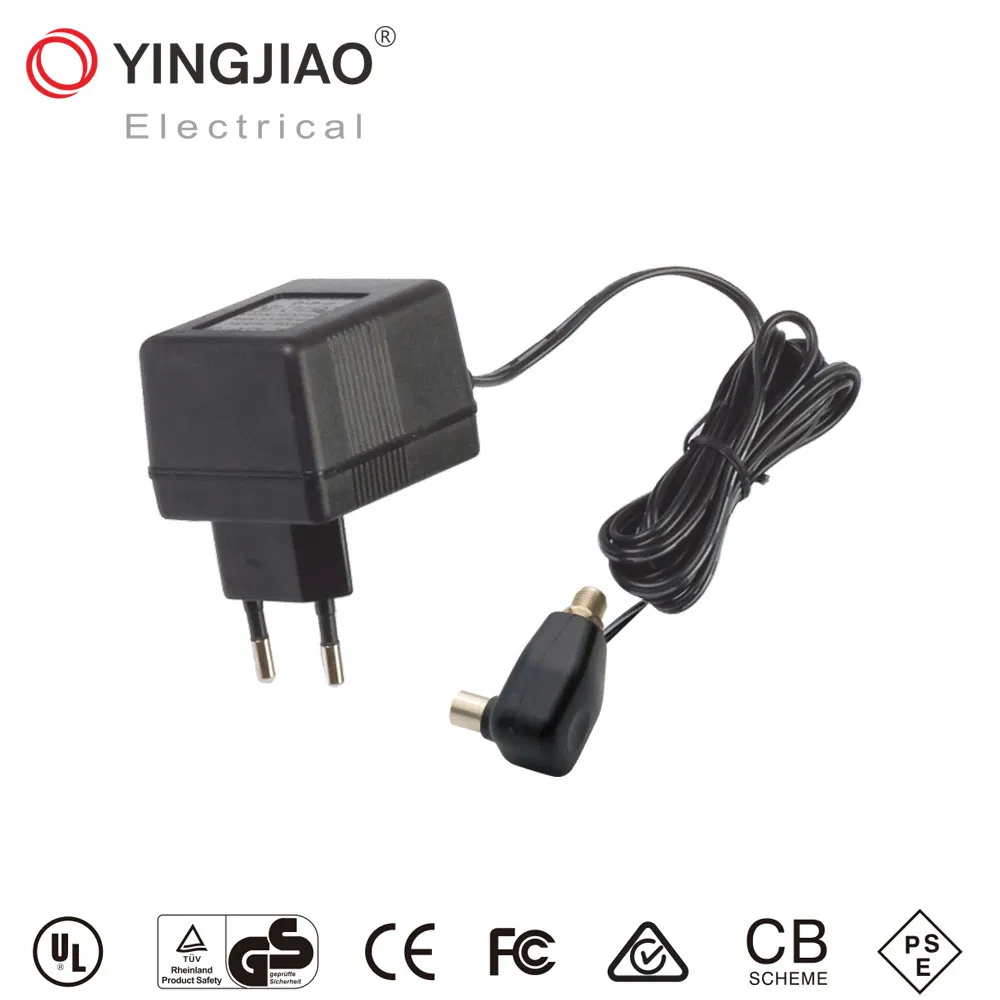

Yingjiao&OEM 1.2W AC or DC Linear Power Adapter for CATV

Customization:	Available
Usage:	Laptop, Switching, Mobile Phone, Game Player, Digital Camera, Phone, Display
Output Type:	AC or DC

Send Inquiry

Product Description

Basic Specifications

Model NO.

YL1.2

Certification

TUV, RoHS, ISO9001, CCC, CE, EMC, Reach

Color

Black

Type

OEM/ODM Linear Adapter

Internal Structure

Linear Model

Power Source

Half-Bridge Type

Connection

Plug In

Protection

Hipot, Short Circuit, Overvoltage, Overload, Overheat

Warranty

3 Years

Quick Delivery

15-25 Days

Transport Package

PE Bag, White Box, Carton

Production Capacity

3,000 PCS/Day

Product Description

We are a professional manufacturer of wall-mount AC/DC power adapter, AC adapter, switching power adapter, SMPS, etc.

1.2W Plug-IN Linear Power Adapter
AC/DC, AC/AC Adapters
Model: YL1.2 series
Range: 0.5-1.2W
Rated Power: 1.2W
Input: 220-240V AC 50/60Hz
Dimension: 62*45*38mm

📦

Packaging & Delivery

Packaging Details: PE bag, White Box + Carton or as per requirement.
Delivery Detail: 15-25 days after receipt of deposit.

📊

Technical Data

Linear power adapter	Wall plug-in type
Model:	YL1.2
Rated Power:	1.2W
Input:	220-240AC 50Hz
Output Voltage:	5-36V (AC/DC)
Output Current:	33-100mA
Protections:	Short Circuit / Over Current / Over Voltage
Working TEMP.:	-20°C - 50°C
Certificates:	GS, CE, EMC, SAA, FCC, CB, PSE, CCC, RoHS, REACH
MTBF:	100,000 hours minimum at 25°C
Dimension:	624538mm
Weight:	160g

⚙️

Model Selection

Model	Voltage	Current	Power	Ripple & Noise
YL1.2-0500100	5V	100mA	0.5W	50mVp-p
YL1.2-0900080	9V	80mA	0.72W	90mVp-p
YL1.2-1500060	15V	60mA	0.9W	150mVp-p
YL1.2-1900050	19V	50mA	0.95W	190mVp-p
YL1.2-2400045	24V	45mA	1.08W	240mVp-p
YL1.2-3600033	36V	33mA	1.188W	360mVp-p

Frequently Asked Questions

Q1: What is the main advantage of this linear power adapter? A: Linear adapters provide very low noise and ripple compared to switching power supplies, making them ideal for sensitive audio and communication equipment like CATV.

Q2: Can I customize the output voltage for my specific device? A: Yes, we provide customized services for output voltages ranging from 5V to 36V in both AC and DC formats.

Q3: What safety protections are included in the YL1.2 series? A: The series includes comprehensive protection against short circuits, overvoltage, overcurrent, and overheating to ensure device safety.

Q4: Does this product meet international safety standards? A: Yes, it holds multiple certifications including TUV, GS, CE, FCC, RoHS, and REACH, ensuring global compliance.

Q5: What is the typical lead time for an order? A: Standard production and delivery usually take between 15 to 25 days after the deposit is confirmed.

Q6: What is the warranty period for these adapters? A: We offer a 3-year warranty on our linear power adapters, reflecting our commitment to quality and durability.
