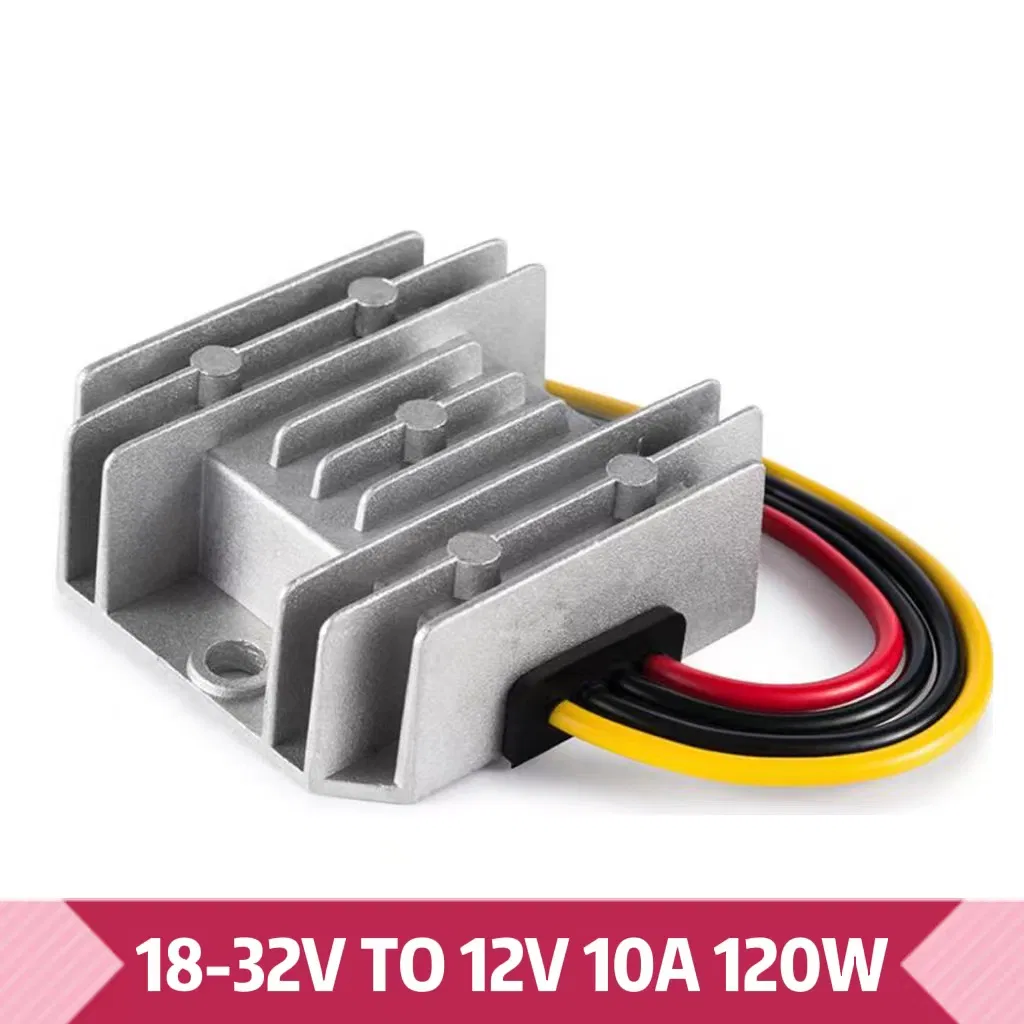

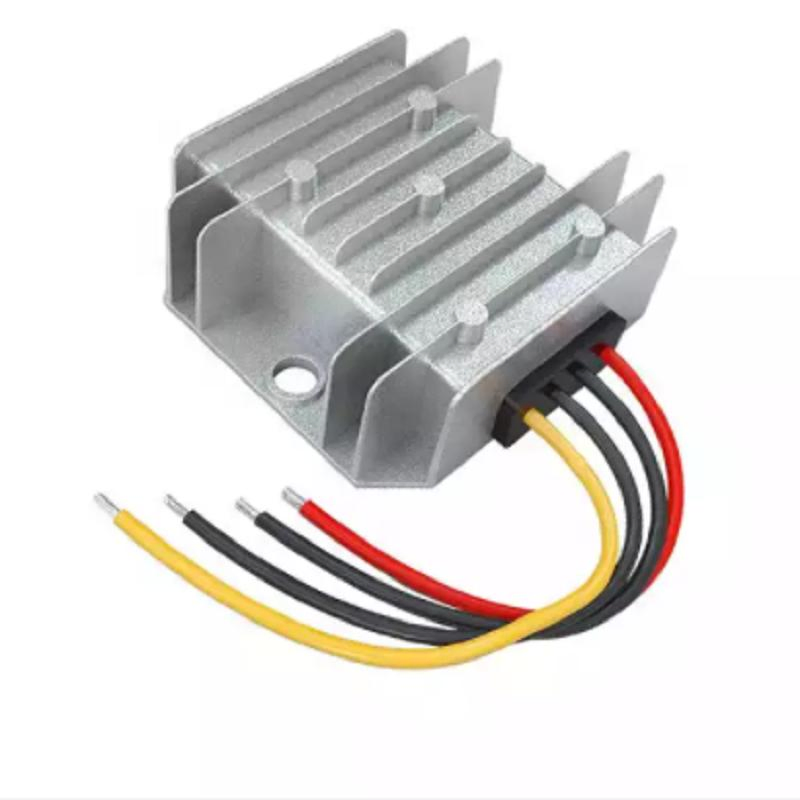

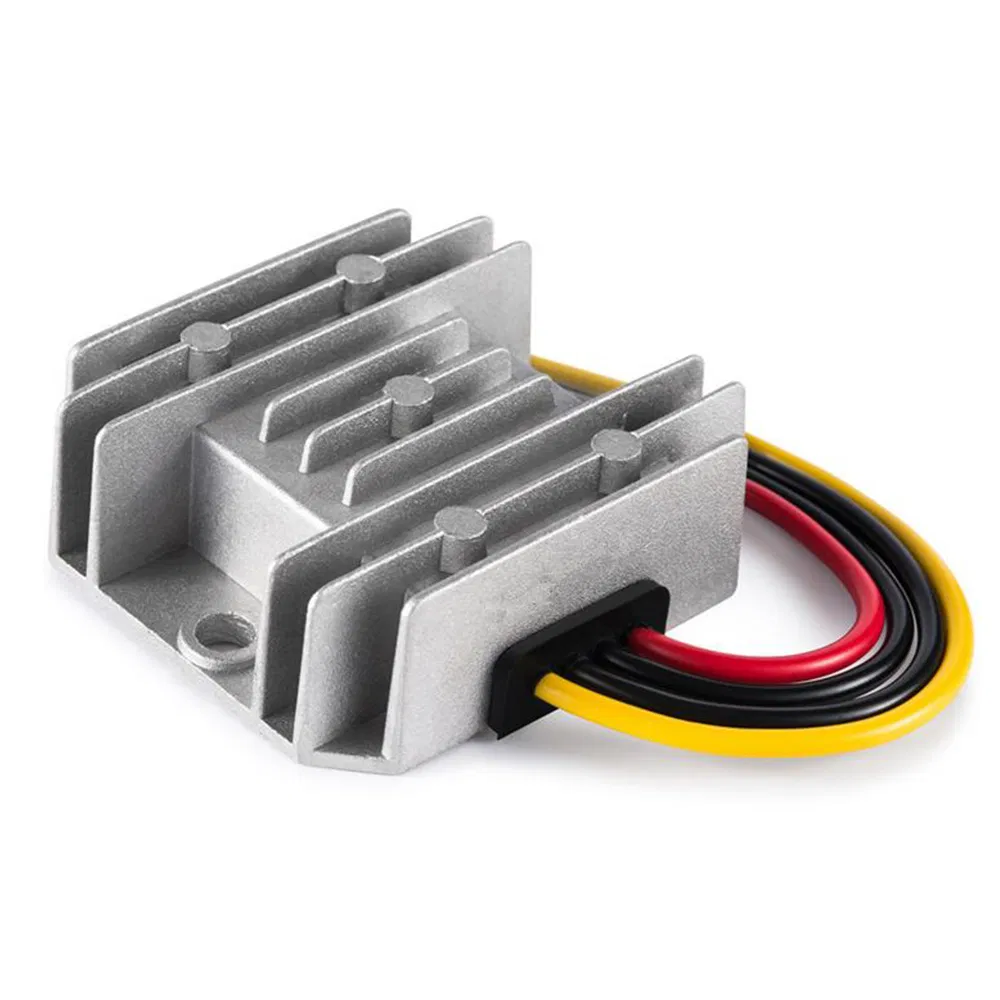

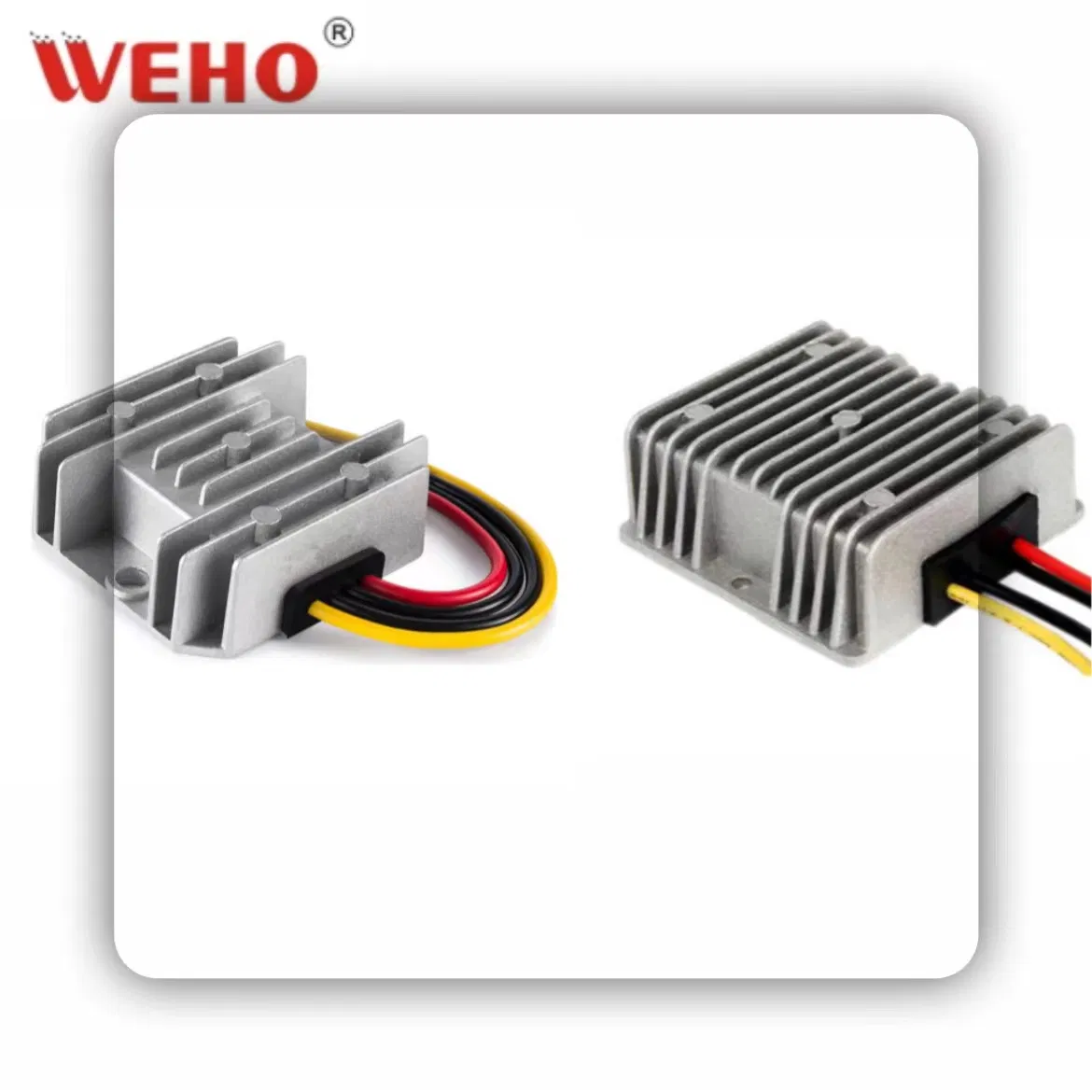

Wh-C1210 Step-Down 24V to 12V 10A 120W DC DC Converter Voltage Regulator Automotive Step-Down Reducer CE Certification

Send Inquiry

Product Description

Basic Information

Model NO.

WH-C1210

Core

Shell-type Transformer

Cooling Method

Dry-type Transformer

Winding Type

Multi-winding Transformer

Certification

Frequency

High Frequency

Core Shape

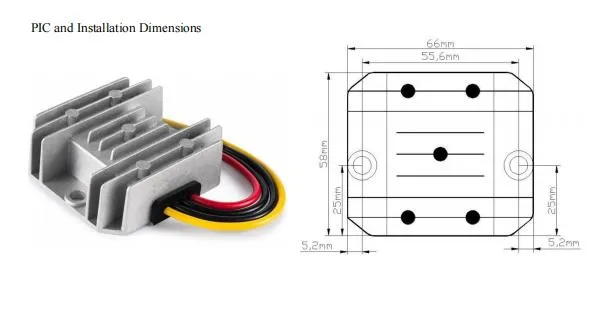

Dimension

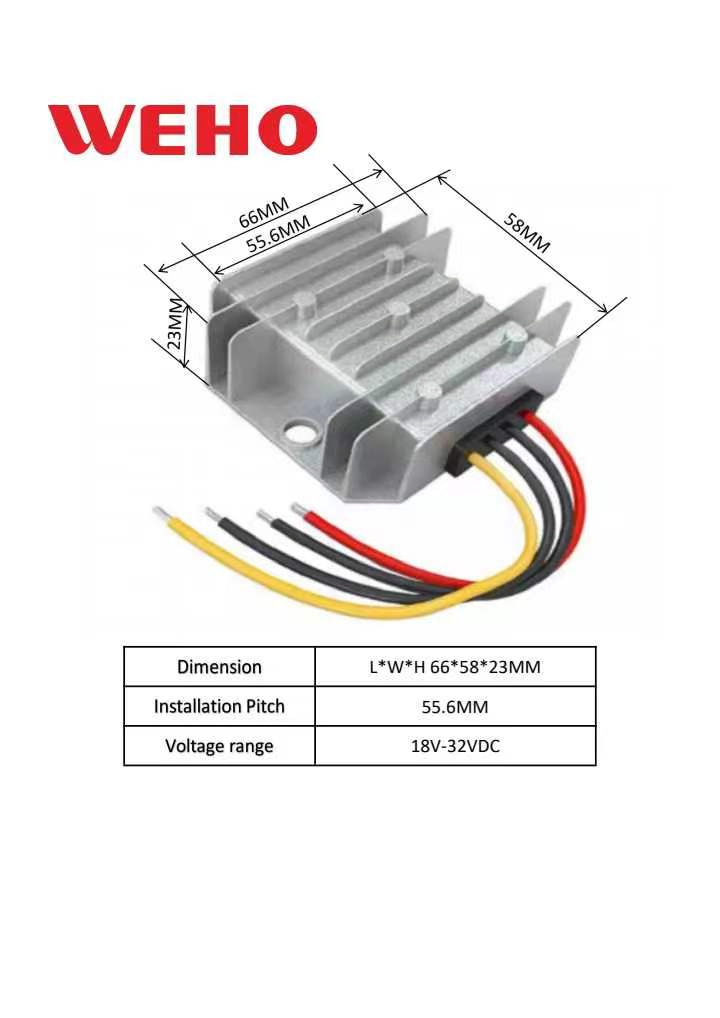

66*58*23mm

Reliability

>100000h

Voltage Range

18V-32VDC

Product Description

WH-C1210 Step-Down 24V to 12V 10A 120W DC DC Converter Voltage Regulator

Industry grade DC 24V to 12V step-down converter

More than 96% power conversion efficiency

Built-in over/under voltage input, overload, overhead, and short circuit full protection

Used in vehicles, security systems, telecommunications, medical equipment, instruments, etc

100% waterproof & anti-shock protection

Detailed Photos

Product Parameters

Description	Model: WH-C1210 \| Output: 120W \| Input: 24VDC \| Output: 12VDC
Input	Voltage Range: 18V-32VDC \| Efficiency: 96% \| No-load: < 2W
Output	Current: 10A \| Tolerance: 1% \| Regulation: 3% \| Wave: 200mv
Protection	Over current protection (>120% rating) with auto-recovery
Insulation	Non-isolated \| Fully sealed and waterproof
Others	Dimensions: 665823mm \| Cooling: Natural \| Reliability: >100000h
