Basic Information
Cooling Method
Enforce Air Cooling
Product Name

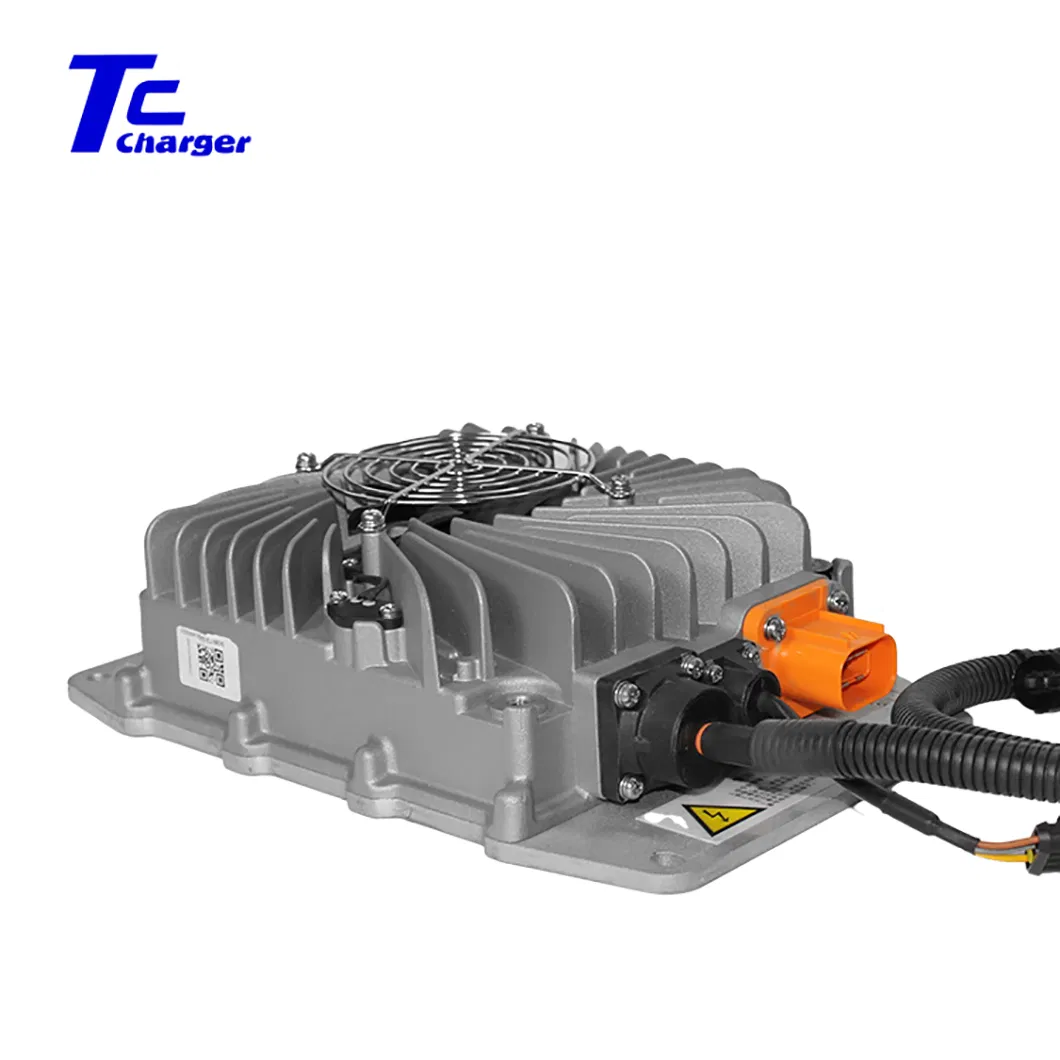

DC/DC Converter
Production Capacity
1000PCS/Month
Product Description & Specifications
| Series |
Power |
Model |
Cooling Type |
Output Voltage |
Voltage Range |
Output Current |
| DC/DC | 1.5KW | TDC-JH-72-12 | Air Cooling | 14V | 9-15V | 110A |
| DC/DC | 1.5KW | TDC-JH-108-12 | Air Cooling | 14V | 9-15V | 110A |
| DC/DC | 1.5KW | TDC-JH-144-12 | Air Cooling | 14V | 9-15V | 110A |
| DC/DC | 1.5KW | TDC-JH-320-12 | Air Cooling | 14V | 9-15V | 110A |
| Model |
DC Input (V) |
Input Current (A) |
Max Input (A) |
Net Weight (kg) |
Dimension (CM) |
| TDC-JH-72-12 | 72 | 23 | 46 | 2.3 | 45.5*26.1*15.5 |
| TDC-JH-108-12 | 96/108 | 15.5 | 30 | 2.3 | 45.5*26.1*15.5 |
| TDC-JH-144-12 | 144 | 12 | 23 | 2.3 | 45.5*26.1*15.5 |
| TDC-JH-320-12 | 320 | 5.5 | 10 | 2.3 | 45.5*26.1*15.5 |

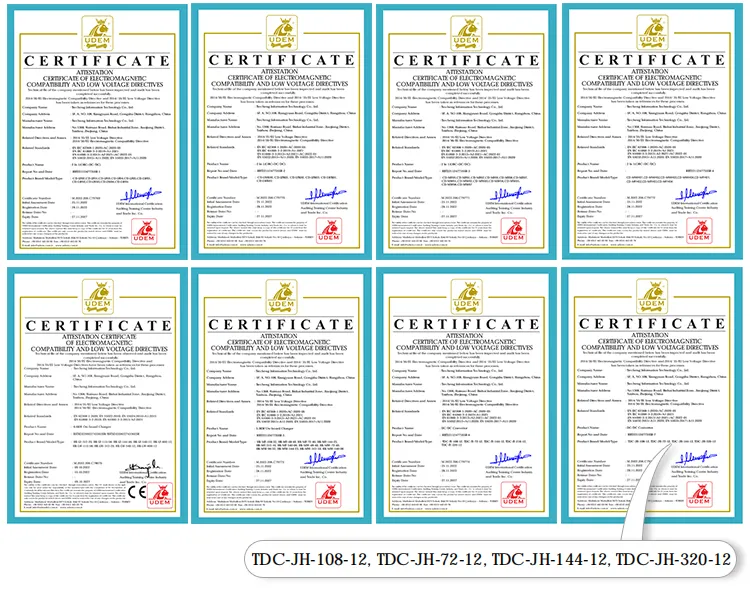

Certifications
Production & Logistics
Frequently Asked Questions

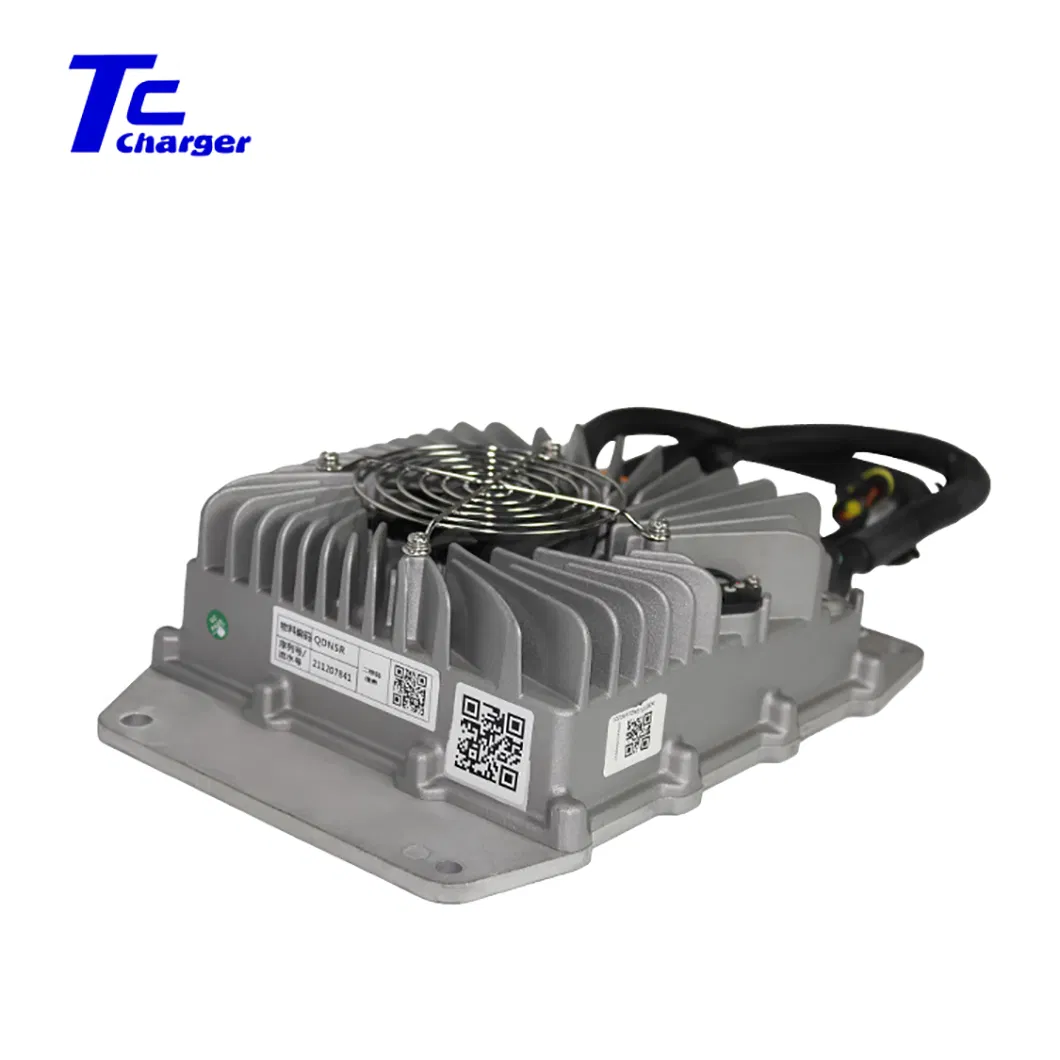

What is the primary function of this DC/DC converter?
This device acts as a voltage reducer (step-down transformer), specifically designed for EV buses and similar applications to convert high-voltage DC input to a stable 14V output.

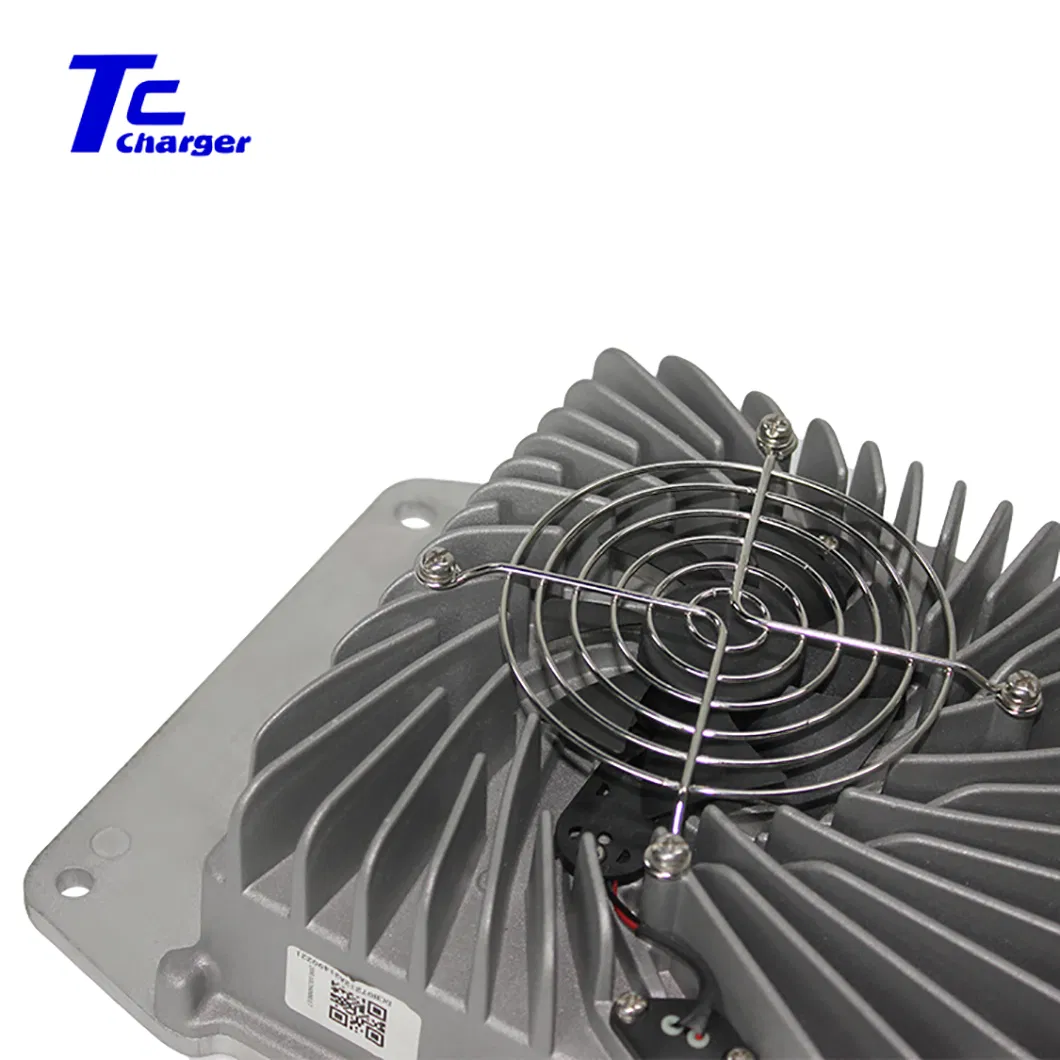

What cooling method does the TDC-JH series use?
The unit utilizes Enforce Air Cooling to maintain optimal operating temperatures during high-power conversion.
Are these converters certified for international markets?
Yes, these DC/DC converters are CE certified, meeting essential health, safety, and environmental protection standards.
What are the available communication baud rates?
The product supports standard baud rates of 250K or 500K for integration with vehicle systems.
What is the typical production capacity for this model?
The current production capacity is approximately 1000 pieces per month to ensure steady supply for large-scale projects.
What is the output voltage range for the 14V model?
While the nominal output is 14V, the adjustable or functional range is between 9V and 15V.
