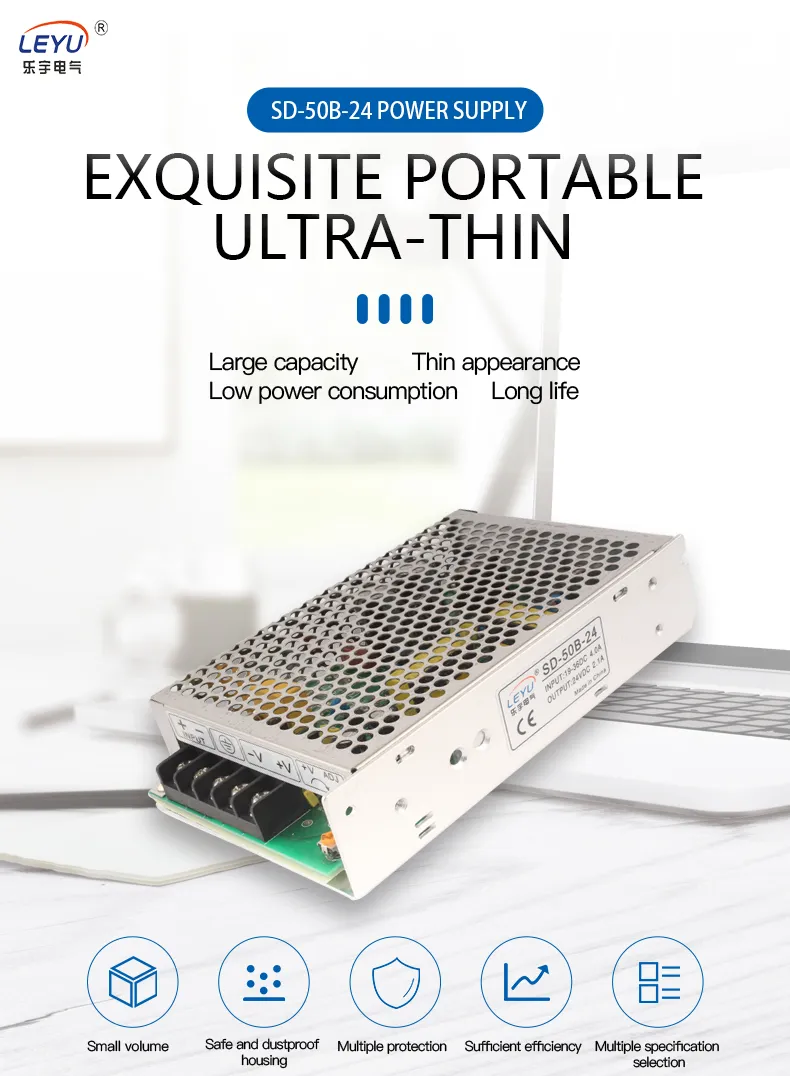

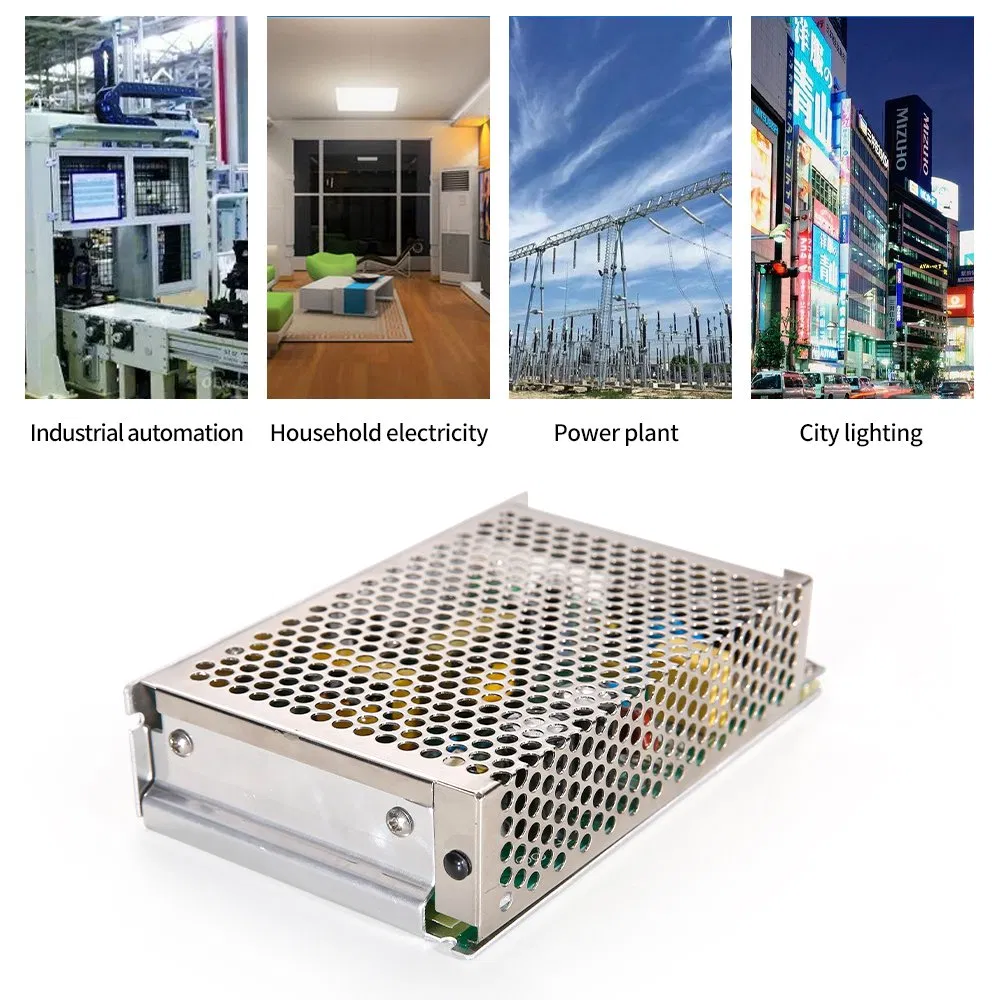

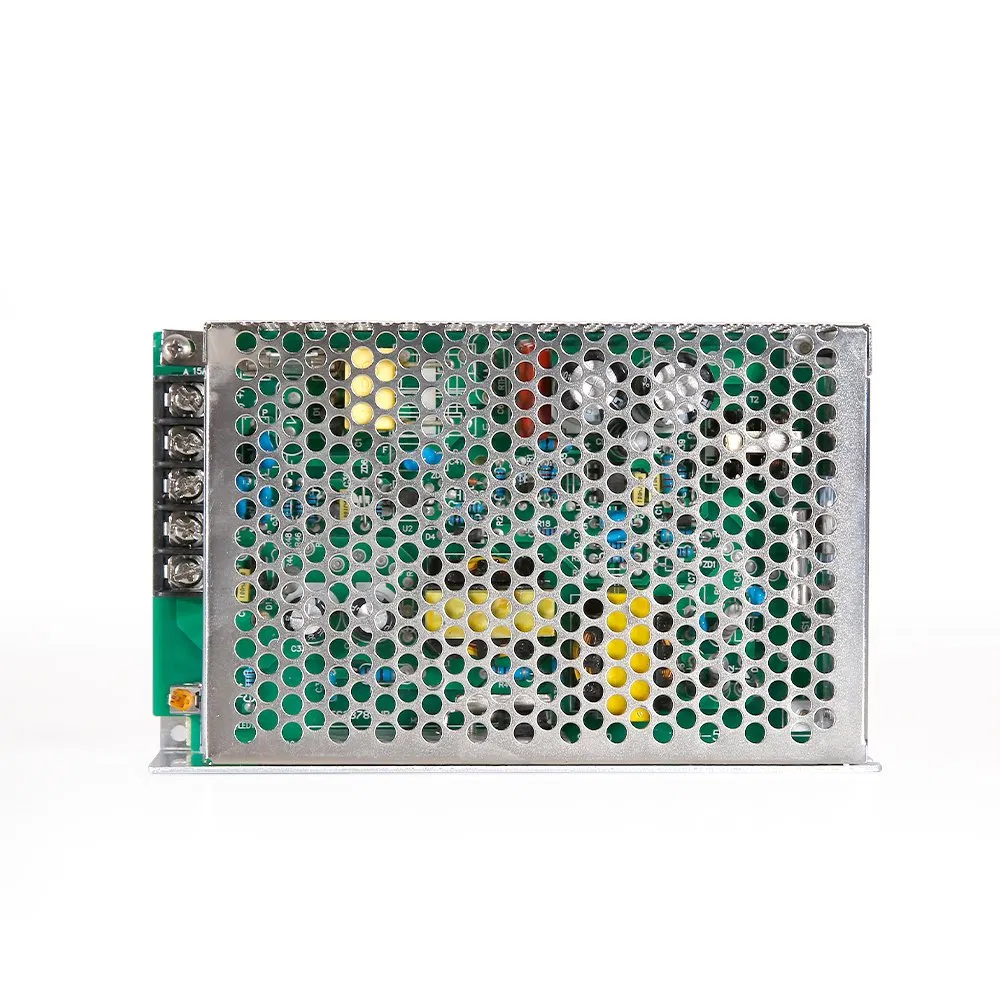

SD-50b-24 Isolated 48V to 24V 50W Single Output DC to DC Converter

1 / 5

SD-50b-24 Isolated 48V to 24V 50W Single Output DC to DC Converter

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

SD-50B-12

Output Power

1 - 50W

Input Voltage

110V/220V

Modulation

PWM

Certification

CE, RoHS, ISO

Efficiency

75%

Protections

Short Circuit / Overload / Over Voltage

Specification

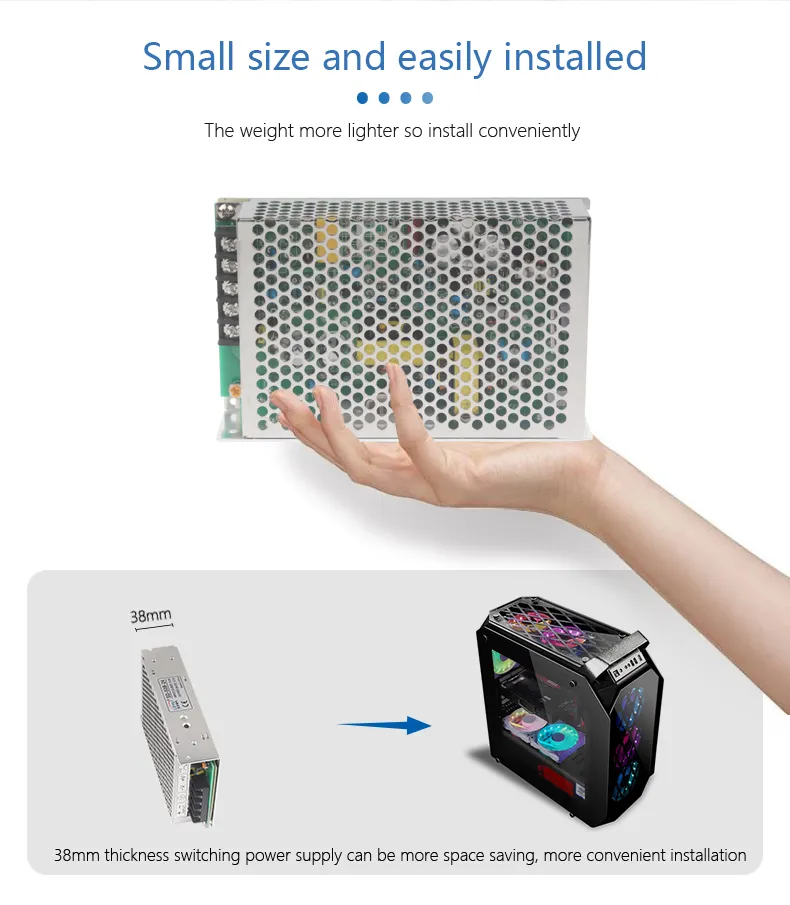

159*97*38mm (L*W*H)

Product Features

SD-50B-5 High power: 5V 10A DC to DC converter 100 Watts
Wide Input: 2:1 wide input range
Safety Isolation: 1500VAC I/O isolation

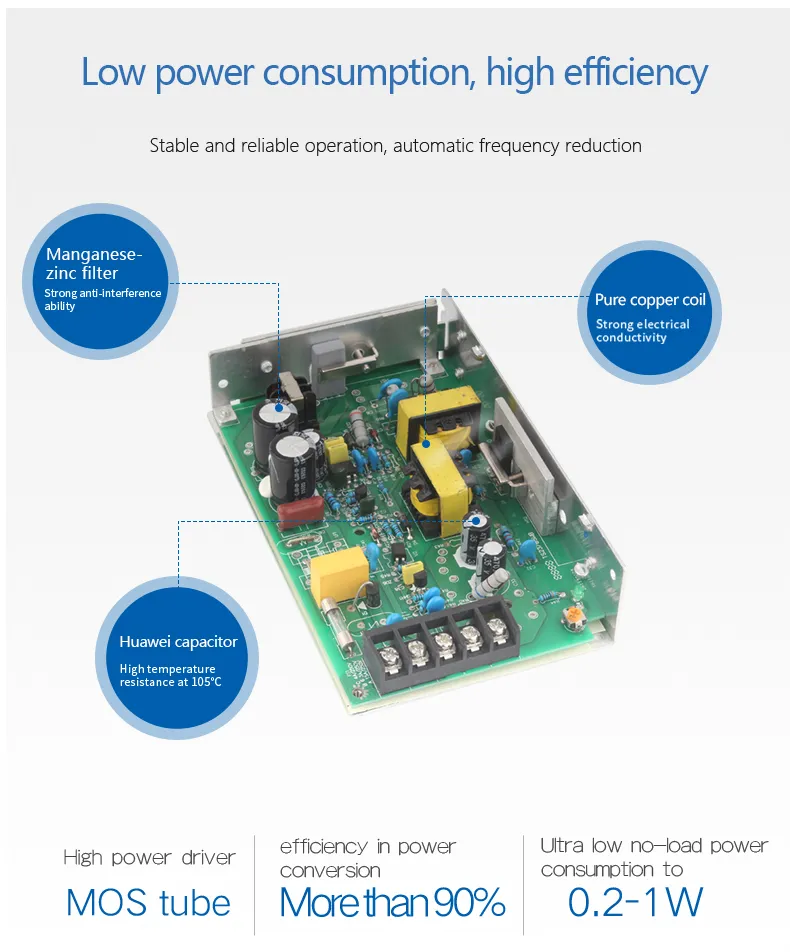

Low Noise: Built-in EMI filter, low ripple noise
Reliability: 100% full load burn-in test
Input Design: 5V and 24V input voltage design refer to LVD
Warranty: 2 years warranty

Technical Parameters

Model	SD-50A-5	SD-50B-5	SD-50C-5	SD-50A-12	SD-50B-12	SD-50C-12
DC Voltage	5V			12V
Rated Current	10A			4.2A
Rated Power	50W			50.4W
Ripple & Noise	100mVp-p			120mVp-p
Efficiency	70%	73%	76%	72%	75%	78%

Product Gallery

Frequently Asked Questions

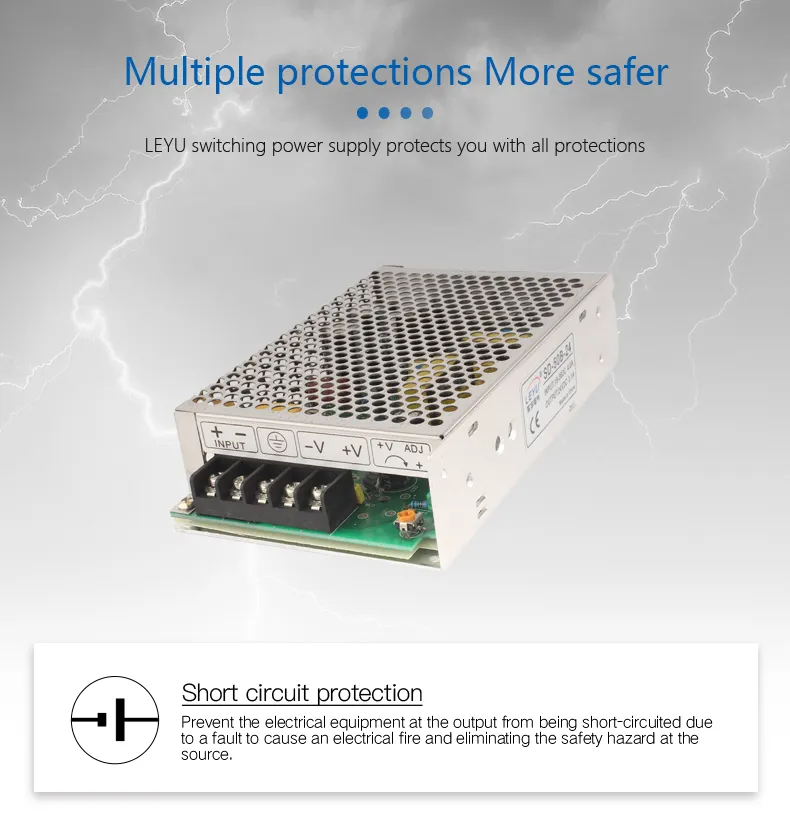

Q: What protections are built into the SD-50 series?

A: The series includes protection against short circuits, overloads, and over-voltage situations to ensure device safety.

Q: What is the isolation voltage for these DC-DC converters?

A: These units provide a 1500VAC I/O isolation, meeting industrial safety standards.

Q: How long is the warranty period for this product?

A: This professional DC to DC converter comes with a standard 2-year warranty for peace of mind.

Q: Does the converter feature noise reduction?

A: Yes, it includes a built-in EMI filter which ensures low ripple noise during operation.

Q: Are the units tested before shipping?

A: Every unit undergoes a 100% full load burn-in test to guarantee performance and reliability.

Q: What are the primary certifications for this model?

A: The SD-50 range is CE, RoHS, and ISO certified, complying with international quality standards.
