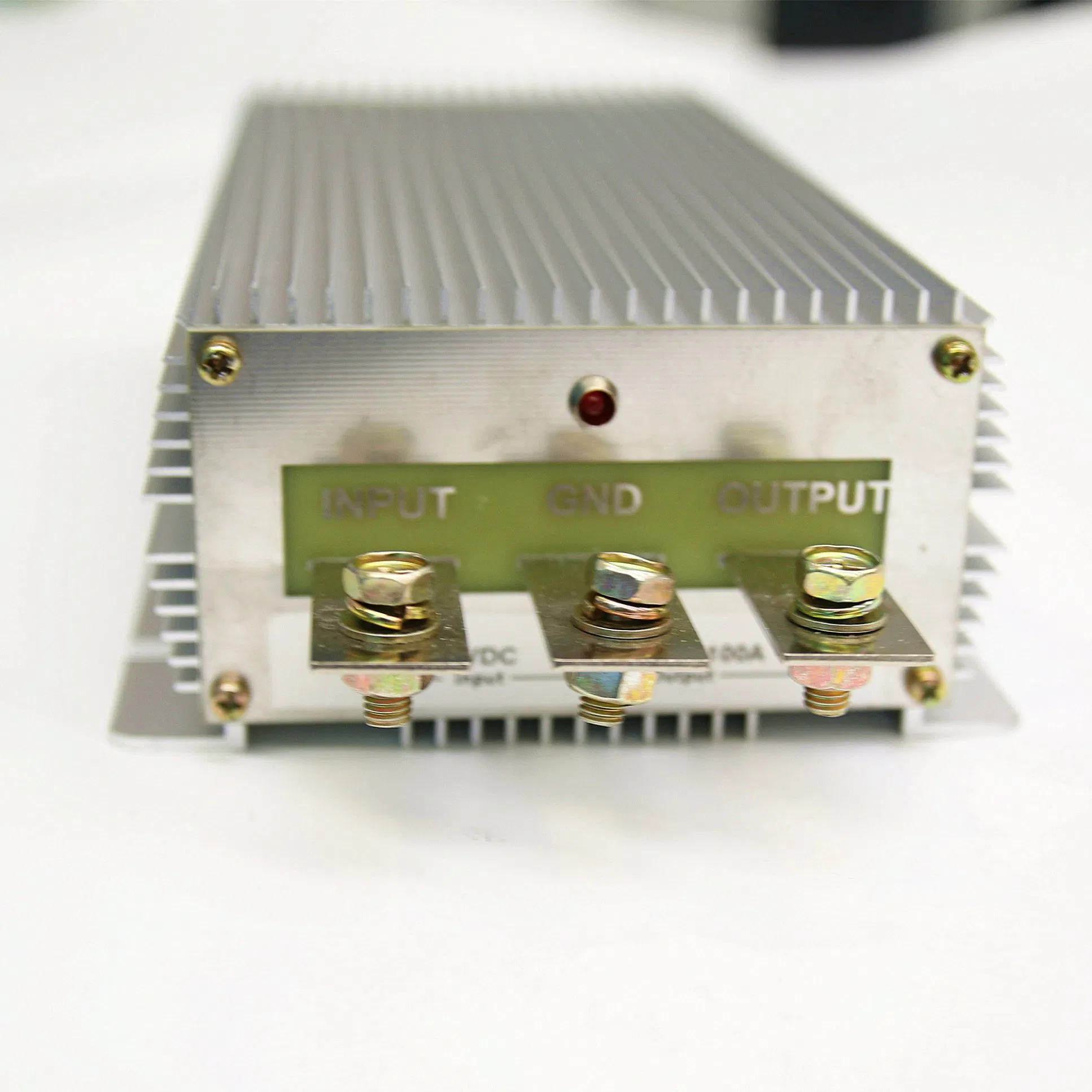

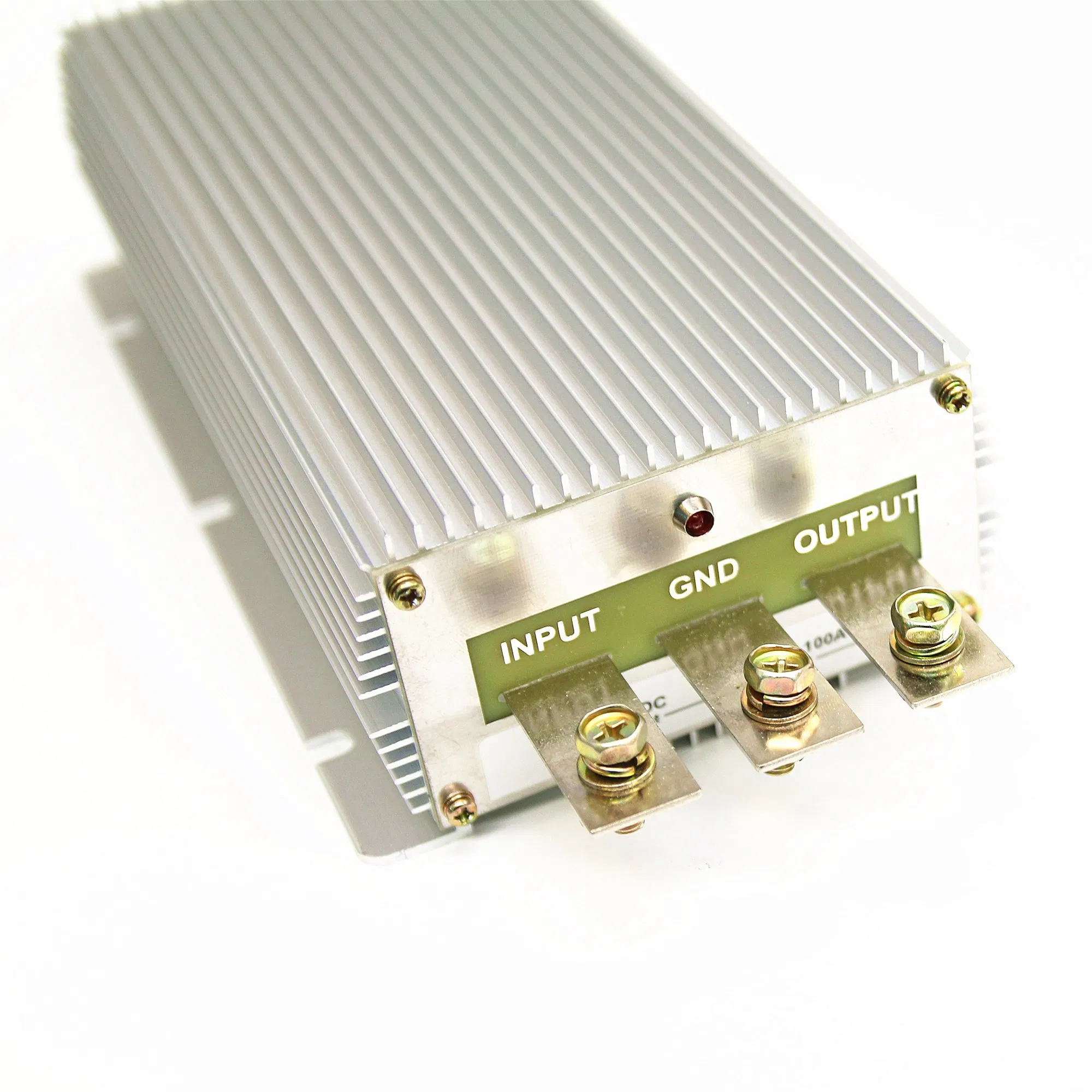

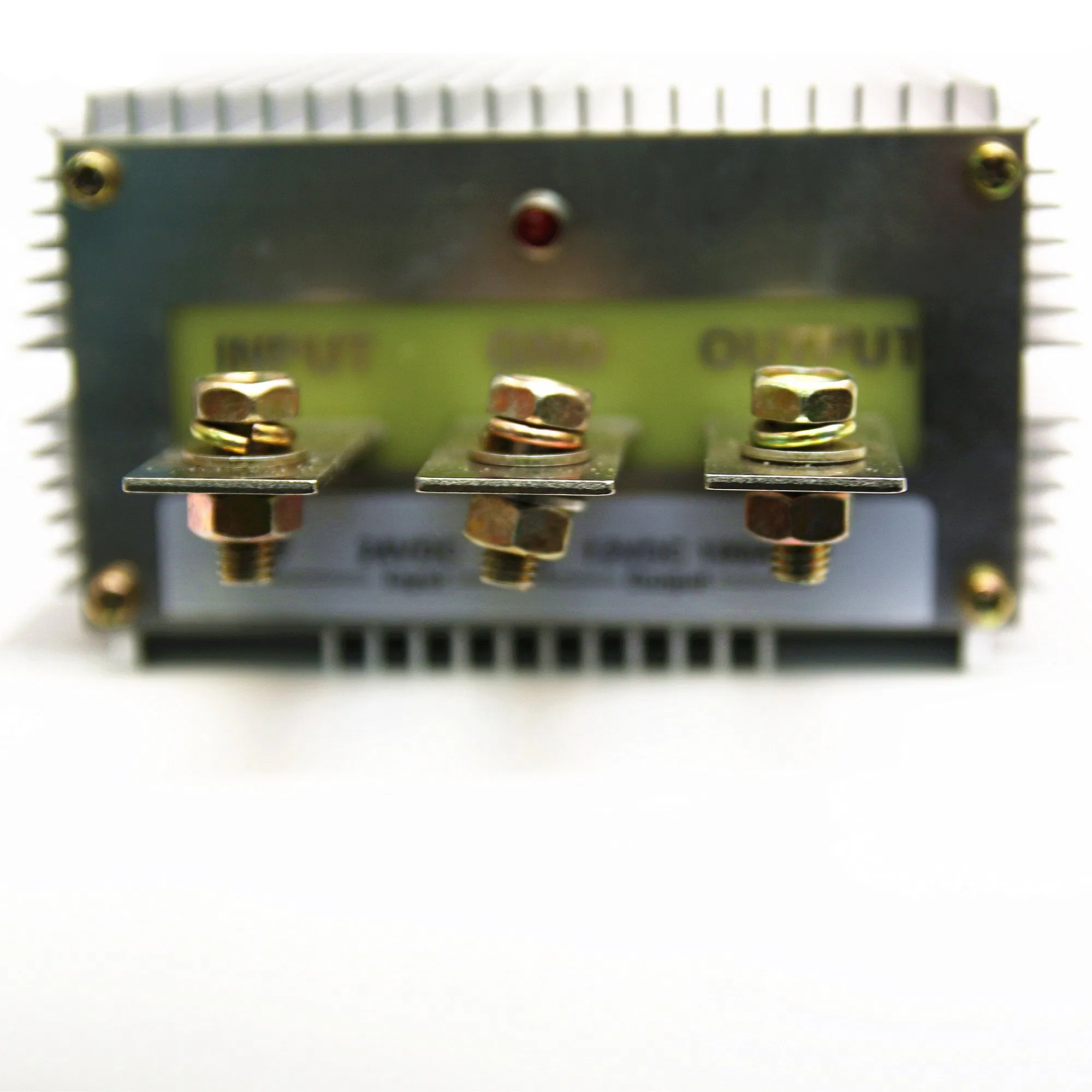

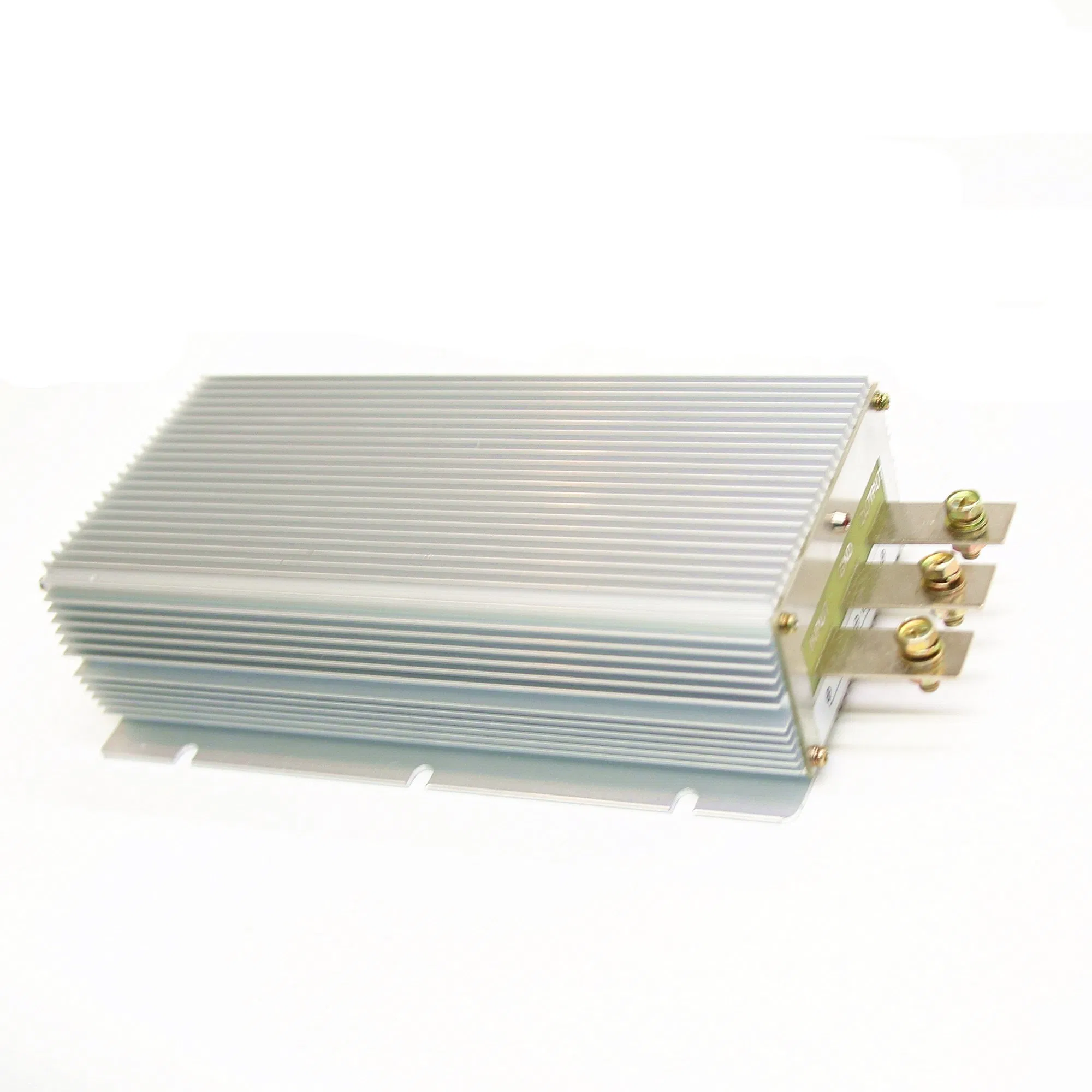

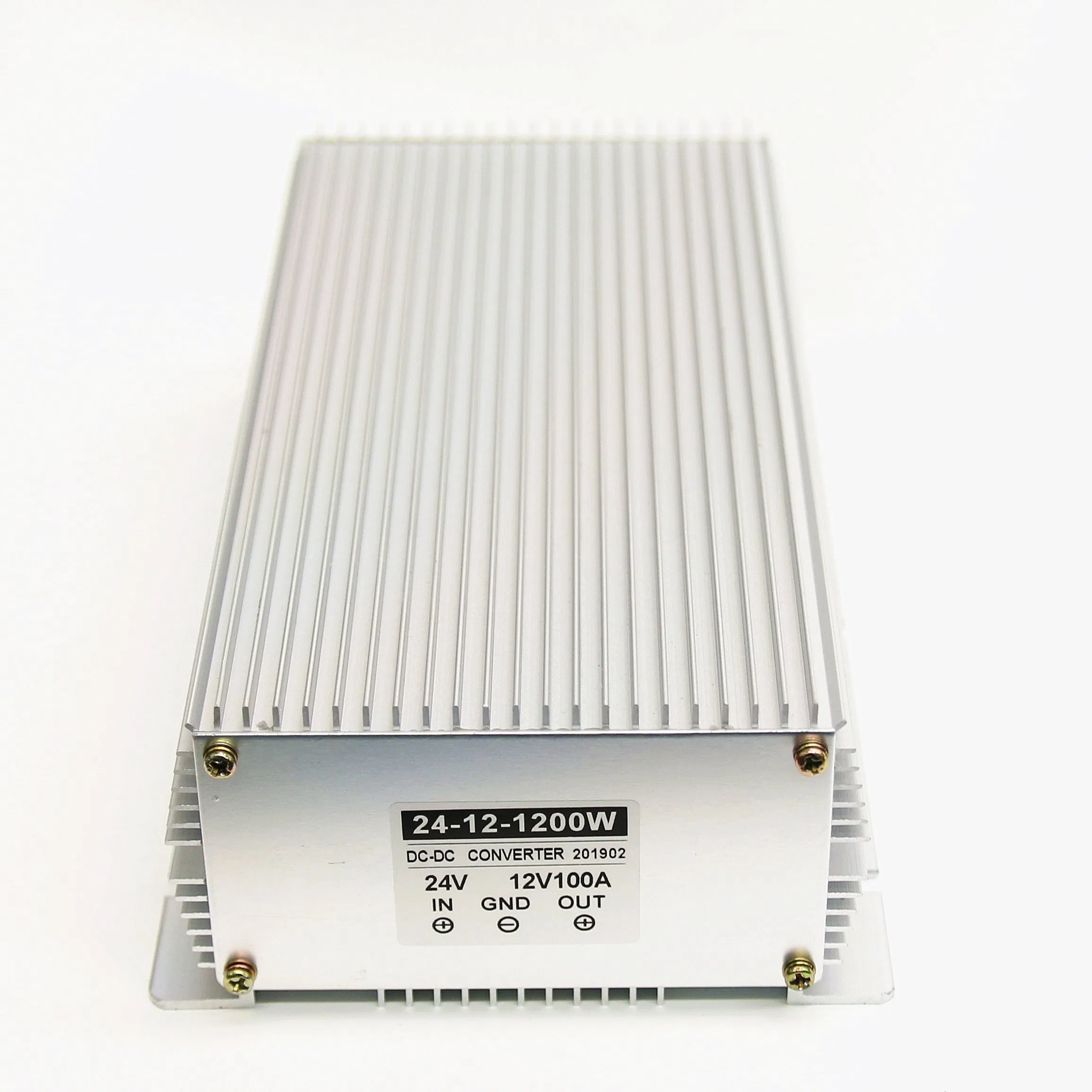

100A Buck Converter DC 24v to DC 12V 1200W Power Supply Step Down Converter

1 / 5

100A Buck Converter DC 24v to DC 12V 1200W Power Supply Step Down Converter

Customization:	Available
Application:	Power, Electronic, Instrument, Lighting, Rectifier, Audio
Phase:	Single

Send Inquiry

Product Description

Basic Product Information

Model NO.

CS2412-100AW

Product Name

DC-DC Converter 100A

Input Voltage

24V

Output Voltage

12V

Output Current

100A

Power

1200W

Waterproof

IP68

Certification

ISO9001, CE

Core Type

Core-type Transformer

Cooling

Dry-type Transformer

Product Description & Features

100A Buck Converter DC 24V to DC 12V 1200W Power Supply Step Down Converter

Input voltage range: DC18V~DC36V
Max. Efficiency to 92%, Non-Isolated
Anodized aluminum case provides durability
Switching-mode power supply

Technical Specifications

Input Parameters
Rated DC Voltage	24VDC
DC Voltage Range	DC18V~36V
Efficiency	>90%
Output Parameters
Output DC Voltage	12VDC
Output Current	100AMP
Continuous Power	1200W
Environment & Mechanical
Working Temperature	-40° C ~ +85° C
Machine Size	26.512.56.3cm
Weight	2.22kg

Applications

Ideal for various systems including vehicle system modifications, routers, ADSL modems, switches, LED lights, digital photo frames, audio systems, security systems, printers, electronic refrigerators, portable DVDs, network equipment, and various industrial equipment meeting voltage parameters.

Safety Protections

Temperature protection
Low voltage protection
Over-voltage protection
Short circuit protection
Overload & Overcurrent protection

Frequently Asked Questions (FAQ)

What is the input voltage range for this DC-DC converter?

The input voltage range is DC 18V to DC 36V, with a rated input of 24VDC.

Is this converter waterproof?

Yes, the unit features an IP68 waterproof rating and is encapsulated in a plastic shell for durability.

What is the maximum output power?

This model provides a continuous output power of 1200W with a maximum current of 100A.

Can it operate in extreme temperatures?

Yes, the working temperature range is -40° C to +85° C, making it suitable for industrial environments.

What kind of safety features are included?

The converter includes multiple protections: temperature, low voltage, over-voltage, overload, overcurrent, and short circuit protection.

Is the converter isolated?

This is a non-isolated buck converter designed for high efficiency, reaching up to 92%.
