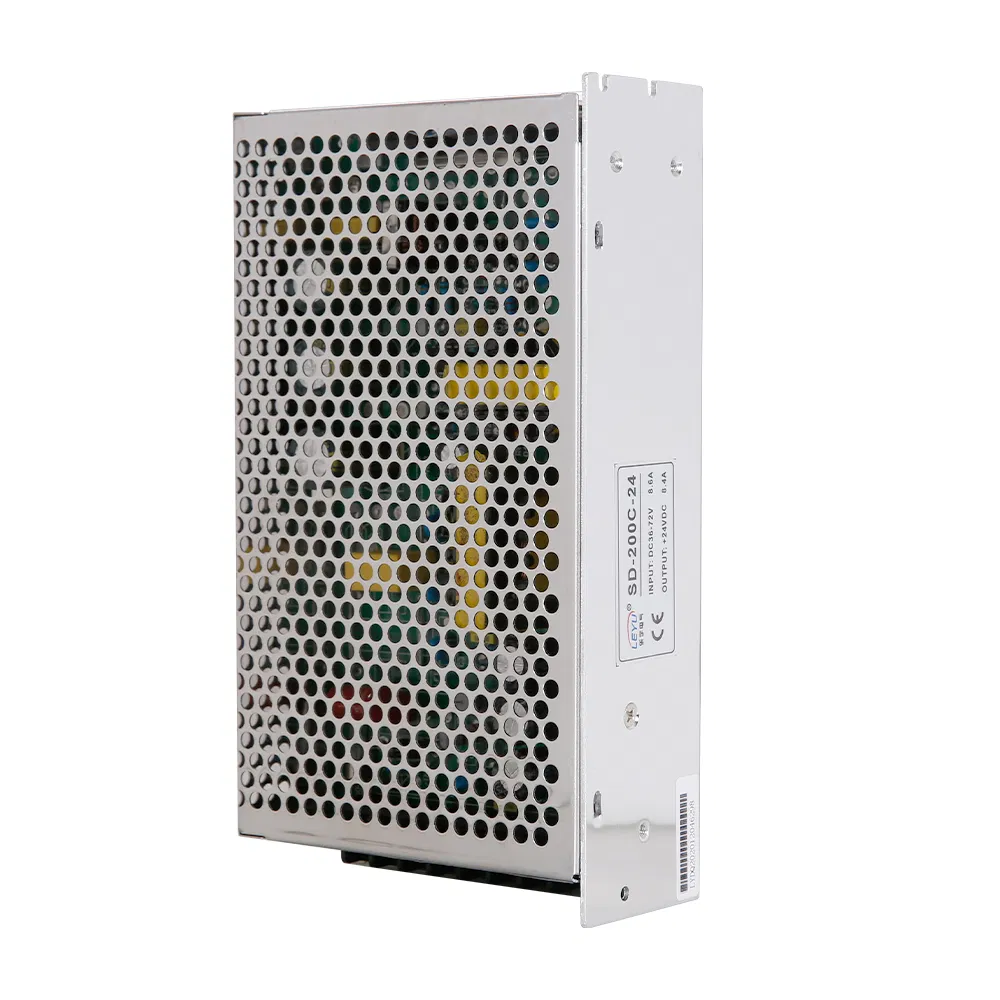

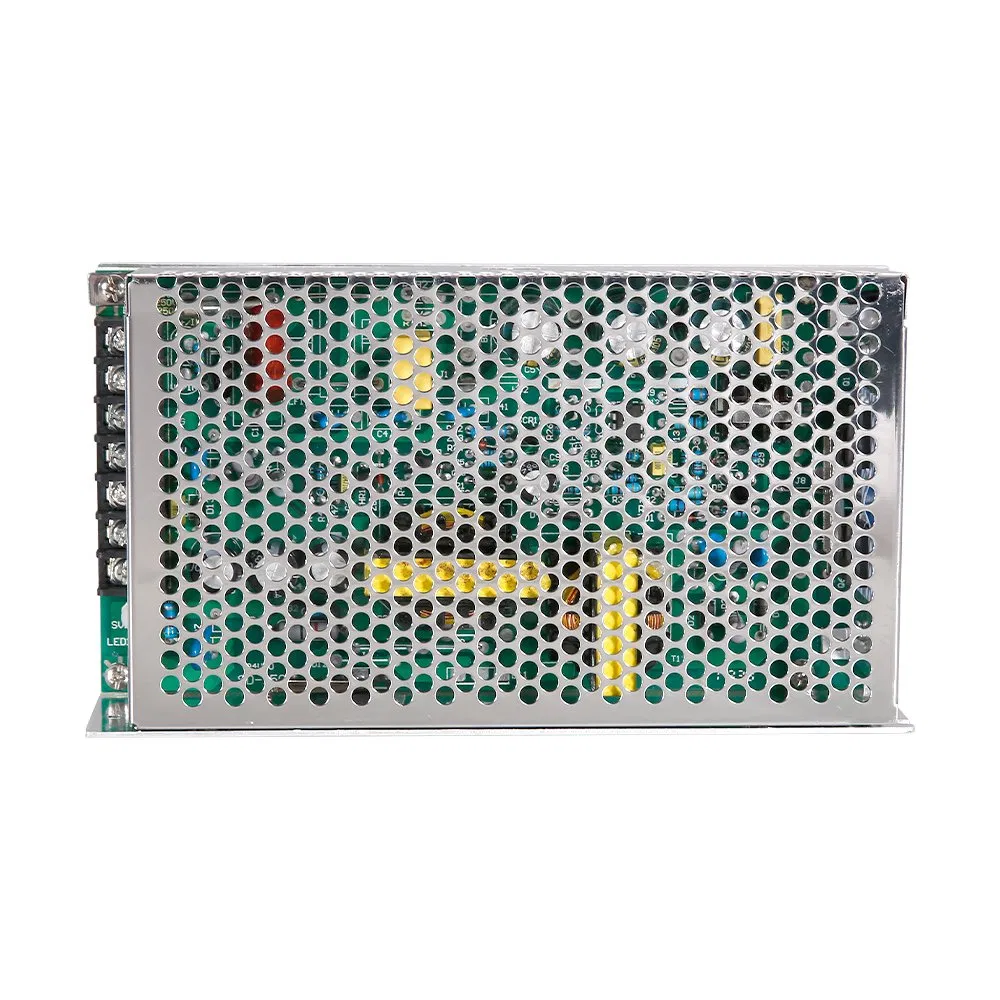

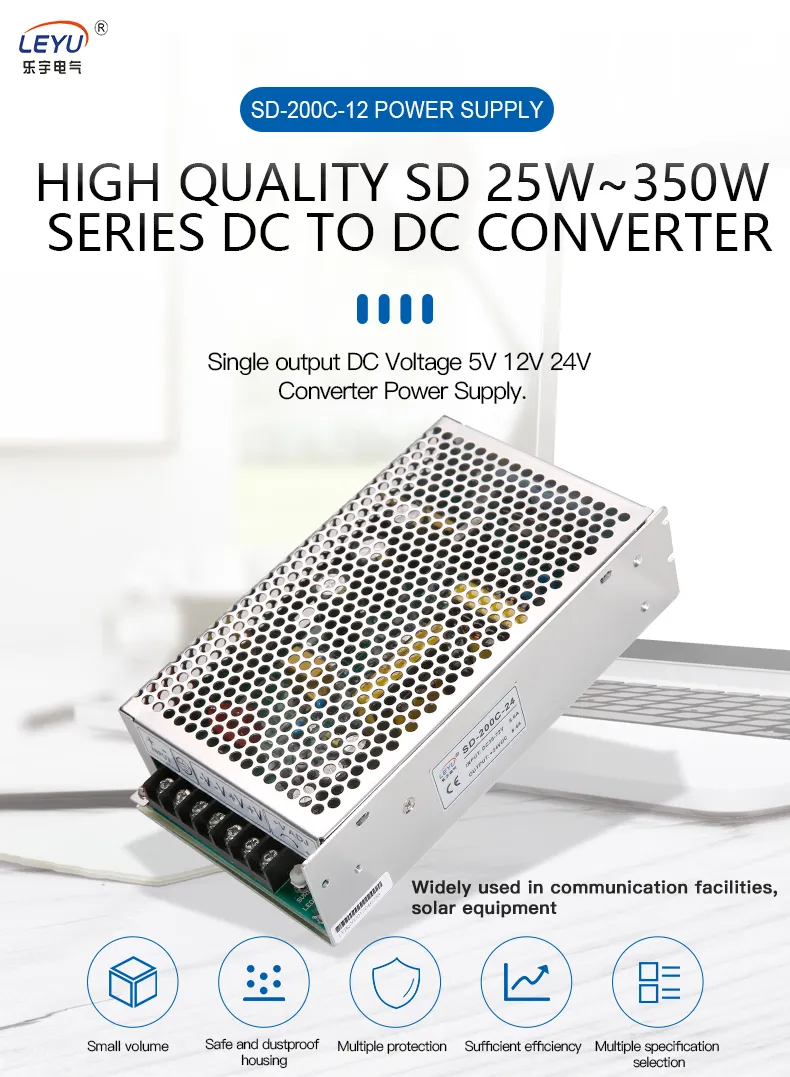

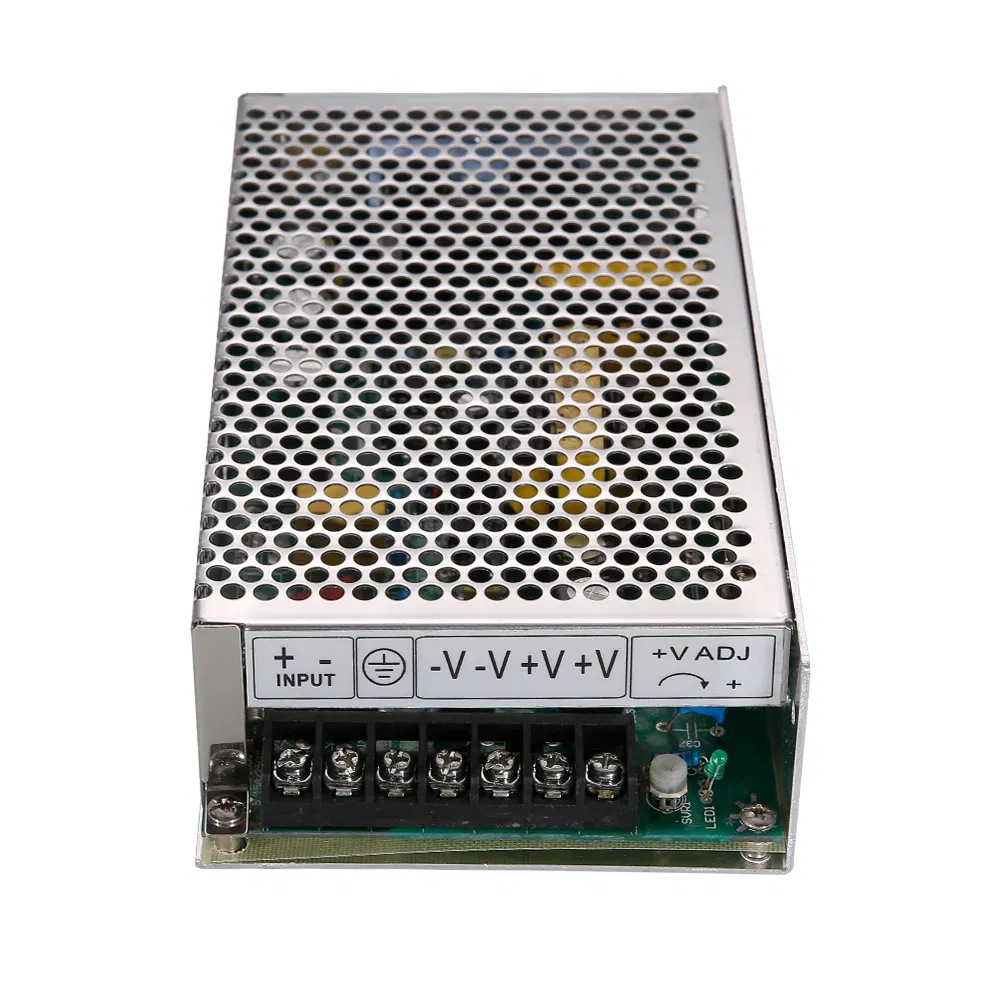

High Quality SD-200c-48 200W 48V Single Output DC-DC Converter

1 / 5

High Quality SD-200c-48 200W 48V Single Output DC-DC Converter

Customization:	Available
Output Type:	Single
Warranty:	2 Years

Send Inquiry

Product Description

📋 Basic Information

Model NO.

SD-200C-48

Output Power

200W

Input Voltage

36-72V

Connection Mode

Series Switching Power Supply

Modulation

PWM

Material

Aluminum Case

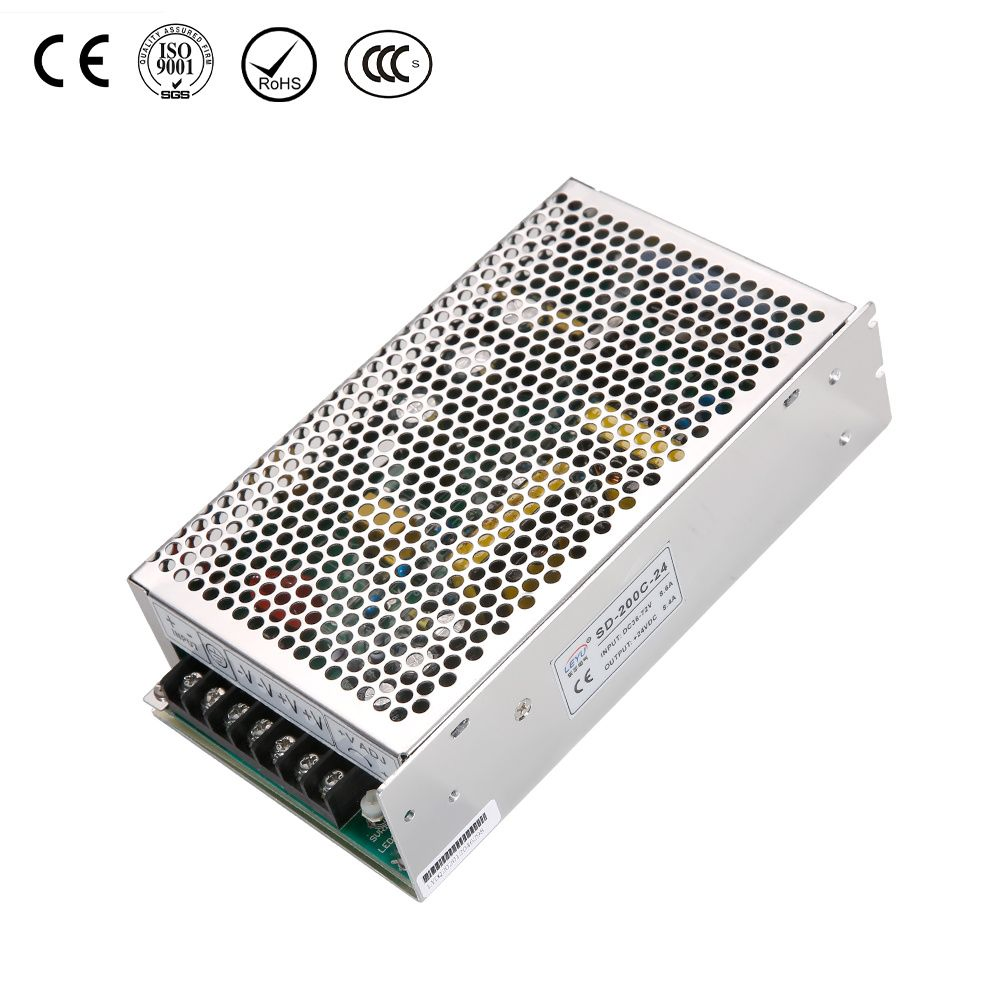

Certification

CE, RoHS, ISO, CCC

Cooling Mode

Free Air Convection

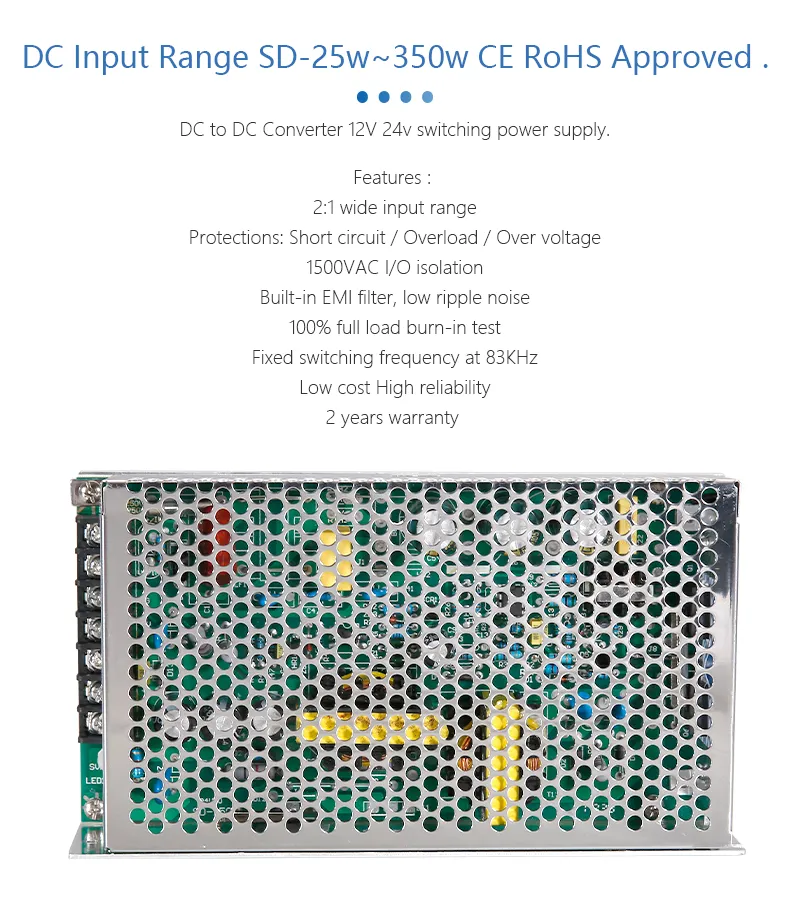

🚀 Key Features

🔹 2:1 wide input range

🔹 1500VAC I/O isolation

🔹 100% full load burn-in test

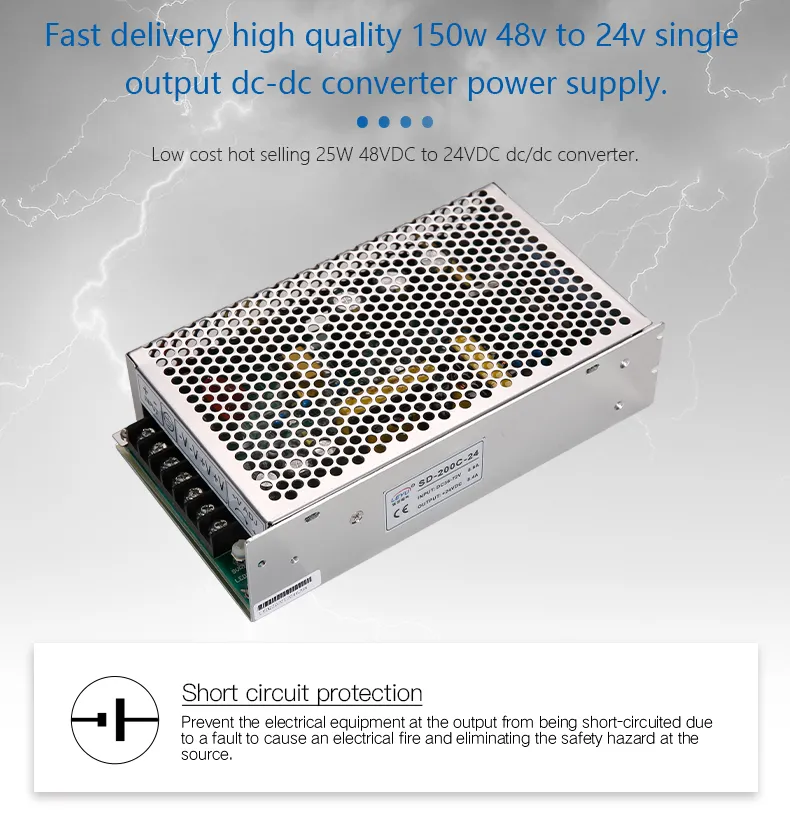

🔹 Built-in protections: Short circuit / Overload / Over voltage / Over temperature

🔹 2 years warranty

🔹 Low Ripple and Noise

⚙️ Technical Specifications

Model	SD-200B (19~36VDC)				SD-200C (36~72VDC)
DC Output	5V	12V	24V	48V	5V	12V	24V	48V
Rated Current	34A	16.7A	8.4A	4.2A	40A	16.7A	8.4A	4.2A
Rated Power	170W	200.4W	201.6W	201.6W	200W	200.4W	201.6W	201.6W
Efficiency	79%	82%	85%	86%	81%	84%	86%	86%
Dimensions	21511550mm (LWH)

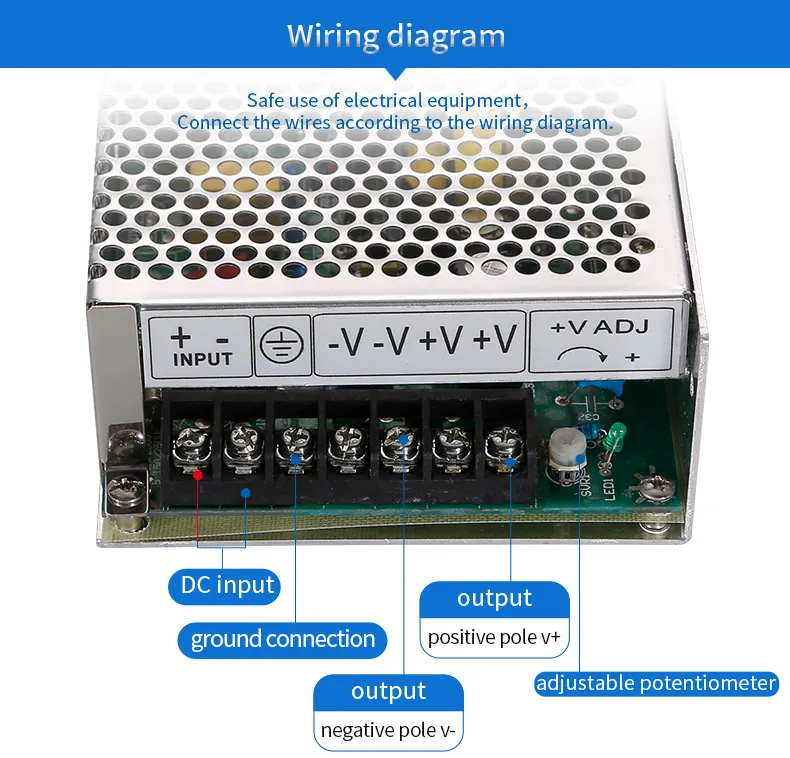

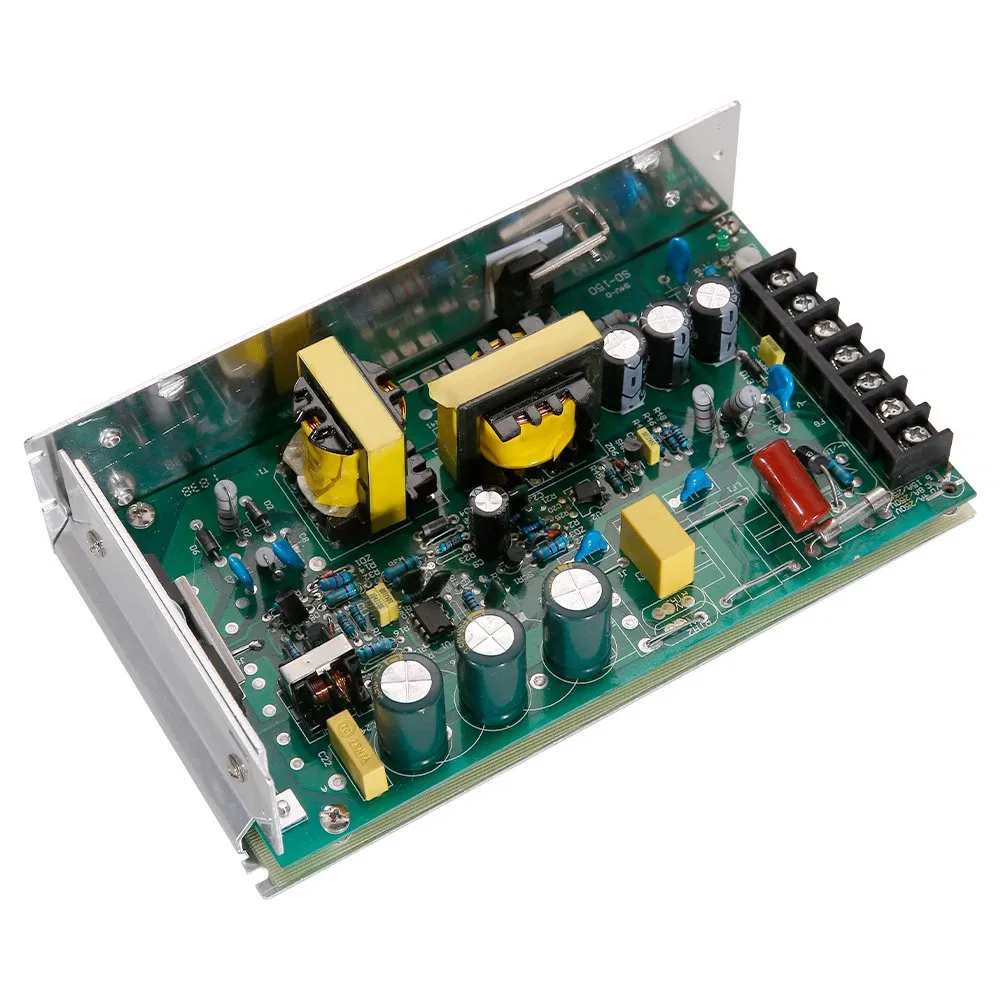

📸 Product Gallery

❓ Frequently Asked Questions

Q1: What is the input voltage range for the SD-200C series?

A1: The SD-200C series supports a 2:1 wide input range of 36V to 72V DC.

Q2: How is the converter cooled?

A2: This unit is designed to be cooled by free air convection, meaning no external fans are required under normal operating conditions.

Q3: What safety protections are included?

A3: It includes multiple safety protections: Short circuit, Overload, Over voltage, and Over temperature protection with automatic recovery.

Q4: Does the product come with a warranty?

A4: Yes, the SD-200 series comes with a standard 2-year warranty for quality assurance.

Q5: Is the product fully tested before shipping?

A5: Every unit undergoes a 100% full load burn-in test to ensure stability and performance.

Q6: What certifications does this converter have?

A6: The converter is compliant with CE, RoHS, ISO, and CCC standards, with specific UL60950-1 approval for certain types.
