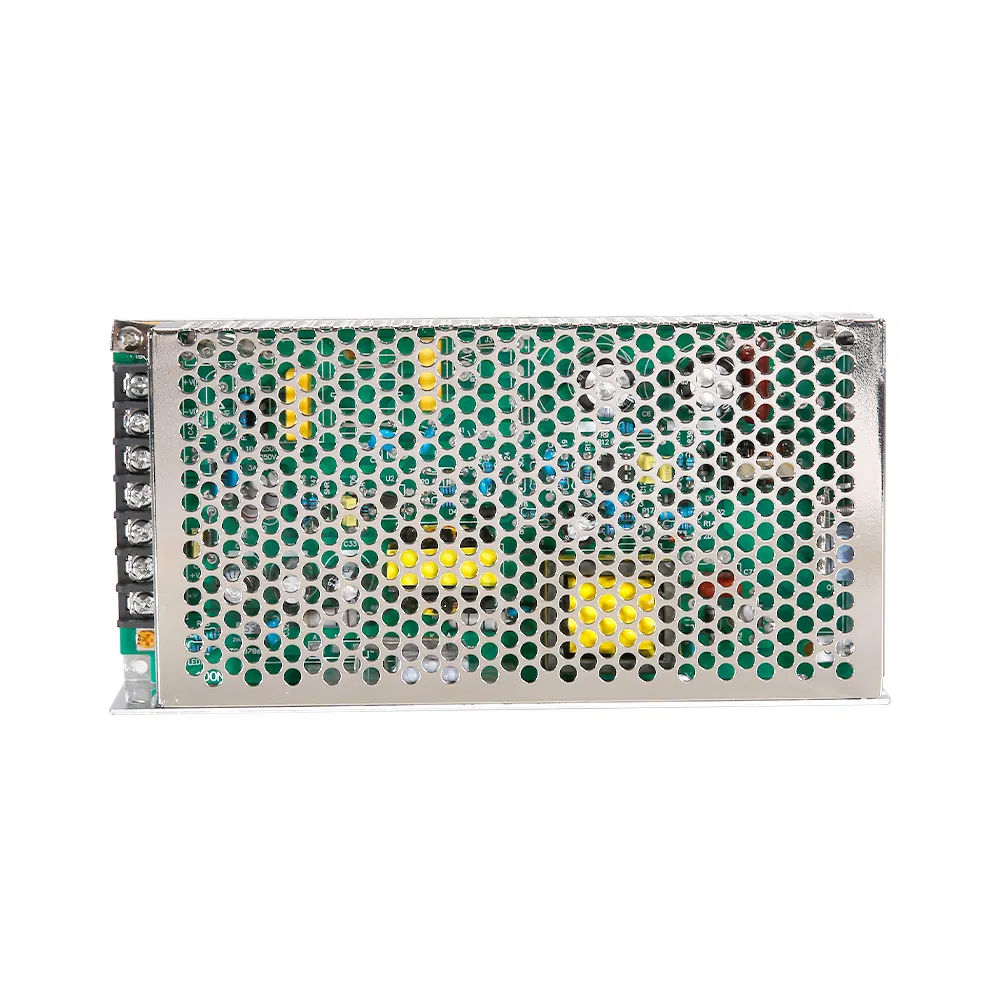

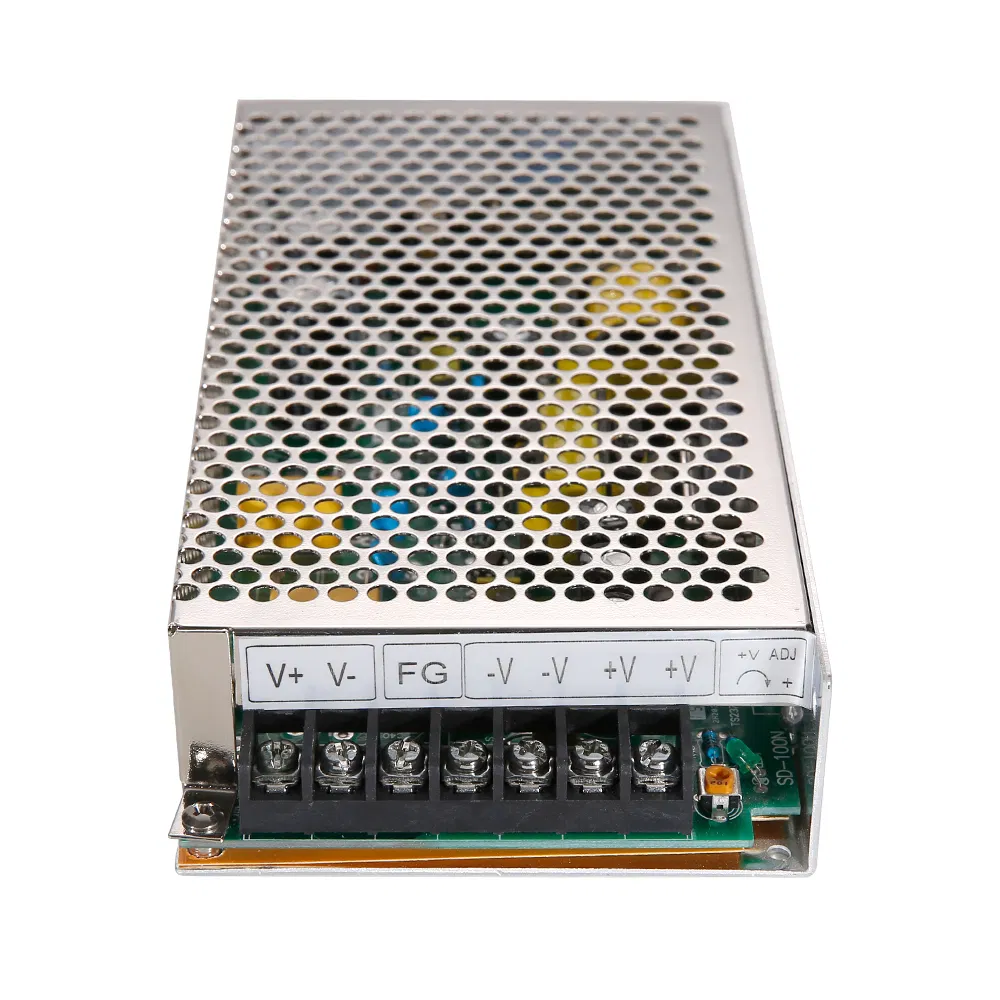

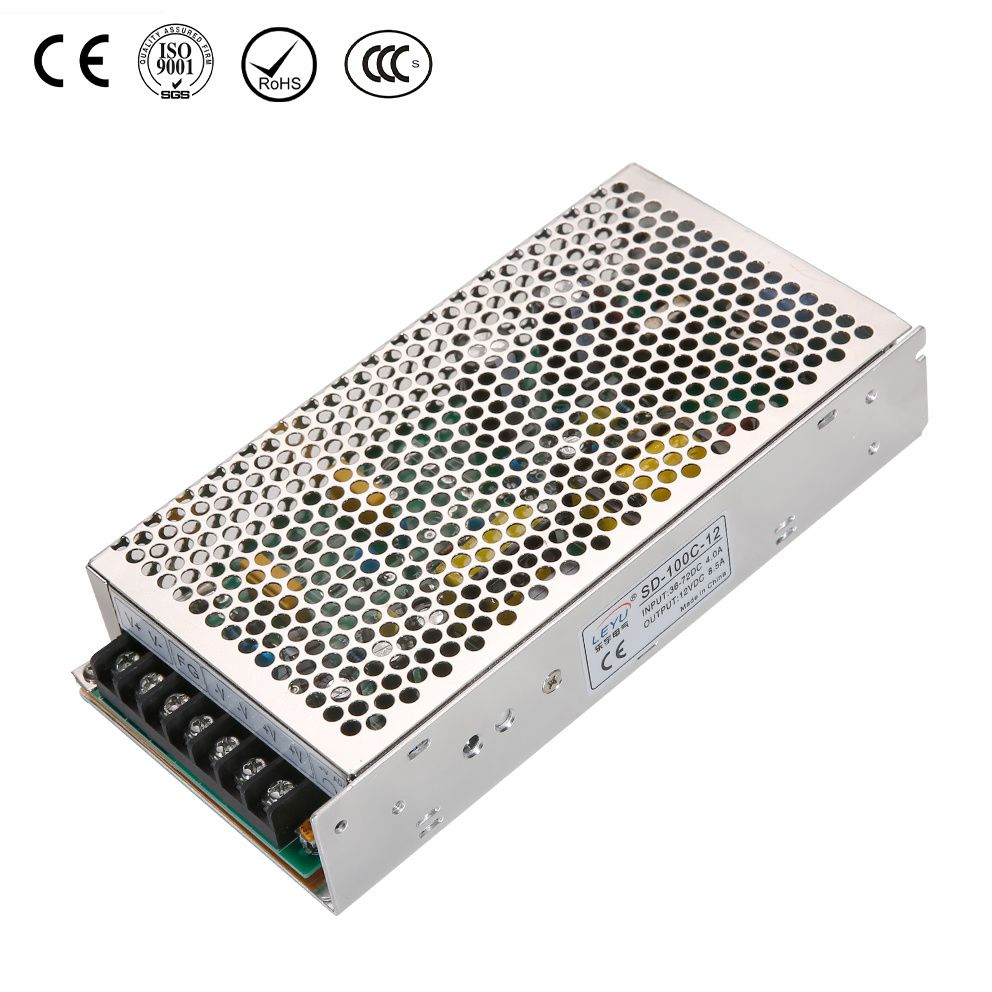

Switch Mode Power Supply SD-100c-12 100W 48V to 12V DC DC Converter
Switch Mode Power Supply SD-100c-12 100W 48V to 12V DC DC Converter
Switch Mode Power Supply SD-100c-12 100W 48V to 12V DC DC Converter
Switch Mode Power Supply SD-100c-12 100W 48V to 12V DC DC Converter
Switch Mode Power Supply SD-100c-12 100W 48V to 12V DC DC Converter
1 / 5
Switch Mode Power Supply SD-100c-12 100W 48V to 12V DC DC Converter
Switch Mode Power Supply SD-100c-12 100W 48V to 12V DC DC Converter
Switch Mode Power Supply SD-100c-12 100W 48V to 12V DC DC Converter
Switch Mode Power Supply SD-100c-12 100W 48V to 12V DC DC Converter
Switch Mode Power Supply SD-100c-12 100W 48V to 12V DC DC Converter

Switch Mode Power Supply SD-100c-12 100W 48V to 12V DC DC Converter

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information Overview
Model NO.
SD-100C-12
Output Power
51 - 100W
Input Voltage
36~72VDC
Efficiency
77%
Certification
CE, RoHS, ISO
Material
Aluminum
Modulation
PWM
Dimensions
199*98*38mm(L*W*H)
Product Description

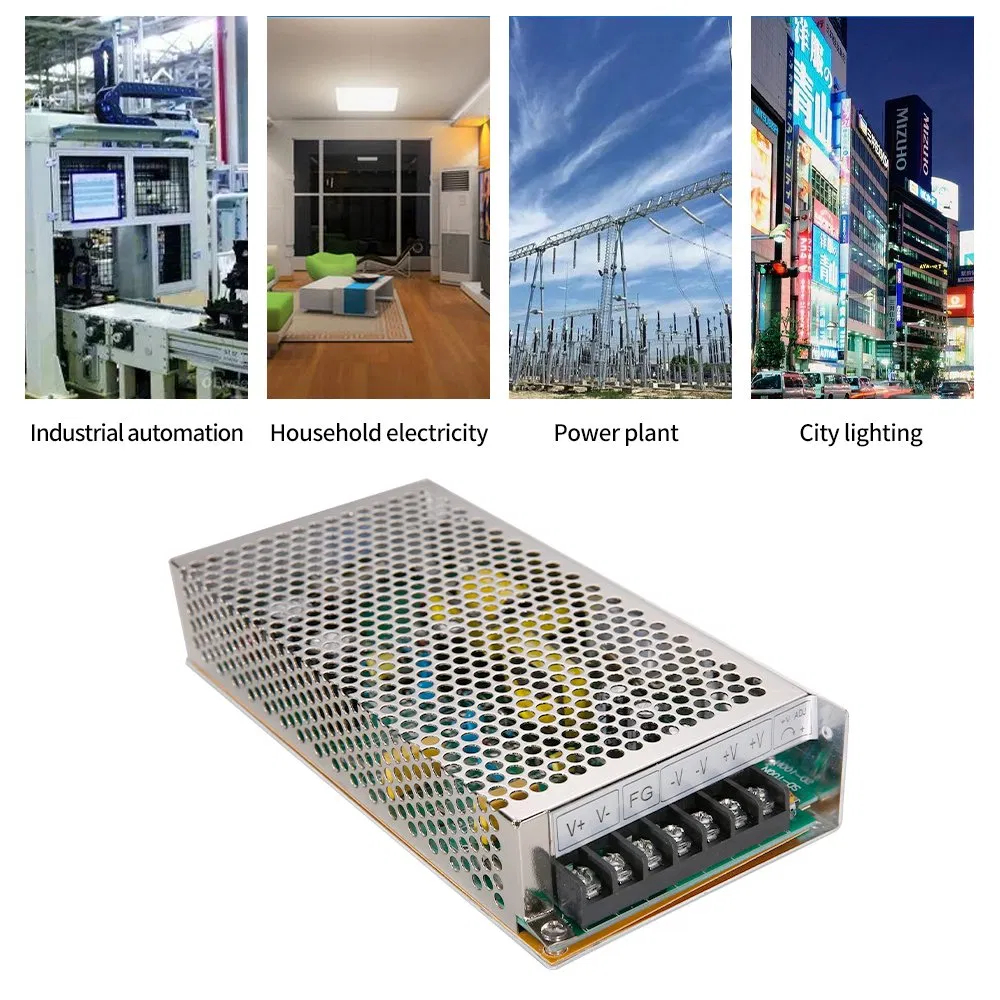

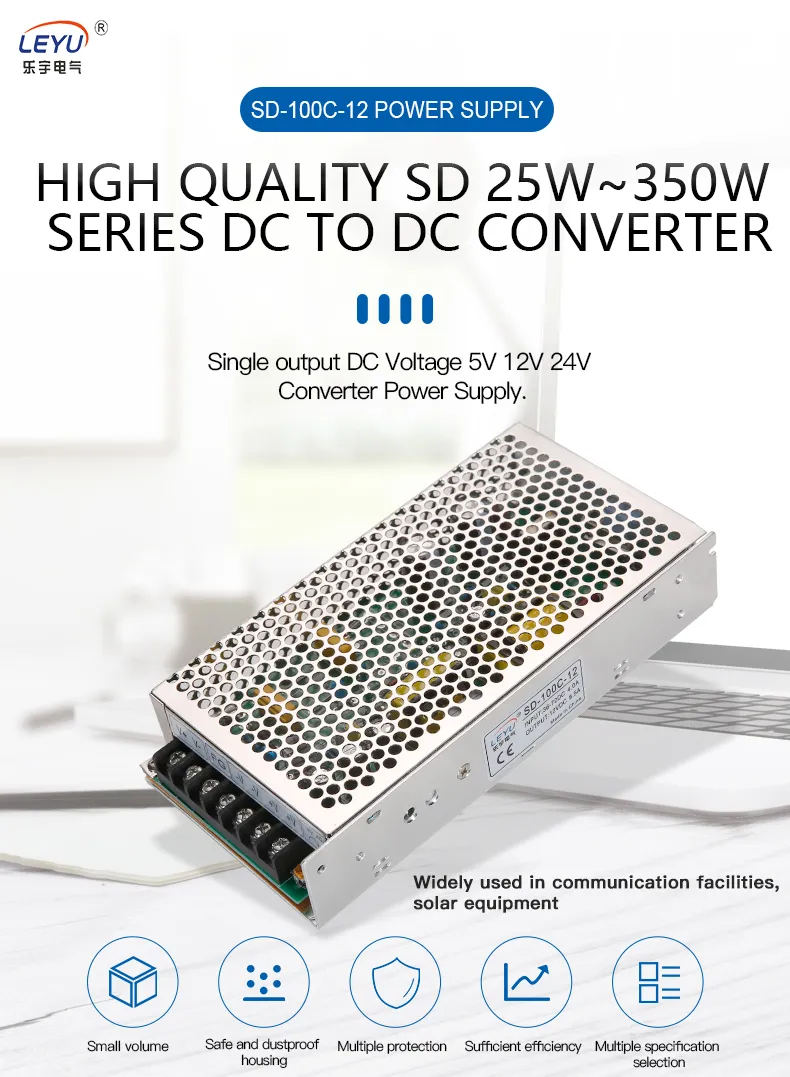

SD-100c-12 Product View

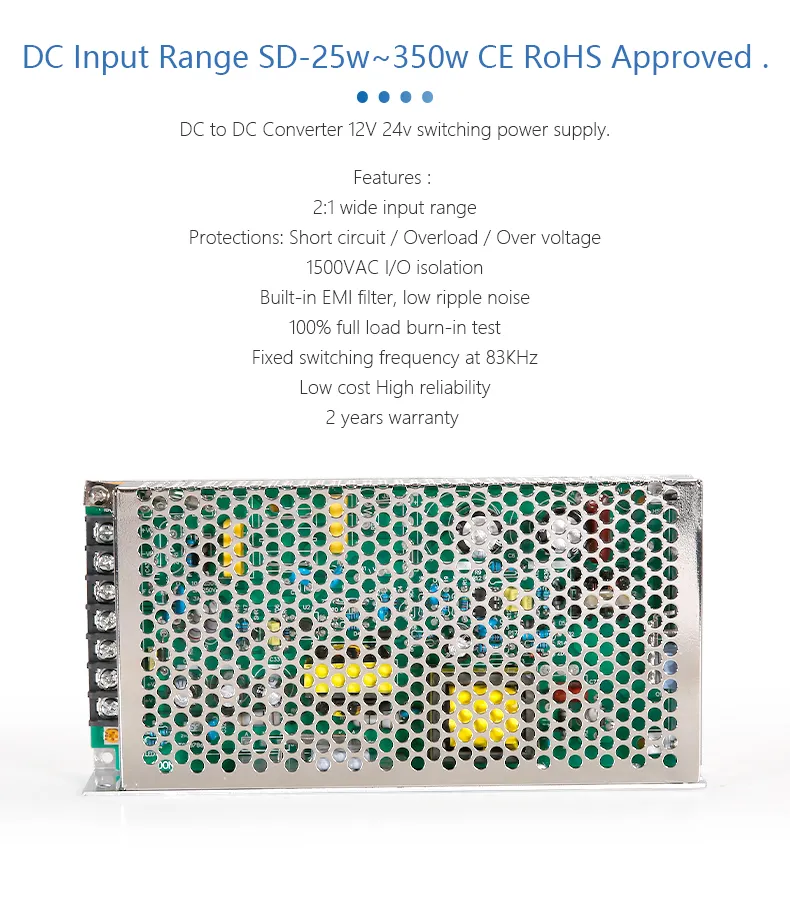

Power Supply Details

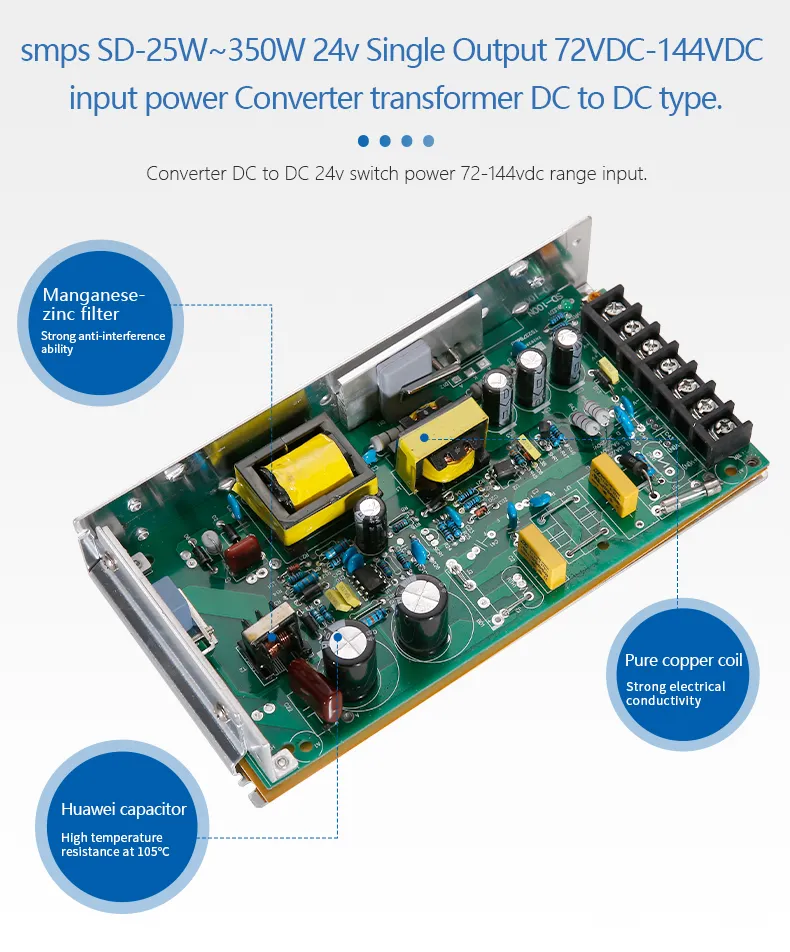

DC DC Converter Specifications

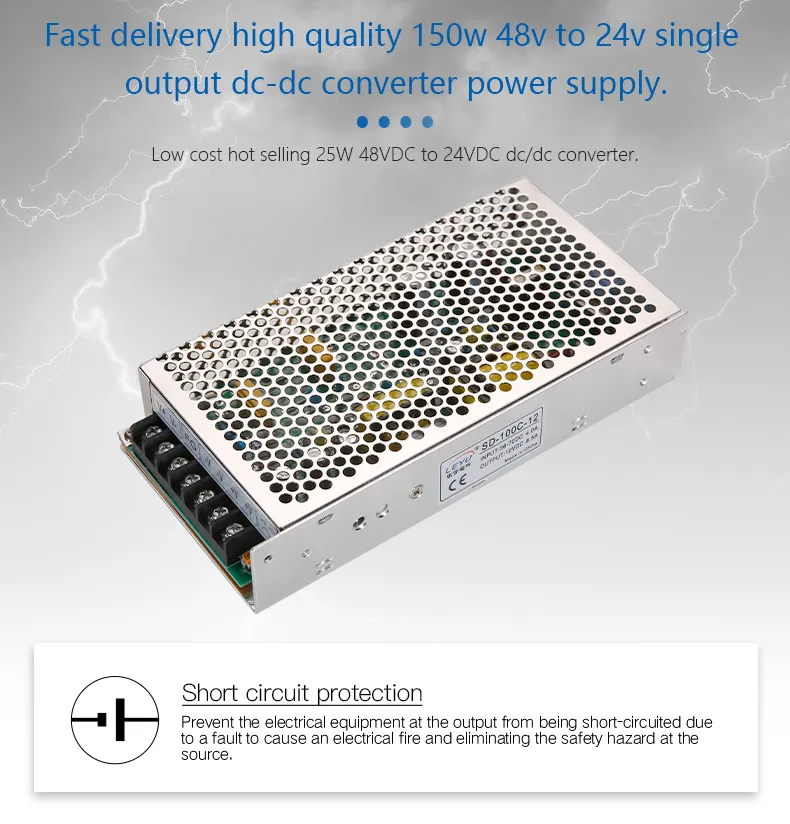

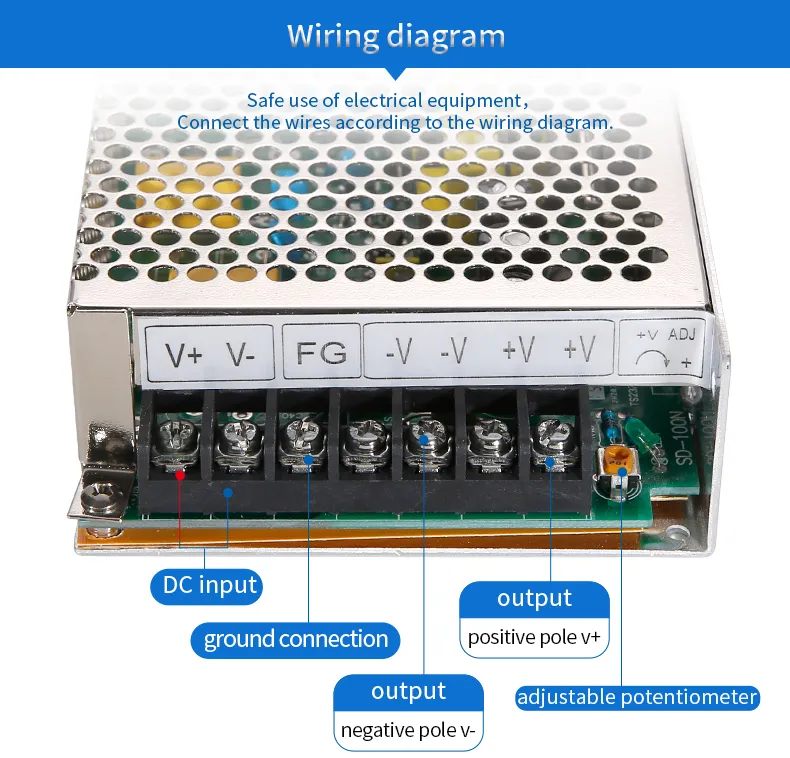

Installation Diagram
Technical Parameters
SPECIFICATION OUTPUT DATA
DC Voltage 5V 12V 24V 48V
Rated Current 20A 8.5A 4.2A 2.1A
Rated Power 100W 102W 100.8W 100.8W
Voltage Range B:19~36VDC | C:36~72VDC | D:72~144VDC
Protections Short Circuit / Overload / Over Voltage
Detailed Performance Images

Notes:
1. All parameters are measured at rated load and 25ºC ambient temperature.
2. Ripple & noise measured at 20MHz bandwidth using a 12" twisted pair-wire.
3. Compliance to EN55022 Class B and EN61000 standards.

Frequently Asked Questions (FAQ)
What are the main protection features of the SD-100C-12?
The unit includes protection against Short Circuit, Overload, and Over Voltage. It uses a hiccup mode that recovers automatically once the fault condition is removed.
Does this DC-DC converter have specific certifications?
Yes, this product is CE, RoHS, and ISO certified, ensuring compliance with international safety and environmental standards.
What is the input voltage range for the "C" type model?
The "C" type model (like SD-100C-12) operates within an input voltage range of 36V to 72V DC.
What is the working temperature range?
The device can operate in temperatures ranging from -10ºC to +60ºC. Please refer to the derating curve for performance at specific temperatures.
Is OEM service available for this power supply?
Yes, OEM customization is accepted for this product series to meet specific project requirements.
What is the modulation system used?
This power supply utilizes Pulse Width Modulation (PWM) for efficient voltage regulation and energy transmission.
