Basic Information
Application
Solar/Wind System Controller
Cooling Method
Intelligent Air Cooling
Battery Range
350 - 450 VDC
Production Capacity
400 Set/Month

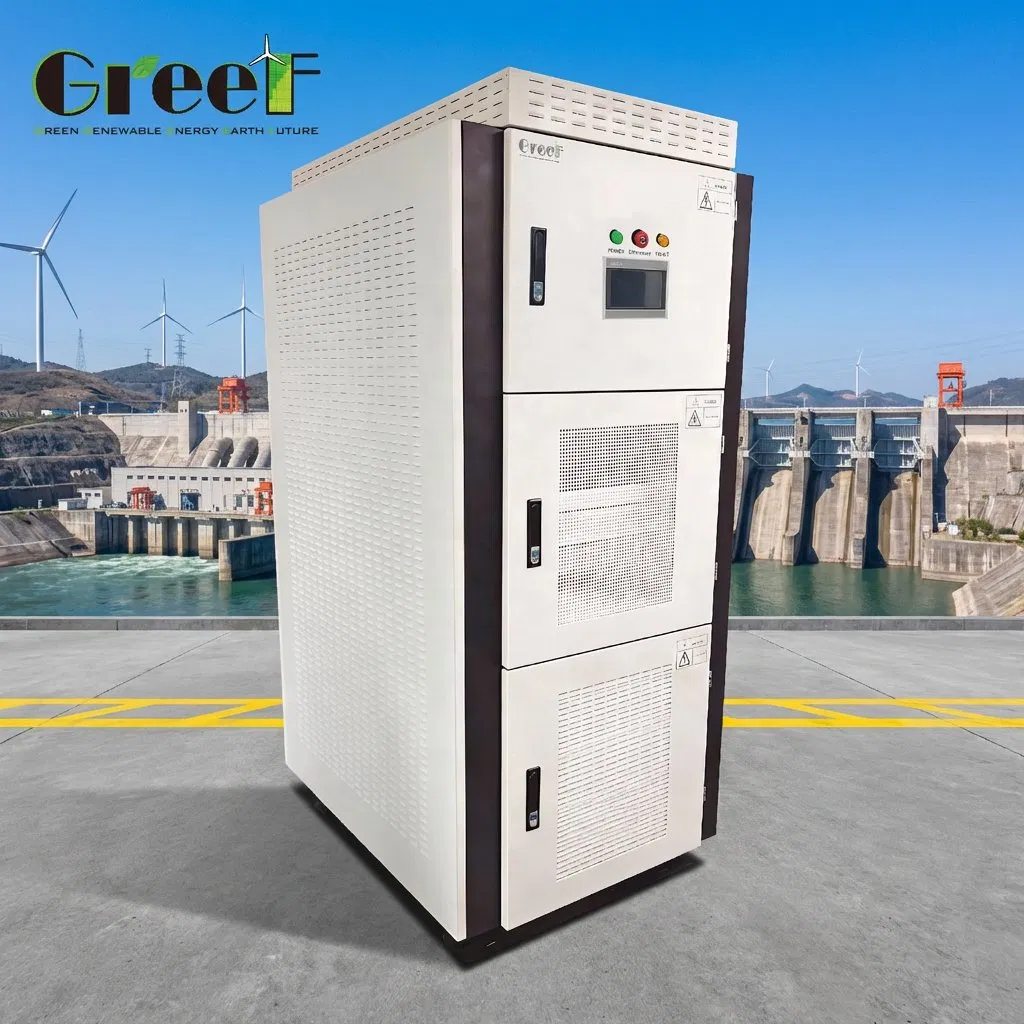

Product Description

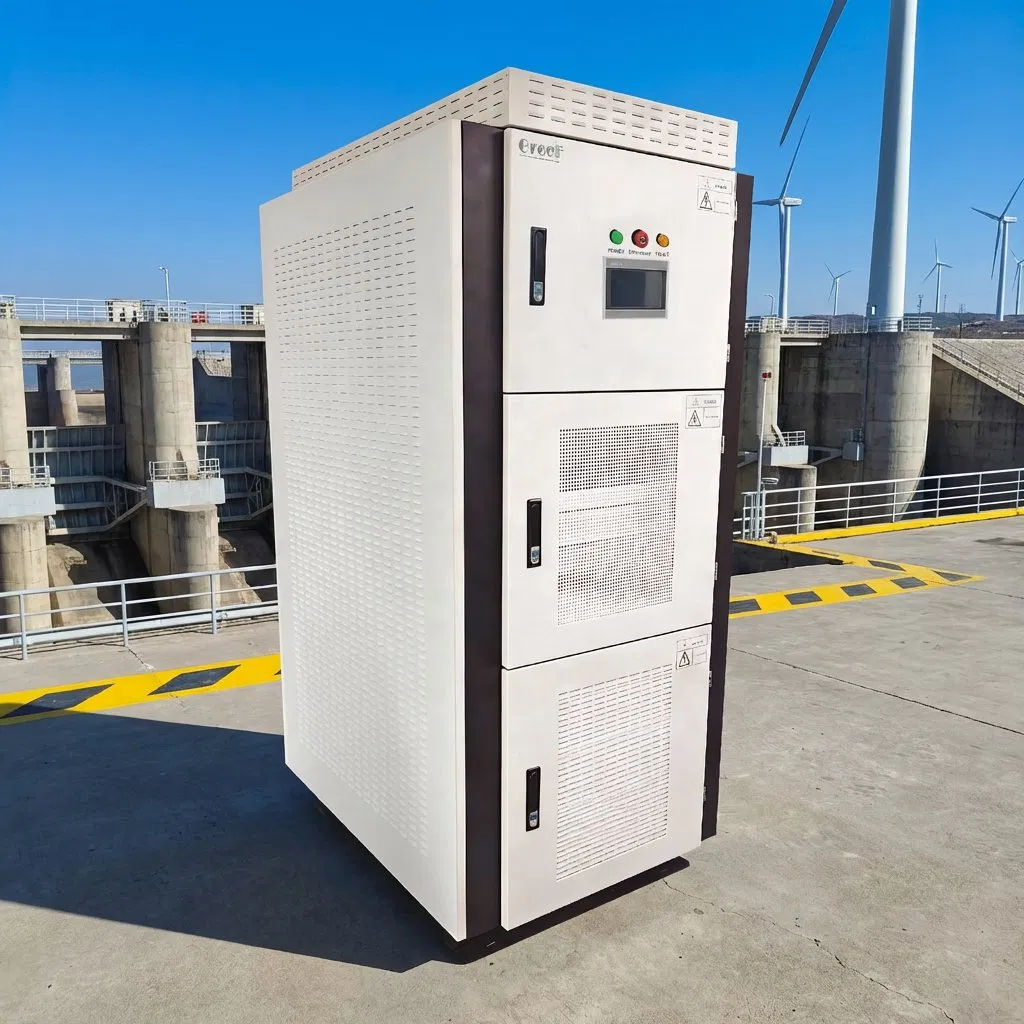

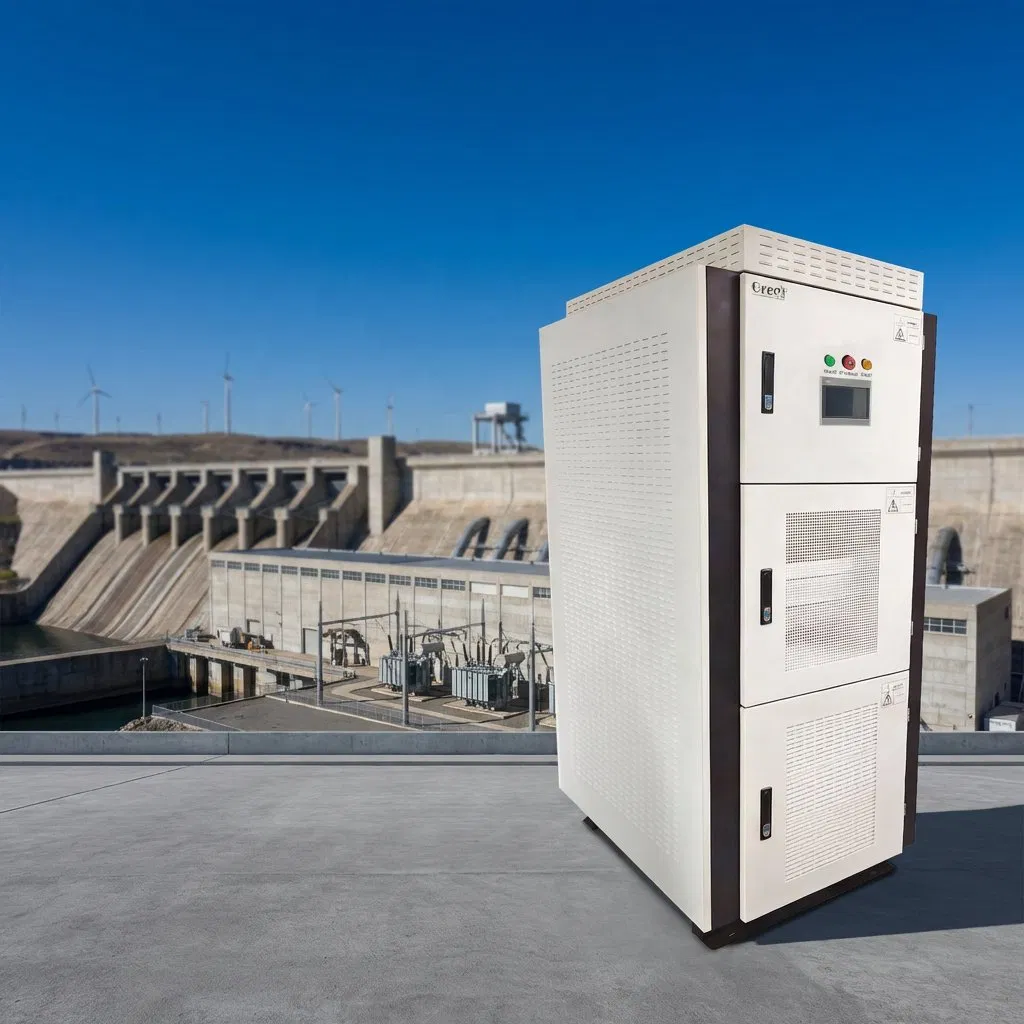

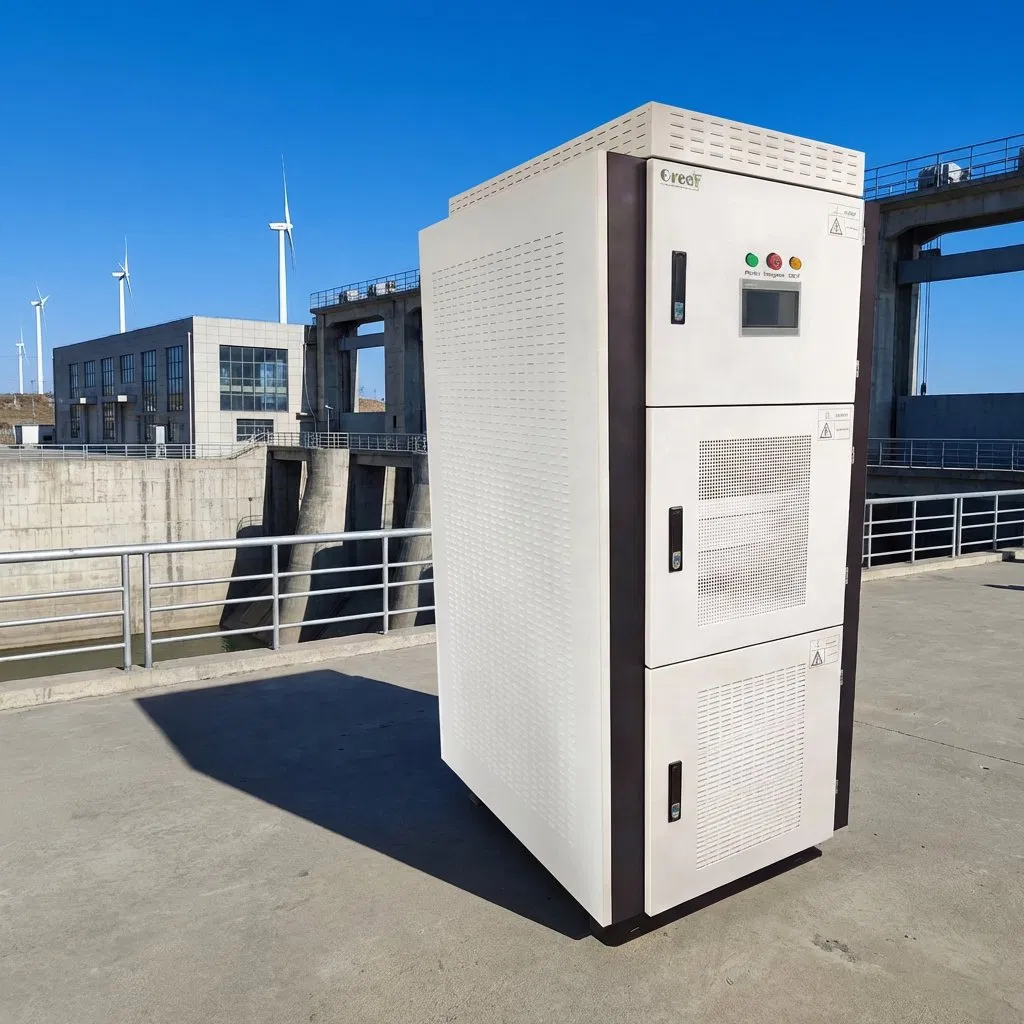

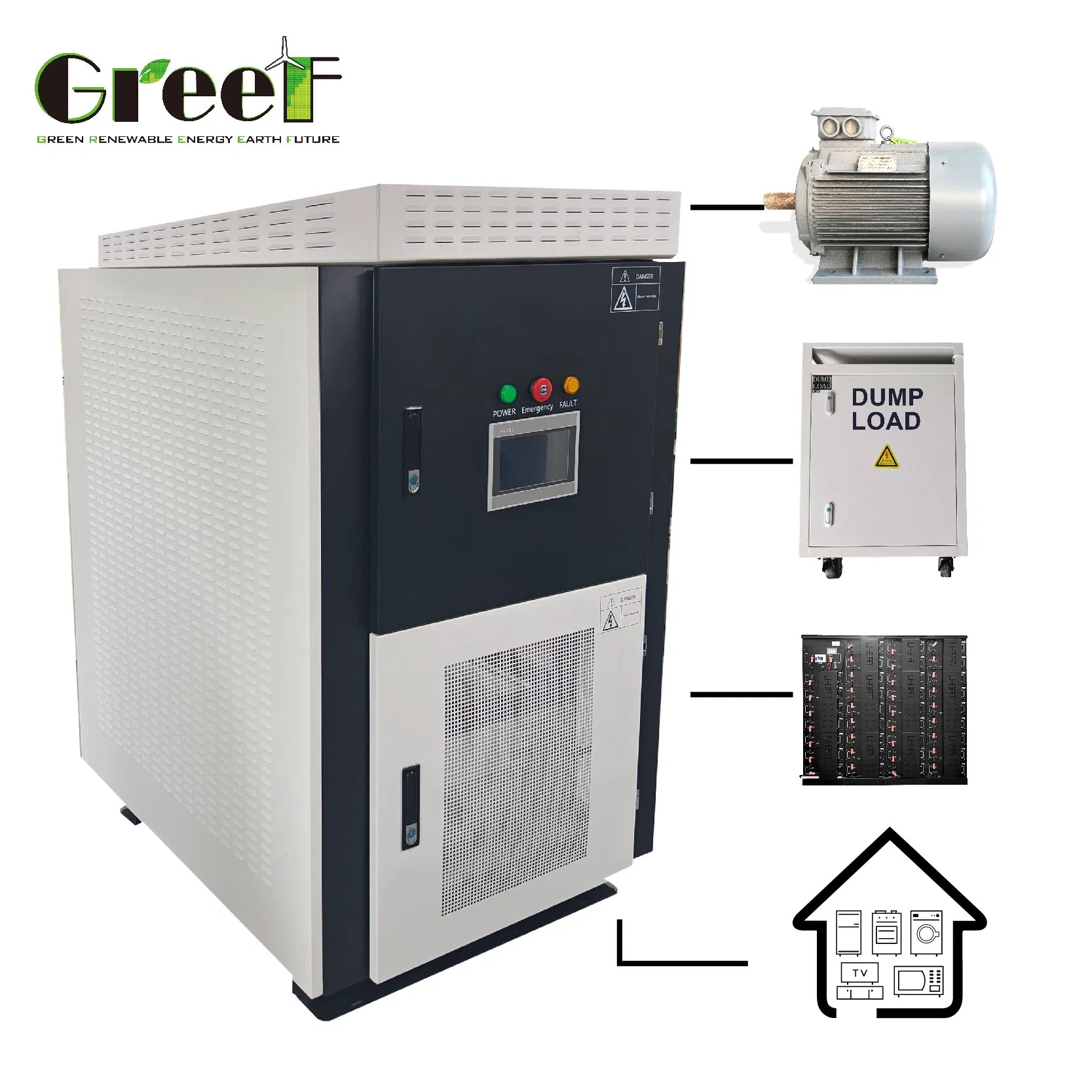

Multi-functional converter integrates AC-to-DC rectification for PM generators, battery charging, DC-to-AC inversion, and an energy management system (EMS). Utilizing advanced technology, it ensures stable voltage and frequency control for PMSGs, providing seamless power supply with grid-tied and grid-charging capabilities.
Product Features
- EMS smart energy management system
- Multiple modes: off-grid, grid-tied, grid charging
- Double LCD smart touch Screen Display
- Generator power curve tracking technology
- AC/DC dual backup for auxiliary power supply
- Standard RS 485 modbus RTU protocol
Technical Parameters
| Model |
ACPCS-100kt |
ACPCS-150kt |
ACPCS-200kt |
ACPCS-300kt |
ACPCS-500kt |
| Generator AC Input |
| Rated Power (kW) | 100 | 150 | 200 | 300 | 500 |
| Rated Voltage (Vac) | ≥240 |
| Battery Input Data |
| Battery Type | Lithium-ion / Customizable |
| Rated Voltage (Vdc) | 400-900 |
| Efficiency & General |
| Max Efficiency | 95% |
| Protection Level | IP20 |

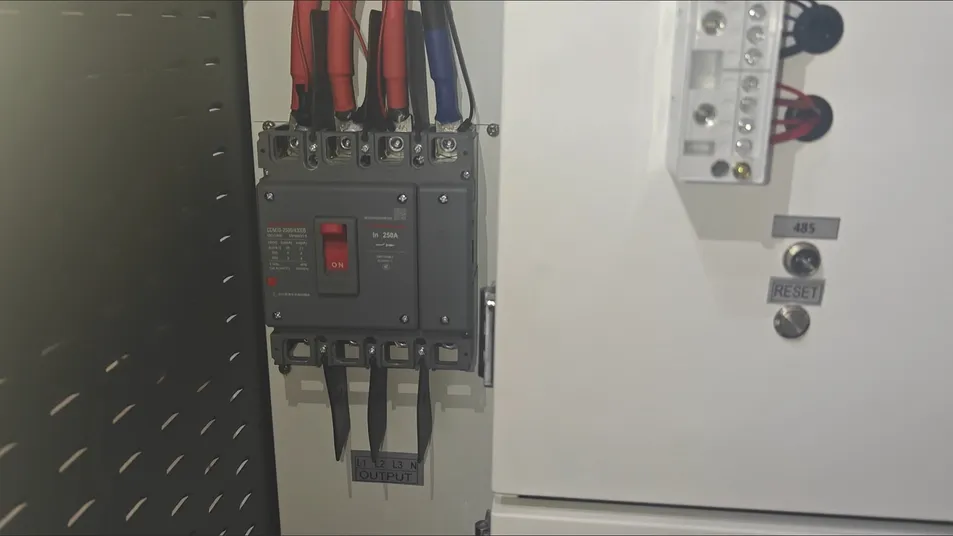

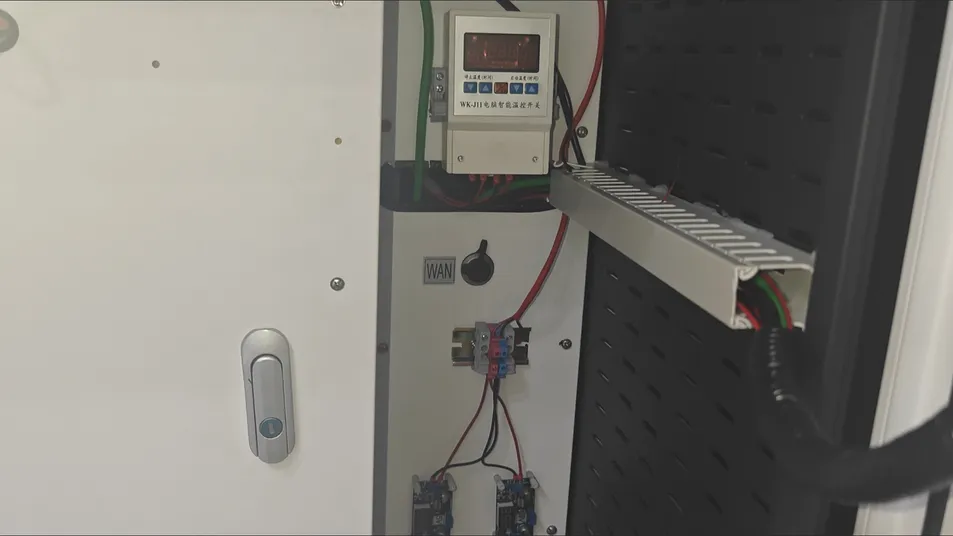

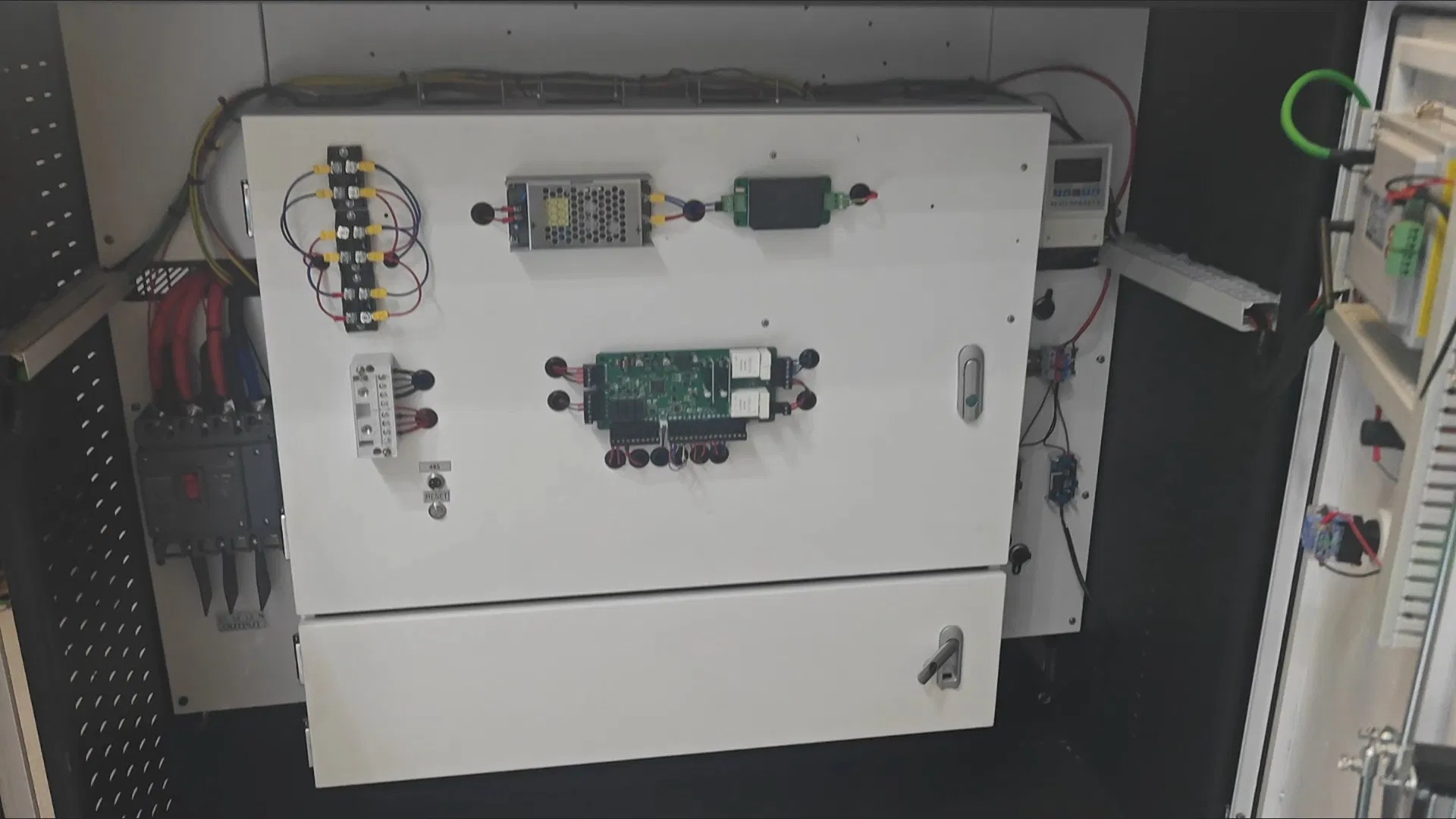

Product Details

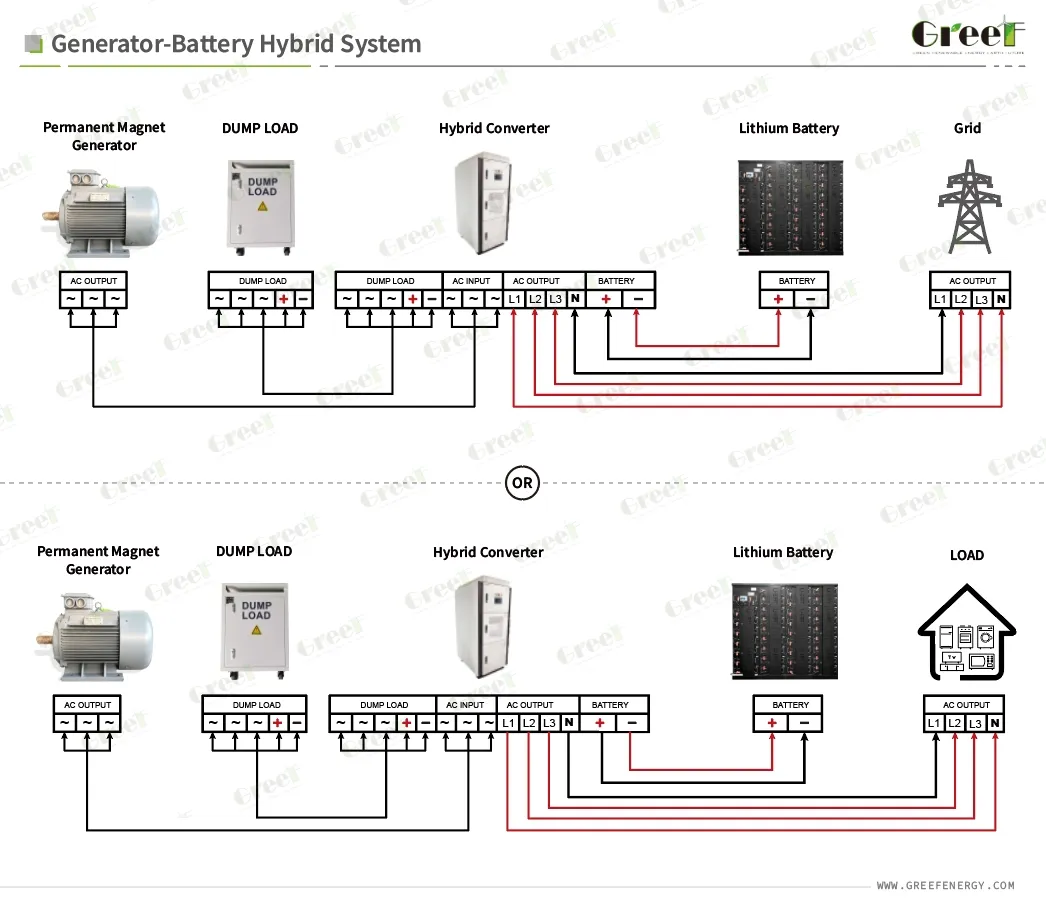

System Solution & Packaging
Why Choose Us
Frequently Asked Questions
Q1: What are the main operating modes of this converter?
It supports off-grid, grid-tied, and grid charging modes, which can be configured based on system requirements.
Q2: Can the battery voltage be customized?
Yes, while the standard range is 400-900VDC, we offer customization to match your specific battery bank requirements.
Q3: Does the system include remote monitoring?
Optional WIFI and LAN modules are available for remote monitoring and control via a dedicated app.
Q4: What kind of protection features are included?
The system includes AC short-circuit protection, overcurrent protection, surge protection (Level 2), and optional over-speed protection.
Q5: Is it compatible with both solar and wind systems?
Yes, it is designed as a multi-functional controller suitable for water heaters, solar systems, wind systems, and general charger control.
