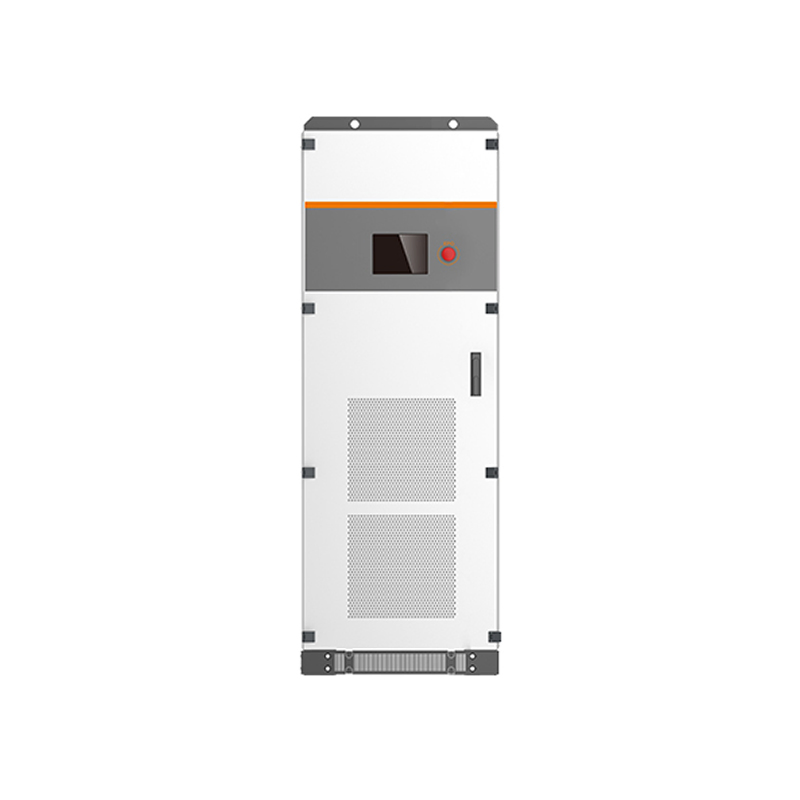

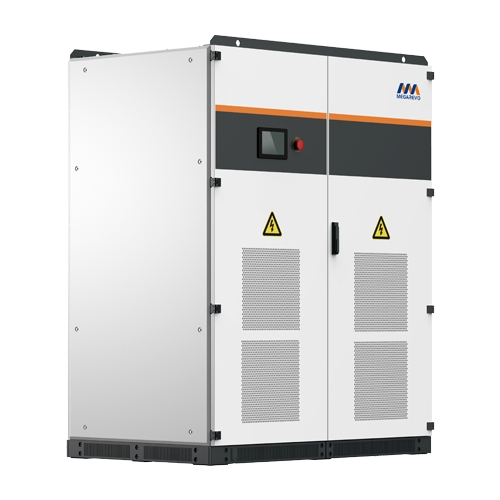

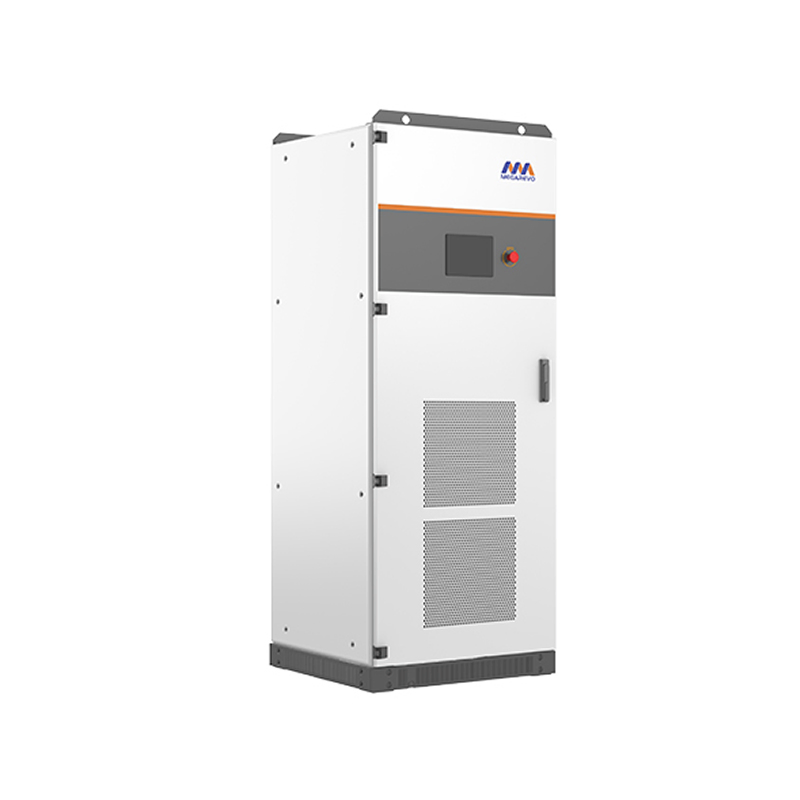

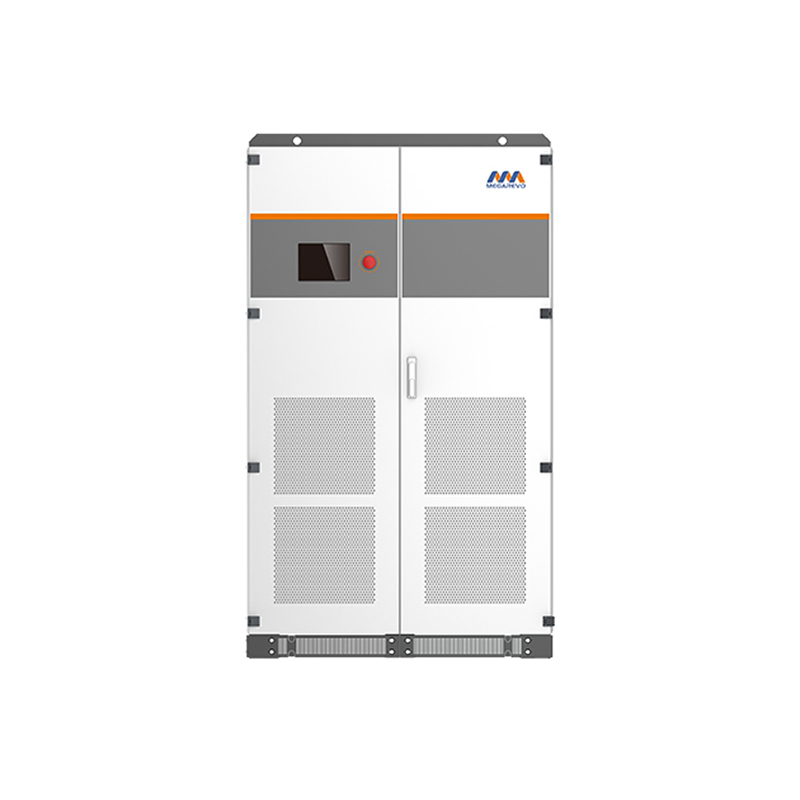

Safe and Reliable Megarevo Mega0050ts PCS 50kw Three-Phase Energy Storage Bi-Directional Converter with Isolation Transformer
Safe and Reliable Megarevo Mega0050ts PCS 50kw Three-Phase Energy Storage Bi-Directional Converter with Isolation Transformer
Safe and Reliable Megarevo Mega0050ts PCS 50kw Three-Phase Energy Storage Bi-Directional Converter with Isolation Transformer
Safe and Reliable Megarevo Mega0050ts PCS 50kw Three-Phase Energy Storage Bi-Directional Converter with Isolation Transformer
Safe and Reliable Megarevo Mega0050ts PCS 50kw Three-Phase Energy Storage Bi-Directional Converter with Isolation Transformer
1 / 5
Safe and Reliable Megarevo Mega0050ts PCS 50kw Three-Phase Energy Storage Bi-Directional Converter with Isolation Transformer
Safe and Reliable Megarevo Mega0050ts PCS 50kw Three-Phase Energy Storage Bi-Directional Converter with Isolation Transformer
Safe and Reliable Megarevo Mega0050ts PCS 50kw Three-Phase Energy Storage Bi-Directional Converter with Isolation Transformer
Safe and Reliable Megarevo Mega0050ts PCS 50kw Three-Phase Energy Storage Bi-Directional Converter with Isolation Transformer
Safe and Reliable Megarevo Mega0050ts PCS 50kw Three-Phase Energy Storage Bi-Directional Converter with Isolation Transformer

Safe and Reliable Megarevo Mega0050ts PCS 50kw Three-Phase Energy Storage Bi-Directional Converter with Isolation Transformer

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📊 Basic Info.
Model NO.
MEGA0050TS
Product Name
Power Conversion System PCS
Output Power
50kw
Grid Type
off-Grid Inverter
Output Type
Triple
Circuit Topologies
Full-Bridge Type
Wave Form
Sine Wave Inverter
Protection Class
IP21
Display
LCD Touch-Screen
Cooling
Forced Air
📝 Product Description

Safe and reliable MEGA0050TS PCS 50kw Three-Phase Energy Storage Bi-Directional Converter With Isolation Transformer

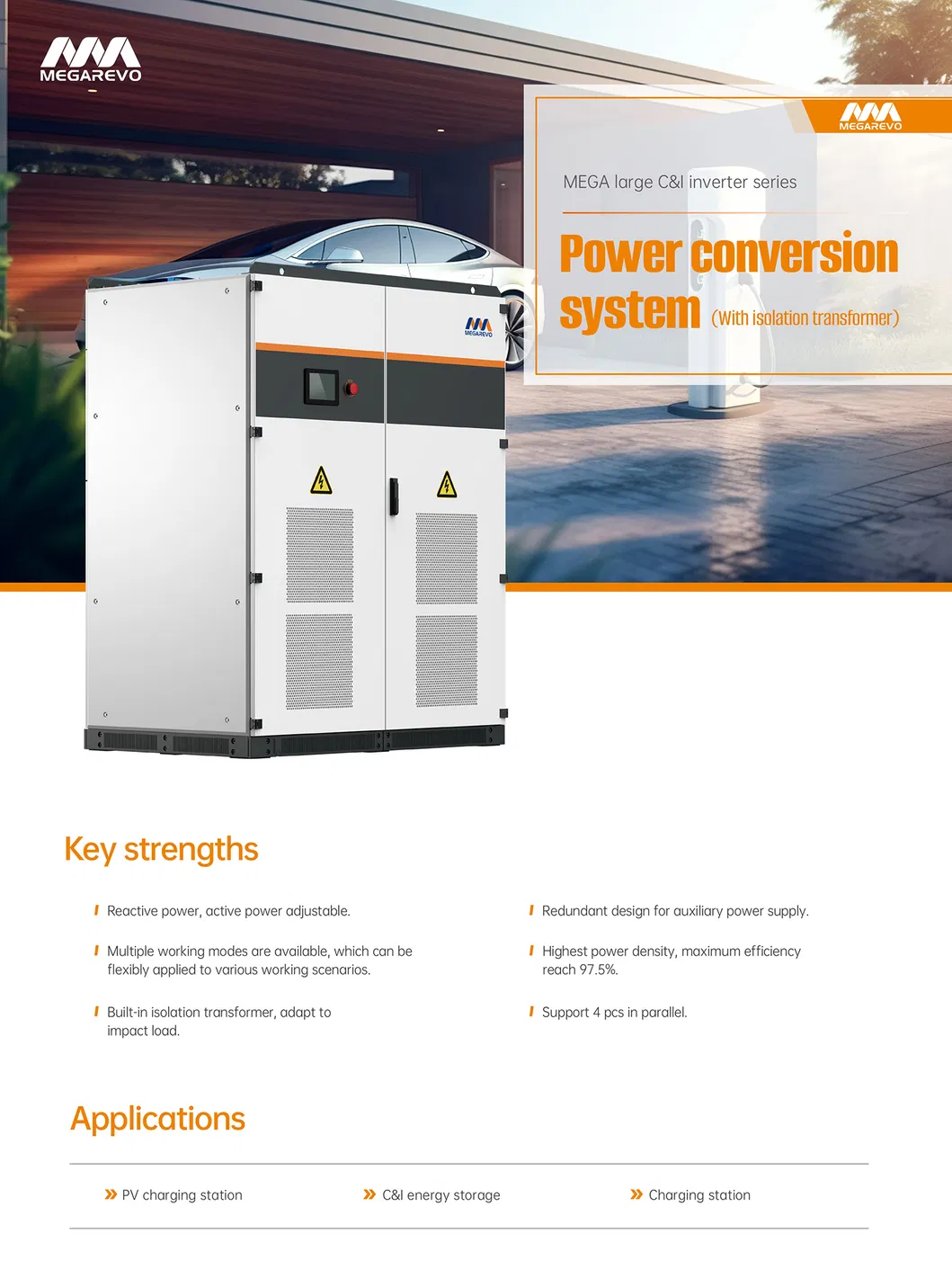

PCS 50kw Energy Storage Converter
⚙️ Product Parameters

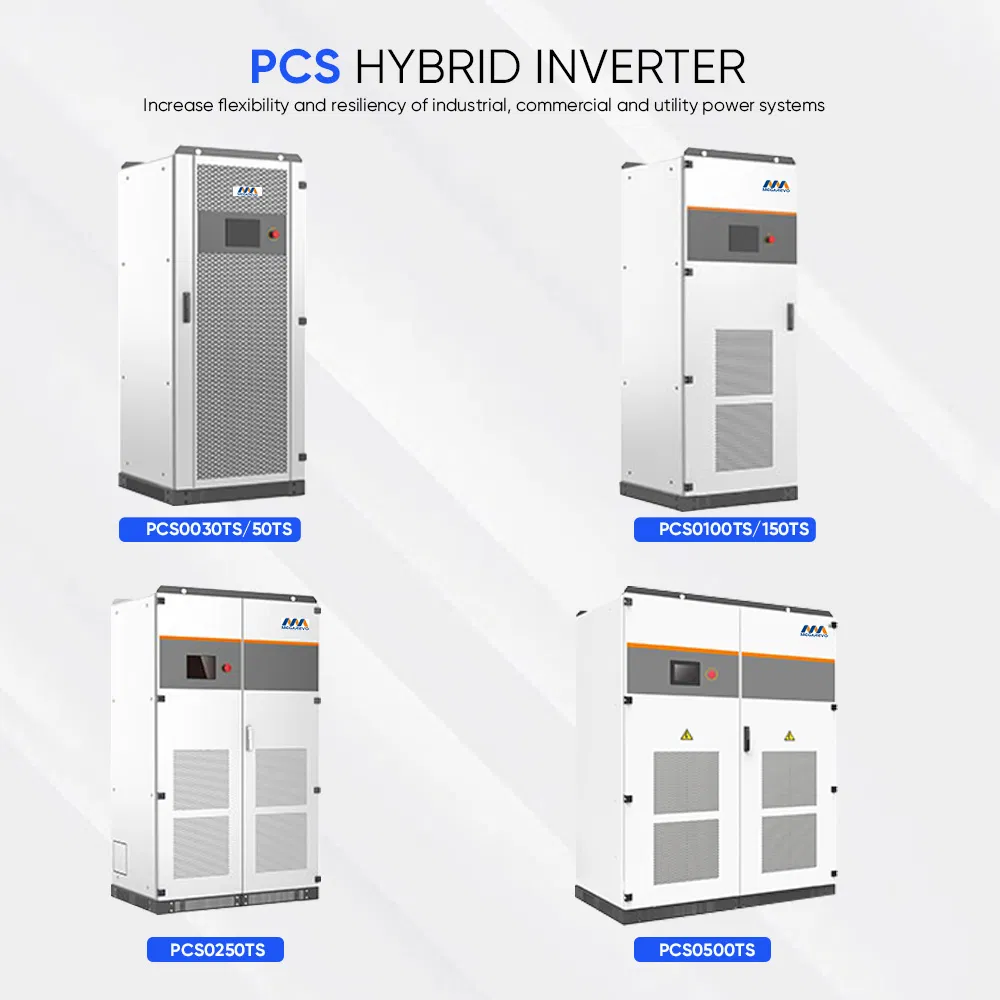

Model MEGA0030TS MEGA0050TS MEGA0100TS MEGA0150TS MEGA0250TS MEGA0500TS
DC (Battery)
Voltage range (V)250~850320~850420~850420~850420~850500~850
Max. Current (A)1371782704056731,128
AC (On-grid)
Rated power (kW)3050100150250500
Rated voltage (V)400
Rated current (A)4372144216361722
General Data
Max.efficiency96.3%96.5%97.1%97.1%97.3%97.5%
Dimension (mm)800*800*1,9001,200*800*2,0501,600*1,050*2,050
🔌 Basic System Architecture

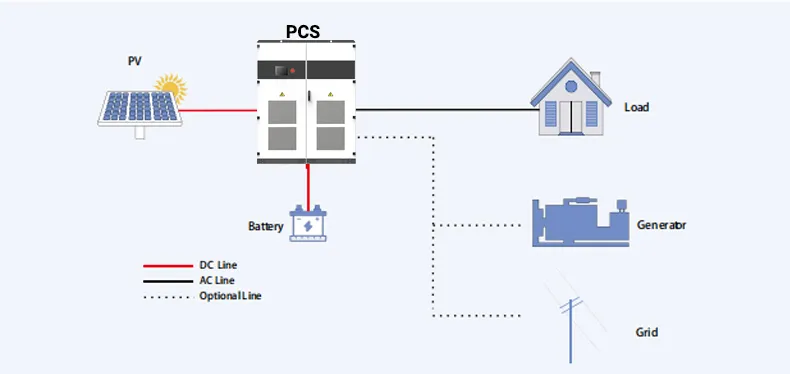

System Architecture
📦 Packaging & Shipping
Package Size
90.00cm * 90.00cm * 200.00cm
Gross Weight
720.000kg

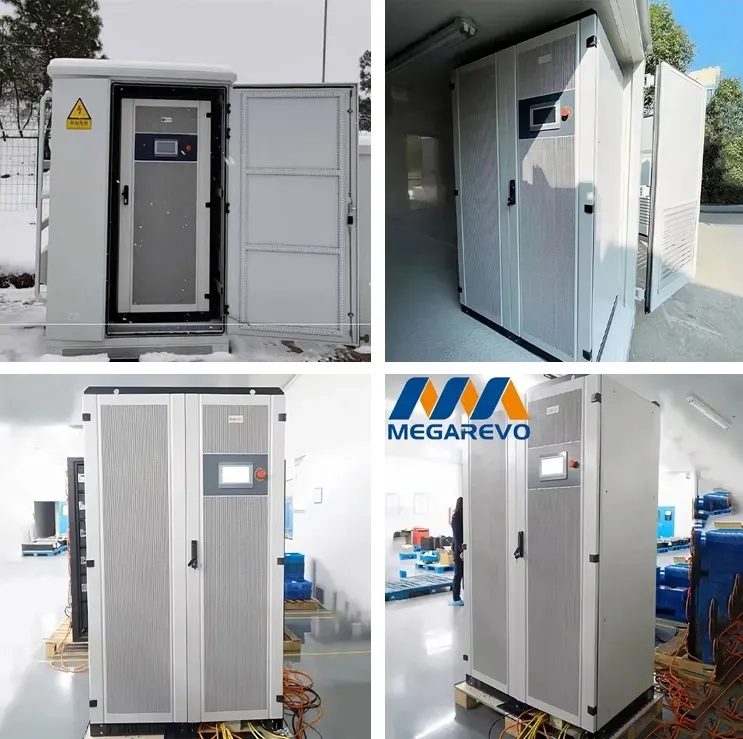

Packaging
🏆 Project Case

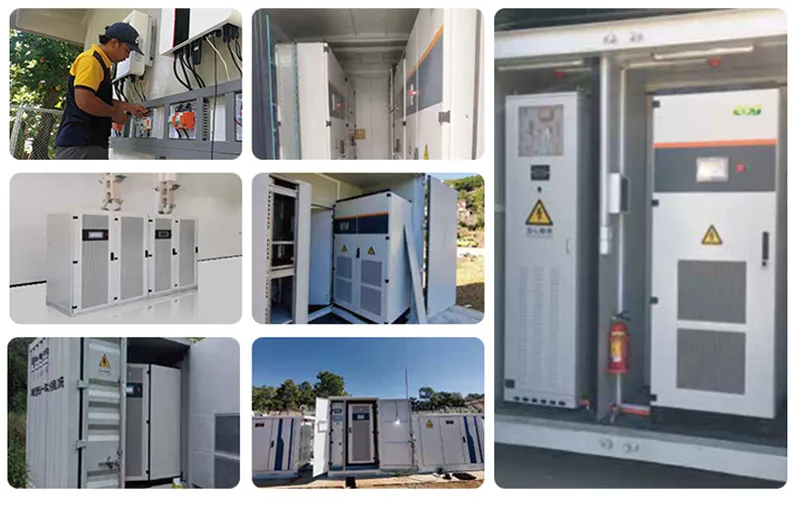

Project Case
Frequently Asked Questions
🔹 What is the main function of the MEGA0050TS PCS?
It is a 50kw Three-Phase Energy Storage Bi-Directional Converter designed to convert power between DC (batteries) and AC (grid/load) with high efficiency and reliability.
🔹 Does this system support automatic grid switching?
Yes, the system features automatic On/Off grid switching, ensuring seamless power transition during grid failures.
🔹 What protection rating does the enclosure have?
The converter is rated at IP21, making it suitable for indoor installation with protection against solid objects and vertical water drops.
🔹 What are the communication protocols supported?
The system supports RS485 and CAN for BMS communication, and RS485/TCP/IP for EMS communication.
🔹 What is the maximum efficiency of these converters?
Depending on the specific model, the maximum efficiency ranges from 96.3% up to 97.5% for larger units.
🔹 Is an isolation transformer included?
Yes, this series includes a built-in isolation transformer to ensure safety and equipment protection.
