📋 Basic Specifications
Certification
TUV, RoHS, ISO9001, CCC, CE, Ukca, UL
Interface
USB Type-A / Plug In
Safety Standard
IEC/EN/UL 60601-1, 2×MOPP
Protection
Short Circuit, Over-Current, Over-Voltage
🛡️ Product Description

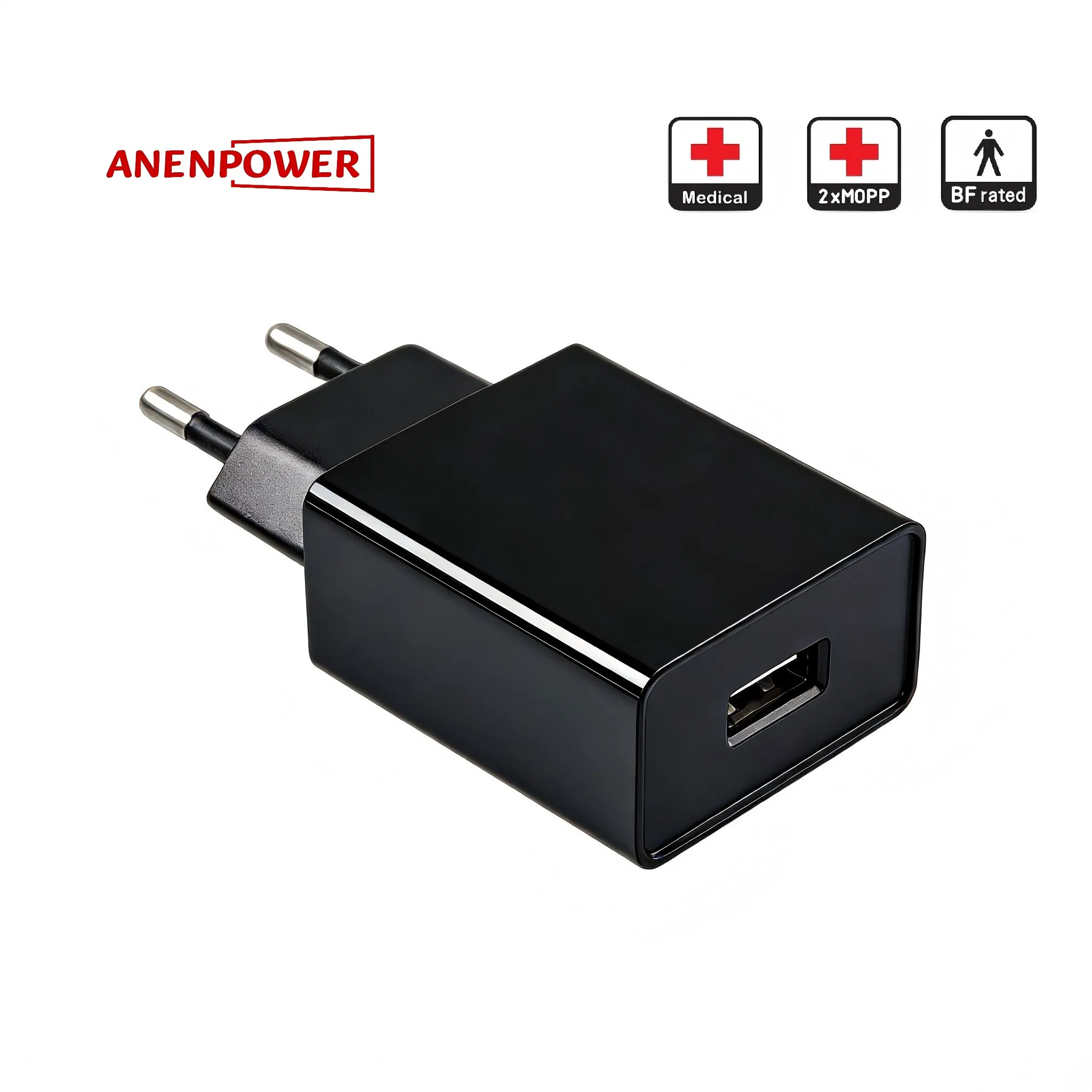

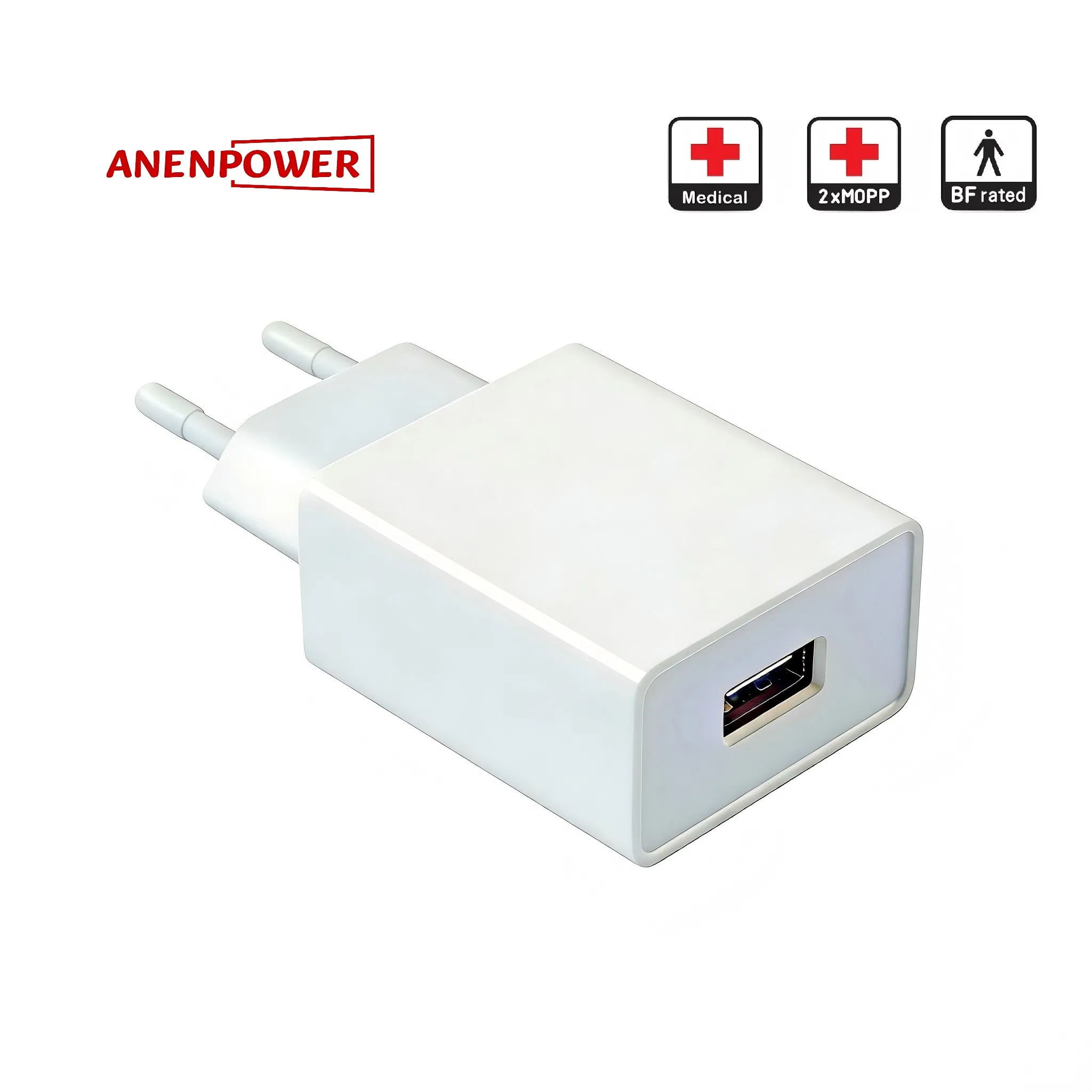

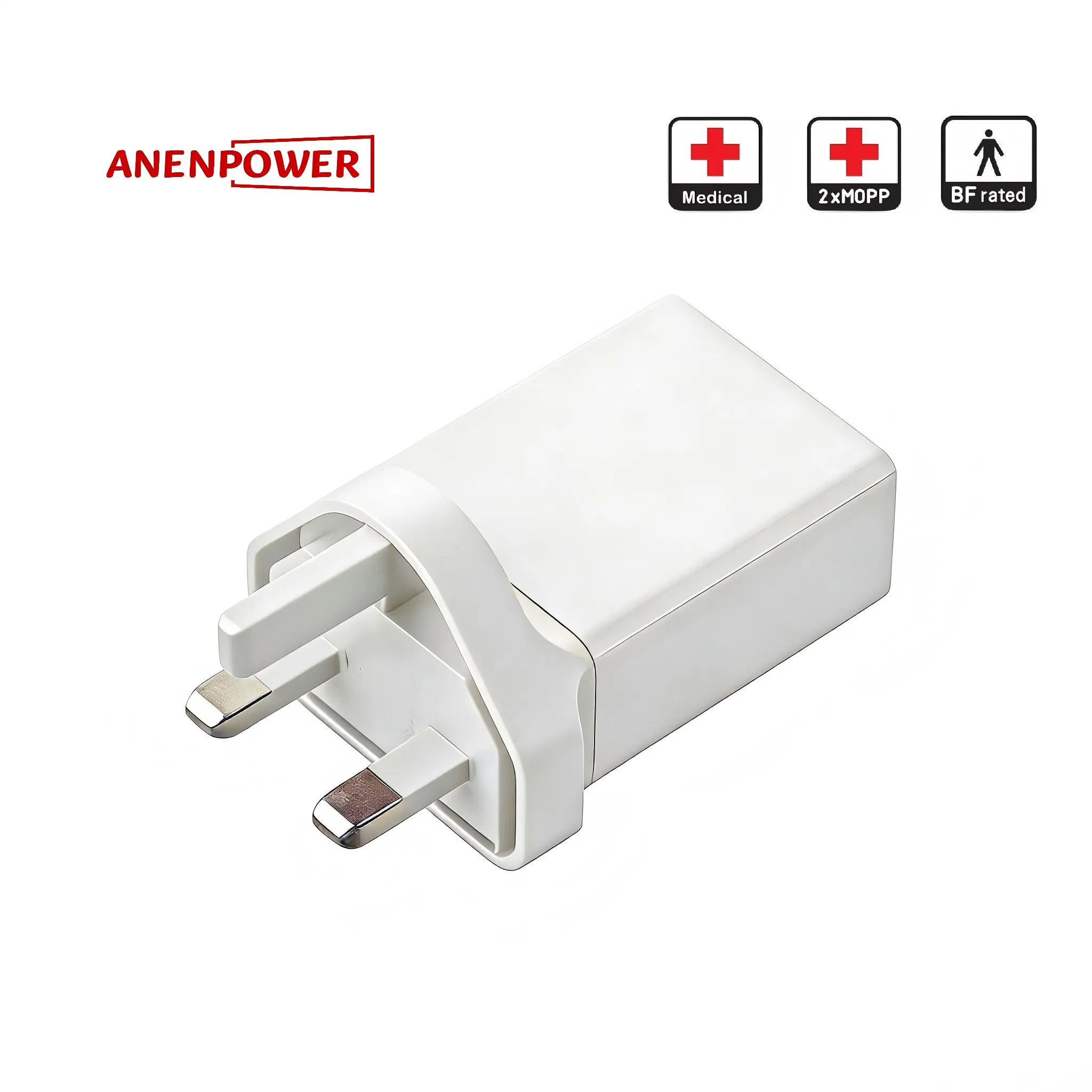

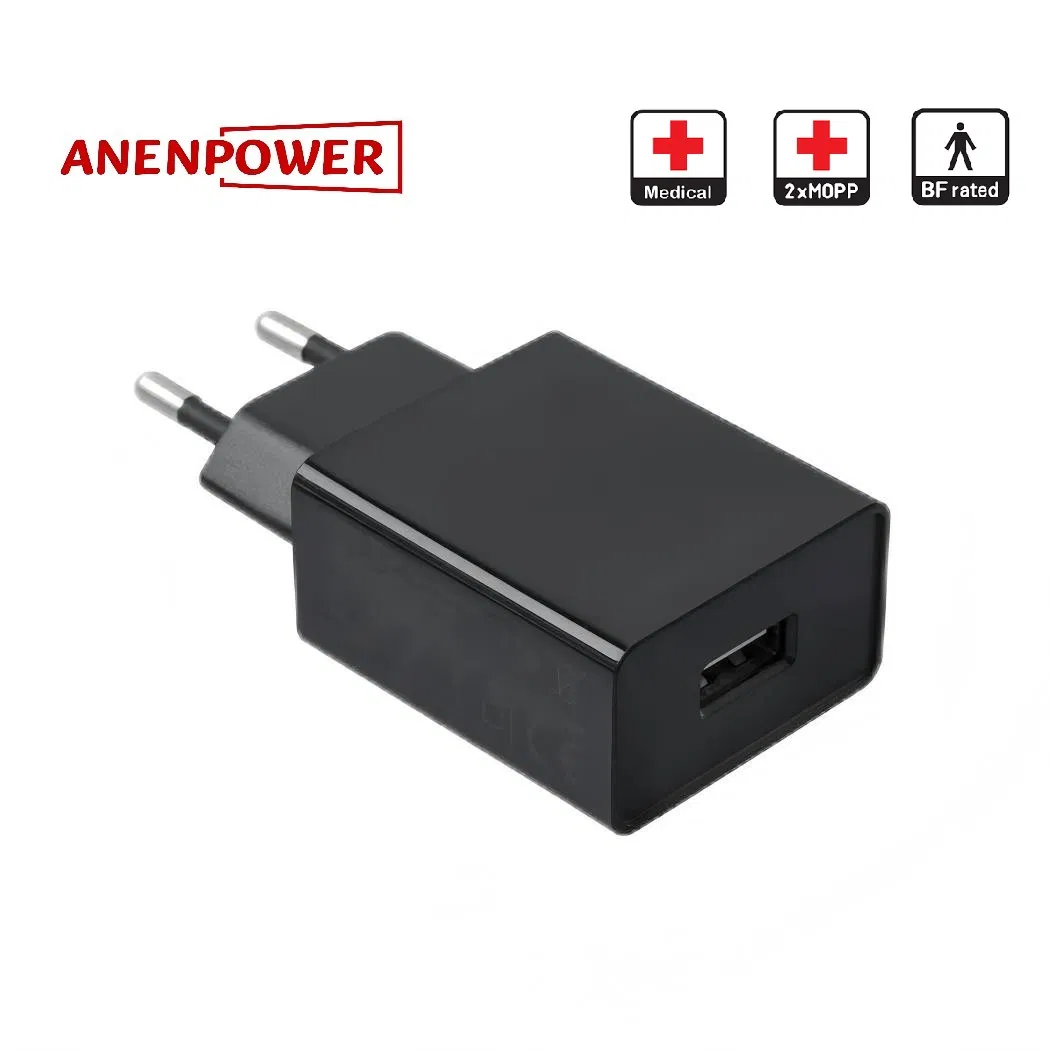

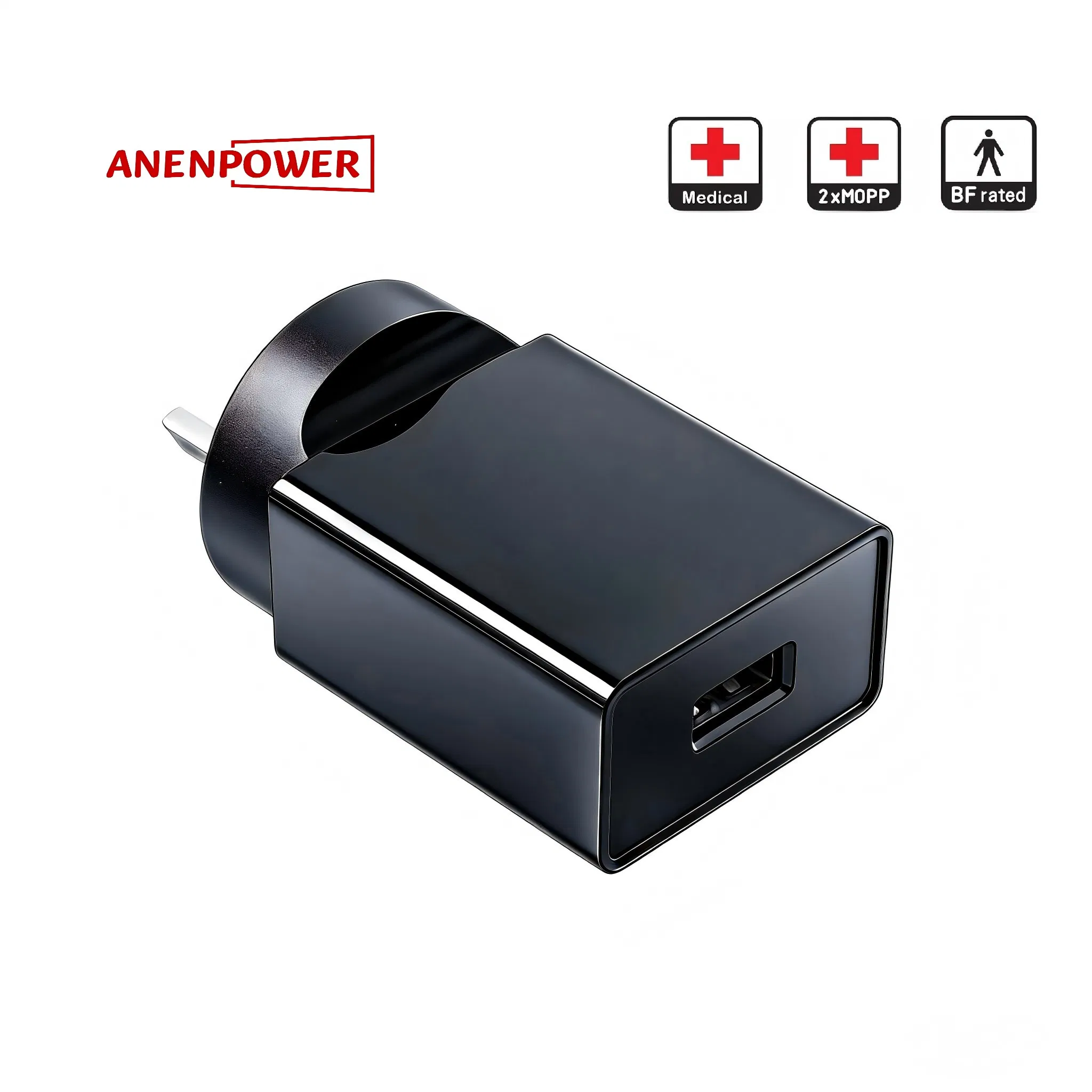

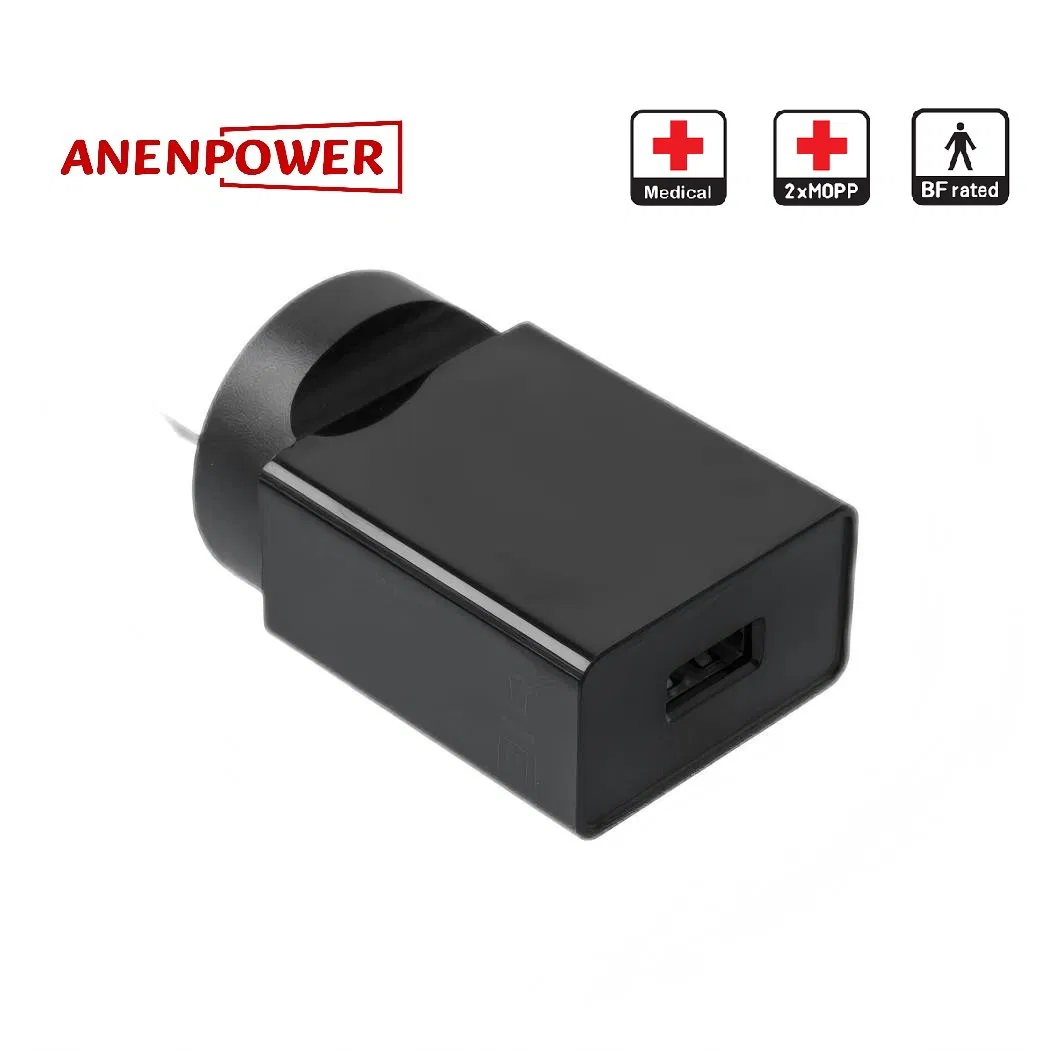

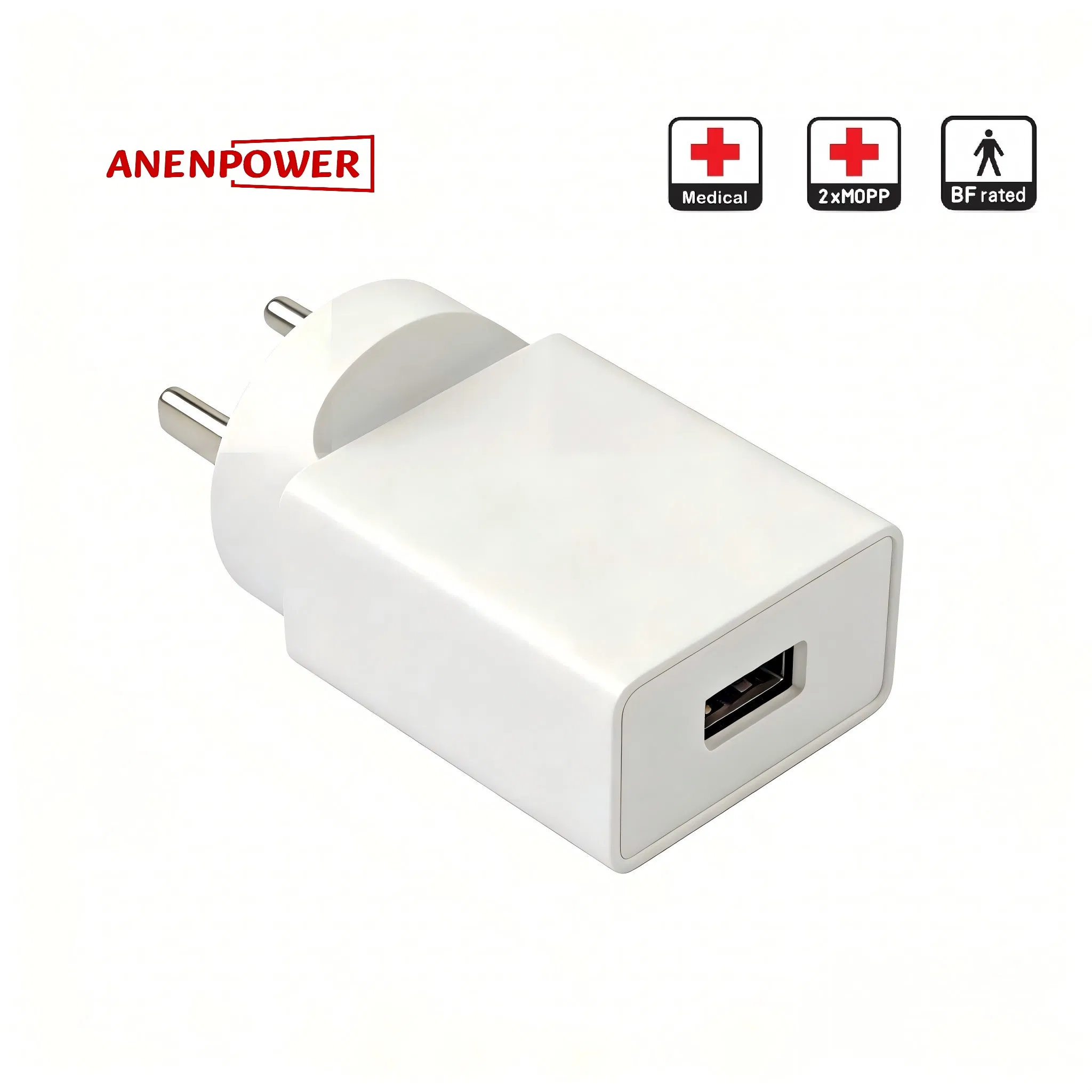

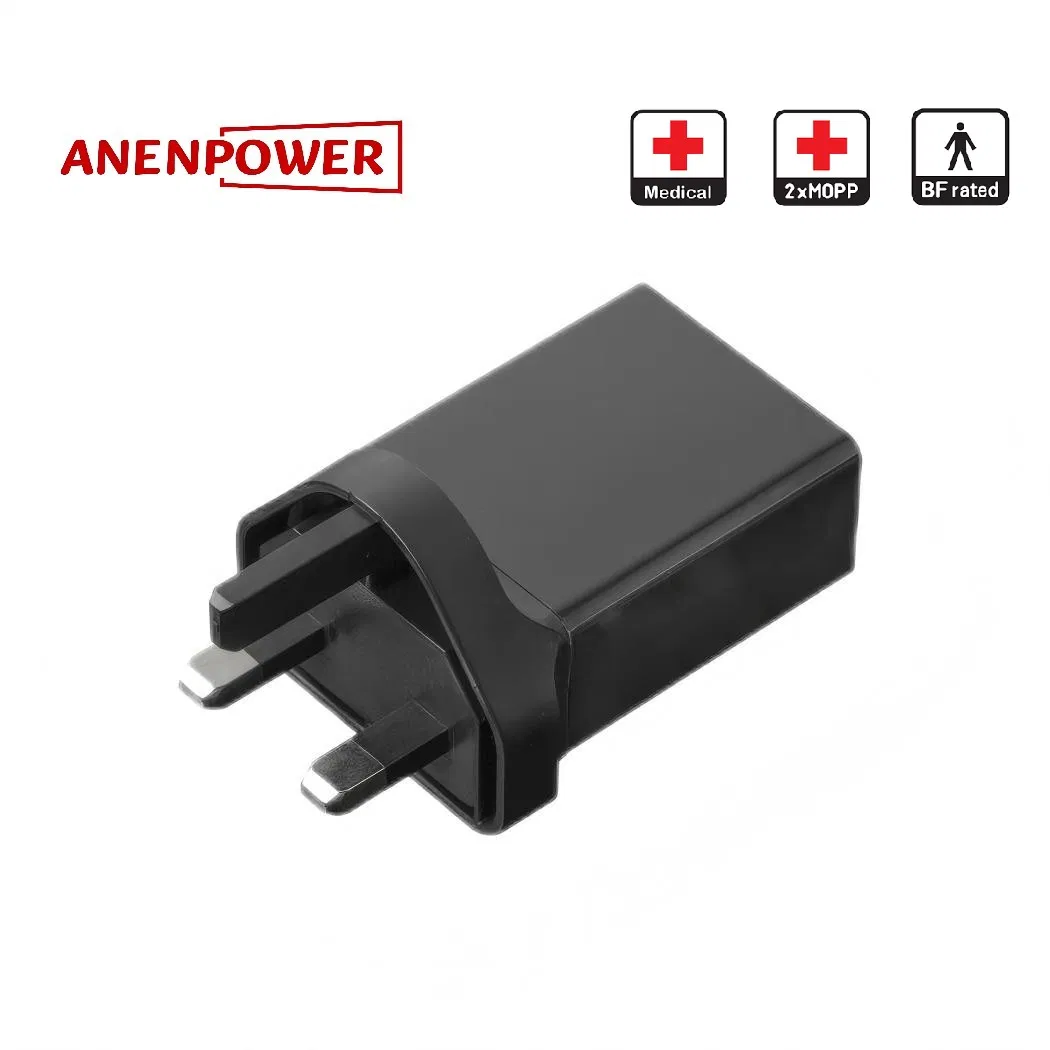

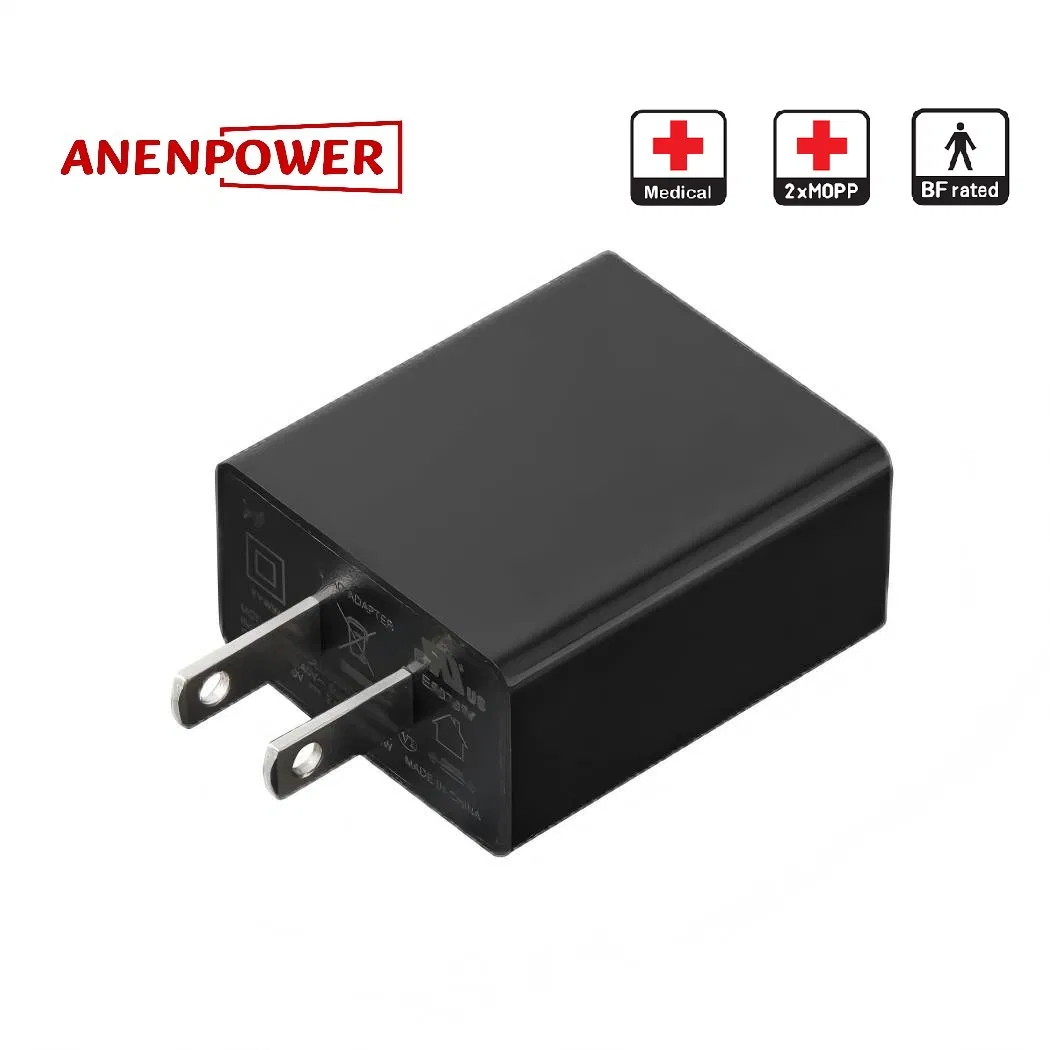

10W Medical Grade USB AC/DC Power Adapter
This compact medical power adapter is engineered for low-power healthcare devices requiring the highest level of electrical safety and isolation. Certified to IEC/EN 60601-1 with 2×MOPP, it ensures maximum safety for patient-connected devices (BF and CF applied parts).
⭐ Critical Features
- IEC/EN 60601-1 Certification: Compliant with 4th Edition EMC standards for hospital use.
- 2×MOPP Insulation: Patient leakage current <10µA; Reinforced isolation (4,000VAC).
- Energy Efficiency: Level VI compliant with <0.15W no-load power.
- Universal Connectivity: Standard USB Type-A port for portable medical devices.
| Model |
Max Power |
Output |
Max Load |
Regulation |
Ripple & Noise |
| APM010KA | 5W | 5V | 1.0A | ±5% | 100mV |
| APM010KC | 10W | 5V | 2.0A | ±5% | 100mV |
| APM010KE | 6W | 12V | 0.5A | ±5% | 100mV |
| APM010KH | 10W | 24V | 0.42A | ±5% | 100mV |
🚀 Manufacturing Advantages

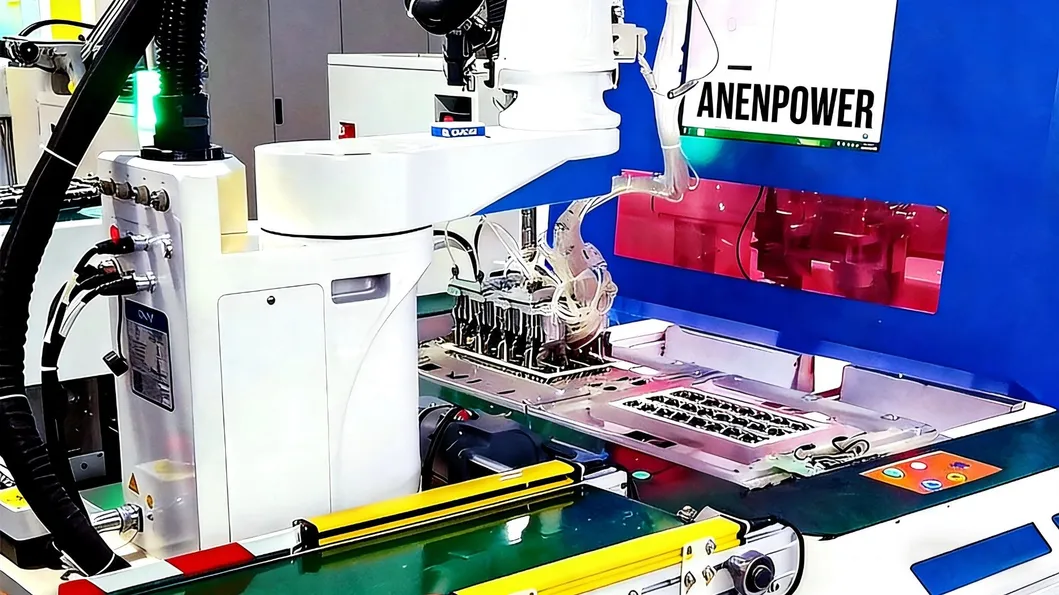

1. Automated Efficiency: 24/7 fully automated production lines ensure high-volume delivery cycles.
2. Premium Quality: Robotic precision eliminates human error, providing stable voltage and current.
3. Global Compliance: Full traceability meeting CE, UL, and international market requirements.
🏥 Ideal Healthcare Applications
- Monitoring: Pulse oximeters, blood pressure cuffs, glucose meters.
- Therapeutic: Portable nebulizers, TENS units, wearable infusion pumps.
- Diagnostics: Digital stethoscopes, ultrasound probe chargers.
- Medical IT: Charging stations for clinical tablets and nurse call handsets.
❓ FAQ - Frequently Asked Questions
🔹 What does 2×MOPP mean for this adapter?
2×MOPP (Means of Patient Protection) signifies a reinforced insulation system that meets the highest safety standards for devices in direct contact with patients, ensuring ultra-low leakage current.
🔹 Is this adapter compatible with global power grids?
Yes, it features a universal input of 100-240V AC at 50/60Hz, making it suitable for use in any country with the appropriate plug adapter.
🔹 Can I use this for non-medical sensitive equipment?
Absolutely. While designed for medical standards, its low ripple (<80mVp-p) and high stability make it excellent for precision lab instruments and IT equipment.
🔹 What is the warranty period for the APM series?
We provide a 24-month warranty covering any defects in materials or workmanship under standard operating conditions.
🔹 Does it meet the latest energy efficiency requirements?
Yes, it is fully compliant with DoE Level VI and EU Ecodesign standards, featuring over 82% efficiency and minimal standby power loss.
🔹 What cooling method does the adapter use?
The adapter uses natural convection cooling (fanless design), ensuring silent operation which is critical for clinical and hospital environments.
