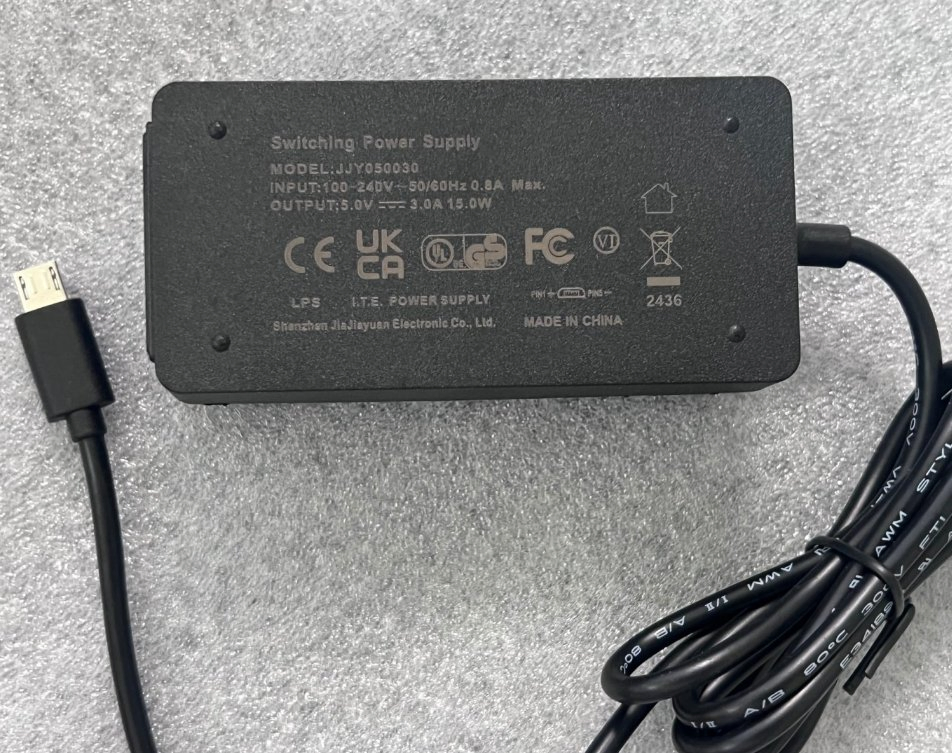

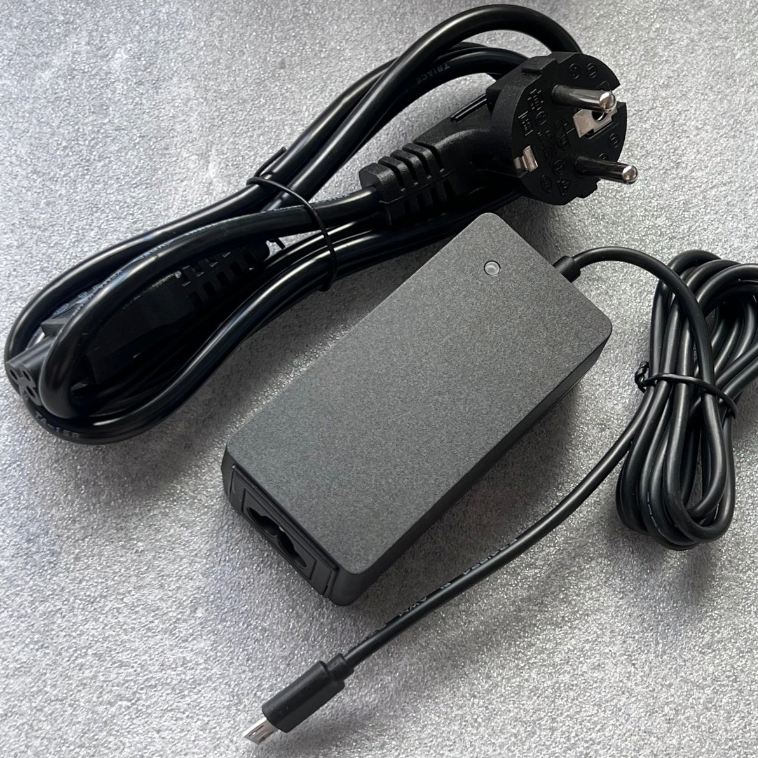

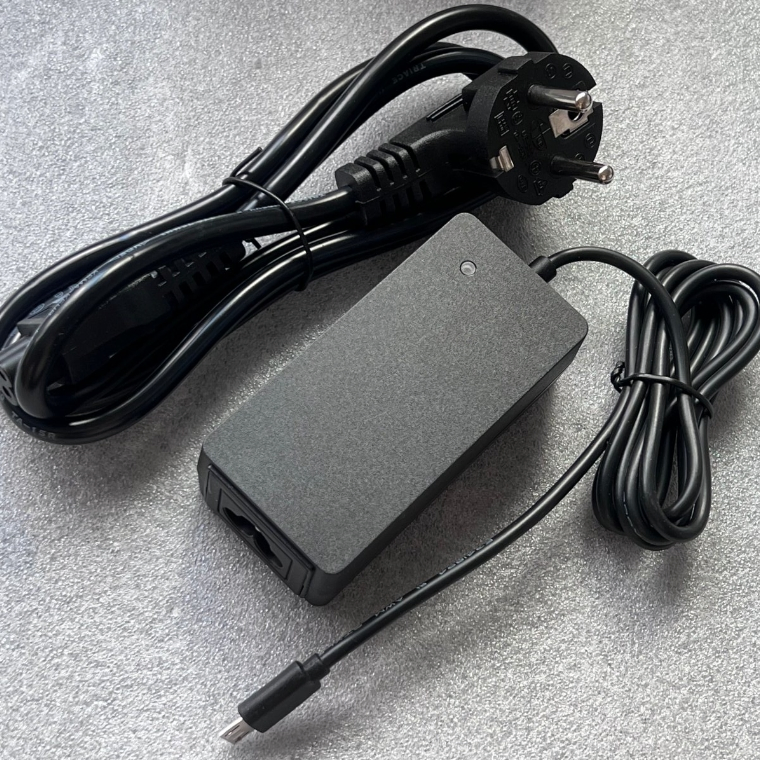

Jjy050030 Desktop 5V 3A AC DC Power Adapter with Micro USB Connector
Jjy050030 Desktop 5V 3A AC DC Power Adapter with Micro USB Connector
Jjy050030 Desktop 5V 3A AC DC Power Adapter with Micro USB Connector
Jjy050030 Desktop 5V 3A AC DC Power Adapter with Micro USB Connector
Jjy050030 Desktop 5V 3A AC DC Power Adapter with Micro USB Connector
1 / 5
Jjy050030 Desktop 5V 3A AC DC Power Adapter with Micro USB Connector
Jjy050030 Desktop 5V 3A AC DC Power Adapter with Micro USB Connector
Jjy050030 Desktop 5V 3A AC DC Power Adapter with Micro USB Connector
Jjy050030 Desktop 5V 3A AC DC Power Adapter with Micro USB Connector
Jjy050030 Desktop 5V 3A AC DC Power Adapter with Micro USB Connector

Jjy050030 Desktop 5V 3A AC DC Power Adapter with Micro USB Connector

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📋 Overview & Basic Info
Model NO.
JJY050030
Certification
RoHS, CE FCC Ukca
Output Voltage
5V
Output Current
3A
Connection
Desktop
DC Jack
Micro USB
Material
ABS (Black)
Warranty
2 Years
JJY050030 Desktop 5V 3A AC DC Power Adapter With Micro USB Connector
⚙ Product Parameters
Input Volt. & Freq. 100~240VAC & 50-60Hz Typ. (90~264VAC & 47~63Hz Range)
Energy Level 85% MIN
Withstanding Voltage 3000VAC 1 Minute 10mA Max (Between Pri. and Sec.)
Output Specs 5VDC / 3A (15W Max.)
Ripple & Noise <120mVp-p
Reliability (MTBF) Over 100K Hours Full Load @ 25ºC
Operating Temp. -10 ~ 40ºC
Safety Standard CE ROHS FCC UKCA
📷 Detailed Photos
Power Adapter Detail 1
Power Adapter Detail 2

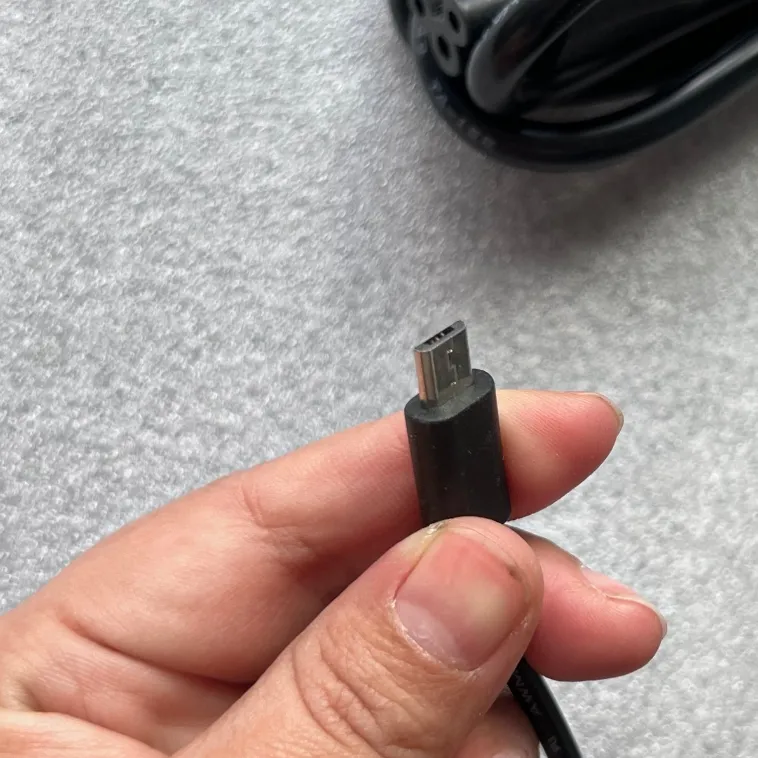

Power Adapter Detail 3

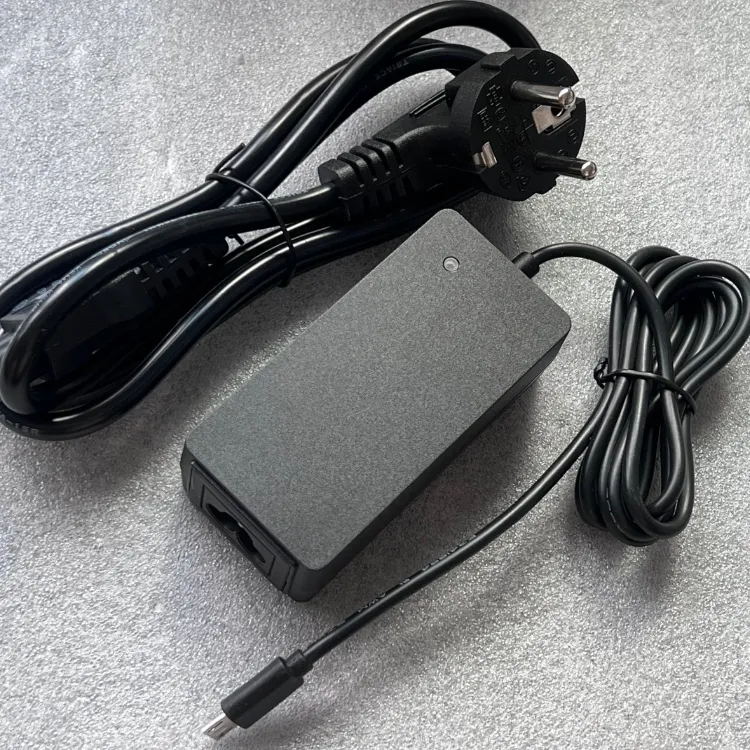

Power Adapter Detail 4
Power Adapter Detail 5
❓ Frequently Asked Questions
Q1: What is the output capacity of this adapter?
The JJY050030 power adapter provides a stable 5V DC output with a maximum current of 3A, totaling 15W of power.
Q2: What certifications does this power supply have?
This model is fully certified with RoHS, CE, FCC, and UKCA standards, ensuring safety and environmental compliance.
Q3: What type of protection does it include?
It includes multiple protection protocols, including OVP (Over Voltage), OCP (Over Current), OTP (Over Temperature), and SCP (Short Circuit Protection).
Q4: Can it be used internationally?
Yes, it supports a wide input voltage range of 100~240VAC and 50-60Hz, making it compatible with global power grids.
Q5: What is the warranty period for this product?
This power adapter comes with a 2-year warranty from the date of purchase.
Q6: What connector type does it use?
It features a standard Micro USB connector, making it suitable for a wide range of electronic products and OEM applications.
