Overview
Model NO.:AC PCS
Condition:New
Certification:CE
Rated Voltage:450V
Power Factor:> 0.99
Cooling Method:Intelligent Air Cooling
Origin:China
Working Temp:-40℃~+60℃
Product Description

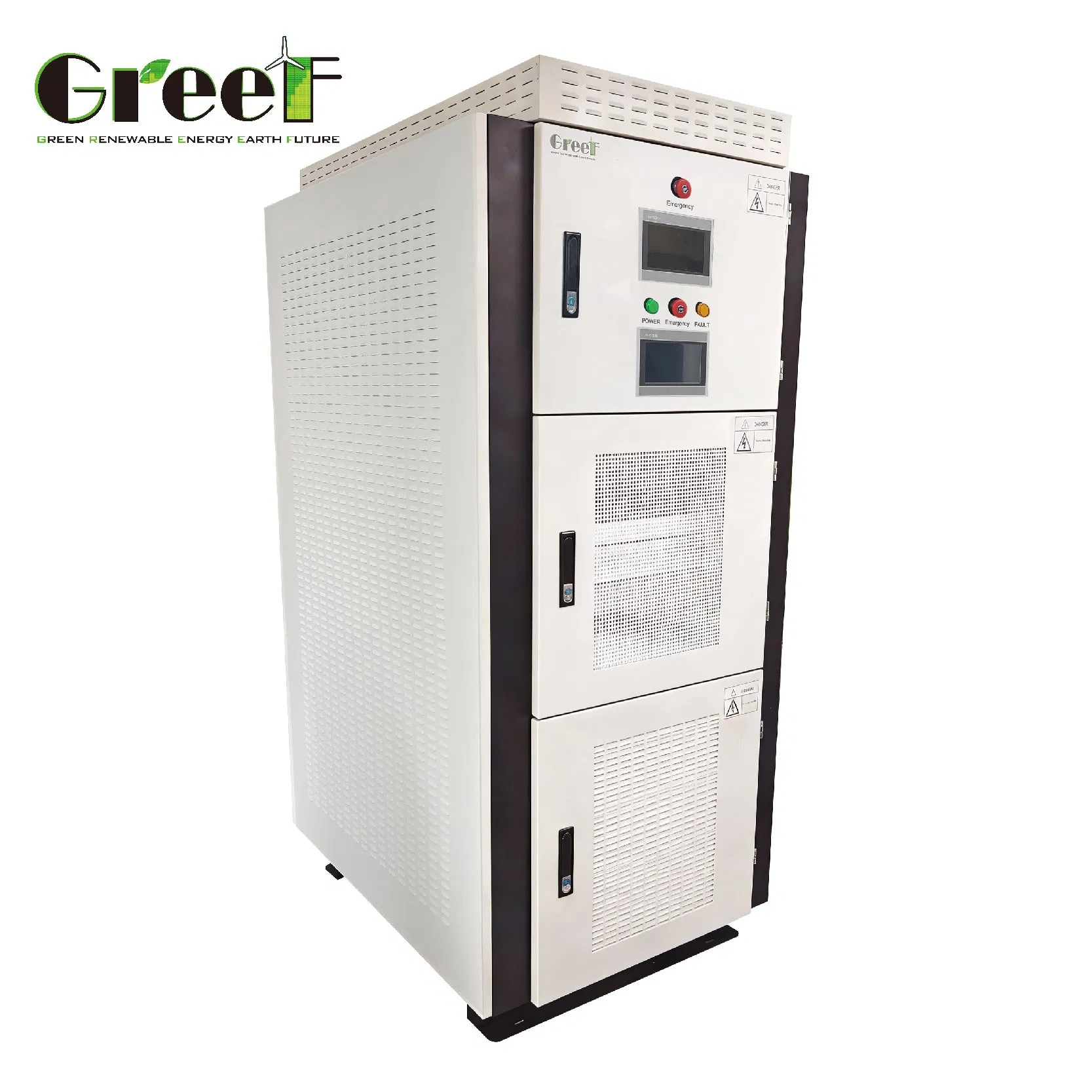

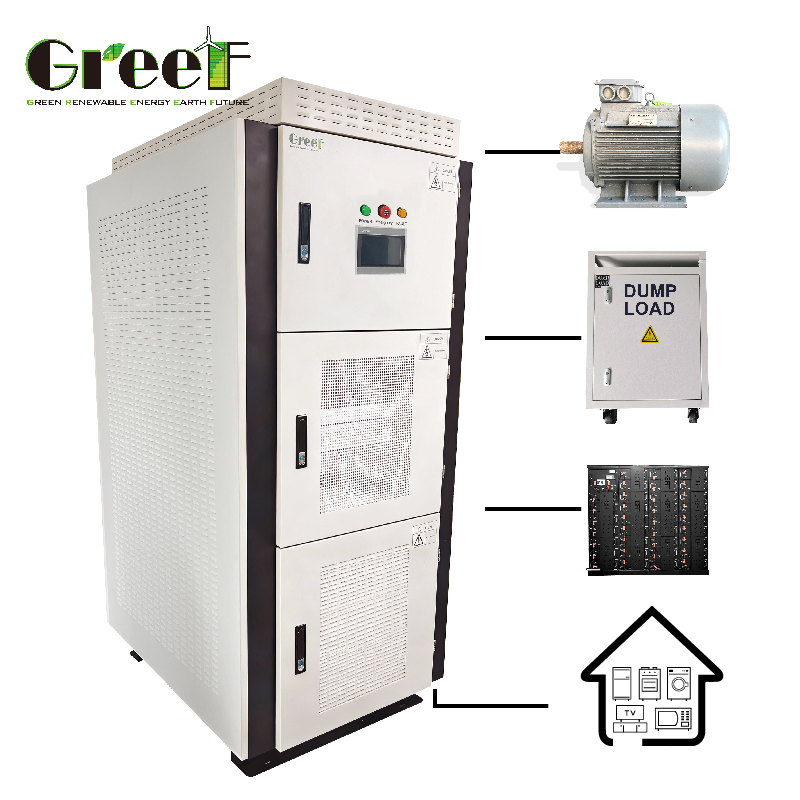

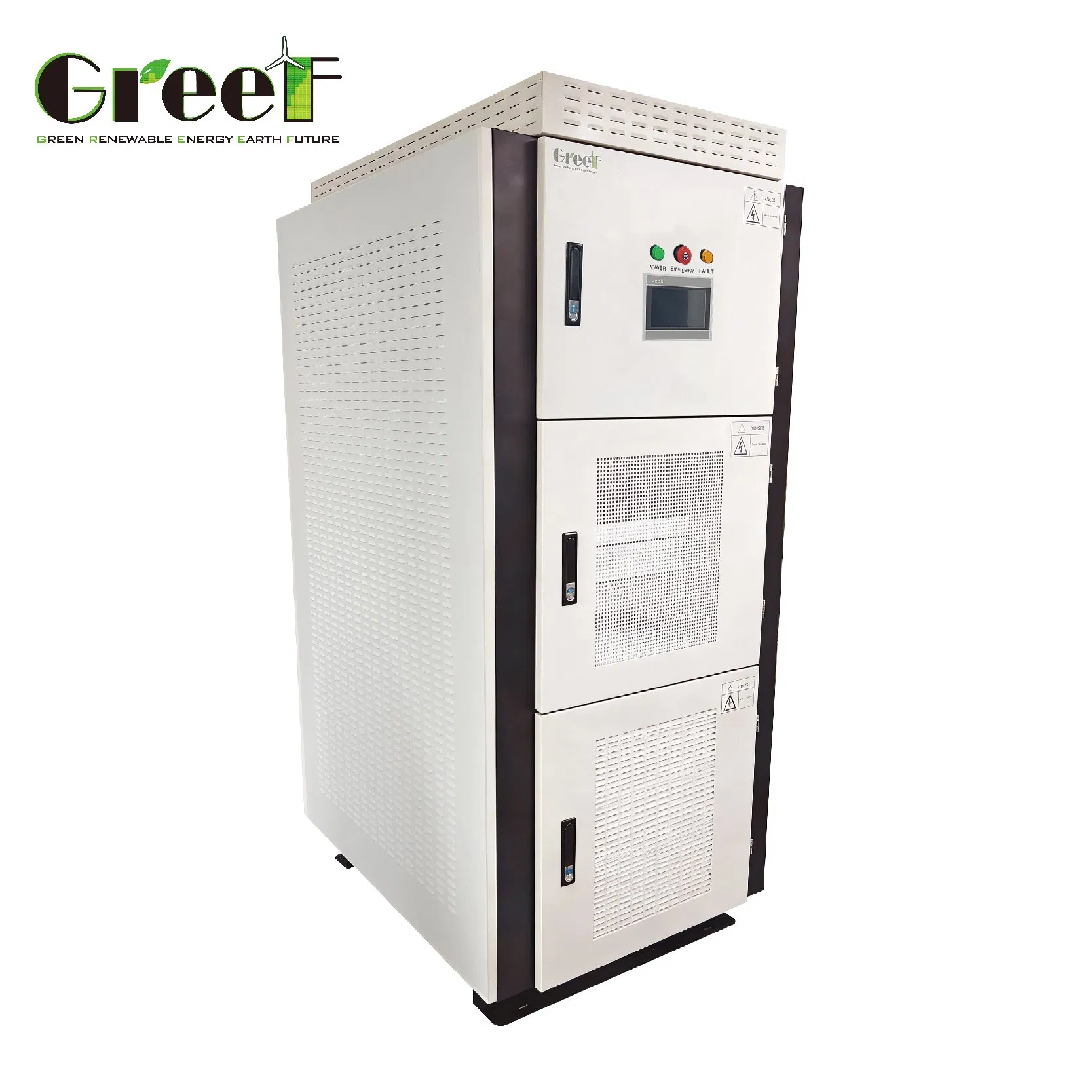

GREEF ENERGY multi-functional converter integrates the capabilities of AC-to-DC rectification for PM generators, battery charging, DC-to-AC inversion, and an energy management system. Featuring a configurable dual LCD touchscreen, it utilizes advanced converter technology to achieve stable voltage/frequency control for PMSGs, ensuring seamless Load power supply. It can also be configured to switch to a grid-tied mode for operation and grid charging.
Product Features
EMS smart energy management system
Multiple configurable operating modes: off-grid, grid-tied, and grid charging
Double LCD smart touch Screen Display
Generator power curve tracking technology
AC/DC dual backup for auxiliary power supply
Control Technology for Unbalanced Loads
Standard RS 485 modbus RTU protocol
WIFI/ LAN Remote monitoring (optional)
Product Parameter
| Model |
ACPCS-100kt |
ACPCS-150kt |
ACPCS-200kt |
ACPCS-300kt |
ACPCS-500kt |
| Rated power(kW) | 100 | 150 | 200 | 300 | 500 |
| Rated voltage(Vac) | ≥240 |
| AC voltage range(Vac) | 150~550 |
| Battery type | Lithium-ion |
| Rated voltage(Vdc) | 400-900 (Customizable) |
| Grid Voltage(V) | 400 |
| Power Factor | >0.99 |
| Max Efficiency | 95% |
| Protection Level | IP20 |

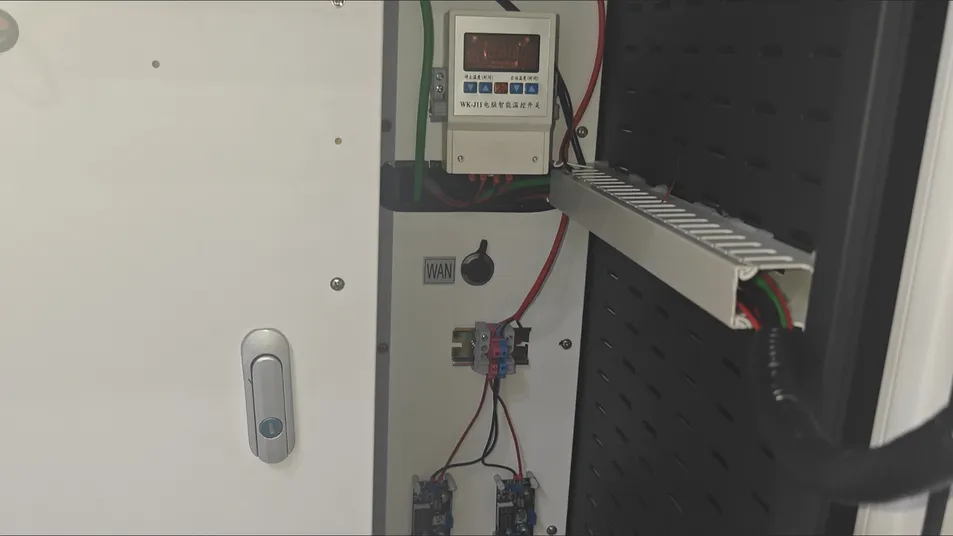

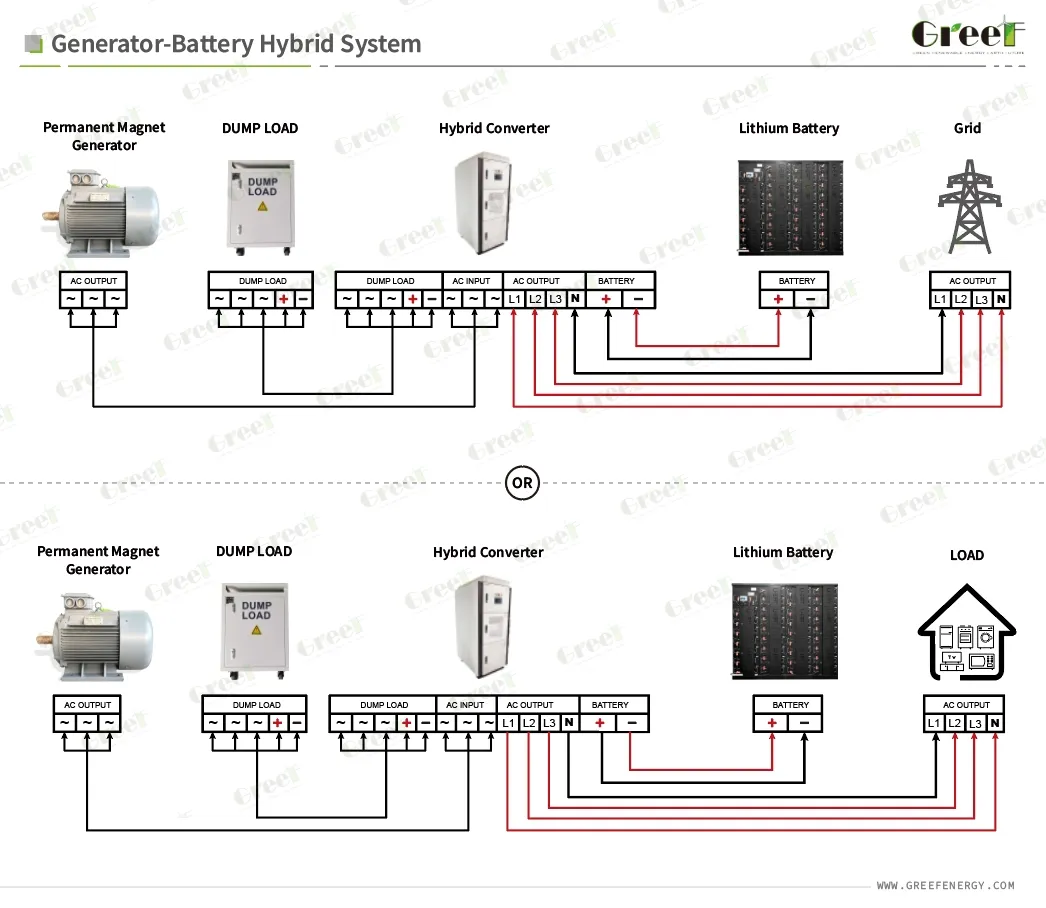

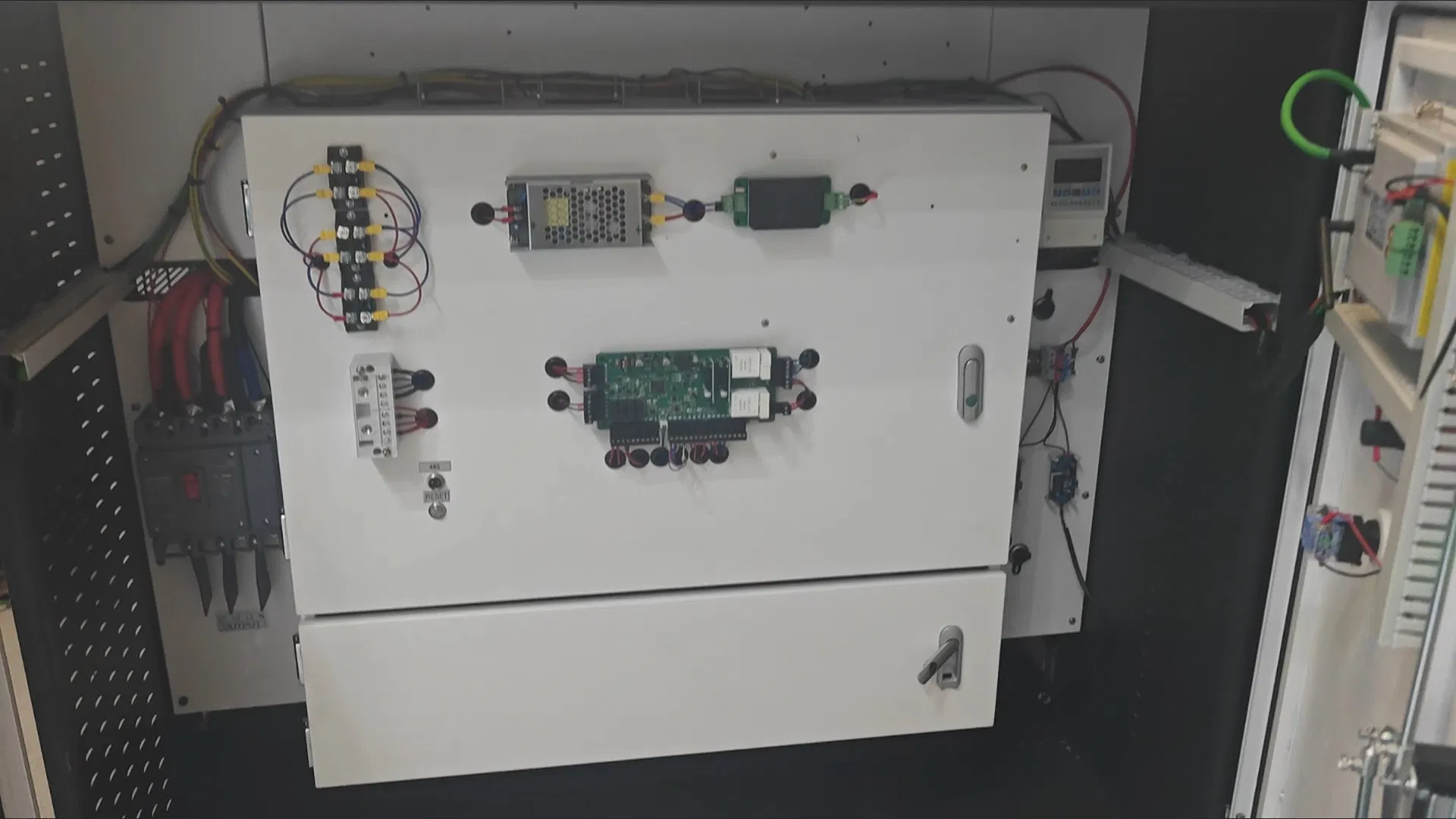

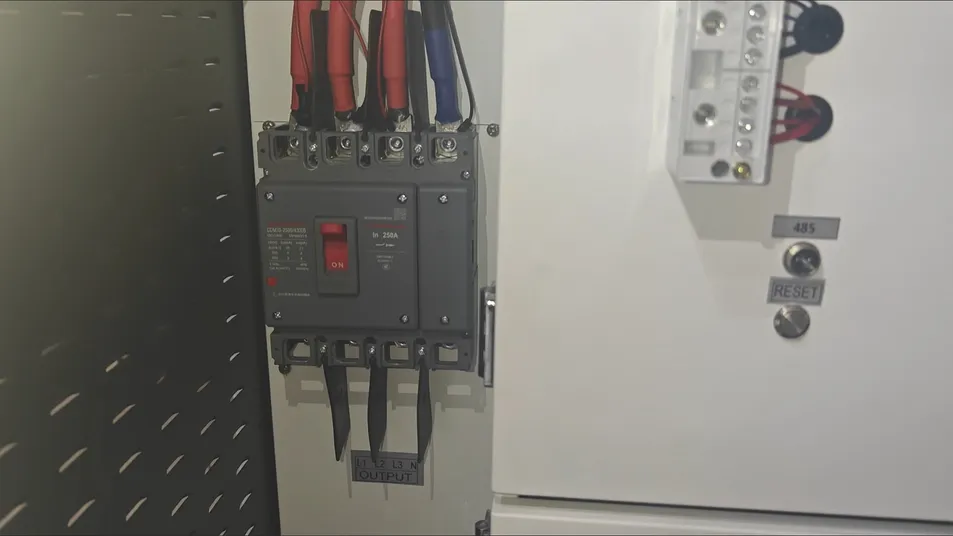

Product Detail & Solutions
Packaging & Shipping
Package Size:130x100x130 cm
Gross Weight:460.00kg
Frequently Asked Questions
Q1: What are the main functions of this hybrid converter?
It integrates AC-to-DC rectification, battery charging, DC-to-AC inversion, and a smart Energy Management System (EMS).
Q2: Can this system handle unbalanced loads?
Yes, it features advanced control technology specifically designed to manage unbalanced loads effectively.
Q3: How can I monitor the system remotely?
Remote monitoring and control are available through optional WIFI or LAN connections with a dedicated app.
Q4: What types of batteries are compatible?
The system is optimized for Lithium-ion batteries with customizable voltage ranges from 400V to 900V.
Q5: What protective features are included?
Standard protections include AC short-circuit, overcurrent, level 2 surge protection, and optional over-voltage/speed protection.
Q6: What cooling method does the converter use?
It utilizes an intelligent air cooling system to maintain optimal operating temperatures between -40℃ and +60℃.
