High Reliability 12V 2A/ 24V 1A/ 36V 0.67A/ 48V 0.5A Option AC DC Power Adapter Interchangeable AC Plug UL CE Ukca Rcm Listed IEC/En/UL 62368

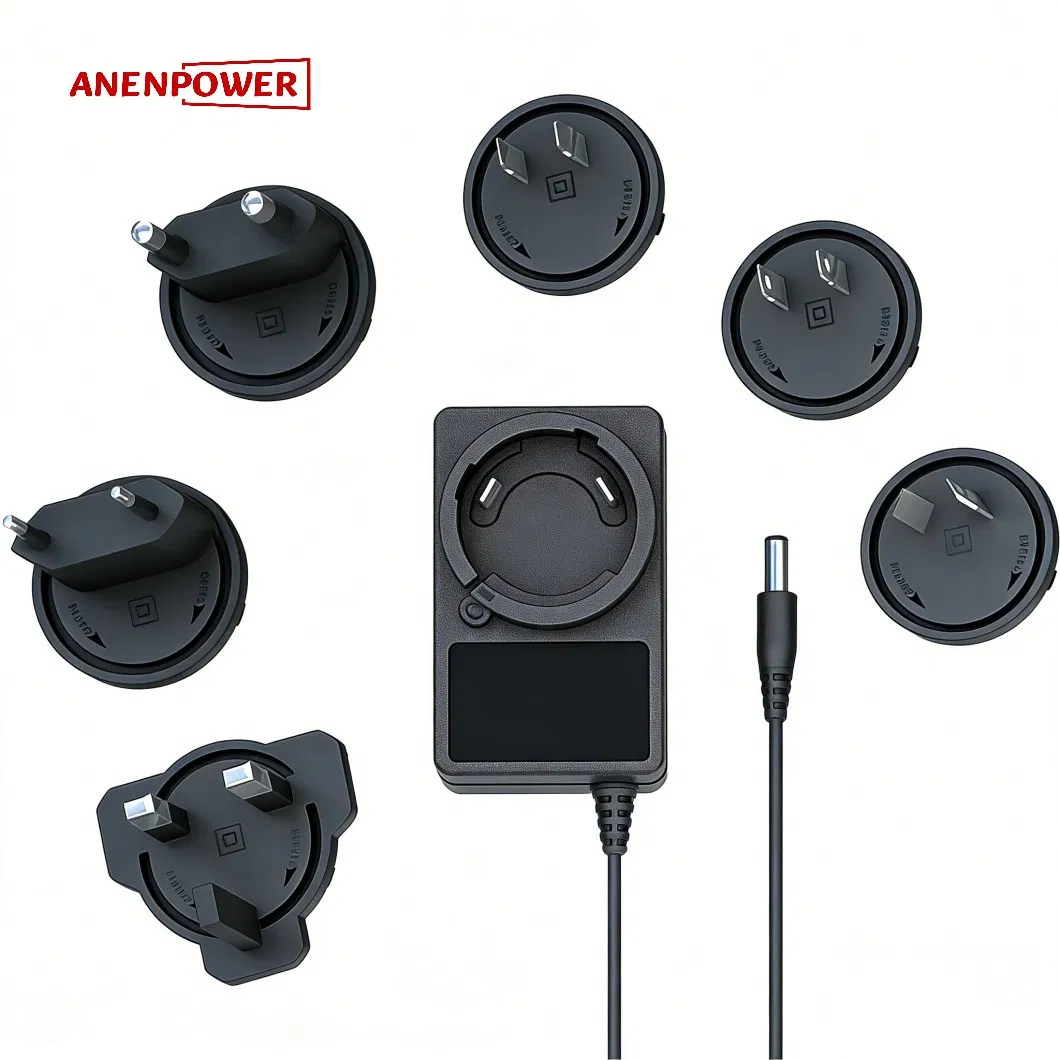

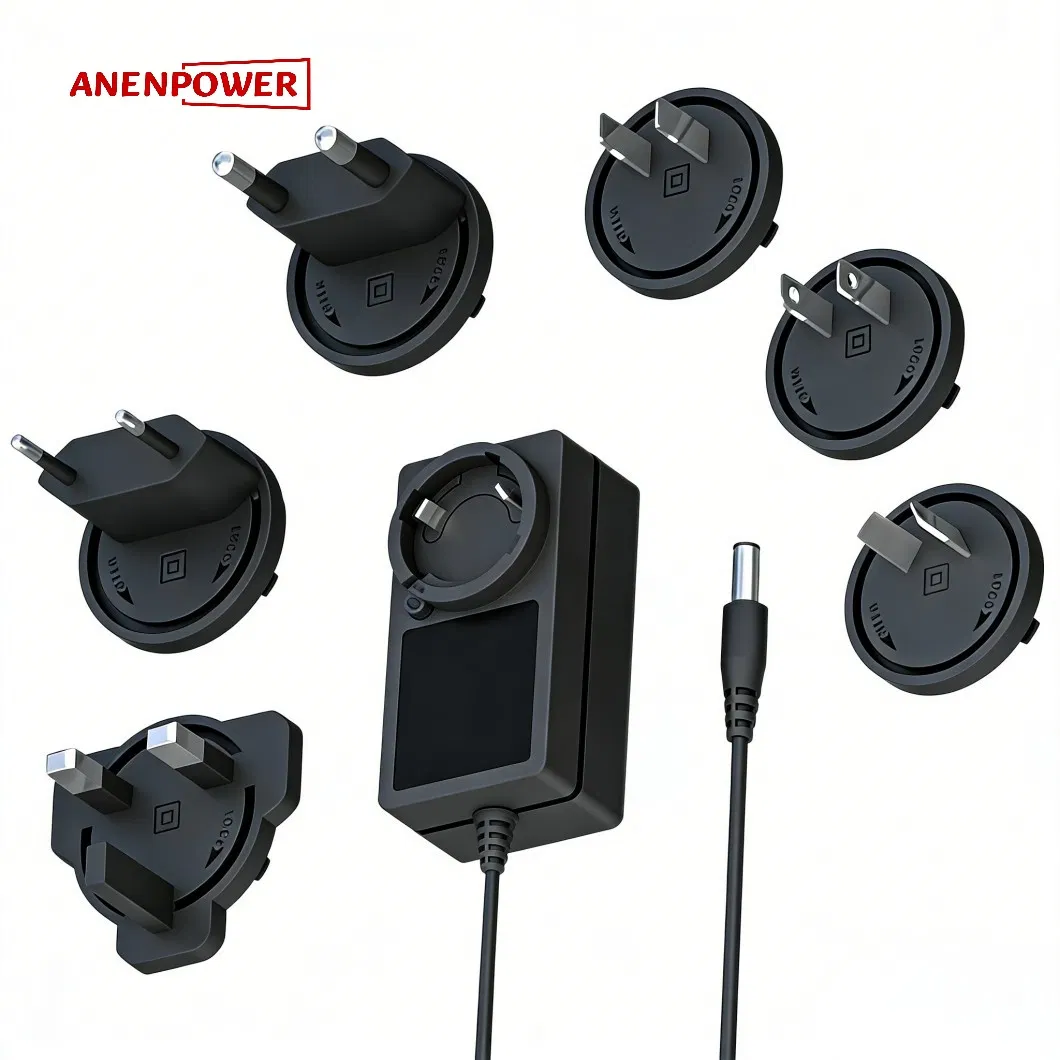

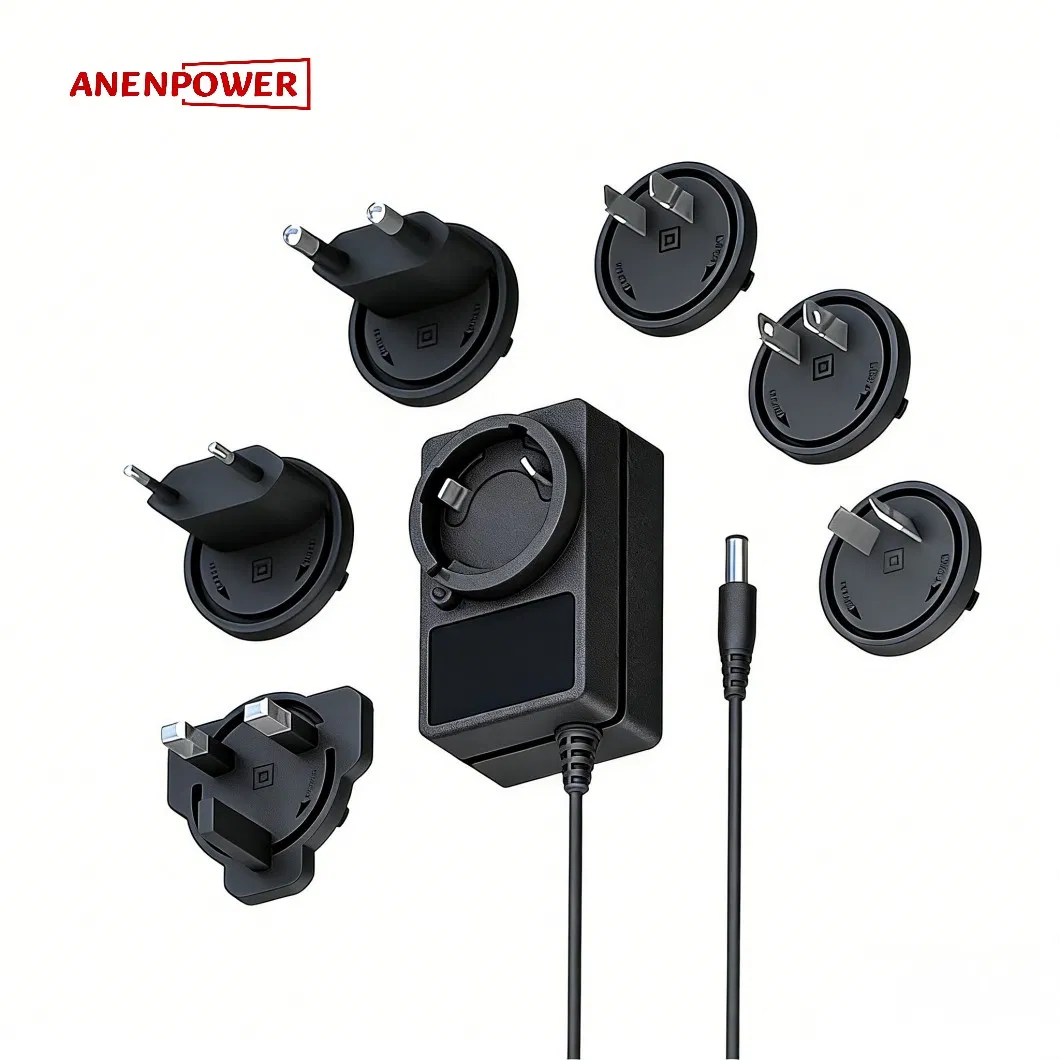

This 24W wall-mount AC-DC power adapter is engineered for high reliability in demanding commercial and industrial environments. It features a true interchangeable AC plug head system, allowing field replacement of the plug module for compatibility with US, EU, UK, and AU outlets.
Available Factory-Configured Output Options:
Built to meet IEC/EN/UL 62368-1:2014, it incorporates robust protections: short-circuit (auto-recovery), over-current, over-voltage, and over-temperature. The Class II double-insulated design requires no earth connection. Premium components ensure stable operation under 24/7 load conditions.
| Model NO. | Max Power | Voltage | Max Load | Load Reg. | Ripple & Noise |
|---|---|---|---|---|---|
| APS024HA | 20W | 5V | 3.0A | ±5% | 100mV |
| APS024HC | 18W | 12V | 1.5A | ±5% | 100mV |
| APS024HD | 24W | 12V | 2.0A | ±5% | 100mV |
| APS024HG | 24W | 24V | 1.0A | ±5% | 100mV |
| APS024HJ | 24W | 48V | 0.5A | ±5% | 100mV |
🚀 24-Month Warranty: Comprehensive coverage for materials and workmanship.
🔄 30-Day Return/Exchange: For unused products in original packaging.
🛠️ Technical Support: Free consultation for installation and troubleshooting.
A: No. These are single-output adapters where the voltage is fixed during manufacturing and is not user-selectable or field-adjustable.
A: Yes, it features an interchangeable system compatible with US, EU, UK, and AU prong modules for global use.
A: The adapter is UL listed, CE marked, UKCA marked, and RCM registered, complying with IEC/EN/UL 62368-1 standards.
A: Yes, it is built with premium 105°C-rated capacitors and high-efficiency controllers specifically for round-the-clock reliability.
A: We offer a 24-month warranty covering defects in materials and workmanship under normal use conditions.
A: The adapter includes robust short-circuit protection with an auto-recovery feature to ensure device safety.
